Celestron CGX-L GoTo equatorial mount – head only, no counterweight

CGX-L Monture Equatoriale

New product

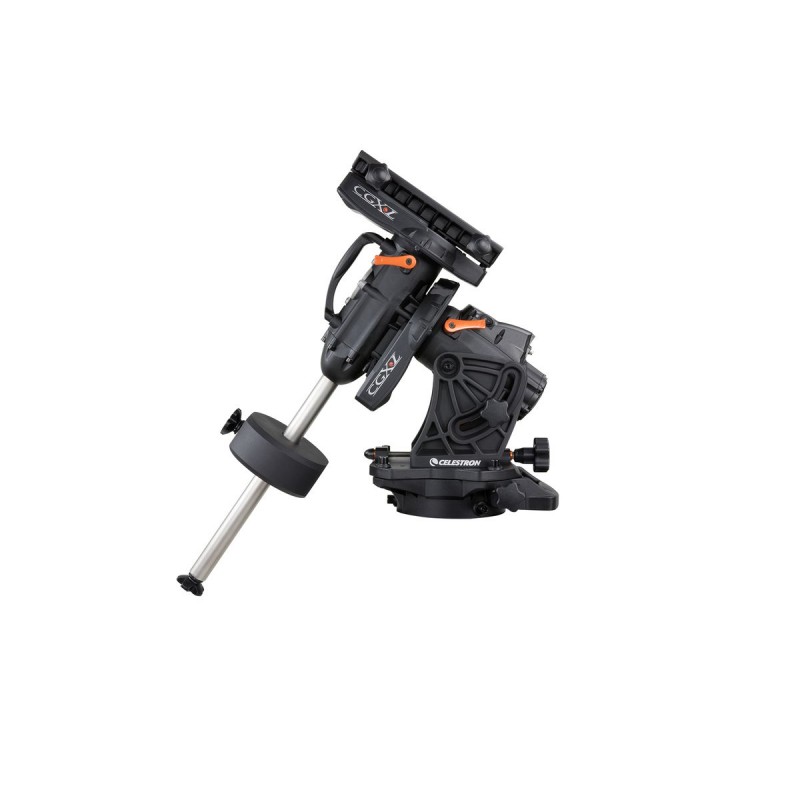

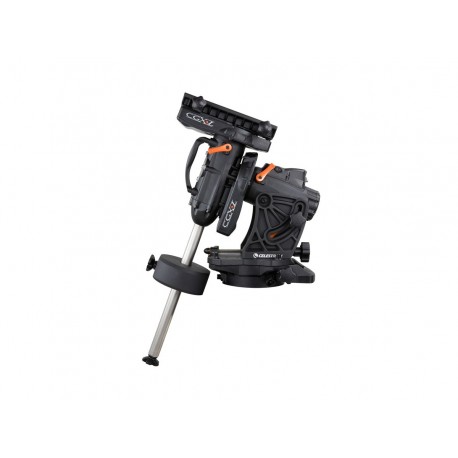

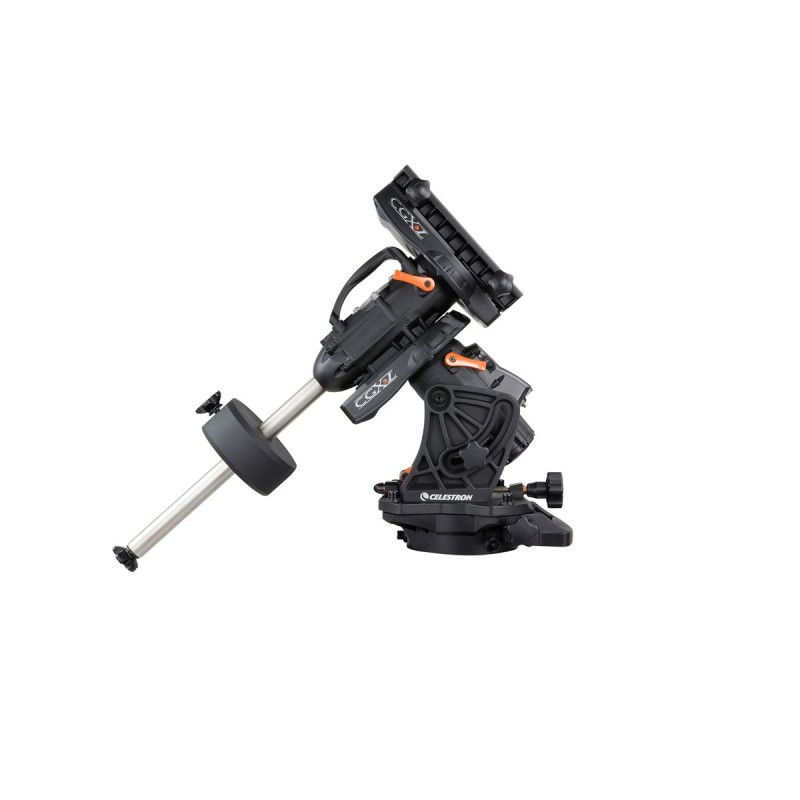

Celestron CGX-L GoTo equatorial mount – head only, no counterweight

The CGX-L is a heavy-duty equatorial mount designed by Celestron for demanding instruments. This version includes only the mount head, without counterweights.

More details

In external stock. Delivery within 2 to 3 days.

3'299.00 CHF tax incl.

More info

Celestron CGX-L GoTo equatorial mount – head only, no counterweight

DESCRIPTION

The CGX-L features a spring-loaded belt drive system, brass worm wheels, and stainless-steel worms to minimize friction and enhance tracking under load. All wiring is internal, keeping ports stationary and reducing the risk of cable snags.

Home position sensors allow repeatable startup regardless of orientation, and limit sensors prevent mechanical collisions. The adjustable head position ensures a balanced center of gravity and supports a wide latitude range from 3° to 65°. The dovetail saddle accepts both Vixen and Losmandy-style bars.

Electronics include a NexStar+ hand controller with USB, dual AUX ports, a USB 2.0 PC interface, autoguider port, and an internal real-time clock. The mount supports PEC, firmware updates, and PC control.

Designed for stability and ease of use, the CGX-L mount suits visual and imaging configurations requiring high load capacity and remote operation.

TECHNICAL SPECIFICATIONS

  • Mount type: German equatorial

  • Max payload: 34 kg (75 lbs)

  • Counterweights: none included

  • Latitude adjustment: 3° to 65°

  • Power input: 12 VDC

  • Dovetail clamp: dual (Vixen / Losmandy)

  • Worm gear: brass

  • Worm: stainless steel

  • Mount head weight: 21.3 kg

  • Counterweight shaft diameter: 31.5 mm

  • DEC gear diameter: 144 mm

  • RA gear diameter: 144 mm

  • Tracking rates: sidereal, solar, lunar

  • Tracking modes: equatorial

  • GoTo function: yes

  • Hand controller: NexStar+ included

  • GPS: optional

  • Firmware upgradeable: yes

  • PEC correction: yes

  • PC interface: USB 2.0

  • Polar scope: not included

  • Bubble level: yes

  • PC control: supported

  • Total weight with tripod: 44.9 kg

  • Series: CGX-L
