M-ZERO LHQ Wi-Fi

Avalon AV-1MZR005

New product

M-ZERO LHQ Wi-Fi

More details

Subject to availability at the supplier. Please contact us for more information.

4'449.00 CHF tax incl.

More info

M-ZERO LHQ Wi-Fi

Description

m zero low lat gif 1sec

Zero degrees, zero limits! Light, strong and smart as well as the M-zero standard versions, being suitable for very low latitude areas till 0°, it is the perfect instrument for the travelling astronomy.

From 0° till 70° mount

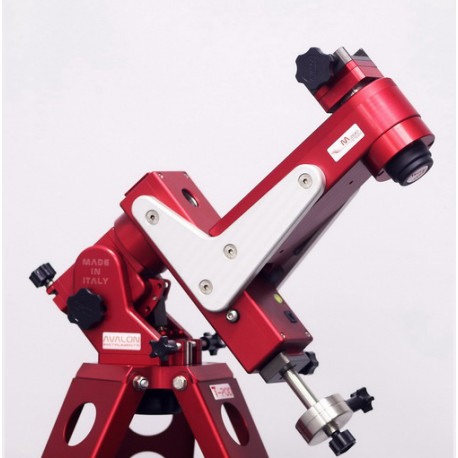

Avalon Instruments introduce the M-zero for low latitude areas till 0°. Light weight, small dimensions the M-zero LHQ comes with four range degrees available:

    1 -  0° - 15°
    2 - 15° - 45°
    3 - 30° - 55°
    4 - 55° - 70°

The M-zero LHQ is the perfect mount for low latitude area and travelling astronomy.

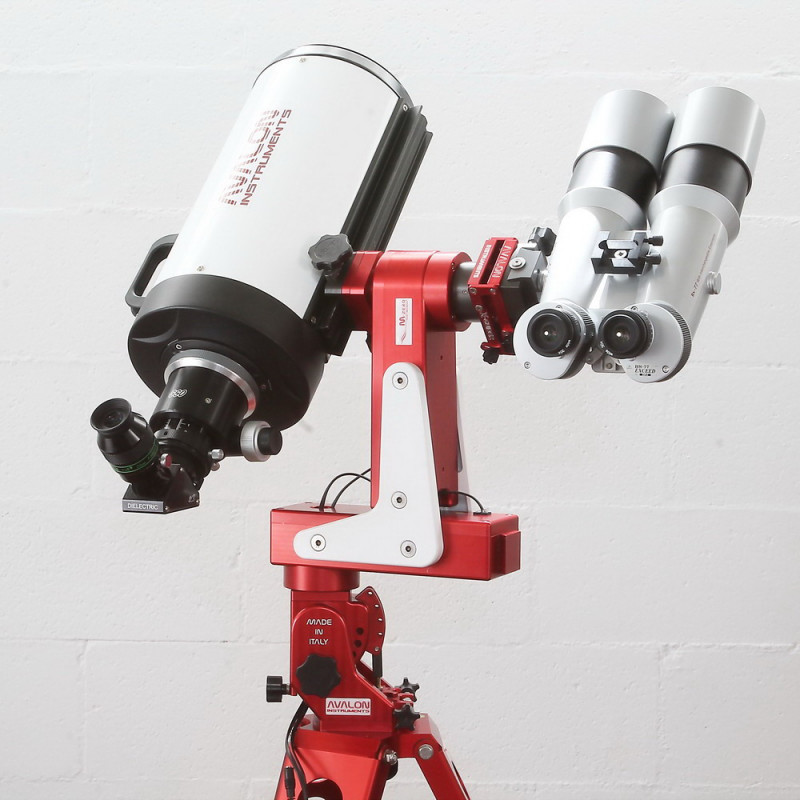

NOTE: The Alt/az configuration is not available in the M-zero LHQ  mount.

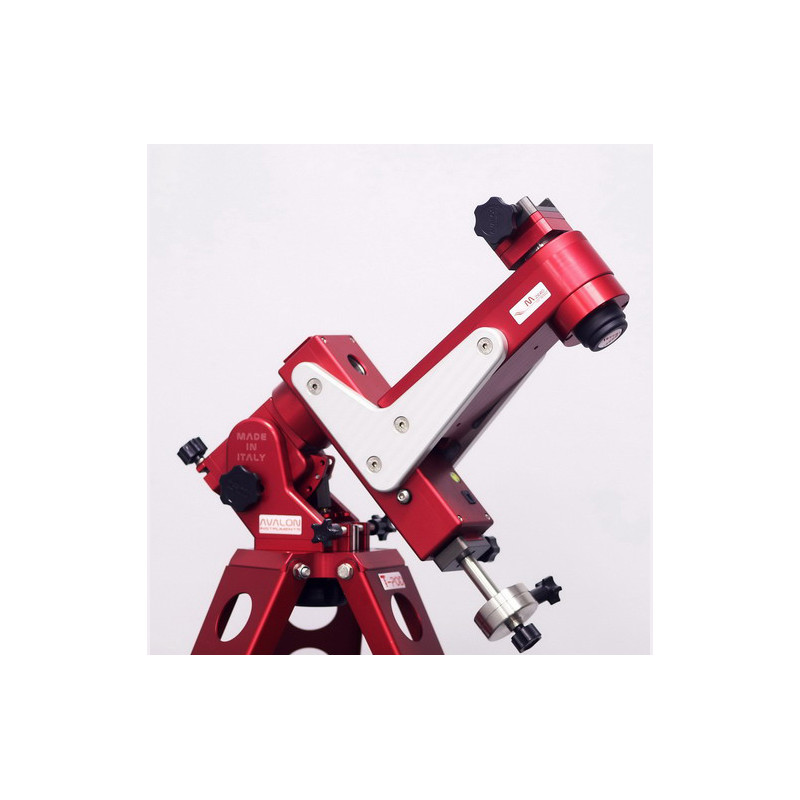

6 dec arm positions on the RA axis available

As well as the M-zero standard versions, the M-zero LHQ allow to move the DEC arm up and down on the RA axis in 6 different positions on depending on the user setup, to allow a fine balancing by using the less counterweight possible, in most cases, with less than 1 kg/2.2 lb counterweight.

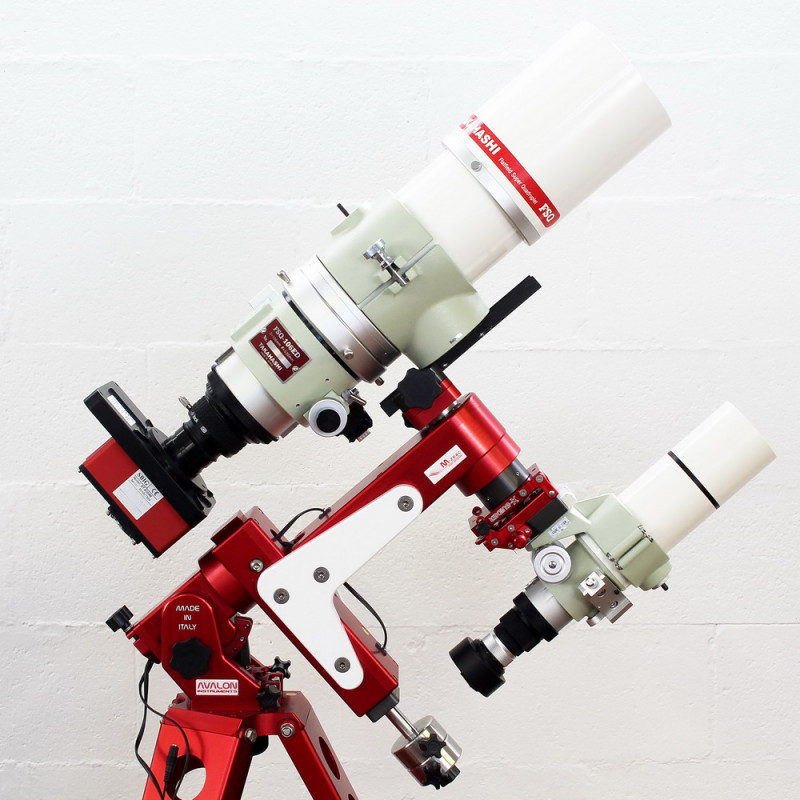

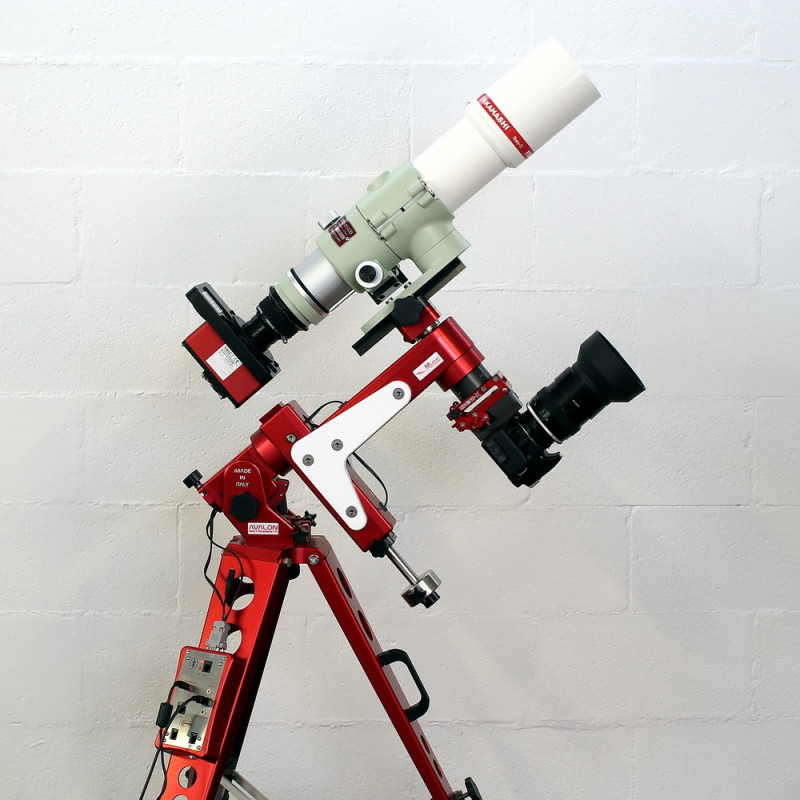

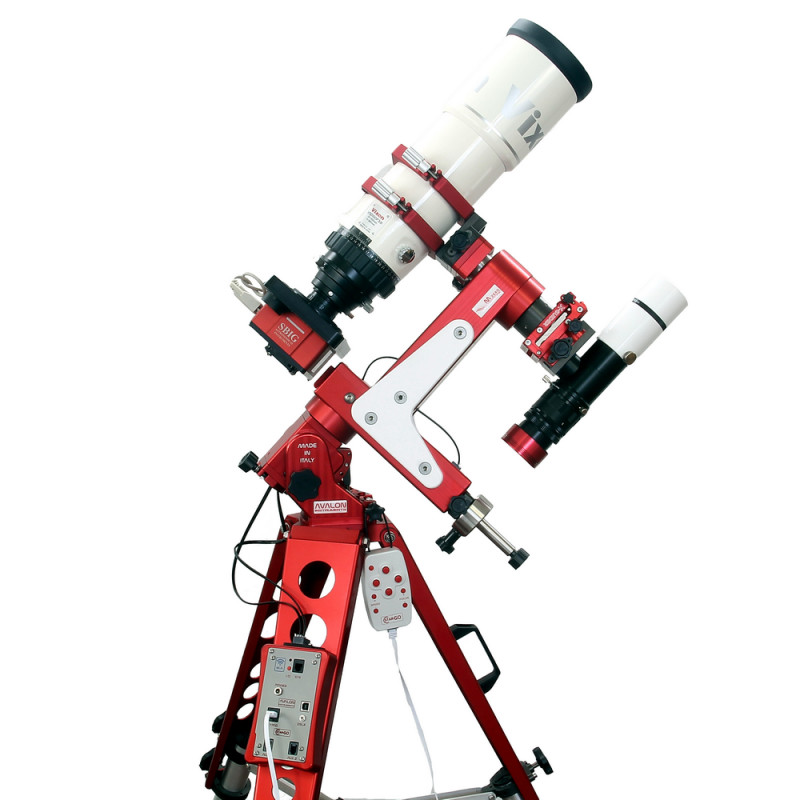

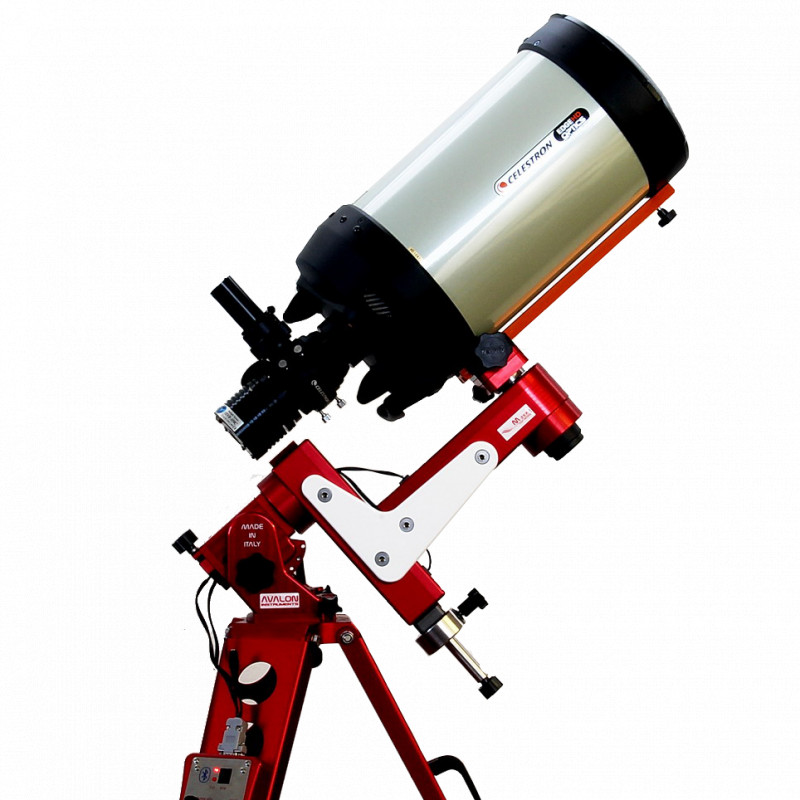

Double Telescope Setup

Thanks to the Dual-DEC system or by assembling the optional X-guider accessory, it is possible to mount a second telescope in the opposite side of the declination axis. Considering this capability it is possible to use a great range of optics starting from a small (4-5 kg/8.8-11 lb) refractor up to a double setup with a total weight of 12-13 kg/26.4-28.6 lb, obtaining performances so good to get it over the need of a bigger mount.

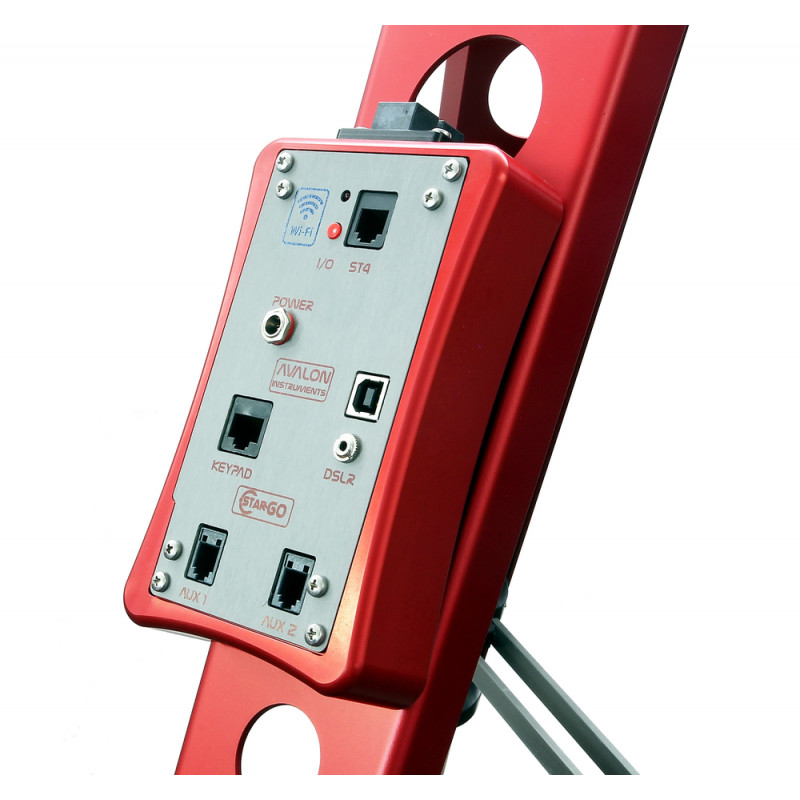

Thanks to StarGO GoToControl System the M-Zero can be controlled by smartphone and tablet via Bluetooth or WiFi connection.

Zero Maintenance

The virtually zero maintenance, the long lasting materials used and the possibility to easily update the StarGO firmware and software allow the M-zero to be always ready to use, up to date, competitive and extremely reliable!

Light and Strong

Made entirely from anodized aluminum, worked using 5 axes CNC machines.
The mount weights only 10 kg/22 lb and, combined with the new T-Pod 90 tripod, reaches a total weight of 16 kg/26 lb.

Technology and Innovation

The top quality manufacturing level, the Fast-Reverse Belt Drive System with zero backlash and the StarGO GoTo control system allow excellent performance in the photographic use, with guided long exposure images (see our suggested PHD2 guide parameters table), even while using very long focal length telescopes.
THE POLAR ALIGNMENT can be performed by using the polar scope mounted on the RA body that can be rotated to the upper position for a comfortable adjustment of the Polar Alignment.
The standard kit for the polar alignment is provided with the following components:
1. Polarscope
2. Support stand provided of scope fixing knobs and dovetail attack with fixing grip knob.
3. Illuminator cap provided of red LED and connection cable to the StarGO.

Technical data

M-zero LQH draw

User Manual

Technical Data
 Type

Equatorial Single-Arm mount

 Weight 10,1 kg/22,2 lb
 Capacity 8 kg/17.6 lb (one telescope) - 13 kg/28.6 lb (double telescopes setup)
Trasmission system
All belts drive system based on four stages reducer. All the movements are on ball bearings. No maintenance and no backlash system. Pulleys made with special polymer fiberglass charged and high precision toothed belts.
Construction Material Anodized aluminium, worked out from single blocks with high precision 5 axis CNC machines
Polar Finder Sky Watcher model
GOTO system StarGO GoTo Control System WiFi version
Counterweight 0.5 kg/1.1 lb
Scope plate Vixen style
Warranty 2 years from the purchase date, extended to 5 years for the transmission system

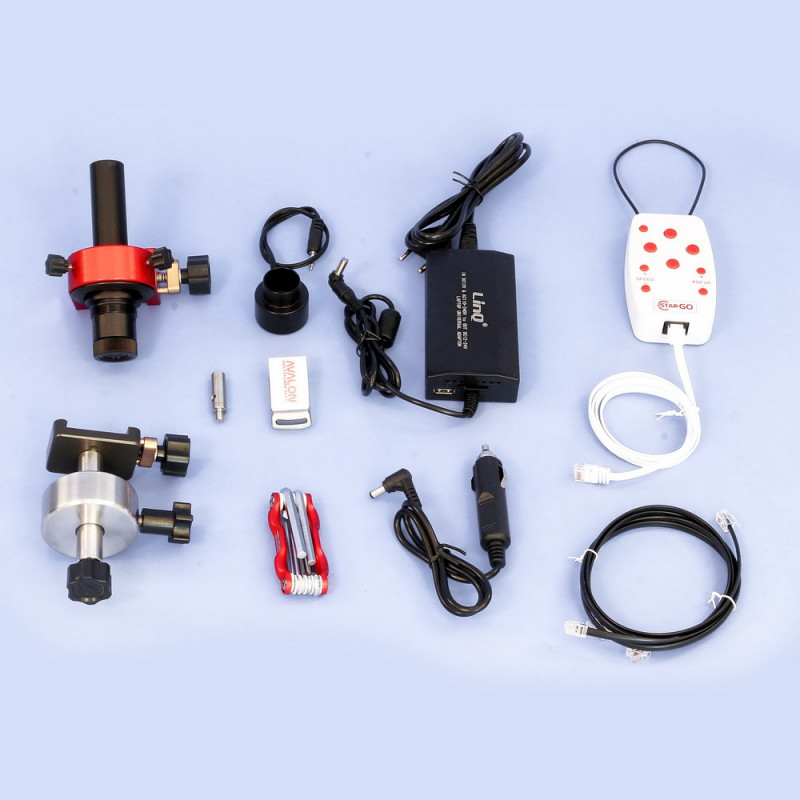

Packing Content

  • Mount Head

  • T-pod 90 (Aluminum tripod)

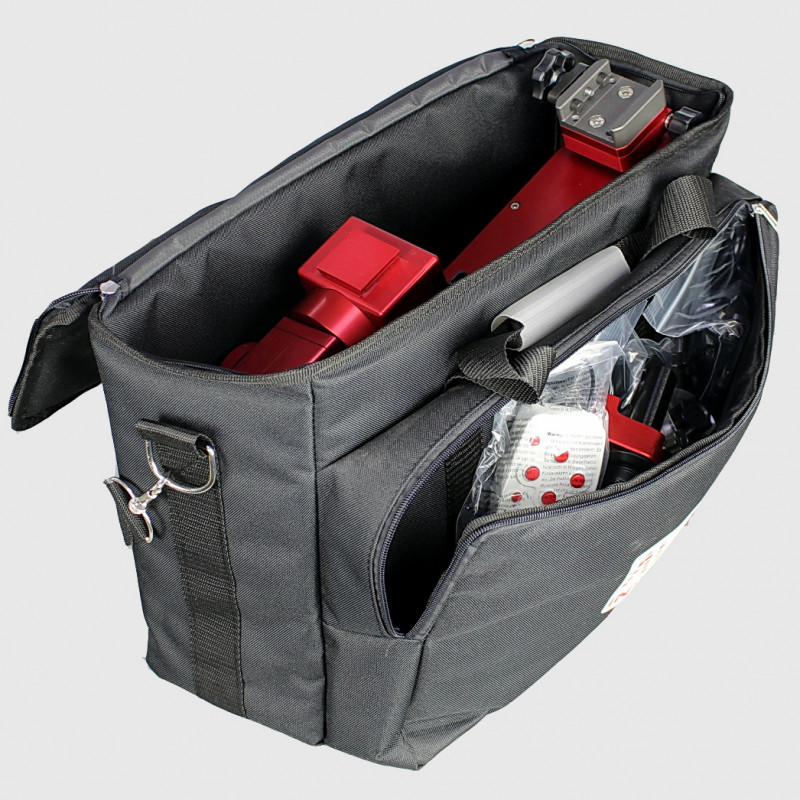

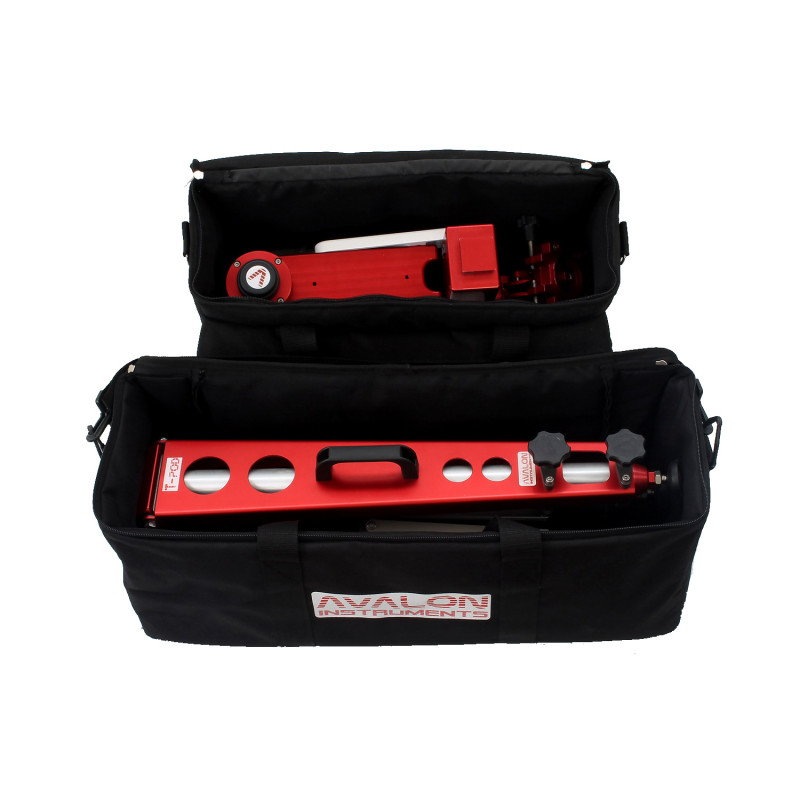

  • Transport bag

  • Counterweight shaft and 0.5 kg Counterweight

  • StarGO Board and Keypad

  • Polar scope with support

  • Power Supply 15V/4 A

  • Warranty, Testing Certificates & Declaration of Conformity

  • Allen wrench

  • Tripod plate and screws for fixing the mount to the tripod

  • USB flash drive with manuals and software

  • Ra/Dec motor cables

  • M-zero Dual Dec adapter
