M-ZERO WIFI, tripod T90. Equatorial/Altazimuth Mount, StarGO WIFI, Dovetail GP" clamp

Avalon AV-1MZR001

New product

M-ZERO WIFI, tripod T90. Equatorial/Altazimuth Mount, StarGO WIFI, Dovetail GP" clamp

More details

Subject to availability at the supplier. Please contact us for more information.

4'317.5 CHF

More info

M-ZERO WIFI, tripod T90. Equatorial/Altazimuth Mount, StarGO WIFI, Dovetail GP" clamp

Description

m-zero-equatorial-mount-6-position

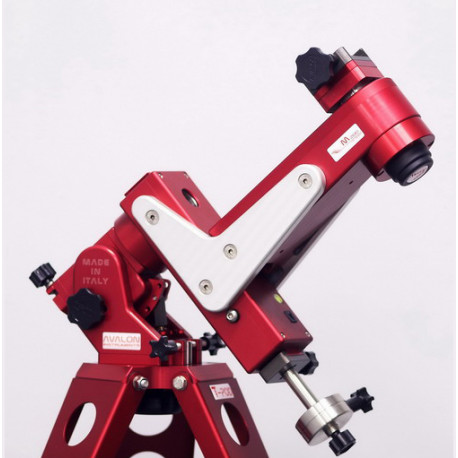

Avalon Instruments introduces M-zero. The new Equatorial & Alt-Az Single-Artelescope mount with Fast-Reverse technology!

Portable Astronomy

The new M-Zero has been designed to revolutionize the world of portable astronomy. The unique and innovative design, the light weight and the small dimensions, the greater versatility and higher quality make it the perfect tool for the traveling astronomy.

Several mounts in one

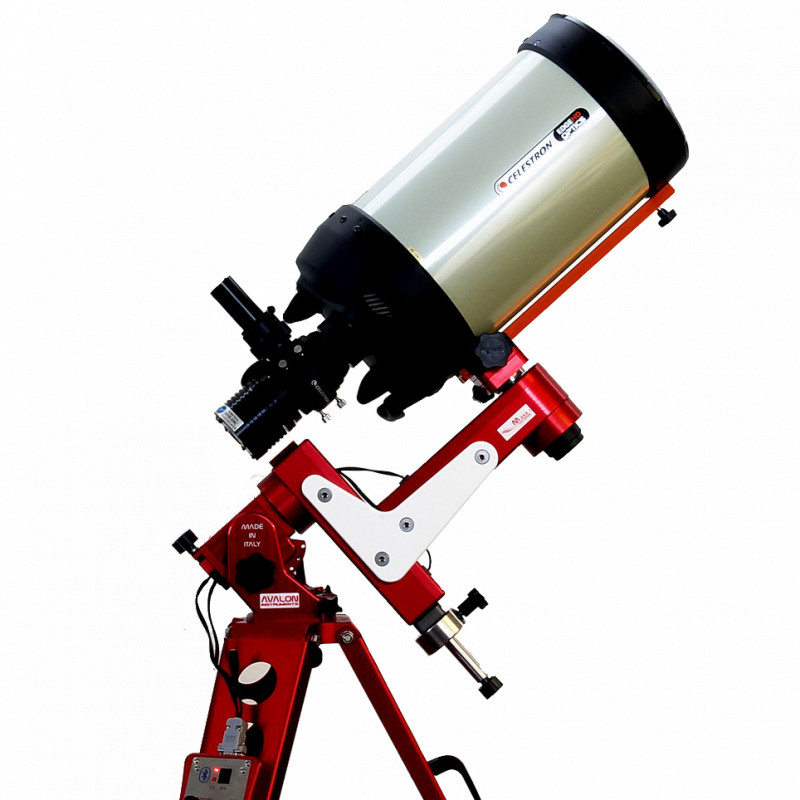

The M-zero is more then one mounts: a Standard Equatorial when used with longer optics, a Single Arm with the great benefit of non requiring meridian flip using compact optics, an Alt-azimuthal mount for visual astronomy and, finally, an excellent time-lapse platform for panoramic photography and video shooting.

Double Telescope Setup

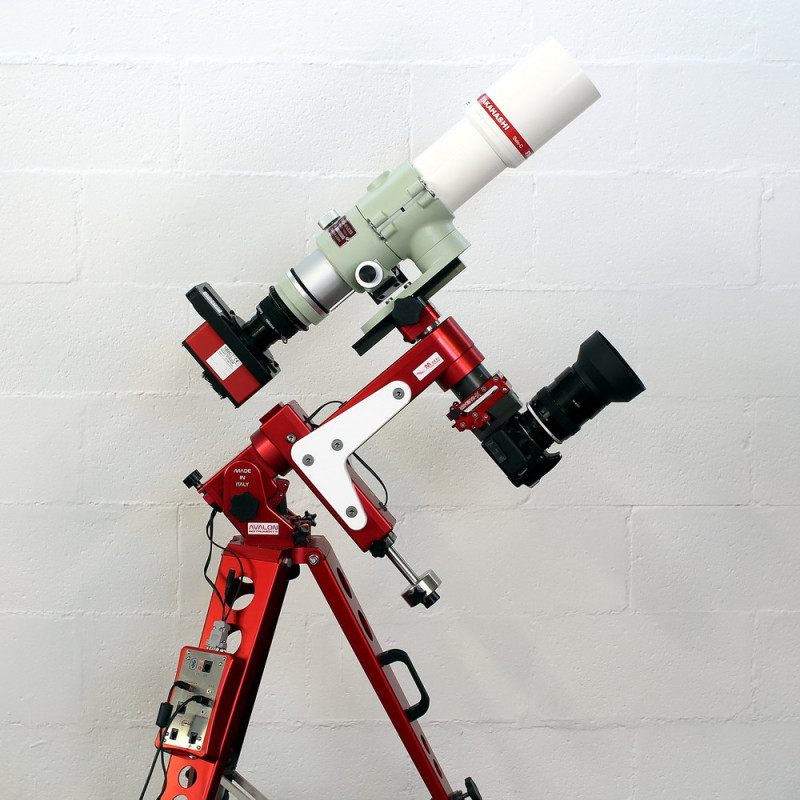

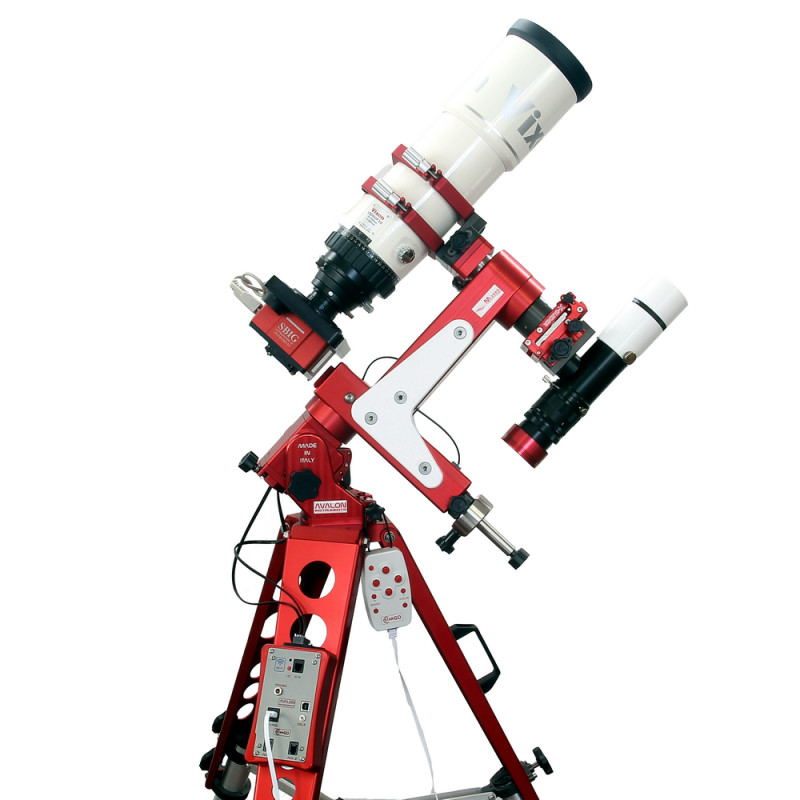

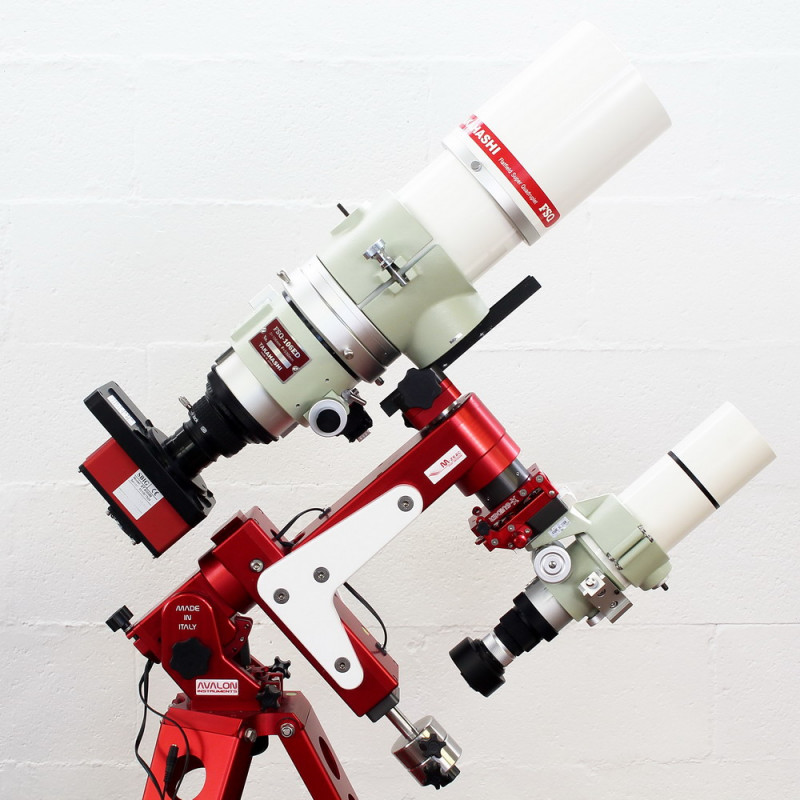

Thanks to the new Dual-DEC system, it is possible to install a second telescope in the opposite side of the declination axis. Considering this capability it is possible to use a great range of optics starting from a small (4-5 kg/8.8-11 lb) refractor up to a double setup with a total weight of 12-13 kg/26.4-28.6 lb, obtaining performances so good to get it over the need of a bigger mount.

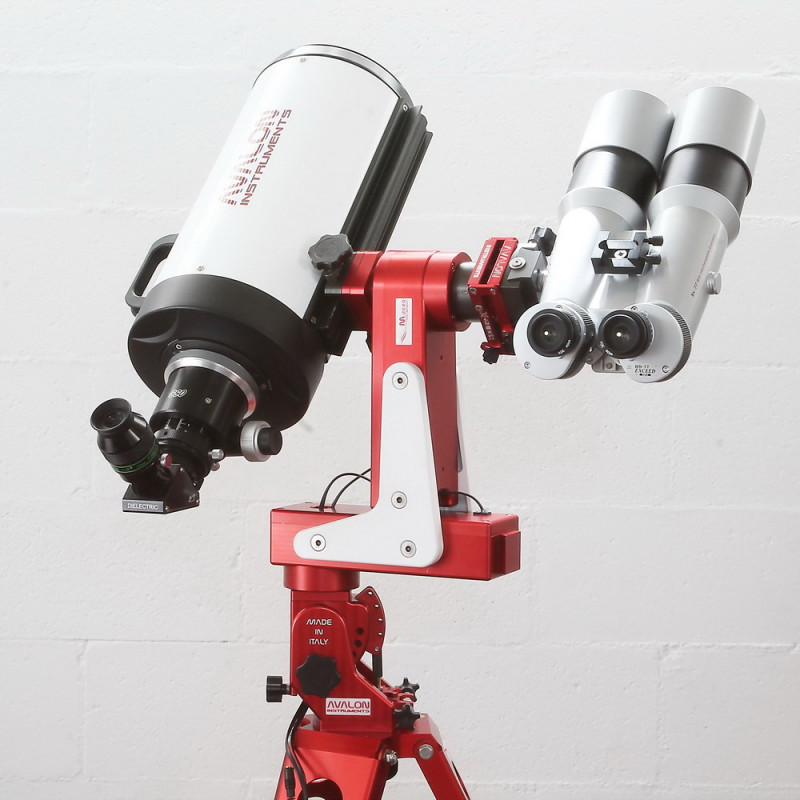

Thanks to StarGO GoToControl System the M-Zero can be controlled by smartphone and tablet via Bluetooth or WiFi connection and can be quickly set in the Alt-azimuthal mode for the visual observation with larger telescopes and binocular or to make panoramic pictures or video sequences with time-lapse features.

Zero Maintenance

The virtually zero maintenance, the long lasting materials used and the possibility to easily update the StarGO firmware and software allow the M-zero to be always ready to use, up to date, competitive and extremely reliable!

Transportability

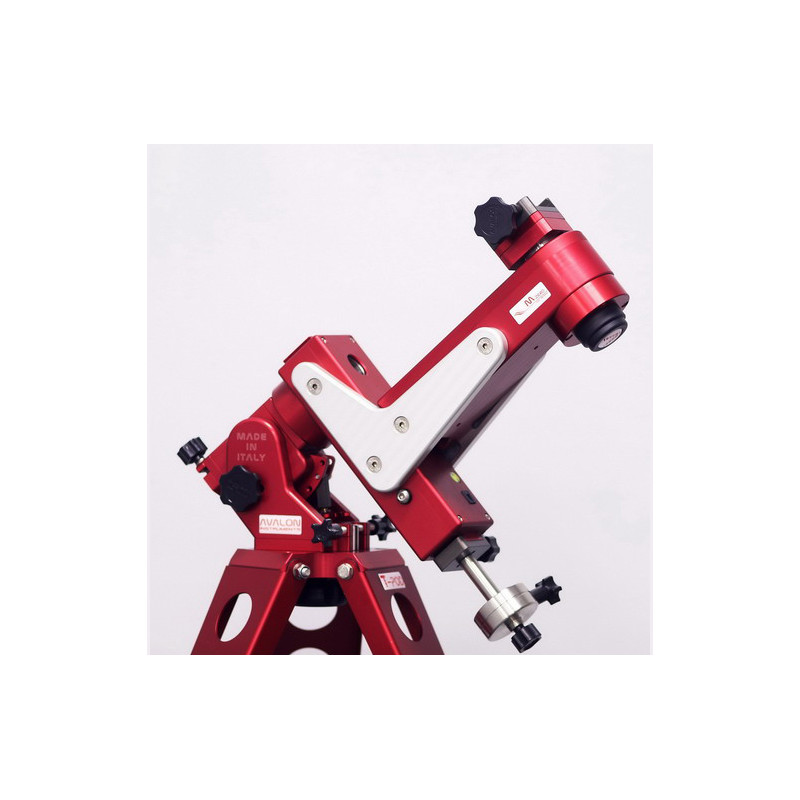

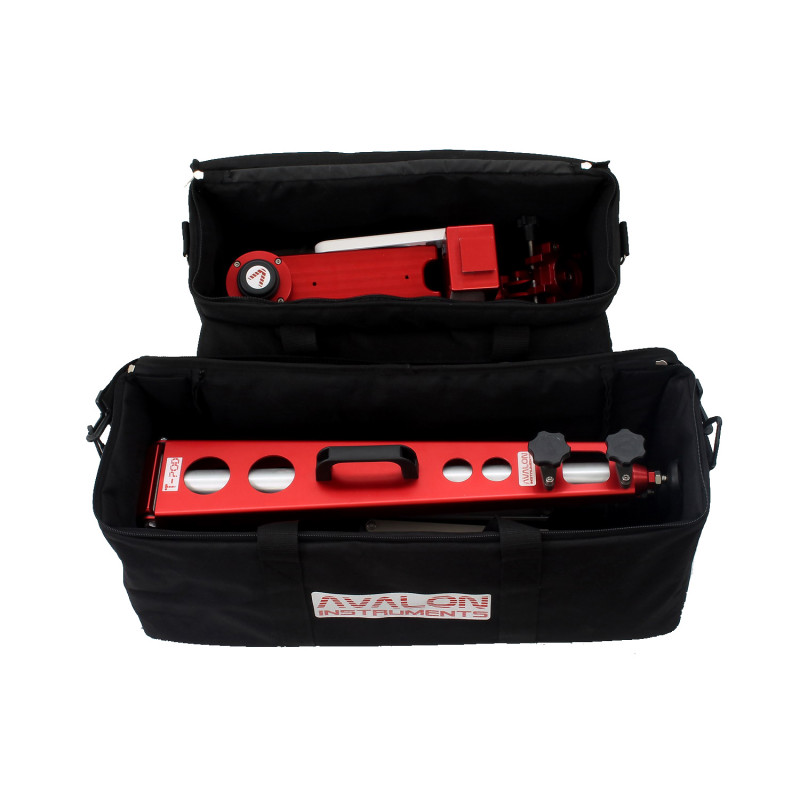

The M-zero can be balanced, in most cases, with less than 1 kg/2.2 lb counterweight due to the possibility of placing the declination arm in different positions relative to the right ascension arm. The M-zero and the T-pod 90, requiring limited room, may be easily arranged inside a medium size carry on case allowing a convenient setup for air traveling astro-amateurs.

Light and Strong

Made entirely from anodized aluminum, worked using 5 axes CNC machines.
The mount
 weights only 6 kg/13.2 lb and, c
ombined with the new T-Pod 90 tripod, reaches a total weight of 12 kg/26.4 lb.

Technology and Innovation

The top quality manufacturing level, the innovative Fast-Reverse Belt Drive System with zero backlash and the new StarGO GoTo control system allow excellent performance in the photographic use, with guided long exposure images (see our suggested PHD2 guide parameters table), even while using very long focal length telescopes.

THE POLAR ALIGNMENT can be performed by using the polar scope mounted on the RA body that can be rotated (as shown in the picture above) to the upper position for a comfortable adjustment of the Polar Alignment.

The standard kit for the polar alignment is provided with the following components:

1. Polarscope
2. Support stand provided of scope fixing knobs and dovetail attack with fixing grip k
nob.

3. Illuminator cap provided of red LED and connection cable to the StarGO.

Technical data

Technical Data
 Type

Equatorial/Alt-Az Single-Arm mount

 Weight 7,5 kg/16 lb
 Capacity 8 kg/17.6 lb (one telescope) - 13 kg/28.6 lb (double telescopes setup)
Trasmission system
All belts drive system based on four stages reducer.
All the movements are on ball bearings. No maintenance and no backlash system.
Pulleys made with special polymer fiberglass charged and high precision toothed belts.
Construction Material Anodized aluminium, worked out from single blocks with high precision 5 axis CNC machines
Polar Finder Celestron model
GOTO system StarGO GoTo Control System WIFI ver.
Counterweight 0.5 kg/1.1 lb
Scope plate Vixen style
Warranty 2 years from the purchase date

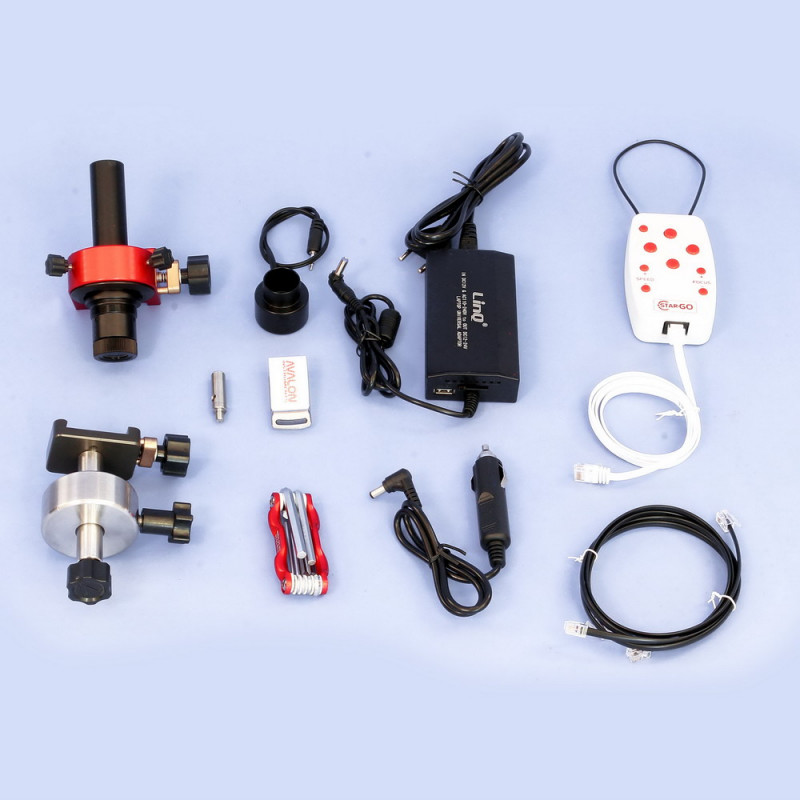

Packing Content
Mount Head
T-pod 90 (Aluminum tripod)

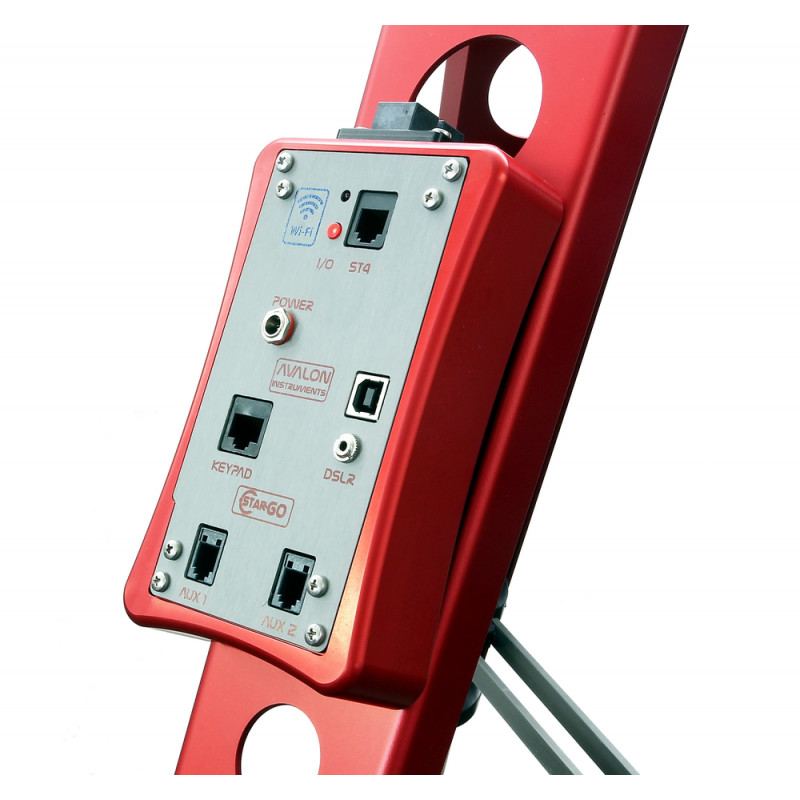

StarGO control box
StarGO Keypad

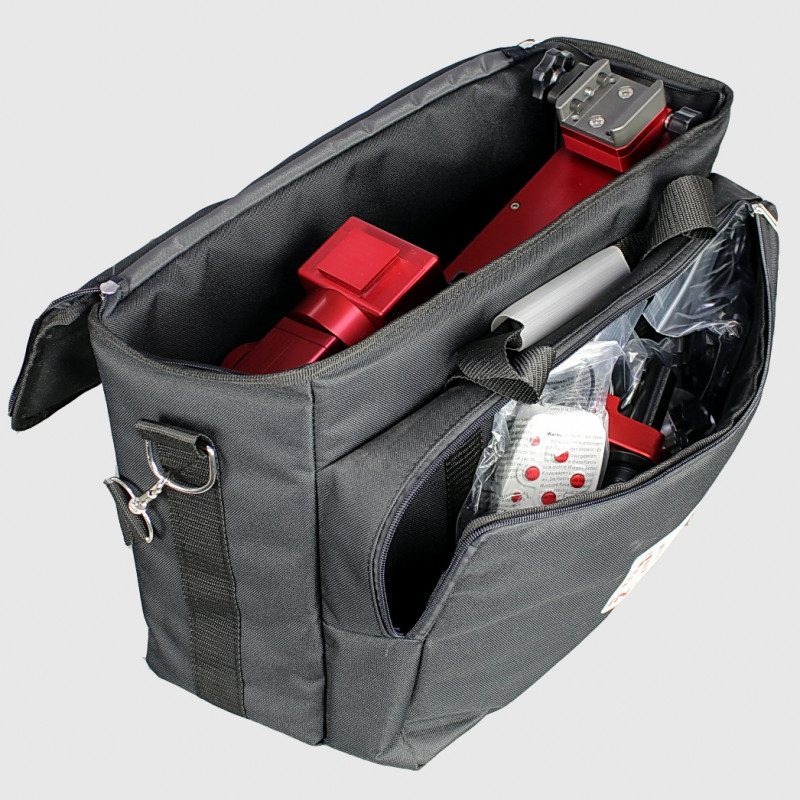

Mount transport bag
Tripod transport bag
Counterweight rod
0.5 kg Counterweight
Polar scope with support
Power cable
Allen wrench
Azimuth adjustment pin
USB flash drive with manuals and software
Ra/Dec motor cables
