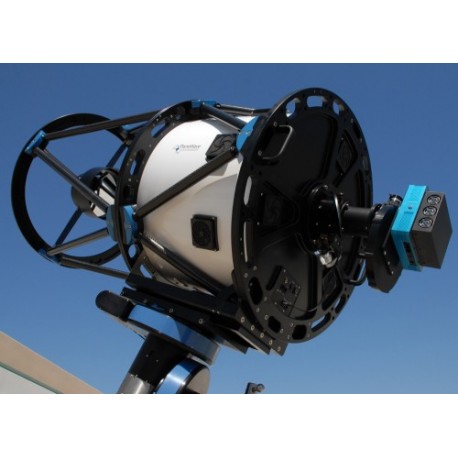

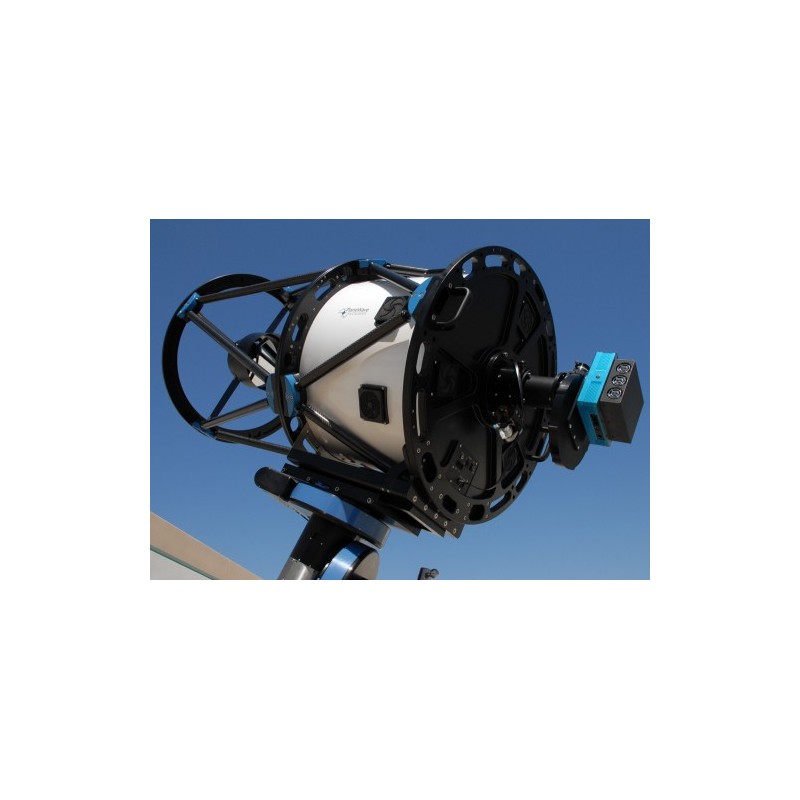

PlaneWave CDK24 Astrograph f/6.5 with Fused Silica Optics (1323224Q)

PlaneWave CDK24 Astrograph f/6.5 with Fused Silica Optics

Description:
The PlaneWave CDK24 is a 610 mm corrected Dall-Kirkham astrograph designed to deliver uncompromising performance for professional observatories and advanced astrophotographers. Its CDK optical configuration combines a concave primary, convex secondary, and integrated corrector to deliver a 70 mm flat field, free of off-axis coma, astigmatism, and curvature.

Fused Silica optics are used throughout the system. This high-purity synthetic glass offers unmatched thermal and optical stability. With a thermal expansion coefficient six times lower than Pyrex, it maintains excellent focus and optical quality under changing environmental conditions—ideal for long exposures and demanding research work.

The CDK24 features a 3962 mm focal length and f/6.5 focal ratio, balancing resolution and brightness for large-format CCD and CMOS sensors. It comes standard with a back plate retaining ring, ready to accept your preferred focuser, including the optional 3.5" Hedrick focuser and EFA motorization system (sold separately).

The carbon-structured OTA is Delta-T Ready, with integrated wiring for mirror heaters (Delta-T controller #1329110 required). Cooling fans ensure rapid thermal equilibrium by pulling air across the primary mirror.

Included with the CDK24 are an 8" dovetail, back plate spacer, OTA cover, soft secondary cover, USB drive with software and collimation instructions, Allen key set (EU orders), and 12V AC adapter. Crating is required and charged separately (#1323524).

Technical specifications:

Optical design: Corrected Dall-Kirkham (CDK)
Aperture: 24" (610 mm)
Focal length: 3962 mm
F-ratio: f/6.5
Corrected field: 70 mm
Back focus: not specified
Central obstruction: not specified
Glass type: Fused Silica
Delta-T Ready: yes (controller #1329110 sold separately)
Focuser: Compatible with 3.5" Hedrick (optional)
Mounting: 8" dovetail included
OTA weight: 500 lbs (226.8 kg)
Optical length: not specified
Included accessories:

• 8" dovetail

• Dew heater pads integrated (controller not included)

• Back plate to focuser spacer

• OTA cover

• Soft secondary mirror cover

• USB flash drive with software and collimation guide

• Allen wrench set (EU orders only)

• 12V AC adapter

Shipping crate required: reference #1323524 (charged separately)

Estimated shipping dimensions:
Width: 40" (1016 mm)
Height: 48" (1219 mm)
Length: 78" (1981 mm)
Gross weight: 500 lbs (226.8 kg)
