TS-Optics REFRACTOR 0.8x Corrector for ED & Apo with 70-72 mm Aperture

Reduct.-Correct. TS 0.8x 70-72

New product

TS-Optics REFRACTOR 0.8x Corrector for ED & Apo with 70-72 mm Aperture

More details

Depending on availability from the supplier. please contact us for more information

199.00 CHF tax incl.

More info

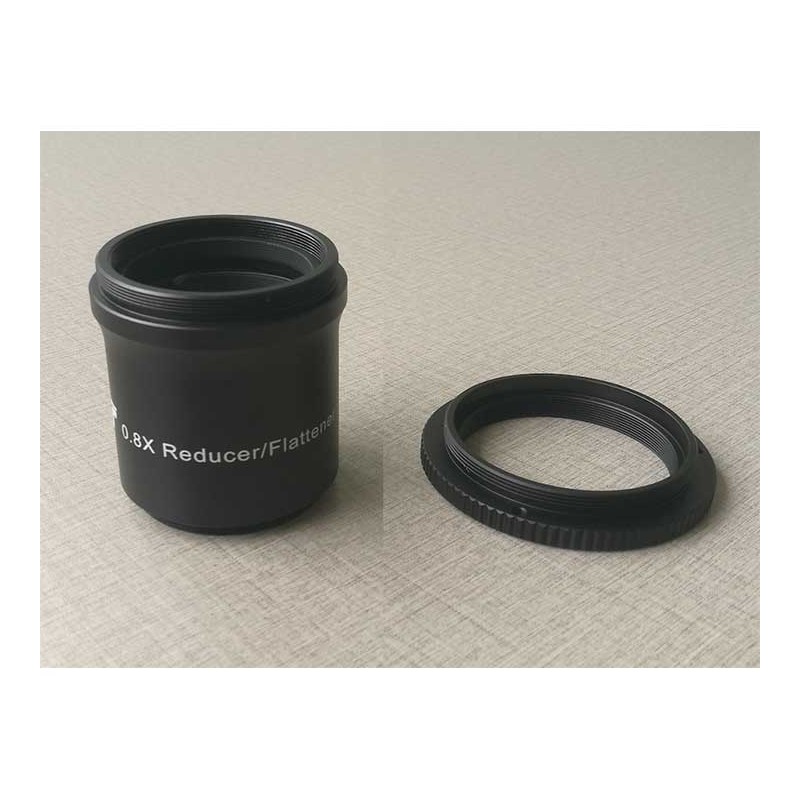

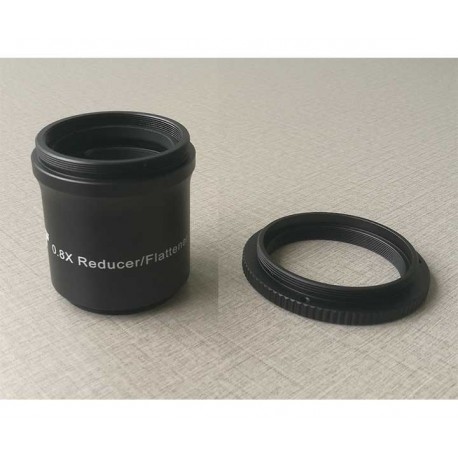

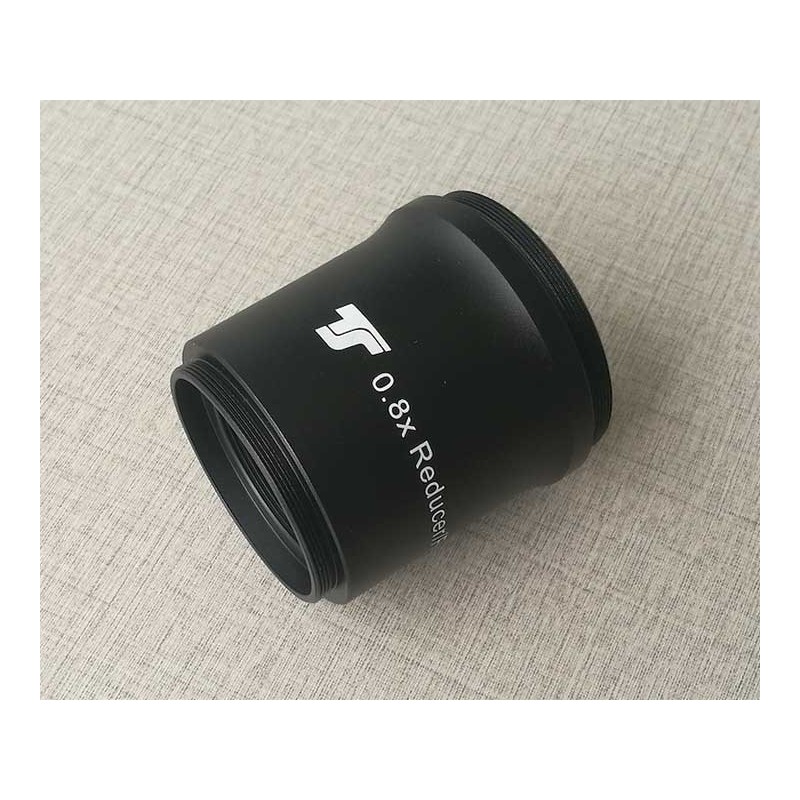

TS-Optics REFRACTOR 0.8x Corrector for ED & Apo with 70-72 mm Aperture

The corrector is designed for the compact SD Apos and ED 70 mm f/6 and brings optimal results with these telescopes. Also similar telescopes can be combined with the corrector. Cameras up to about 33 mm sensor diagonal can be used.

♦ The focal length is reduced to 80%. For example 360 mm focal length becomes 288 mm focal length.

♦ The focal ratio is improved from f/6 to f/4.8. You save about 36% exposure time.

♦ The corrector is optimized for small refracting telescopes, for best possible results.

♦ M48x0.75 photo connection on the camera side provides 15% better illumination than T2. Suitable adapters for your camera are available.

♦ The working distance of 55 mm from the M48 thread is standard and allows an easy and uncomplicated adaptation of your camera.

♦ The corrector is fully multi-coated. In addition, a matt black anti-reflective inner coating ensures freedom from reflections. The result is high-contrast images. The corrector also allows daytime use (landscape photography or bird photography).

♦ On the telescope side there is an internal thread for 2" filters (M48x0.75) for nebula filters, IR cut filter, ...

Connection telescope side:

The corrector has an M54x0.75 external thread on the telescope side. An extension adapter to M63x1 external thread is included in the delivery. With this the corrector fits to focusers with the corresponding internal thread. Further adapters, for example to M68, are optionally available.

Technical Data:

Illuminated and corrected field: 33 mm
Change of focal length: 0.8x focal length reduction
System: Reducer / corrector for photography

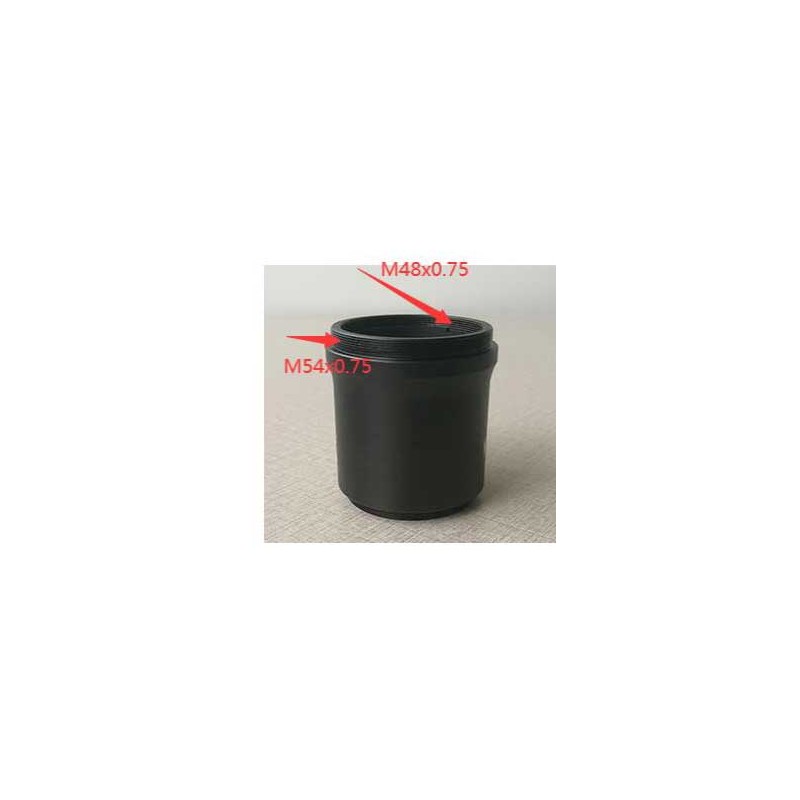

Connection telescope side: M54x0.75 external thread and M63x1 external thread
Camera side connection: M48x0.75 external thread, length 4.5 mm
Working distance: 55 mm from the M48 external thread
Length: 61 mm (without M63 adapter)
Diameter: 58 mm

Ideal corrector for the Sky Watcher 72 ED type refractor using the specific adapter ring. Please inform us the corrector will be used with a Sky Watcher 72 ED
