6kg CDP Counterweight for GM 1000 – Ref. 1454273

6kg CDP Counterweight for GM 1000 – Ref. 1454273

Description:

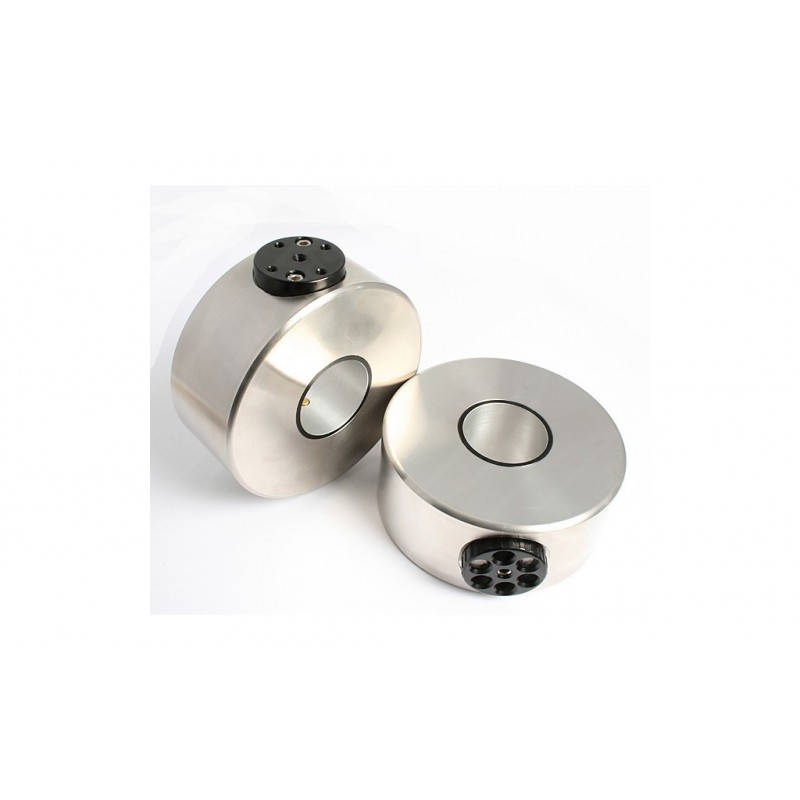

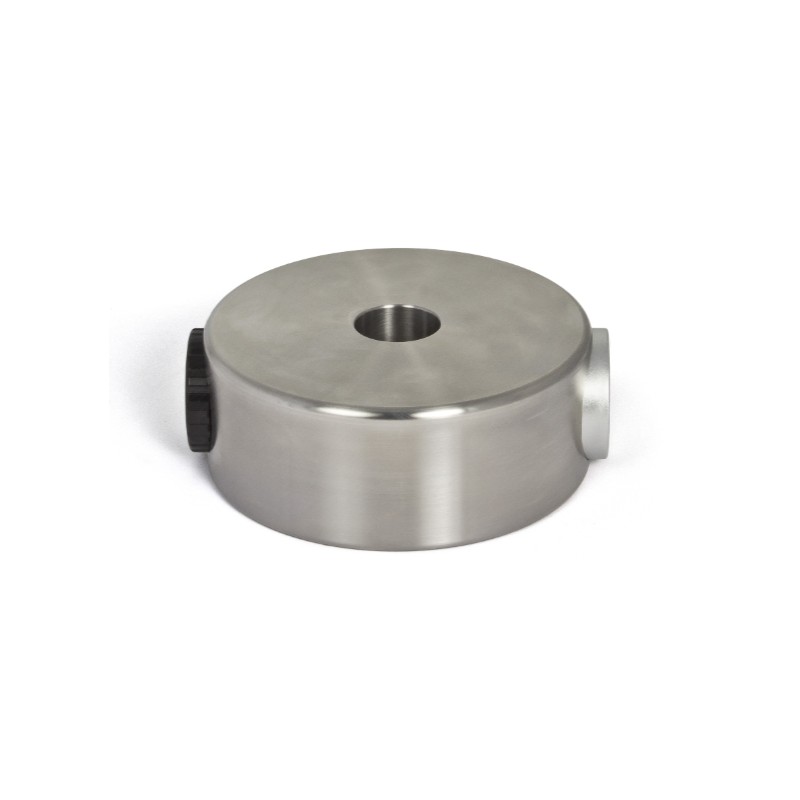

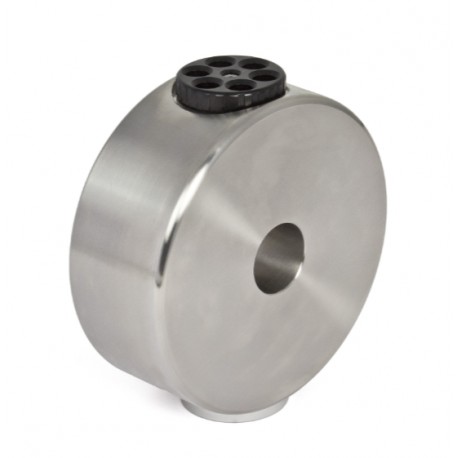

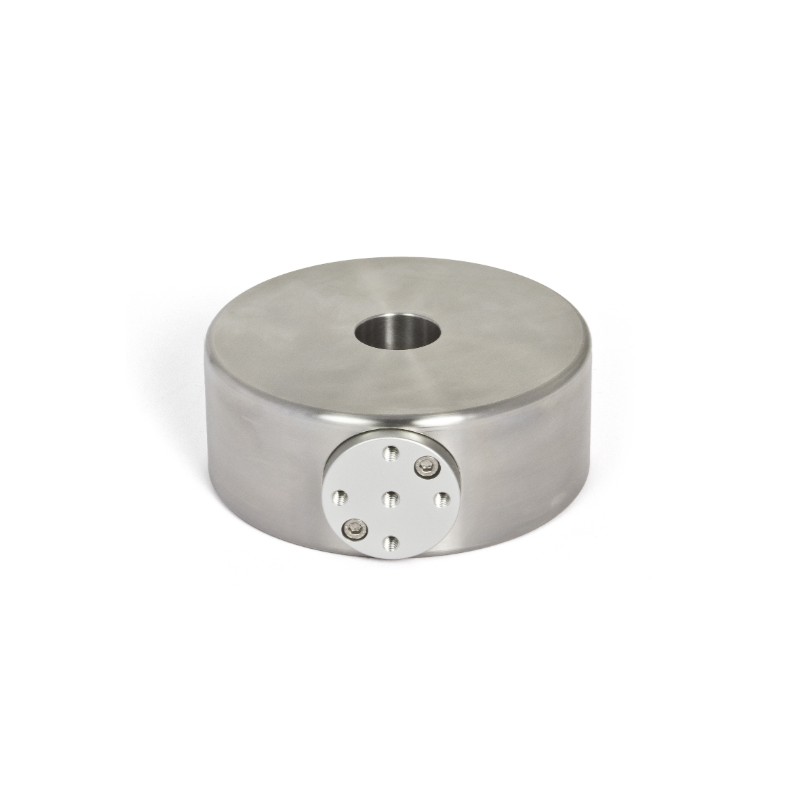

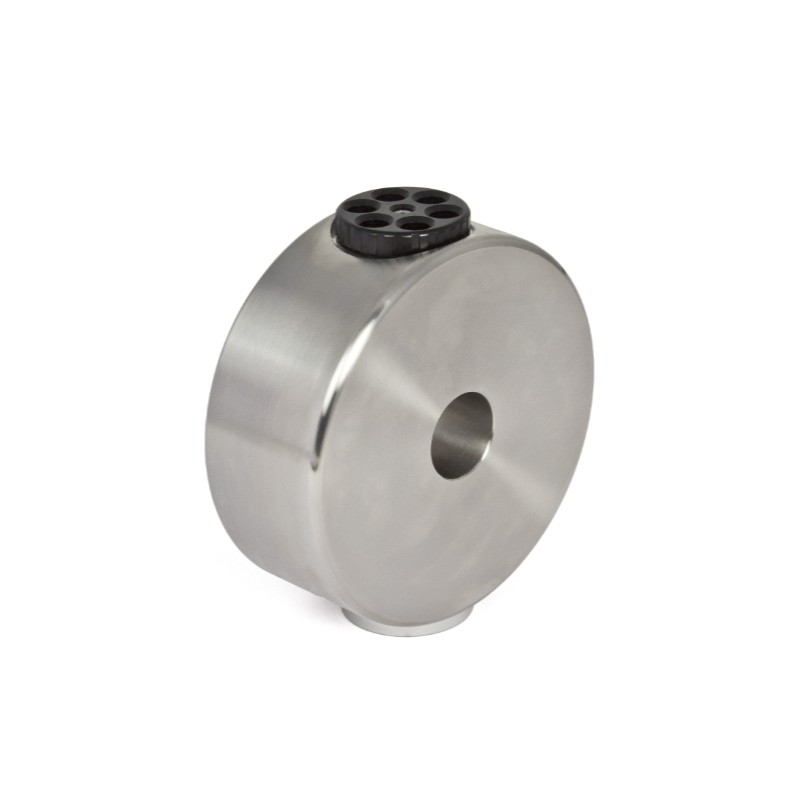

The 6 kg CDP counterweight by Baader Planetarium is designed specifically for the 10Micron GM1000 HPS mount. Made of corrosion-resistant V2A stainless steel, it ensures precise balance and long-term durability. It fits a 30.2 mm shaft and includes a 1/4" photo thread for direct mounting of cameras or accessories.

A twist-grip locking system allows for quick setup and adjustment, secured by a final M10 hex screw. Optional custom bore diameters are available on request. The net weight is 6.25 kg. The combination of mechanical stability and versatility makes this weight ideal for demanding imaging configurations.

Technical specifications:

• Compatible with: 10Micron GM1000 HPS

• Material: V2A stainless steel

• Thread: 1/4" photo

• Axis diameter: 30.2 mm

• Dimensions: Ø140 x 55 x 30 mm

• Net weight: 6.25 kg

• Locking: twist grip + M10 hex screw

• Manufacturer: Baader Planetarium

• Option: custom bore holes on request

Additional information:
Thanks to its photo thread, this counterweight can also serve as a camera support for portable setups. It is a robust and practical tool for achieving precise balance with GM1000 mounts and integrates fully with Baader’s CDP system.
