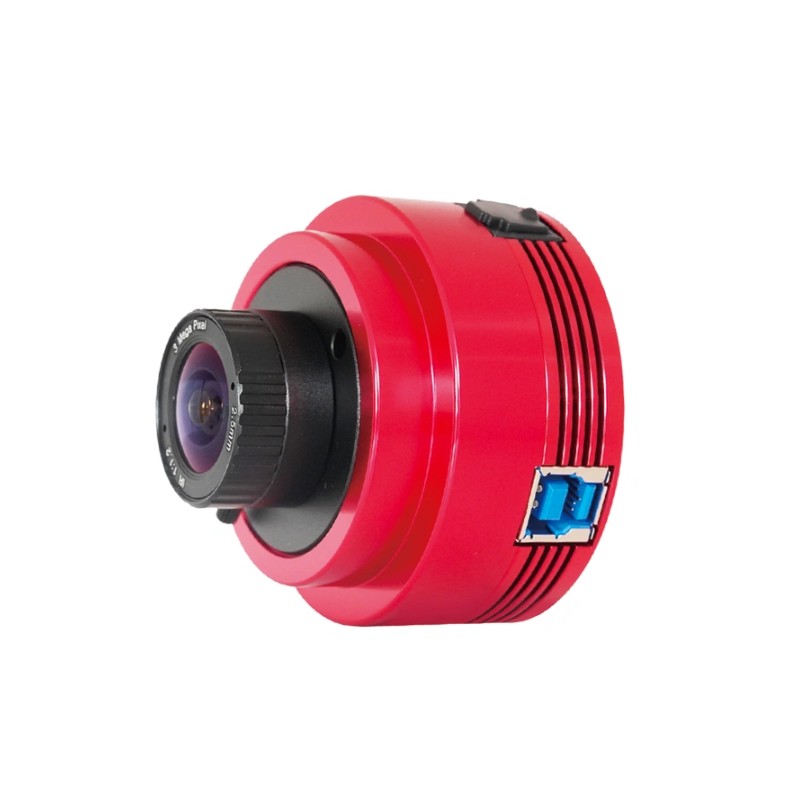

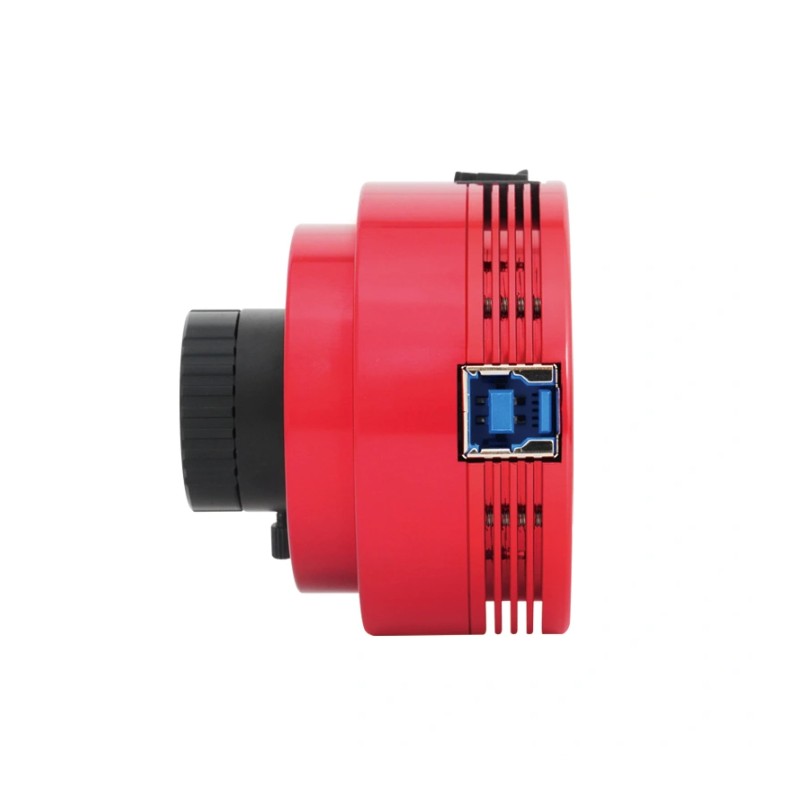

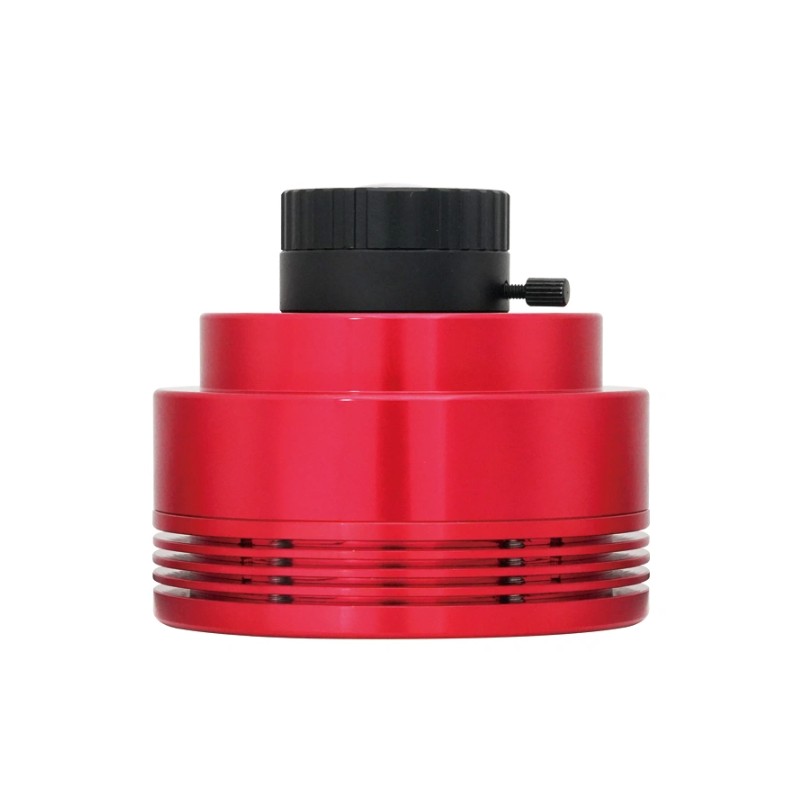

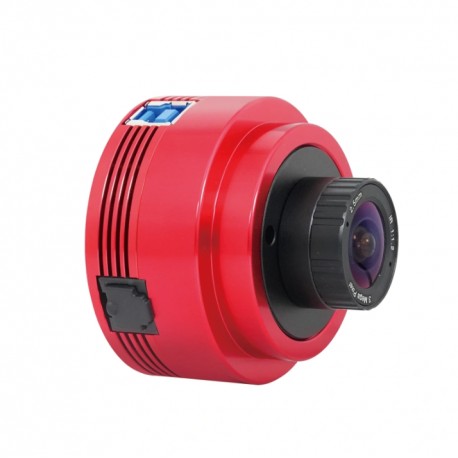

ZWO ASI676MC Color Camera – CMOS 12.6 MP for Planetary and All-Sky Imaging

ZWO ASI676MC Color Camera – CMOS 12.6 MP for Planetary and All-Sky Imaging

Description:

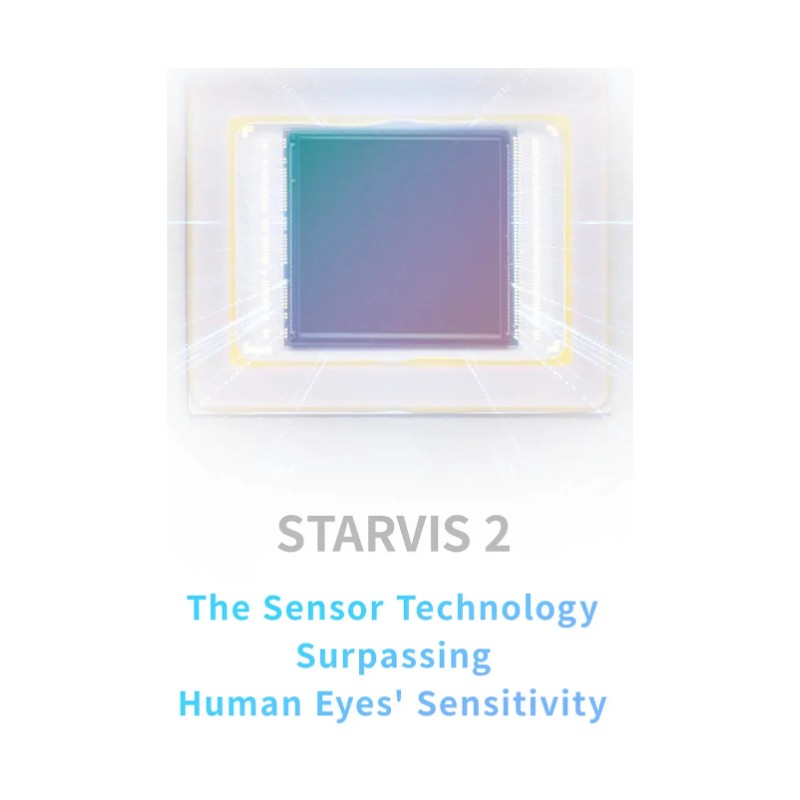

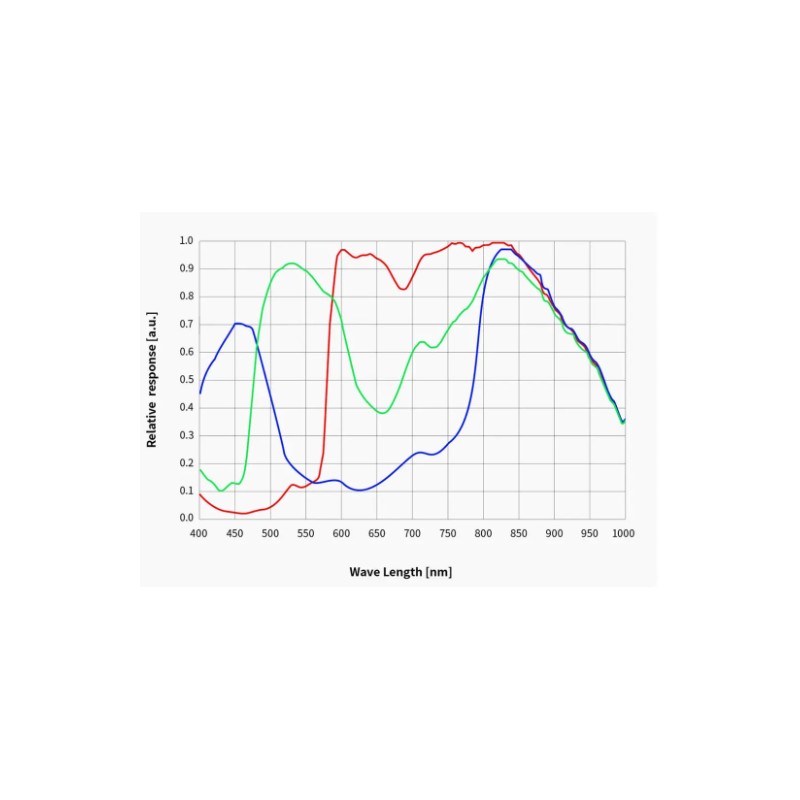

The ZWO ASI676MC is a non-cooled color astronomy camera built for planetary and all-sky imaging. It features a square-format Sony IMX676 CMOS sensor (1/1.6", 3552 x 3552 px) with advanced STARVIS 2 sensitivity, including in the near-infrared range.

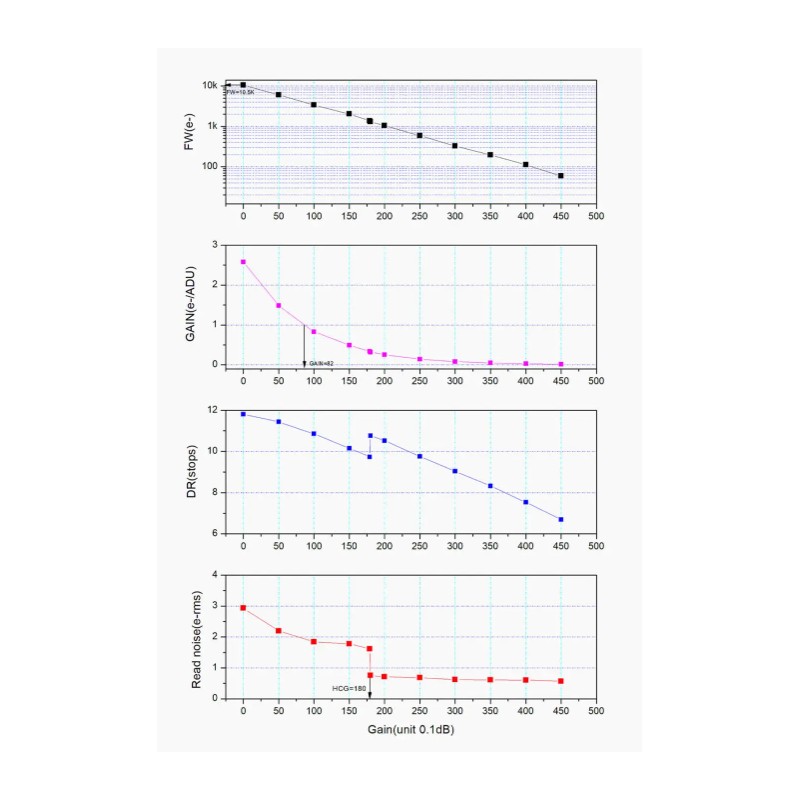

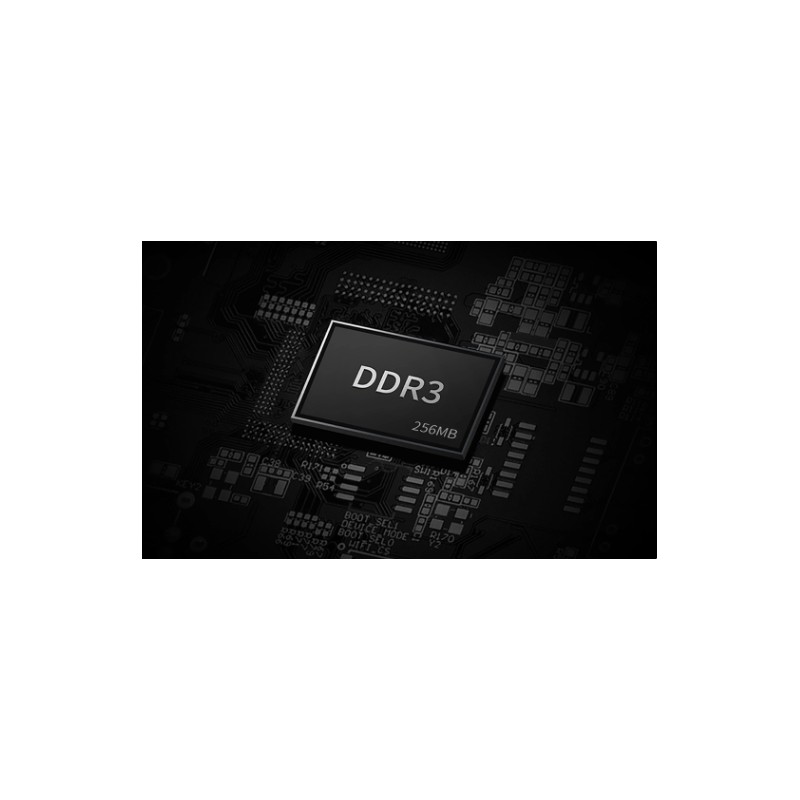

With a 83% quantum efficiency, 0.56 e⁻ read noise, and a full well depth of 10.55 ke⁻, this camera delivers excellent image quality. It includes a 256 MB DDR3 buffer, a USB 3.0 interface for fast data transfer, and an ST4 port for autoguiding.

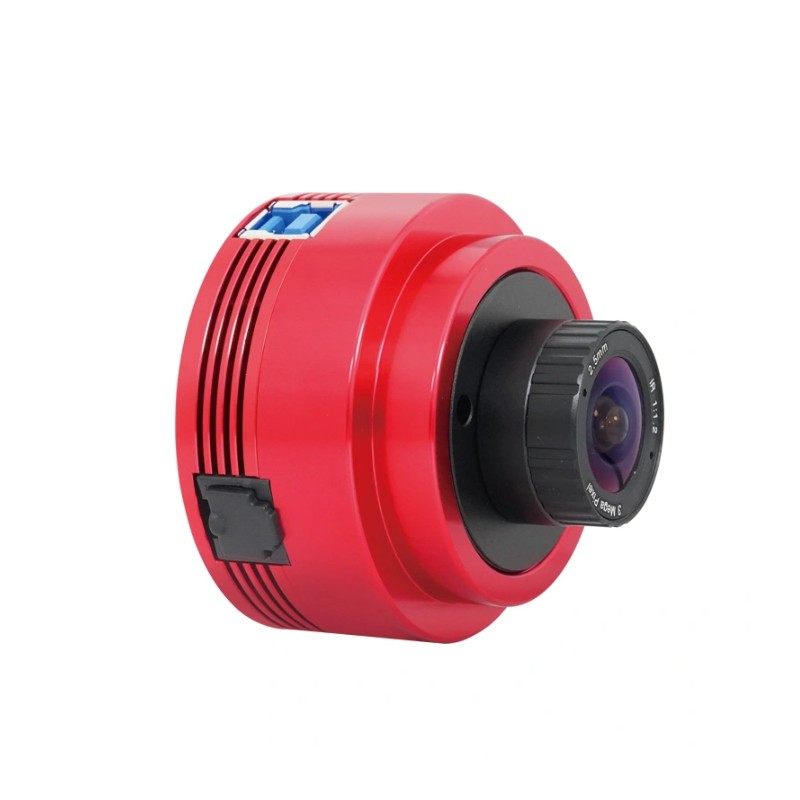

With its amp glow-free design, the ASI676MC supports long exposures without noise artifacts. It can be used with telescopes or fisheye/ultra-wide lenses for all-sky applications such as meteor detection, time-lapse, or full sky monitoring.

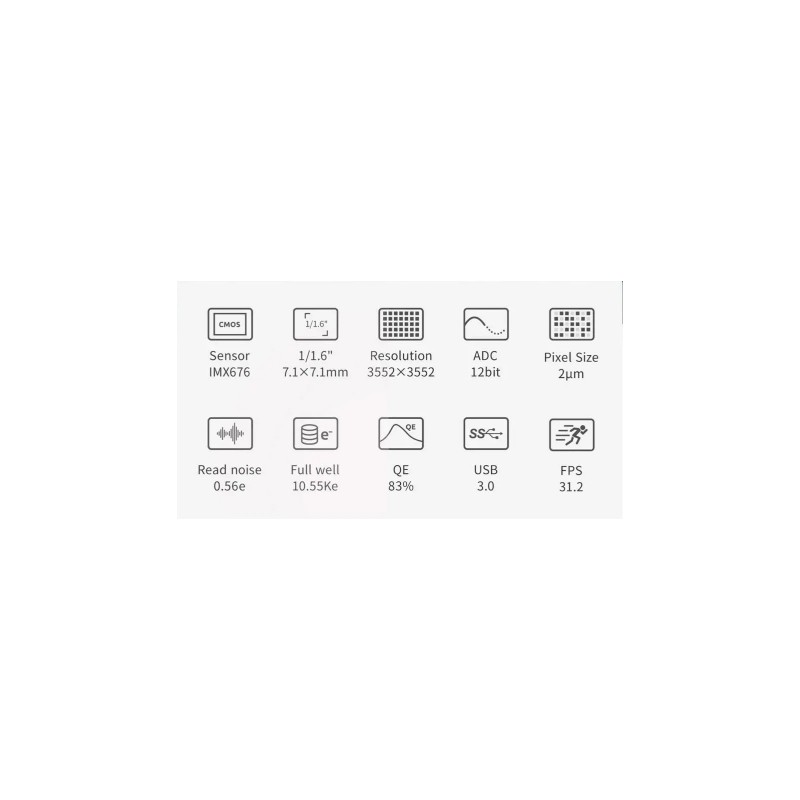

Technical specifications:

• Sensor: Sony IMX676 color CMOS, back-illuminated

• Format: 1/1.6" (7.1 x 7.1 mm)

• Resolution: 12.6 MP (3552 x 3552 px)

• Pixel size: 2.0 µm

• Peak QE: 83%

• Read noise: 0.56 e⁻

• Full well: 10.55 ke⁻

• Shutter: Rolling

• ADC: 12-bit

• Buffer: 256 MB DDR3

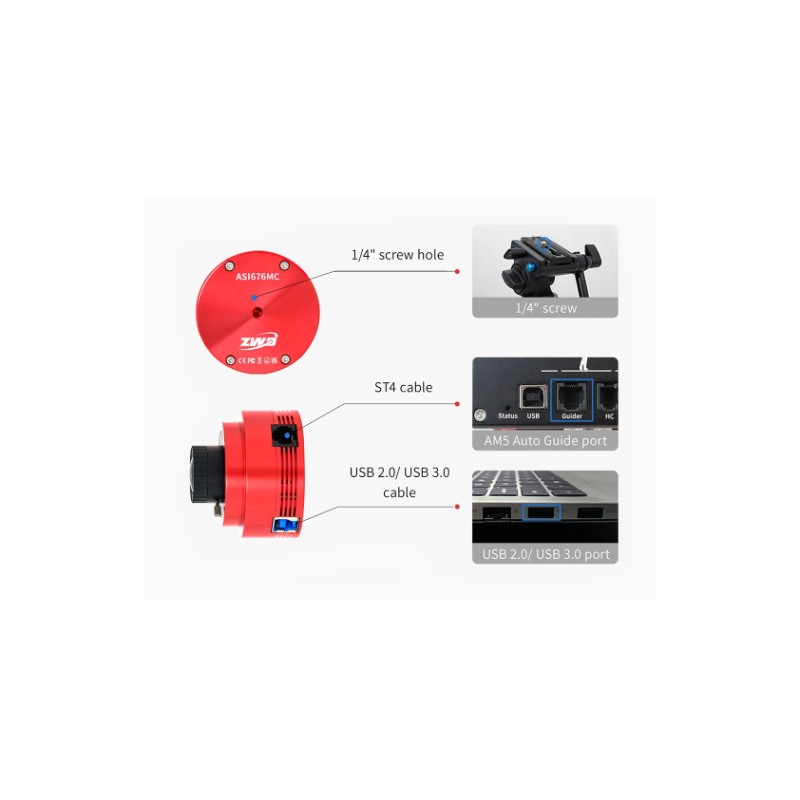

• Interface: USB 3.0 / 2.0

• Autoguide port: ST4

• Exposure: 32 µs to 2000 s

• Max FPS: 31.2 full res

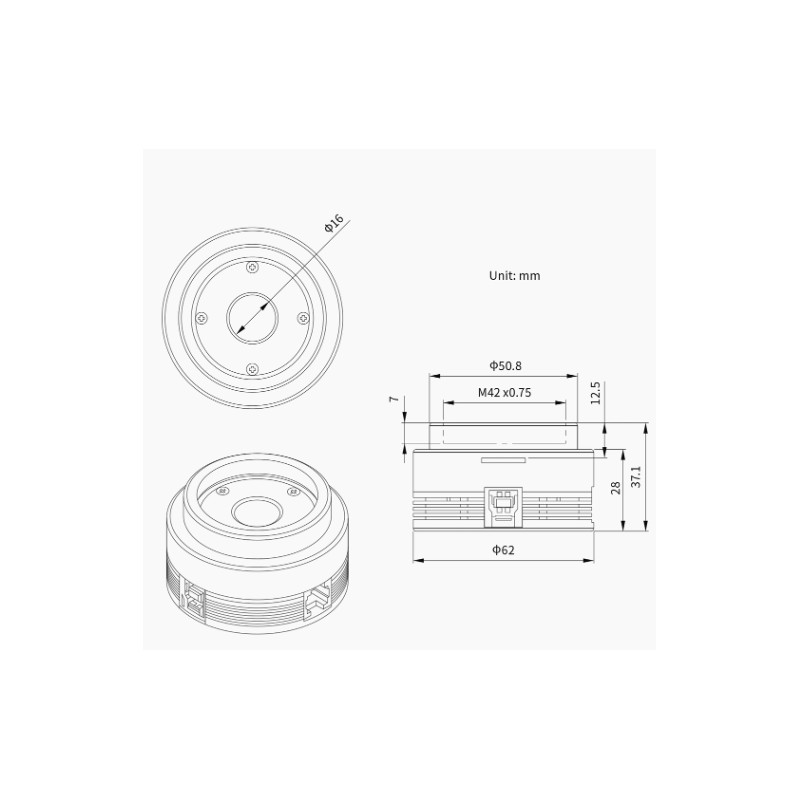

• Size: 62 mm x 37.1 mm

• Weight: 126 g

Additional information:

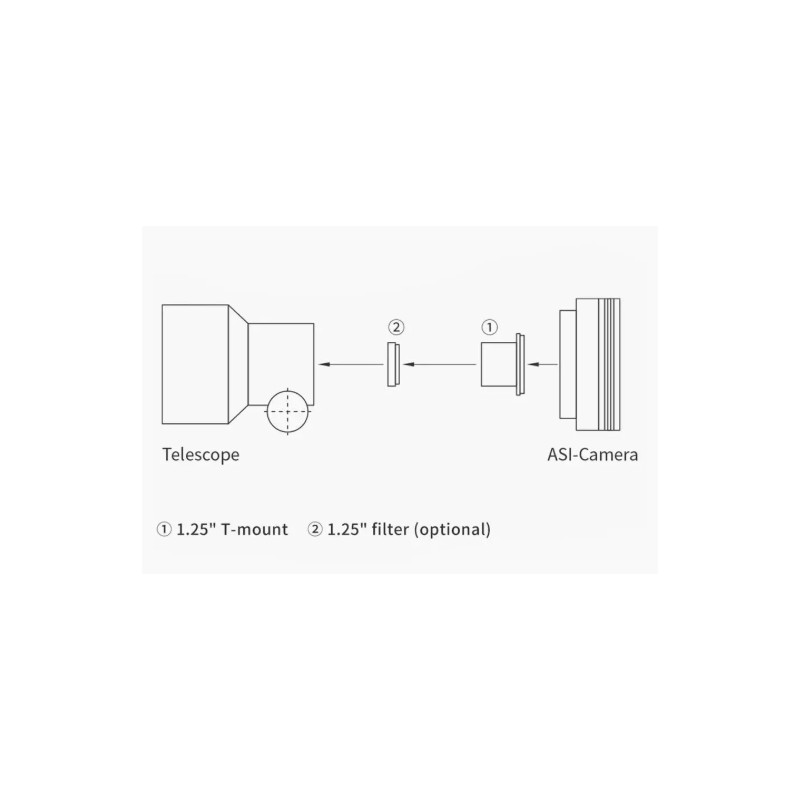

• Compatible with: telescopes, M42 fisheye and wide-angle lenses

• Backfocus: 12.5 mm

• Threads: M42x0.75 + 1.25"/2" adapters

• OS supported: Windows, macOS, Linux

• Applications: planetary, solar, all-sky, meteor detection, time-lapse
