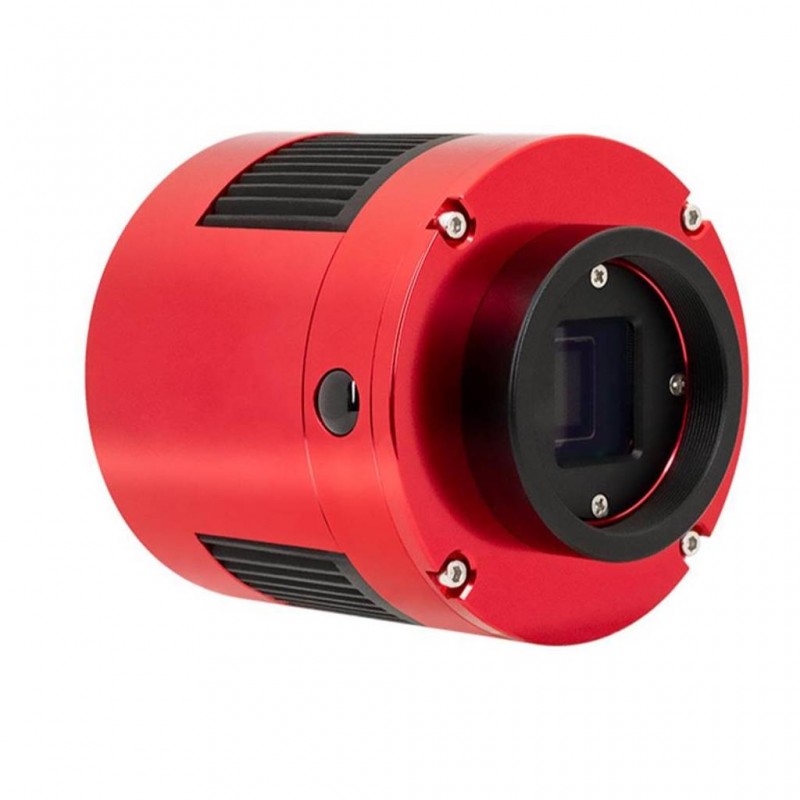

ZWO ASI533MM Pro Cooled Monochrome Camera for Astrophotography

ZWO ASI533MM Pro Cooled Monochrome Camera for Astrophotography

DESCRIPTION

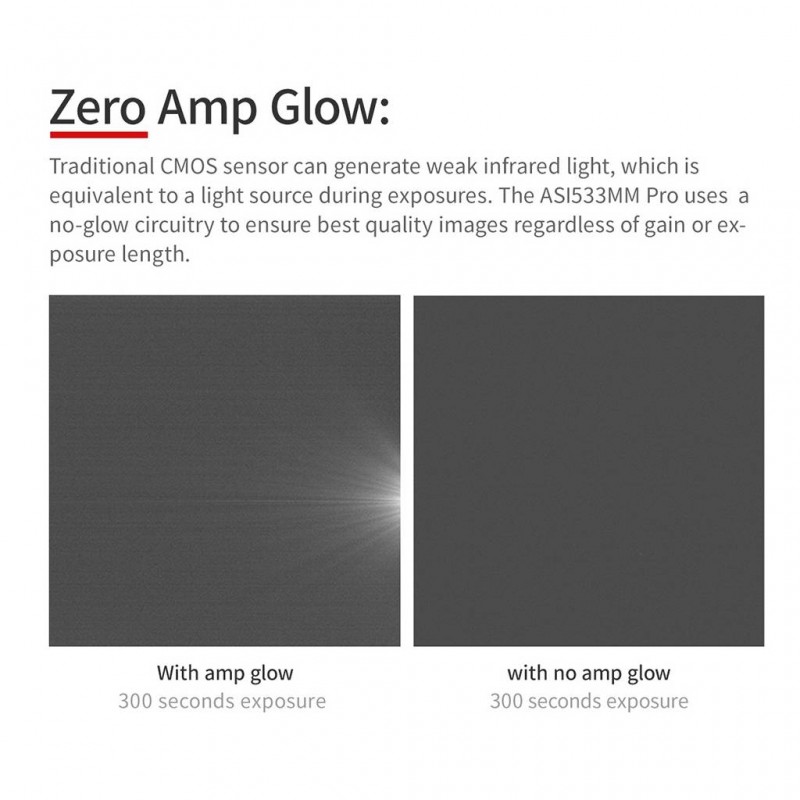

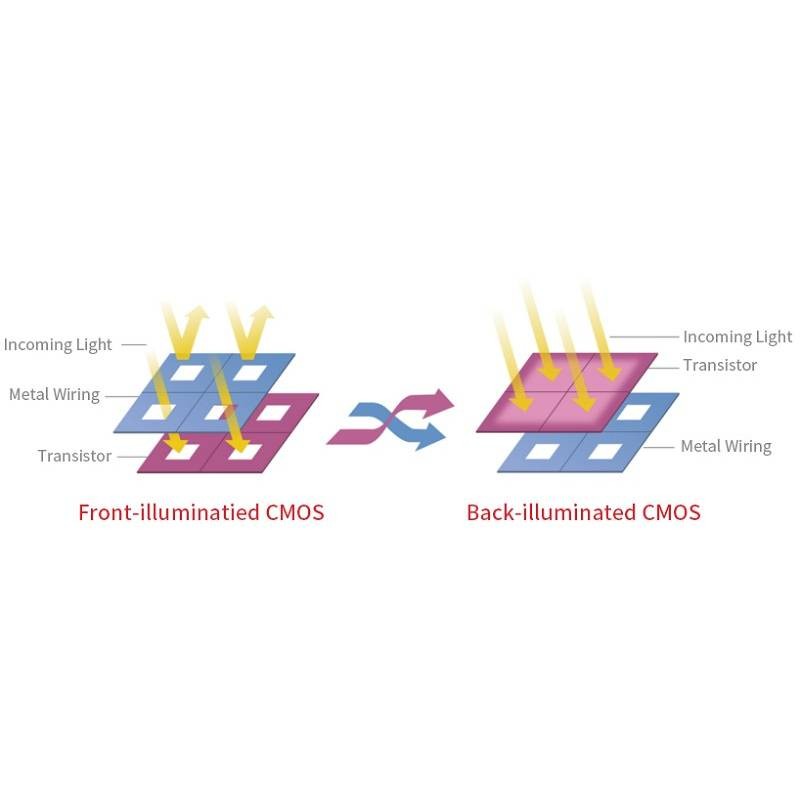

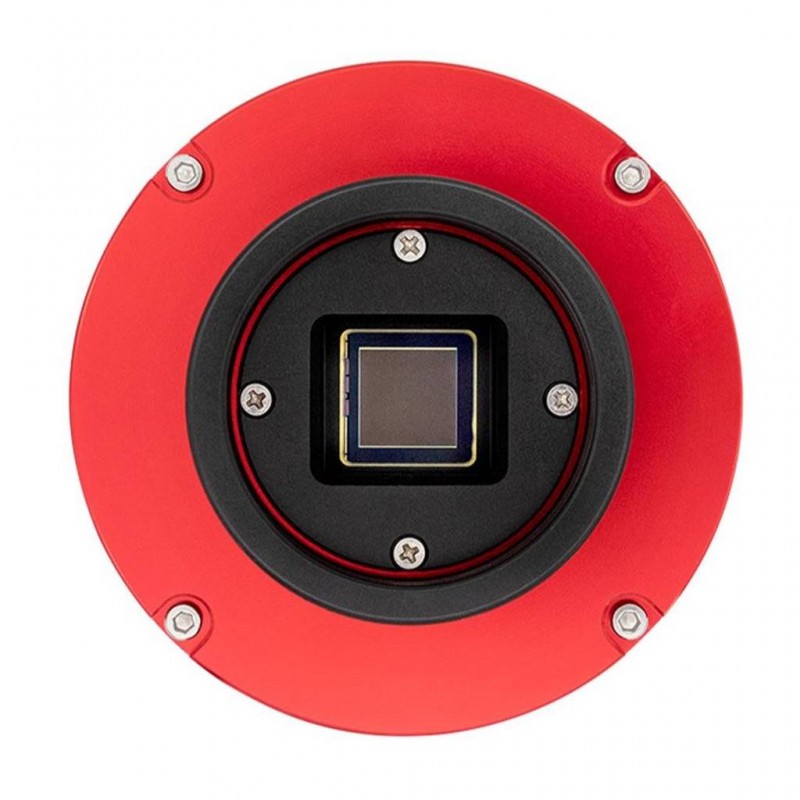

The ZWO ASI533MM Pro is a monochrome camera featuring the 1” Sony IMX533 sensor with a square resolution of 3008 x 3008 pixels (9 MP). Its back-illuminated (BSI) design and 91% quantum efficiency deliver exceptional sensitivity and minimal thermal noise, with no amp-glow.

It achieves 20 fps at full resolution (14-bit) via USB 3.0. The built-in 256 MB DDR3 buffer ensures stable image transmission, even over USB 2.0. This camera excels in deep-sky astrophotography using short-exposure stacking and is also suitable for planetary imaging.

A dual-stage TEC cooling system drops the sensor temperature to -35°C below ambient, dramatically improving the signal-to-noise ratio. A 12V 5A power supply (not included) is required for cooling.

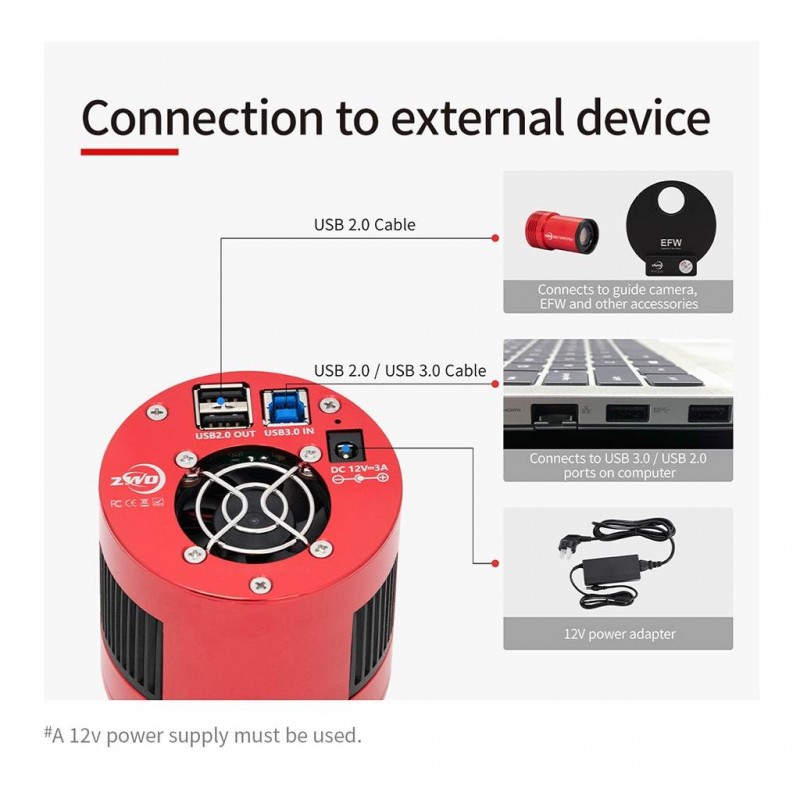

The camera has a female M42 thread (T2), 2" nosepiece, and includes M42/M48 and M42/1.25" adapters, two extension rings (21 mm and 16.5 mm), 4 spacers, one 2 m USB 3.0 cable, two 50 cm USB 2.0 cables, and is fully compatible with ASIStudio, ASCOM, Prism, SharpCap, FireCapture, and other imaging software.

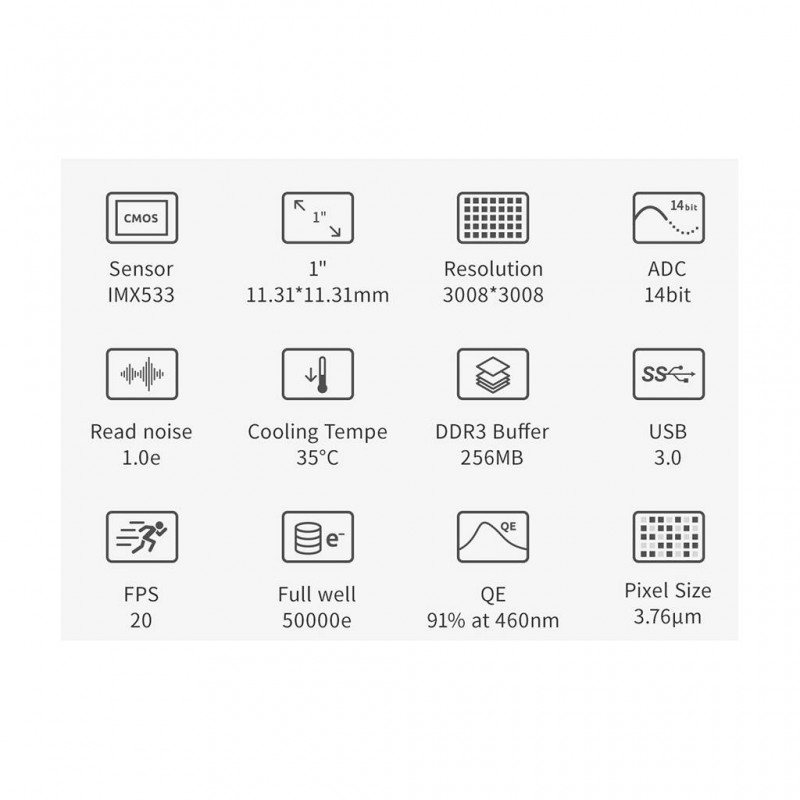

4. TECHNICAL SPECIFICATIONS

• Sensor: Sony IMX533, 1” CMOS Monochrome

• Resolution: 3008 x 3008 (9 MP)

• Pixel size: 3.76 µm

• Sensor size: 11.31 x 11.31 mm (diagonal 15.968 mm)

• Quantum efficiency: 91%

• ADC: 14-bit

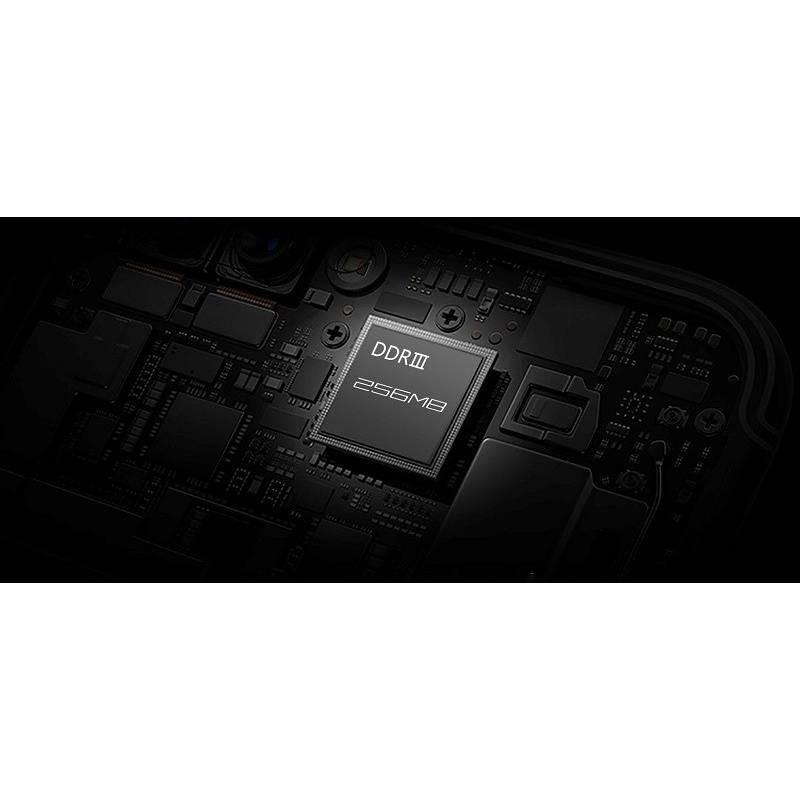

• Buffer: 256 MB DDR3

• Frame rate: 20 fps at full res.

• Cooling: Dual-stage TEC, -35°C below ambient

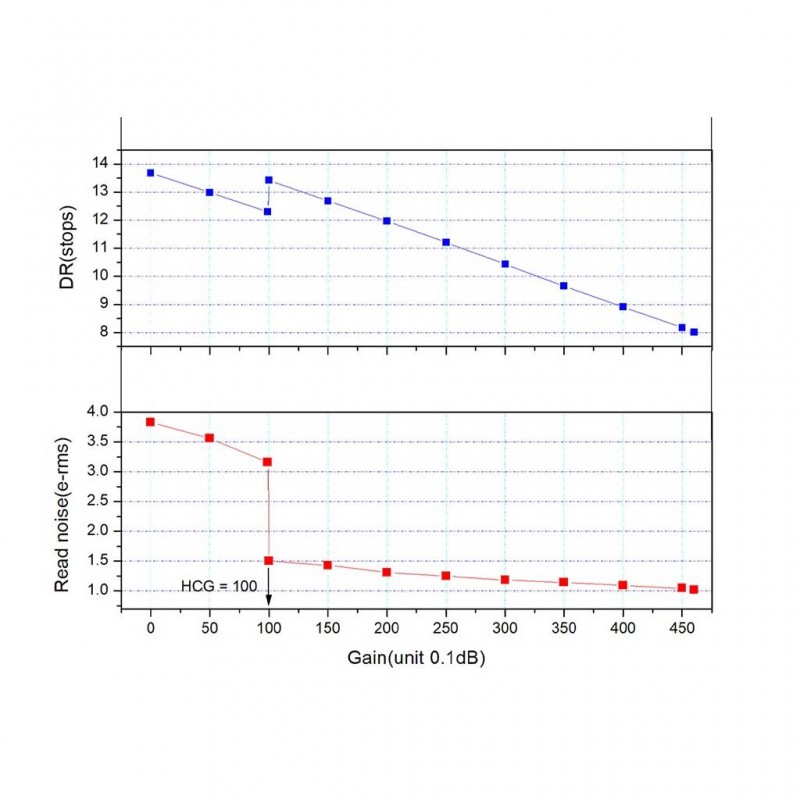

• Read noise: 1.0 e at 30 dB

• Exposure range: 0.000064 s to 33 min

• Interface: USB 3.0 / USB 2.0

• Optical interface: M42 x 0.75 (T2), 2" and 1.25" nosepieces

• Backfocus: 6.5 mm or 17.5 mm

• Compatibility: Windows XP–10, Mac OSx, Linux, ASCOM

• Software: Prism 8, SharpCap, FireCapture, OaCapture, ASIStudio

• Dimensions: Ø 78 mm x H 80 mm

• Weight: 470 g

• Power supply (cooling): 12V – 5A (not included)

• Included accessories: 2 m USB 3.0 cable, 2 short USB 2.0 cables, 2 extension rings (21 mm & 16.5 mm), M42-M48 & M42-1.25” adapters, 4 spacers
