Zwo cooled monochrome camera ASI2600MM Pro

Zwo cooled monochrome camera ASI2600MM Pro

DESCRIPTION

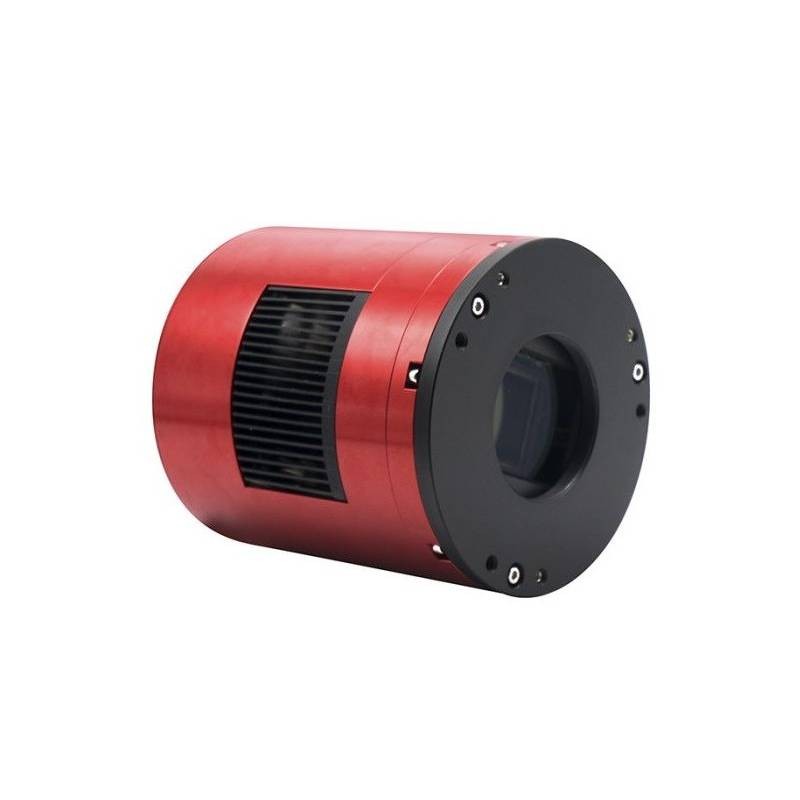

The ZWO ASI2600MM Pro is a cooled monochrome camera designed for deep-sky astrophotography. It features a Sony IMX571 CMOS sensor in APS-C format (23.5 x 15.7 mm) with a resolution of 26 megapixels (6248 x 4176), delivering highly detailed images with excellent low-light sensitivity.

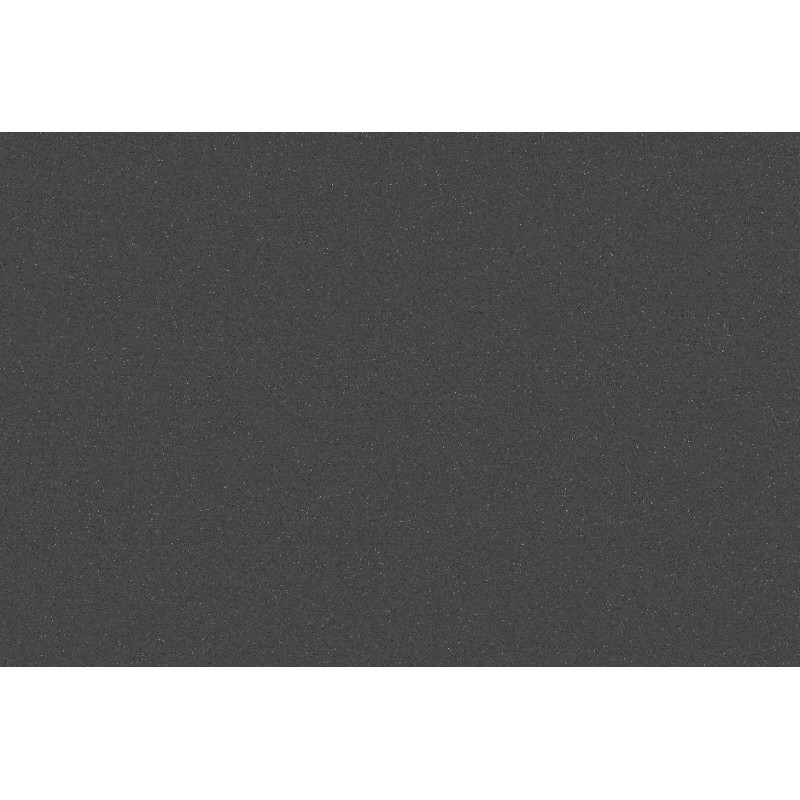

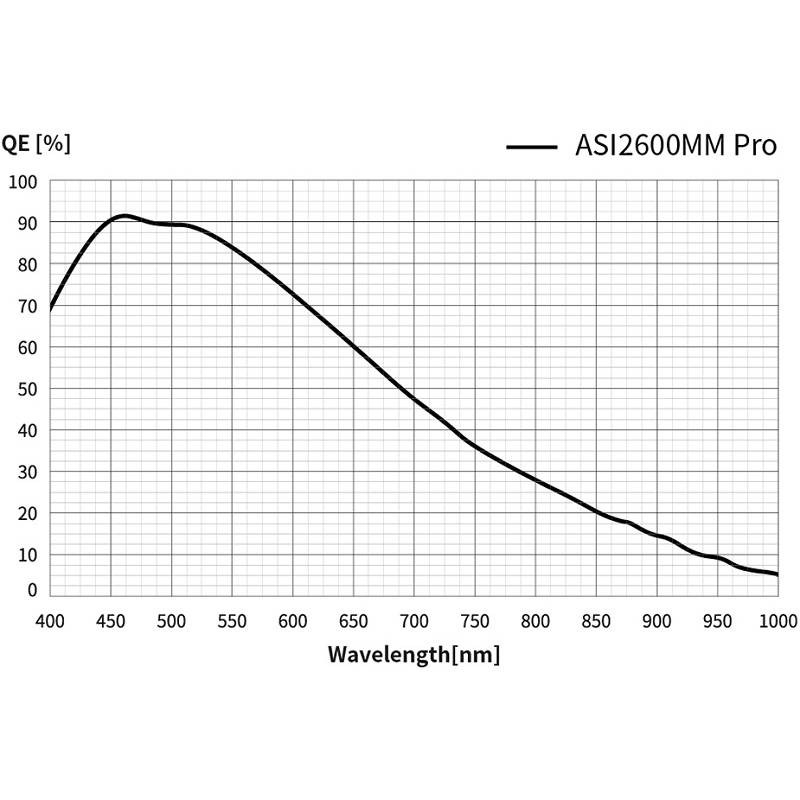

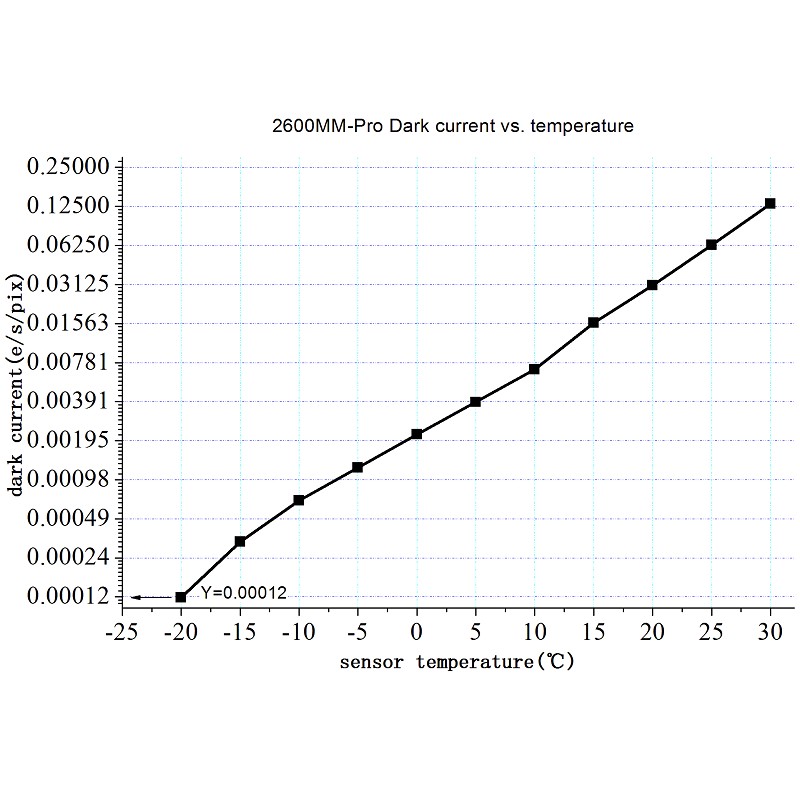

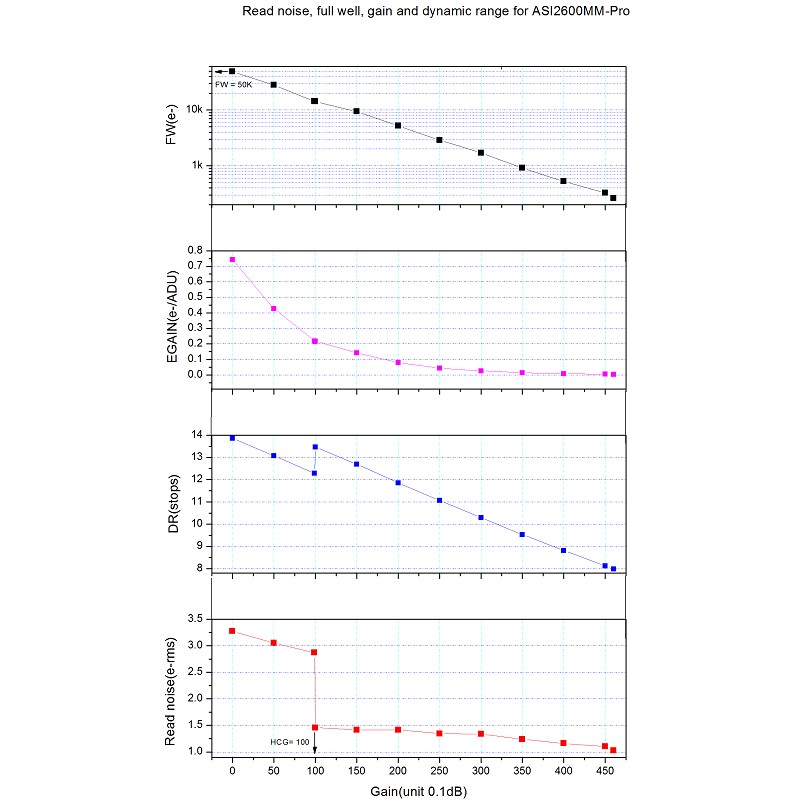

Thanks to its native 16-bit ADC, it offers wide dynamic range and extremely low read noise (1.0 to 3.3 e-), while its peak quantum efficiency exceeds 91%. The dual-stage TEC cooling system (up to -35°C below ambient) effectively reduces thermal noise for clean, sharp long-exposure images.

The 512 MB DDR3 buffer prevents dropped frames during USB 3.0 data transfer. The camera includes an ST4 auto-guiding port, M54 and M48 threads, and a replaceable dry cartridge.

Included accessories:
Delivered with a hard carrying case, USB 3.0 cable, ST4 guide cable, power adapter for TEC cooling, M54 to M48 adapter, various extension rings, and mounting screws.

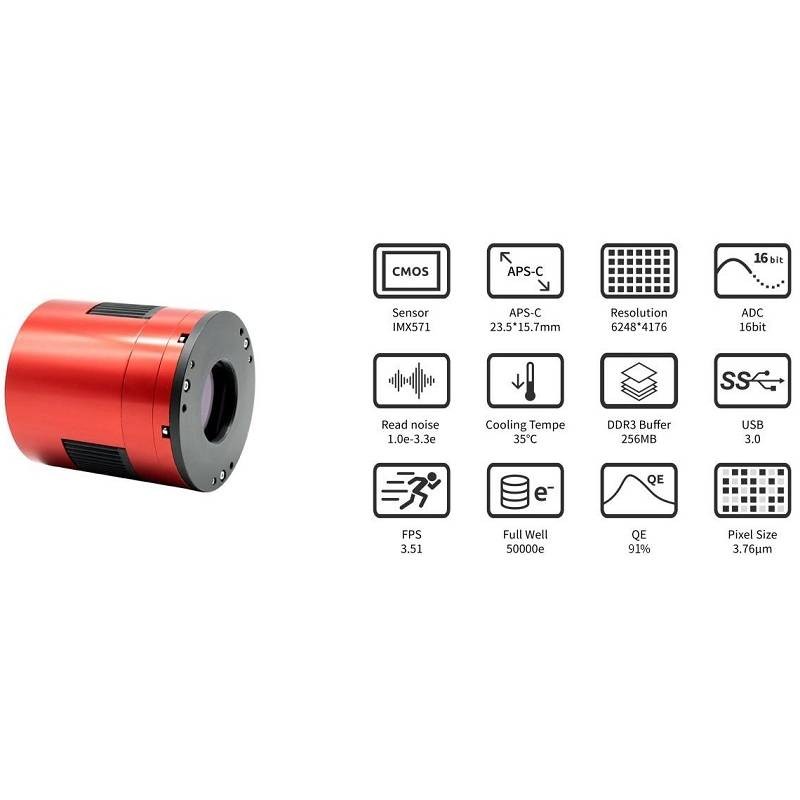

TECHNICAL SPECIFICATIONS

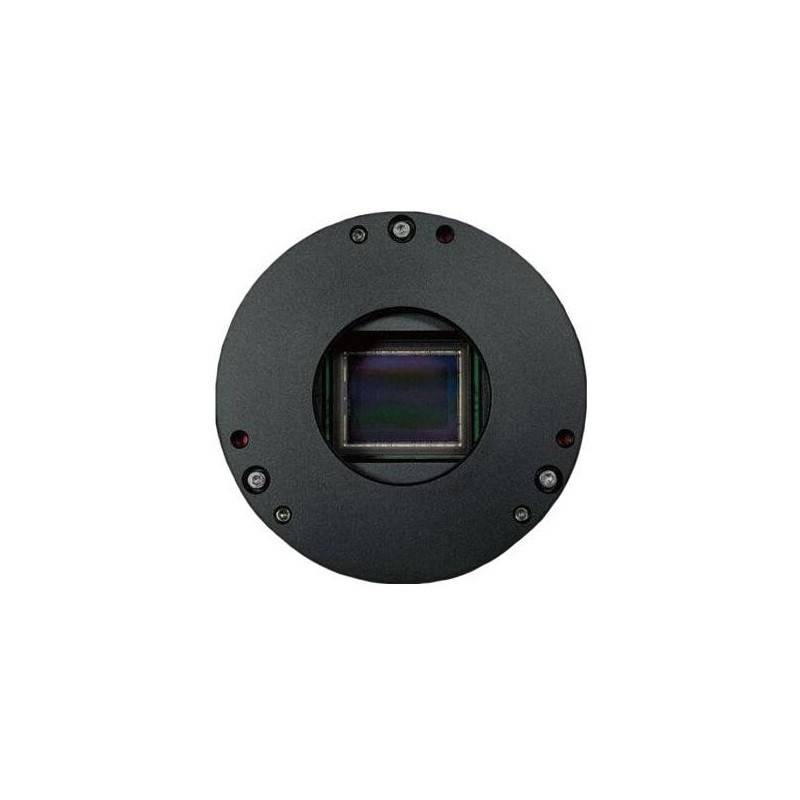

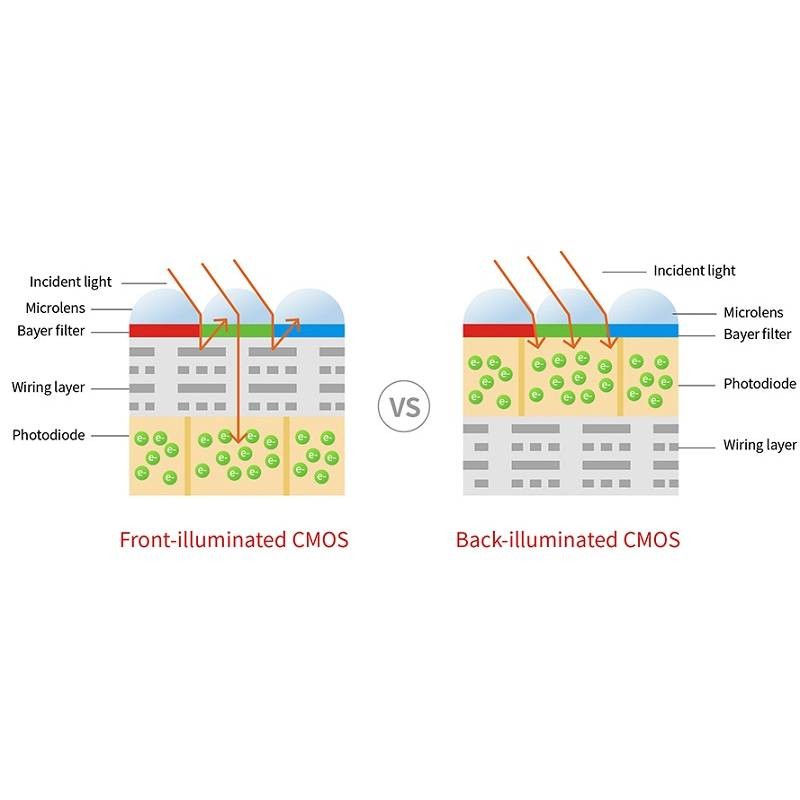

• Sensor: Sony IMX571 monochrome, CMOS, back-illuminated

• Sensor format: APS-C (23.5 x 15.7 mm)

• Resolution: 26 MP (6248 x 4176)

• Pixel size: 3.76 µm

• Dynamic range: 14 stops

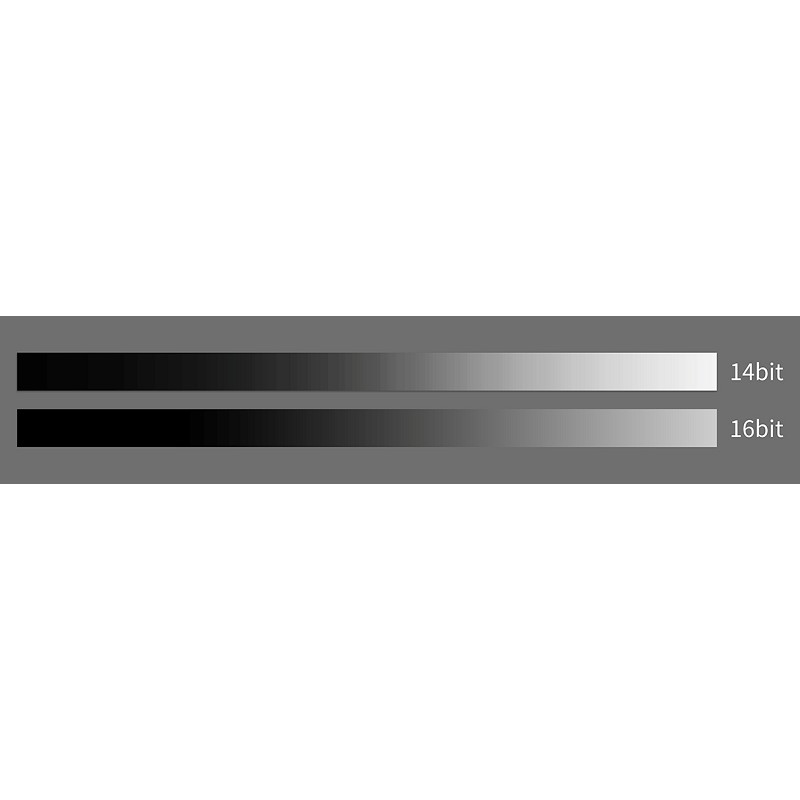

• ADC: 16 bits

• Buffer: 512 MB DDR3

• Cooling: TEC dual-stage, up to -35°C delta

• QE peak: > 91 %

• Read noise: 1.0 – 3.3 e⁻

• Interface: USB 3.0

• Threads: M54x0.75 / M48x0.75

• Weight: 700 g

• Ports: USB 3.0, ST4, 12 V power input
