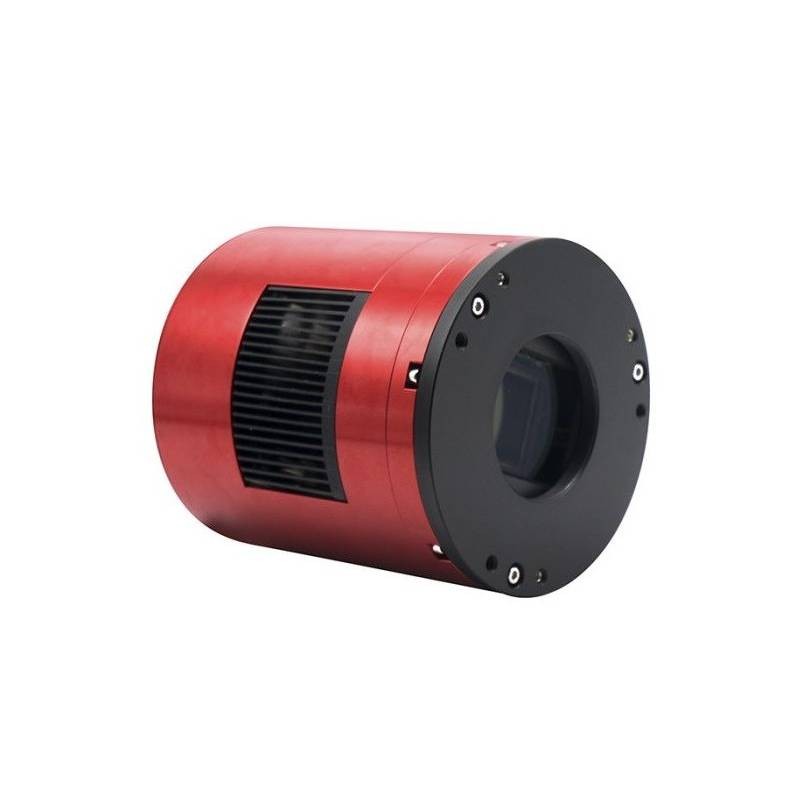

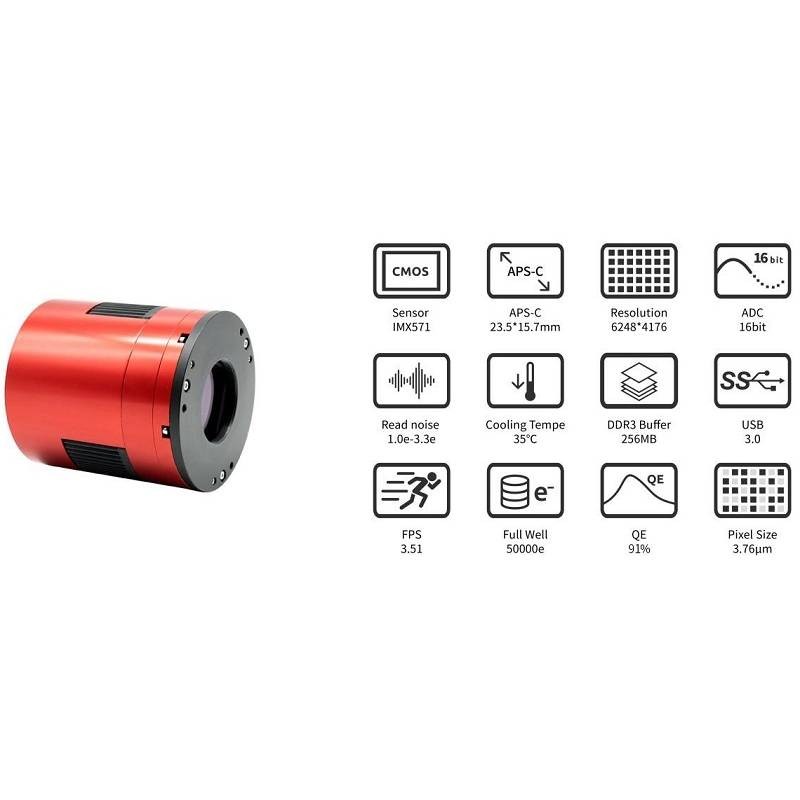

ZWO ASI 2600MM-PRO

• The ZWO ASI2600MM Pro features a 26-megapixel sensor for capturing the full beauty of the night sky in stunning detail. The sensor is monochrome APS-C, which is the first of its kind for a modern cooled monochrome astronomy camera. APS-C is often noted as “the sweet spot” for most telescope optics, as it’s large enough to capture a wide field of view with high resolution but still smaller than full-frame which can exhibit optical imperfections in the corners with many telescopes. As one of the most light-sensitive camera sensors on the market, the Sony IMX 571 sensor is sure to bring your astrophotography to an entirely new level.

  The ASI2600MM Pro has an incredible peak quantum efficiency (QE) value of 91%, which goes above and beyond existing astronomy cameras out there today. Other brow-raising specs include a 16-bit ADC, extremely low 1.0e - 3.3e read noise, and 14 stops of dynamic range. It also weighs a mere 0.7kg (1.5lb), saving you precious weight on your imaging train.





  APS-C Format

  This is a 26MP camera features a small pixel size of 3.76um yet also has the incredible ability to accommodate a large well depth of 50ke.

  The sensor length and width is 23.5mm x 15.7mm with a diagonal of 28.3mm. The full resolution is an impressive 6248 x 4176, which is large enough to crop in significantly and still have a usable image, or make large prints from full-resolution images.

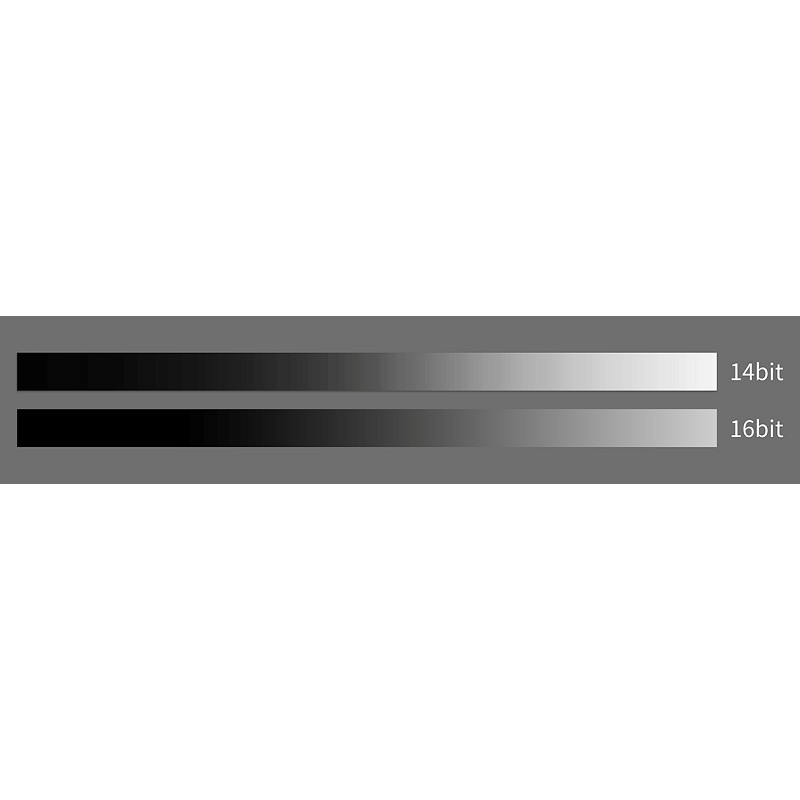

  Native 16bit ADC

  As one of the few CMOS astronomy cameras with a 16-bit ADC on the market, ASI2600MM Pro was born with superiority for astrophotography. This 16-bit ADC is not a typical CCD 16-bit ADC. It can achieve a true dynamic range output of 14 stops, which will significantly improve the image sharpness and contrast and create smoother and more natural color transitions in areas with gradients.

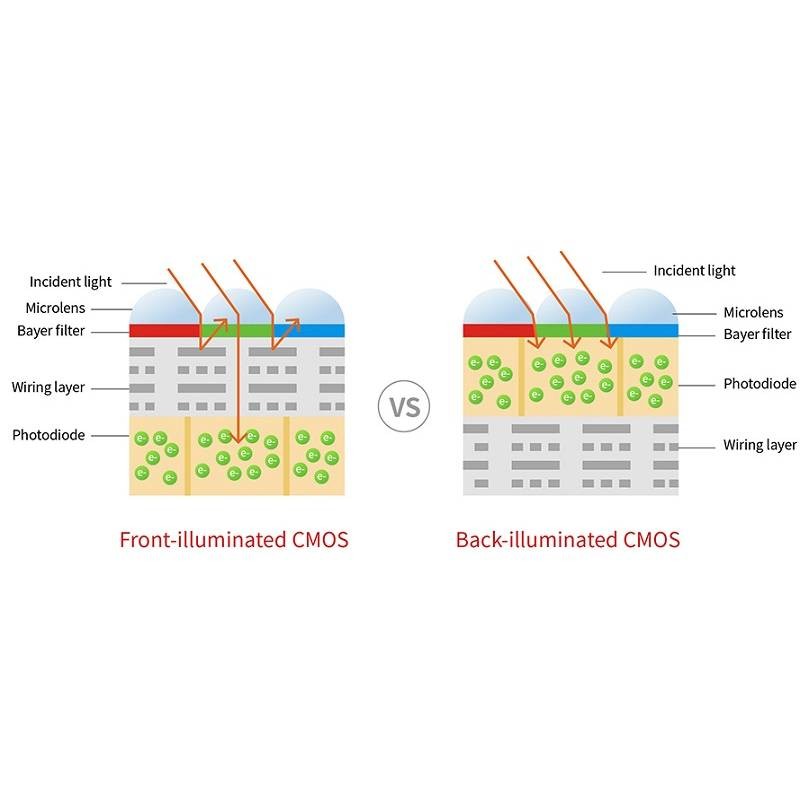

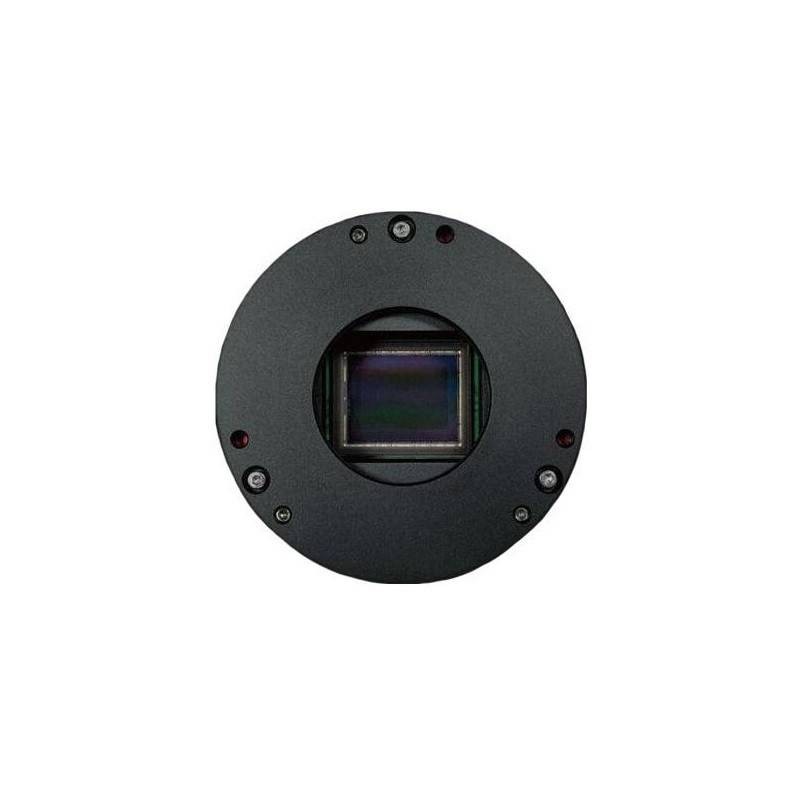

  IMX571 Backlit Sensor

  Sony’s back-illuminated CMOS image sensor improves sensitivity and noise reduction — the key factors to enhancing image quality — while radically realigning their fundamental pixel structure from front-illumination to back-illumination. It has retained the advantages of CMOS image sensors such as low power consumption and high-speed operation.

  With a conventional front-illumination structure, the metal wiring and transistors on the surface of the silicon substrate that form the sensor’s light-sensitive area (photo-diode) impede photon gathering carried out by the on-chip lens. A back-illuminated structure minimizes the degradation of sensitivity to optical angle response, while also increasing the amount of light that enters each pixel due to the lack of obstacles such as metal wiring and transistors that have been moved to the reverse of the silicon substrate. This translates to a higher quantum efficiency, and allows you to gather as many photons as possible.

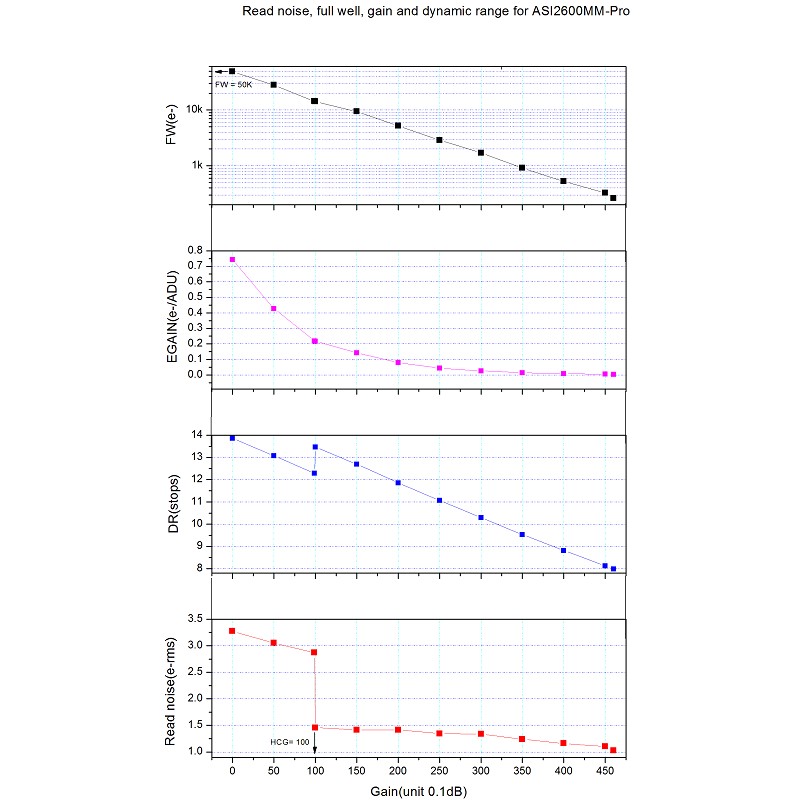

  Camera Performance

  The ASI2600MM Pro has excellent performance with a dynamic range of up to 14 stops. When the gain value is 100, the magical HCG high gain mode is turned on, the readout noise is greatly reduced, and the dynamic range is basically unchanged. For best image quality, it is recommended to set the gain to 0 or gain 100 during deep-sky imaging.



  Zero Amp Glow

  Traditional CMOS sensors produce a weak infrared light source during operation quite often seen in the corner of uncalibrated images as the tell-tale signs of amp glow. As the ASI2600MM Pro uses zero amp glow circuitry, you won’t have to worry about amp glow even when using high gain, long exposure imaging.

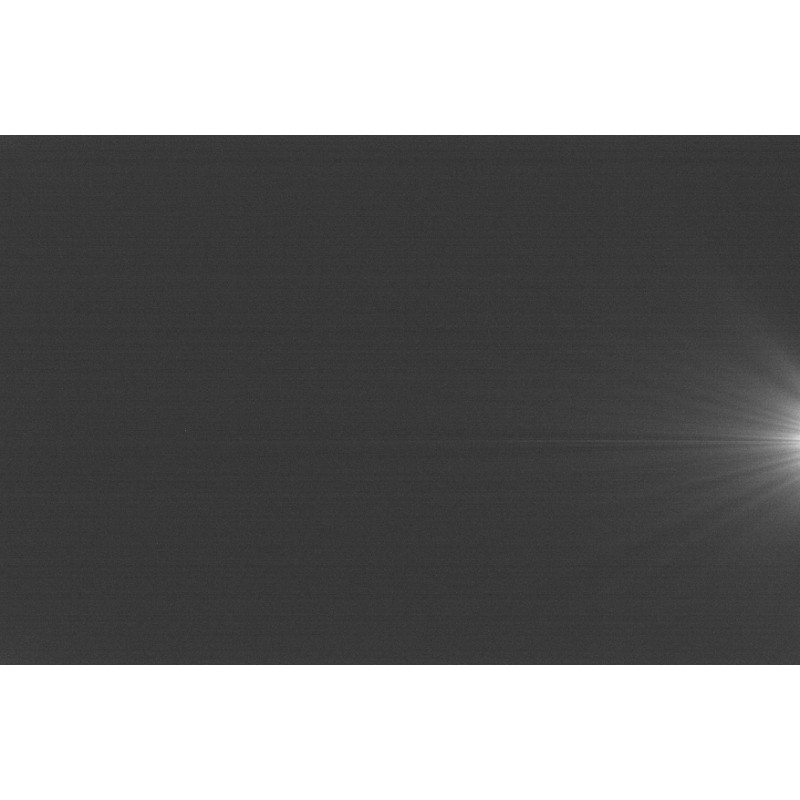

  Dark flame with amp glow – 300s exposure time

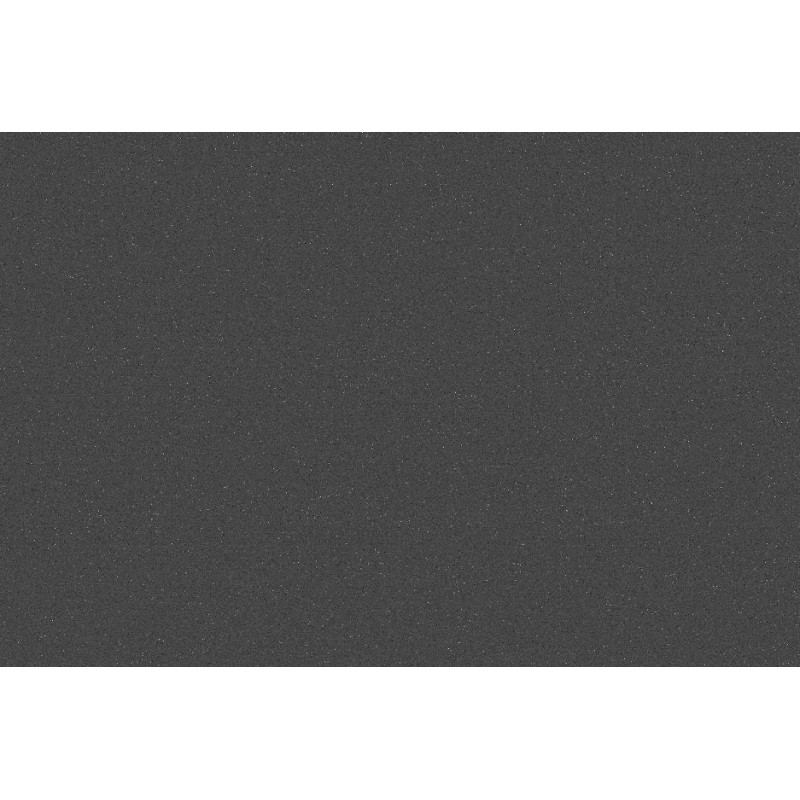

  Dark frame from ASI2600 without any amp glow – 300s exposure time

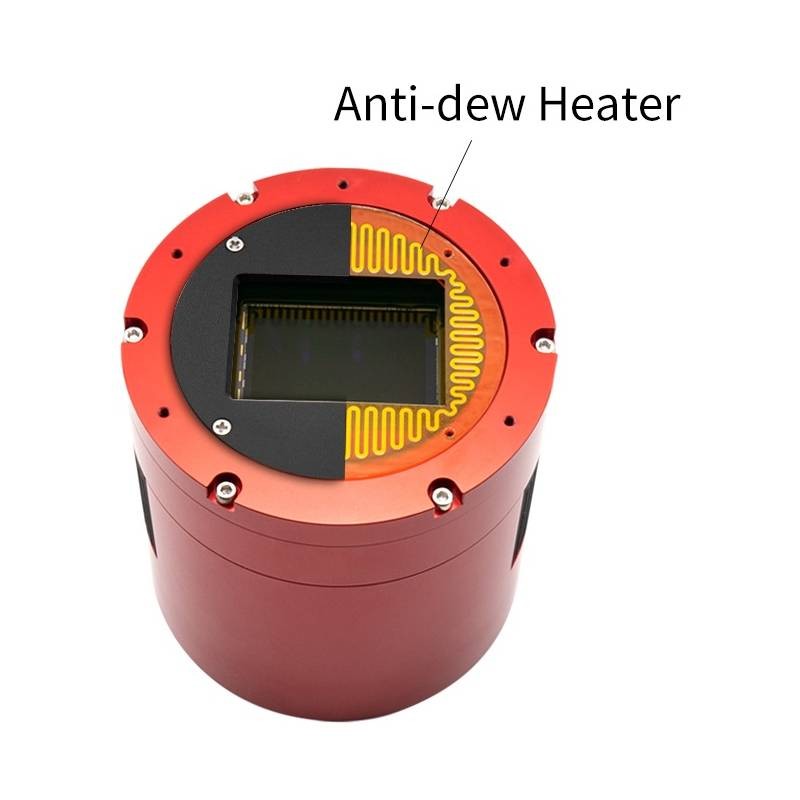

  Anti-Dew Heater

  The ASI2600MM Pro has a polyamide heater completely surrounding the protective window over the camera sensor. This drastically helps keep annoying dew or frost away, which can show up in images on cameras without a dew heater.

  The power of the heater is around 5W. You are free to turn it off anytime in your photography software if you want to save some power.

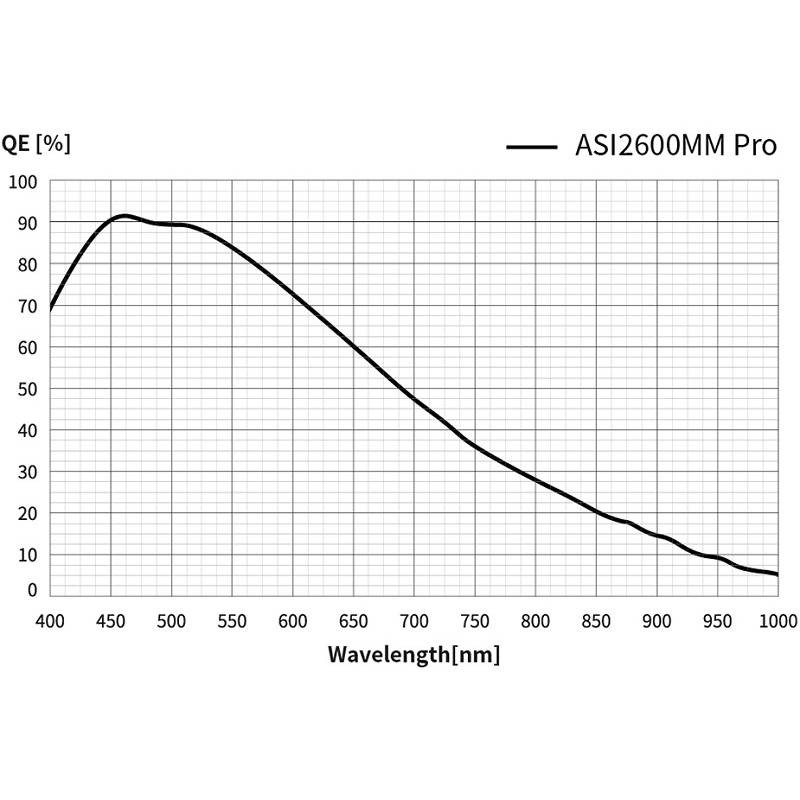

  QE Value

  According to the test results of Sony, the QE peak value of the ASI2600MM Pro is a staggering 91%. This is higher than most cameras on the market, and means the camera is able to retain an extremely high number of incoming photons and convert them into a usable image.

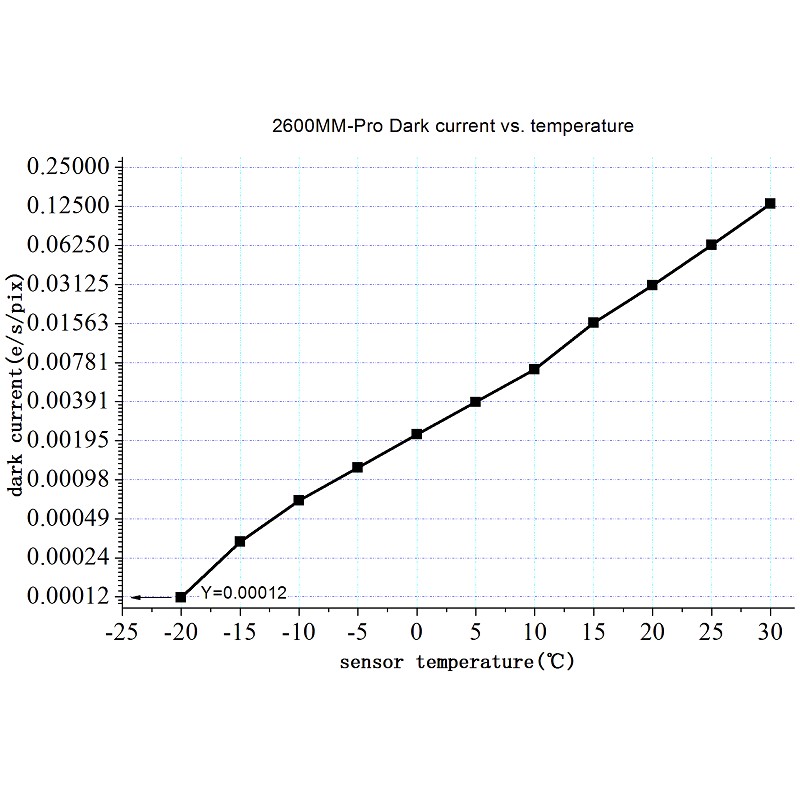

  Two-Stage TEC Cooling, Ultra-Low Dark Current

  Thanks to the two-stage TEC cooling, ASI2600MM Pro can lower the CMOS sensor temperature to more than 35º C below ambient, which can greatly reduce dark current generation and sensor noise even with extended exposure times.

  The unique dark current suppression technology in the camera can even further reduce dark current noise. At a cooling temperature of 0° C, the dark current noise is only 0.0022e/s/pix. This means a 300-second exposure can only cause 0.7e dark current noise, which is even less than the readout noise. While at a cooling temperature of -20° C, the dark current can even reduce down to a mere 0.00012e/s/pix, which is completely negligible.

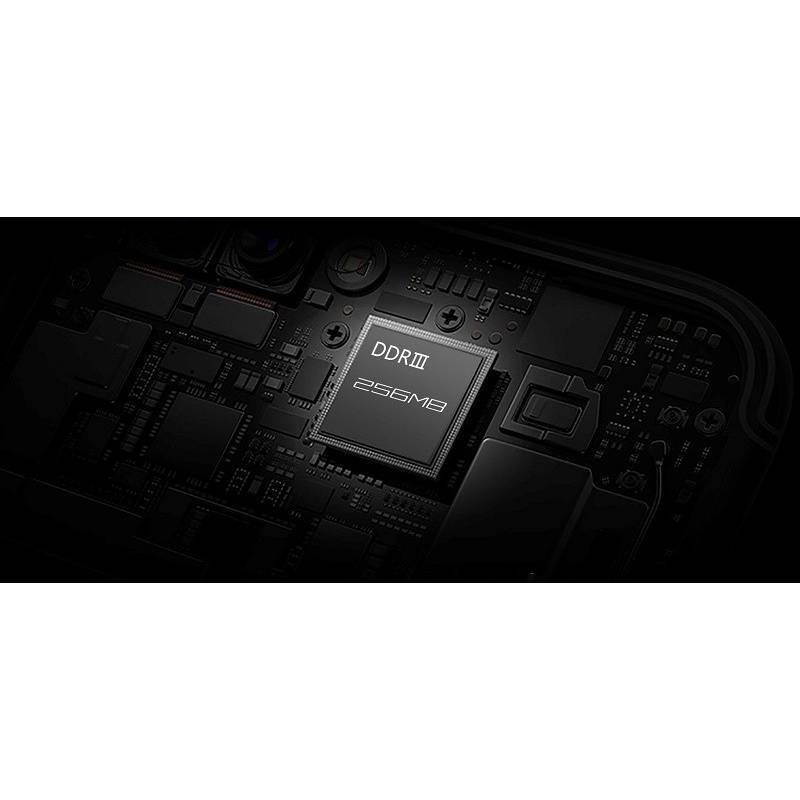

  USB 3.0 & 256MB DDR3 Memory

  The ASI2600MM Pro is equipped with a USB 3.0 transmission interface and a built-in 256MB DDR3 cache to ensure stable and secure data transmission.



  In The Box



• specifications

  ADC	16 bit
  Back Focus	17.5 mm
  Camera Connection	M42X0.75
  Color or Mono	Monochrome
  Cooled	Cooled
  Free Shipping	Yes
  Full Rez Frame Rate	3.51fps
  Full Well	50ke
  Max Frame Rate	16fps
  Mega Pixels	26.1 MP
  MP	More than 20 MP
  Peak QE	91%
  Pixel Array	6248 x 4176
  Pixel Size	3.76 microns
  PS	3 Microns or Smaller
  Read Noise	3.3e
  Sensor Diagonal	28.3 mm
  Sensor Type	CMOS
  Sensor	Sony IMX571
  Weight	1.5 lb

• included items

  • Camera bag
  • Camera body
  • M48-M42 adapter
  • Quick guide
  • USB3.0 Cable (2m)
  • M42-M42 21mm extender
  • M42-M48 16.5mm extender
  • 2" cover
  • Hexagon wrench
  • 2x USB2.0 cable (0.5m)
