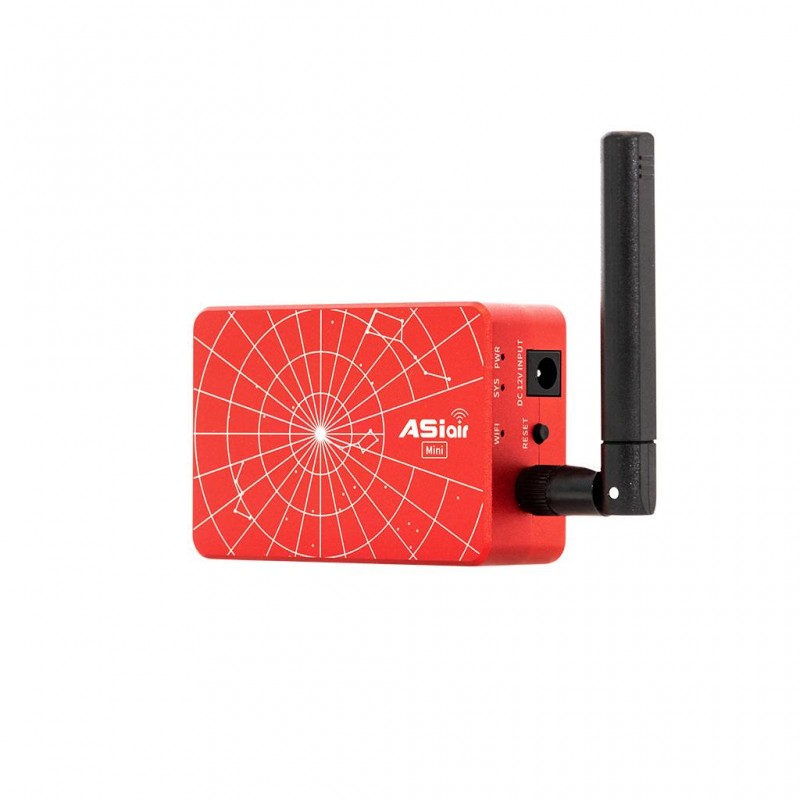

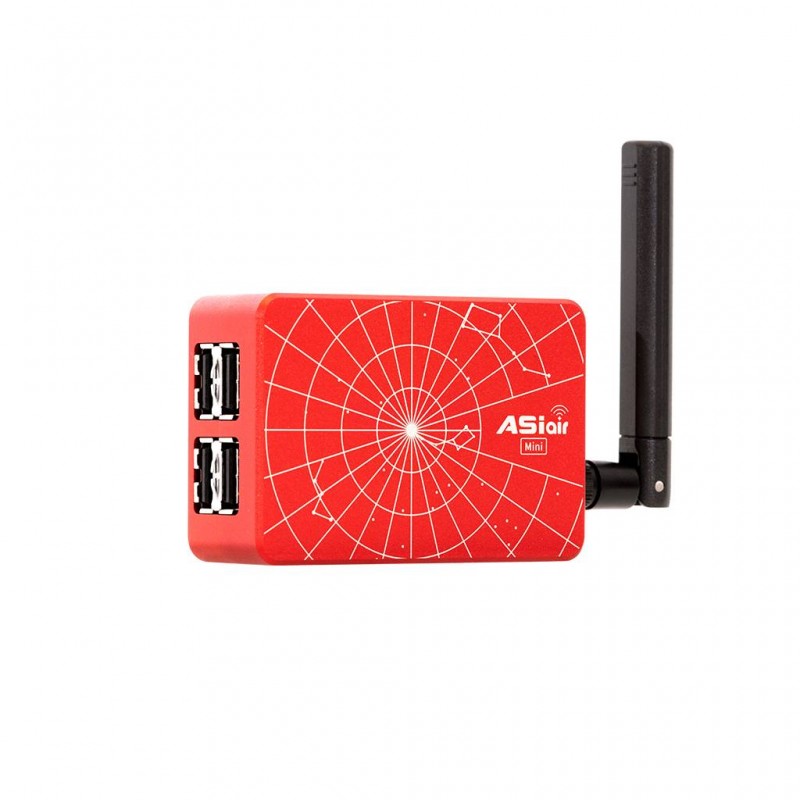

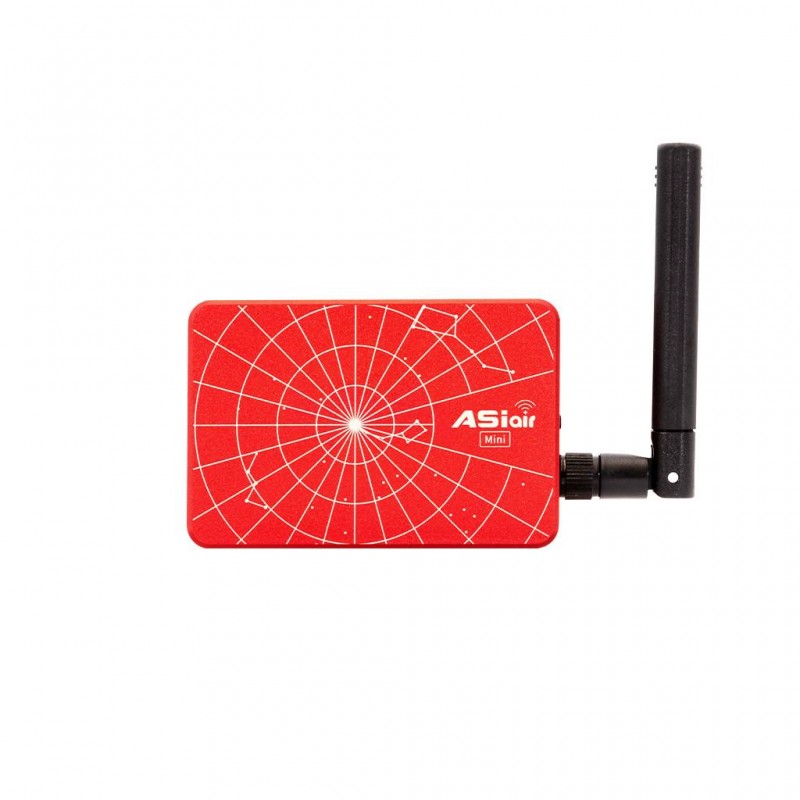

ASIAIR Mini WiFi control box

ASIAIR Mini WiFi control box

ASIAIR Mini is a compact controller designed to remotely and wirelessly manage your entire astrophotography setup. It works exclusively with ZWO equipment, including imaging cameras (up to 26 megapixels), guide cameras, electronic focusers (EAF), and motorized filter wheels.

It also supports a wide range of DSLR and mirrorless cameras and also recognizes most GoTo mounts currently available on the market.

The ASIAIR Mini mounts directly on a finder bracket using its integrated dovetail base. It includes four USB ports (2 x USB 3.0, 2 x USB 2.0), two 12V power outputs, and 32 GB of internal memory. It supports camera control, guiding, focusing, and mount slewing via ASCOM/SkySafari.

Technical specifications:
– Weight: 175 g

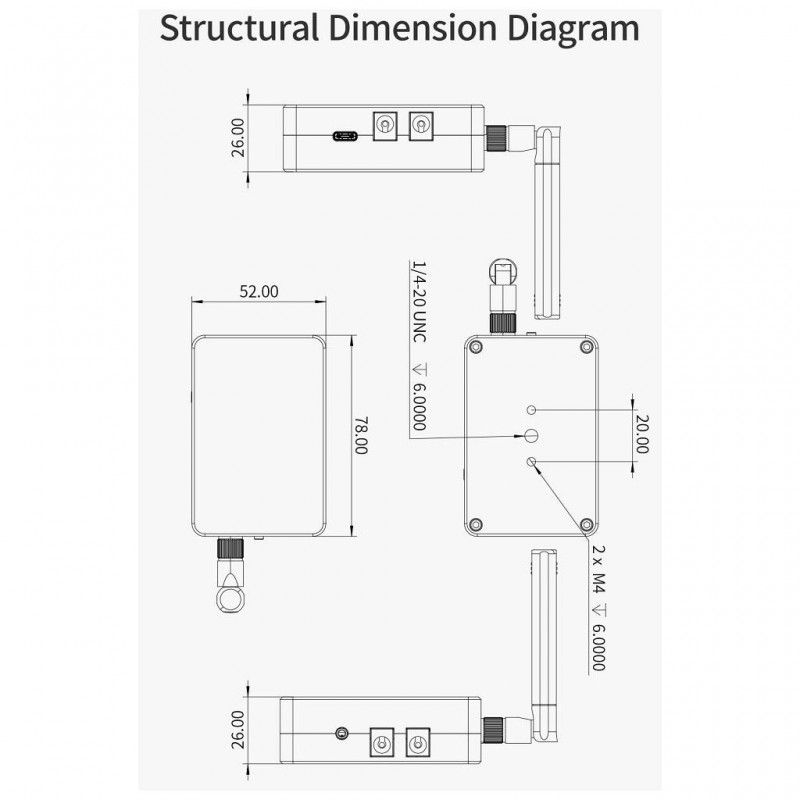

– Size: 78 x 50.6 x 26.5 mm
– Anodized aluminum housing

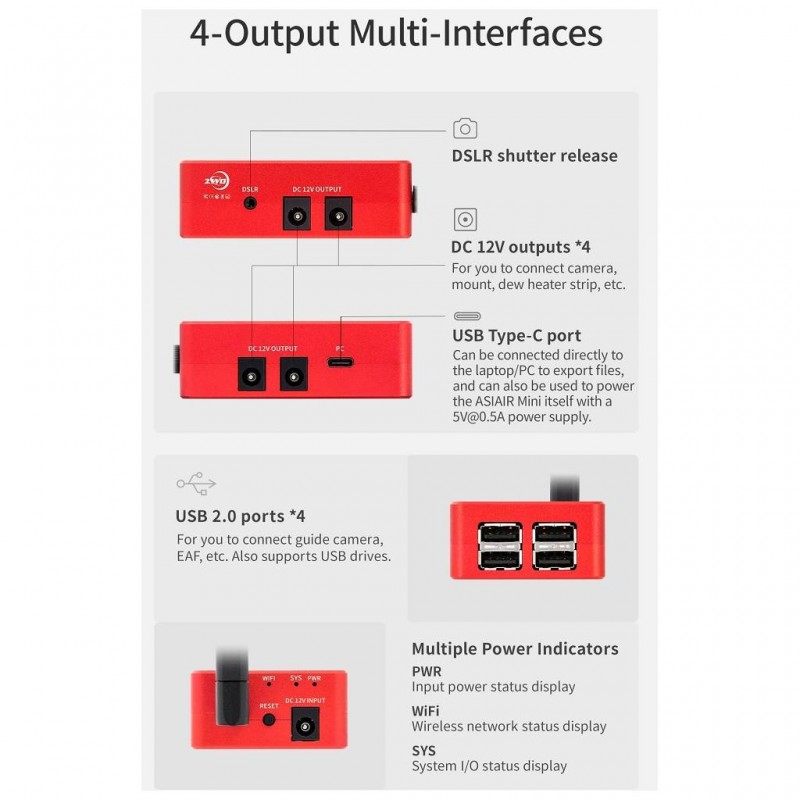

– 2 USB 3.0 ports + 2 USB 2.0 ports
– 2 x 12V outputs
– DSLR trigger port
– 32 GB internal storage
– Finder bracket dovetail adapter
– WiFi connection (up to 18 m range)
– ASCOM/SkySafari compatible
– Power supply: 12V DC (not included)

Additional information:

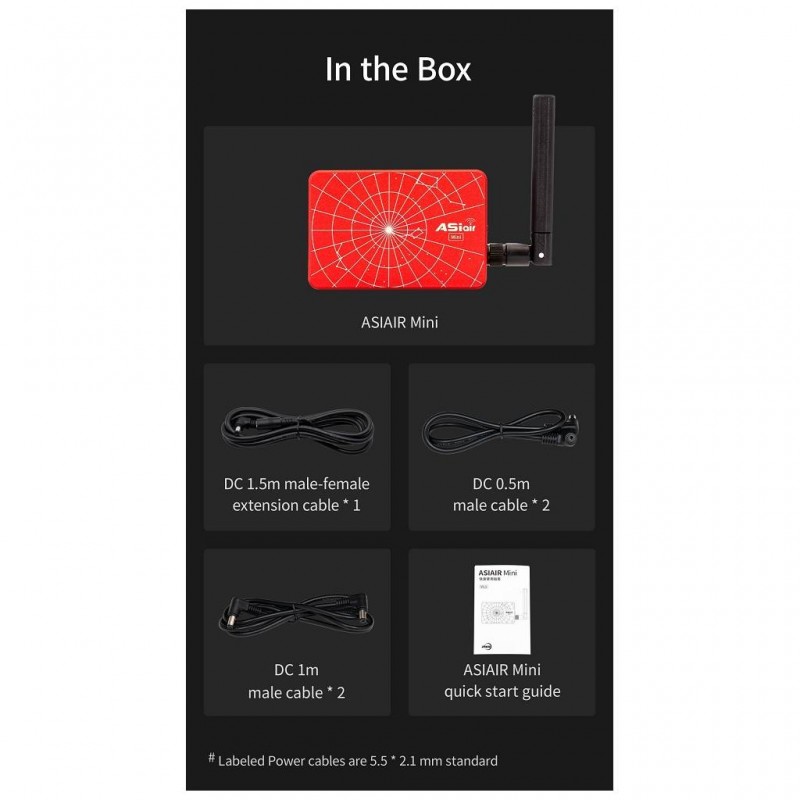

ASIAIR Mini works only with ZWO ASI devices (cameras, focusers, filter wheels). It is compatible with many GoTo mounts and various DSLR or mirrorless cameras via shutter cable. Includes multiple power cables (male/male and male/female).
