Pocket Powerbox Advance

This small but powerful device (PPBADV) is a welcome addition to the Powerbox product series.

Proudly stands between Pocket Micro and Ultimate Powerbox v2.

It has been designed to provide more advanced features than Pocket Powerbox Micro, especially a USB Hub that accepts up to 4 USB ports.

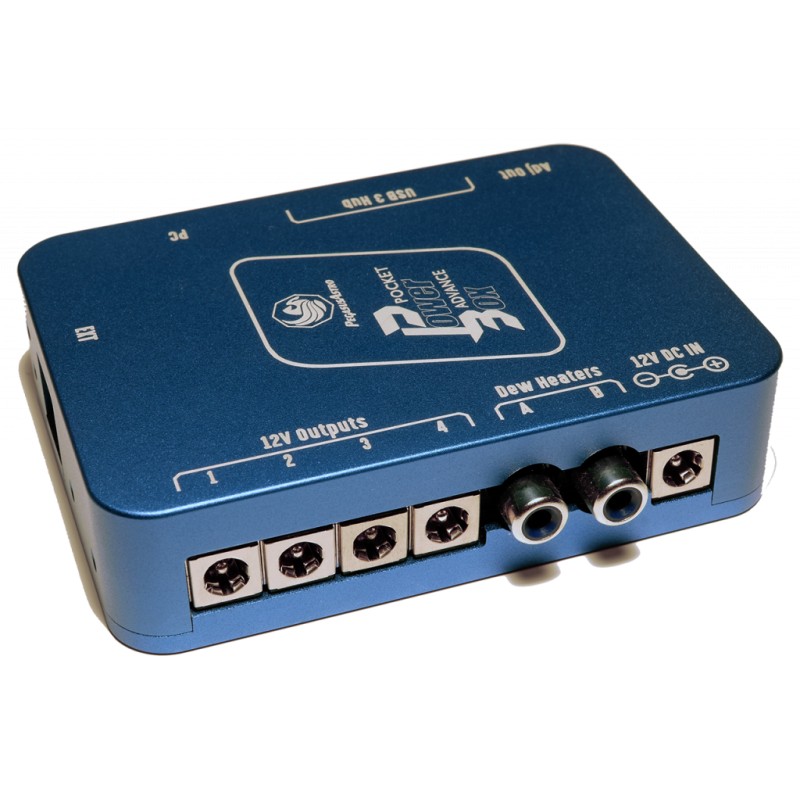

  • 4 x 12V DC Power outlets for your equipment (A single channel to switch all four outputs ON/OFF via software)
  • 12 Amps of total distributed current
  • Adjustable Output (3, 5, 7, 8, 9, 12Volt) / 3Amps (Can be switched ON/OFF) Power your DSLR / Mirrorless camera
  • Embedded Powered USB3 Hub – 2 x USB3 Ports & 2 x USB3 Ports Available (USB3 ports are backwards compatible with USB2 devices)
  • 1 x Power USB Port (up to 3Amps) – Suitable for Raspberry PI 3/4 power
  • EXT Port (RJ12) for external accessories (e.g. External Focus Controller)
  • 2 Channels PWM Dew Heaters – RCA Outputs (Adjust power levels via software)
  • Humidity and Temperature Sensor (included)
  • Auto-Tune Dew Heater Channels
  • Reverse Polarity Protection
  • USB / PC Controlled or Standalone Operation out of the box
  • Lightweight and extremely compact aluminium enclosure

Built-in Amp-meter

An Amp-meter placed after the DC input reports the total electric current.
There are also three additional amp meters: One for the 12V outputs and two for the Dew Heater Channels. This allows you to monitor your equipment's overall power consumption easily.

More than 12A of total electric current

The powerbox has been designed to output up to 12 Amps of electric current. (A typical backyard astrophotographic setup requires 5-7 Amps).

Embedded USB3 Hub – 2 x USB3 & 2 x USB2 Ports

A powered USB3 Hub at the back of the device provides the following:

  • 2 x USB3 SuperSpeed Ports
  • 2 x USB2 High-Speed Ports.

The new SuperSpeed hubs operate in parallel with the USB 2.0 controller, so 5 Gbps SuperSpeed data transfers are not affected by slower USB 2.0 traffic.|

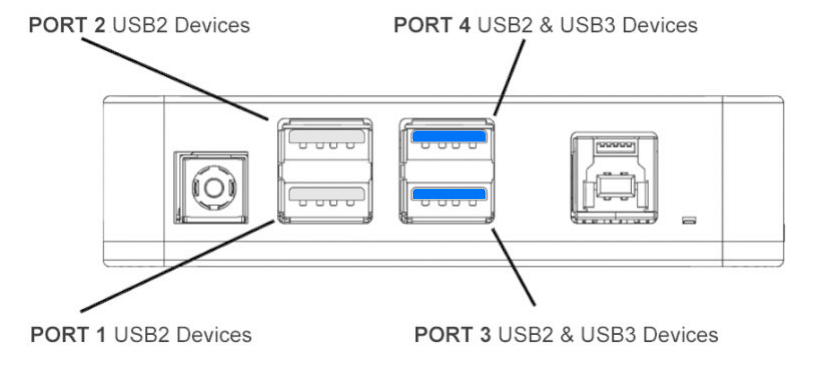

USB Port Configuration under PPBADV Gen2

  • USB Port1 supports USB2 devices
  • USB Port2 supports USB2 devices
  • USB Port3 supports USB2 & USB3 devices
  • USB Port4 supports USB2 & USB3 devices

* Older product revision (Gen1) had only 3 out of 4 USB Ports compatible with USB2 devices. For detailed information, please check the product manual.

USB High Power Output

USB Port 1 provides up to 3 Amps of current. You can connect any device that requires 5V. E.g. a Raspberry PI 3/4 or Intel Compute Stick M3/M5 can receive power from this specific port.

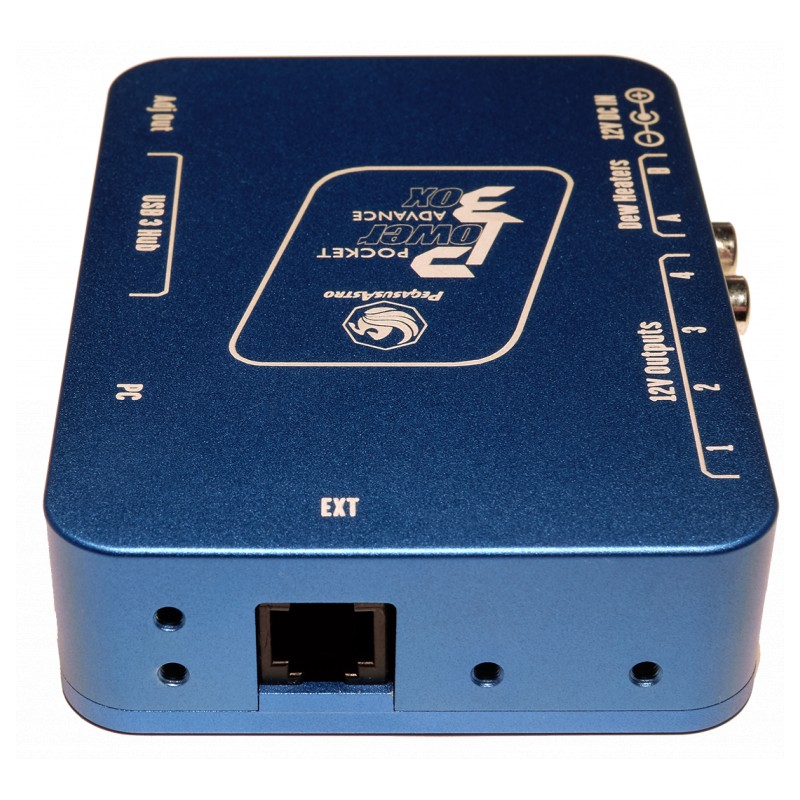

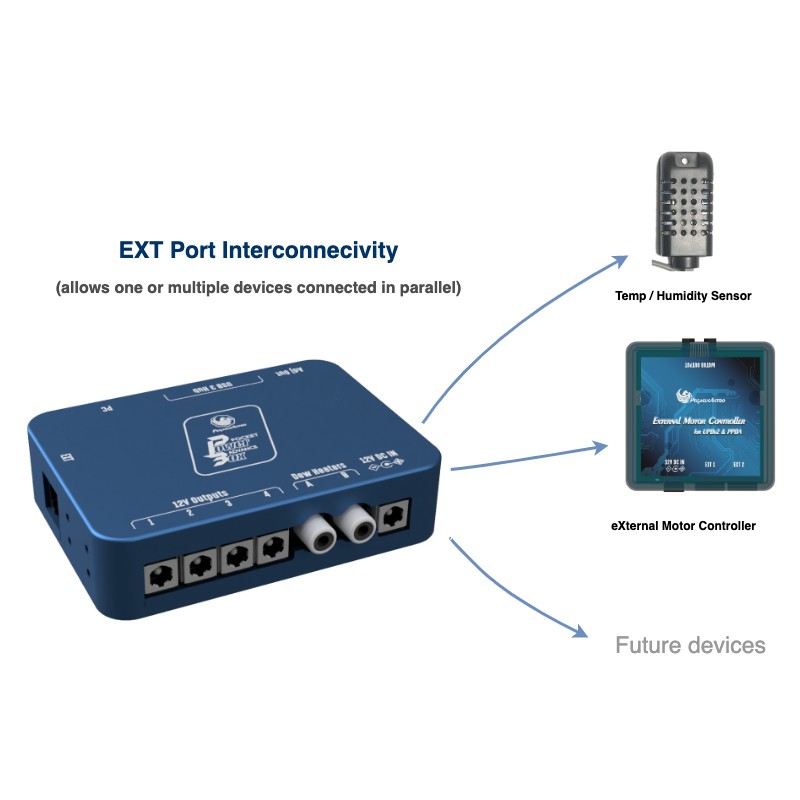

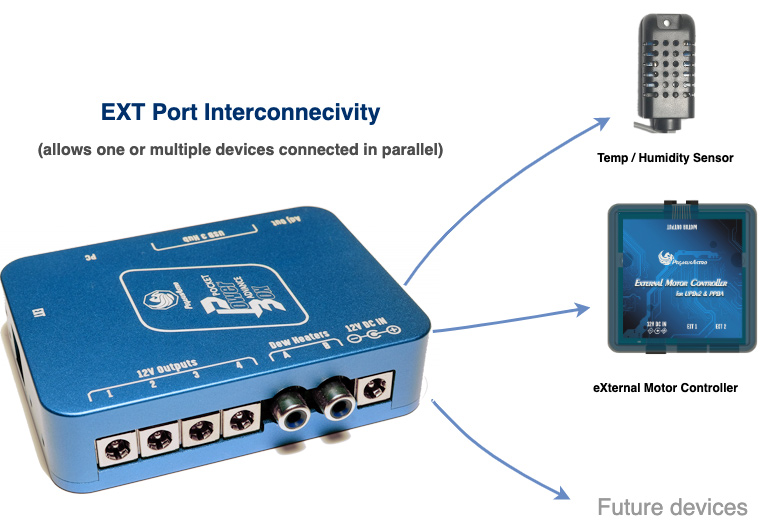

Expansion Port (EXT)

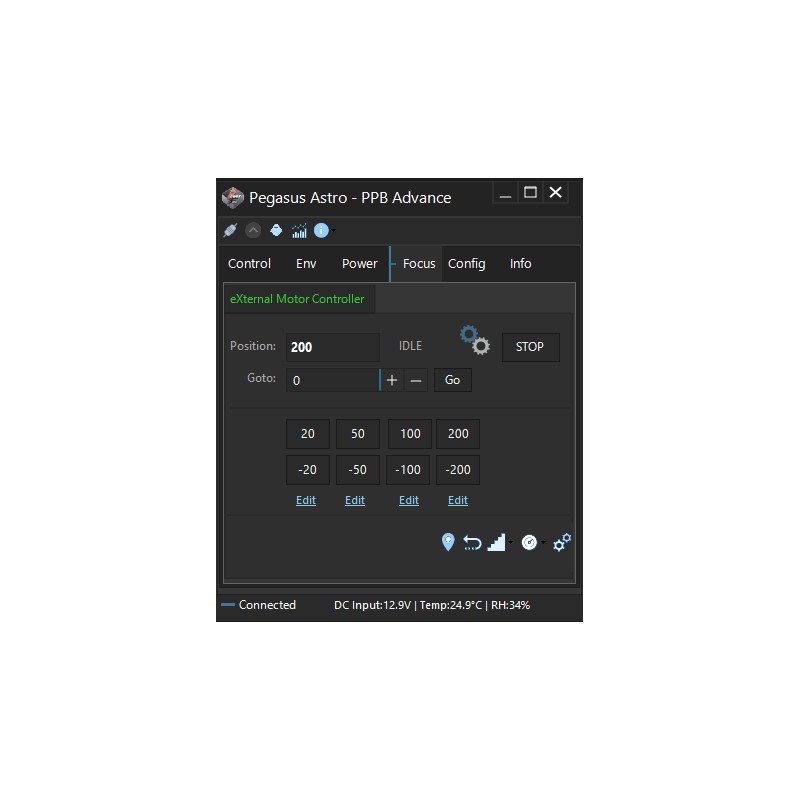

EXT (expansion) port is available for device expansion. This RJ12 socket allows the connectivity of current and future Pegasus Astro products. Plugged devices can be controlled from Pocket Powerbox Advance standalone software or a dedicated ASCOM driver.

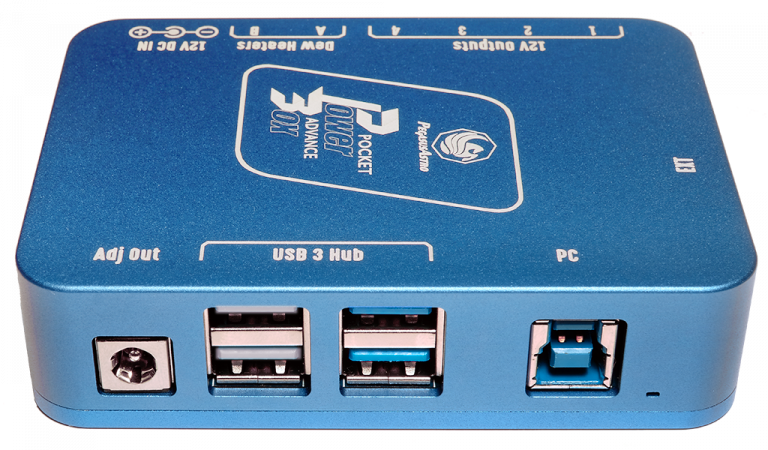

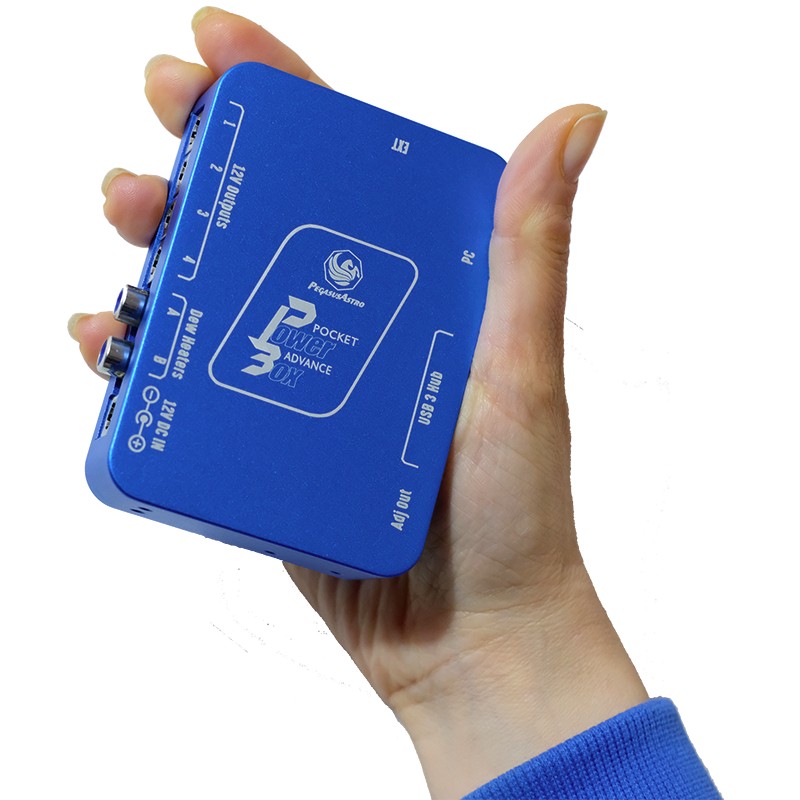

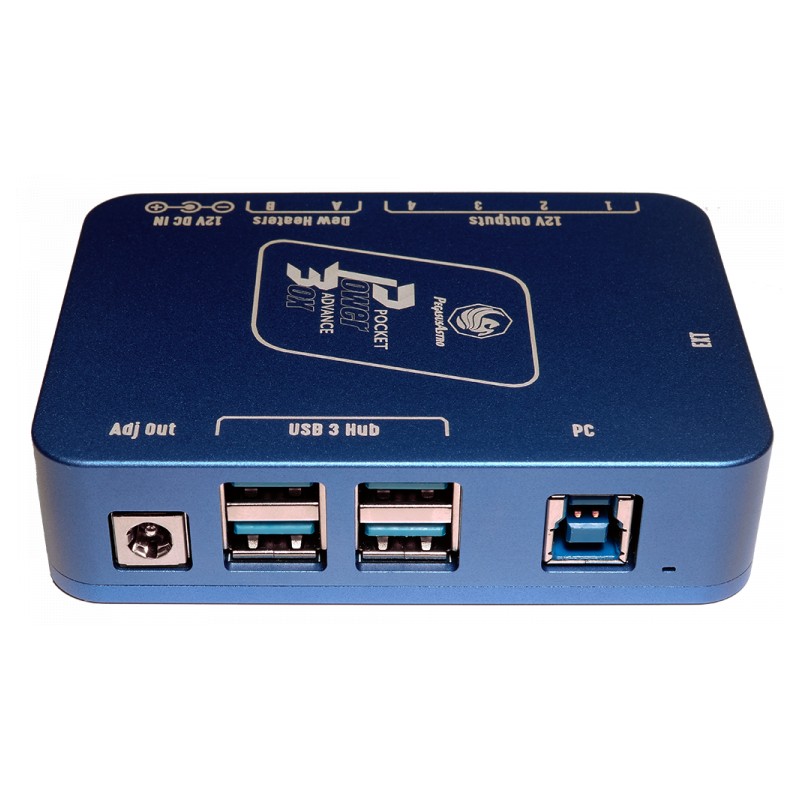

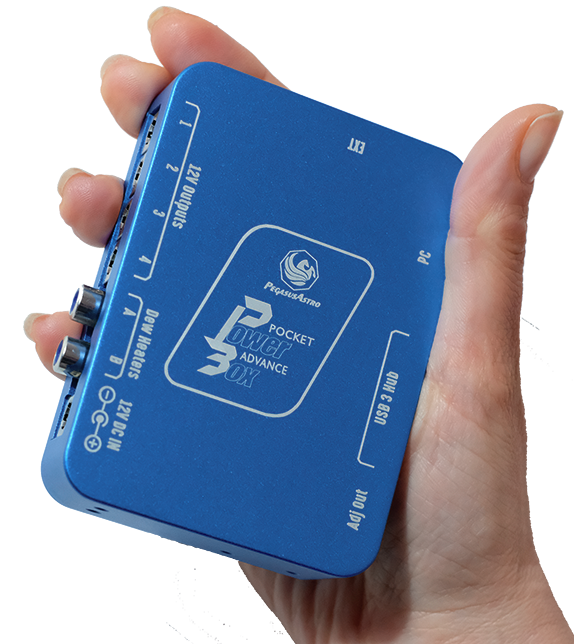

Compact Aluminium Enclosure

A high-quality, robust, blue anodised Aluminium enclosure houses the electronics of the Pocket Powerbox Advance.

Size is 100mm x 71mm x 24mm. Weights 250 grams.

Other Key Features

Standalone Operation “out of the box.”

Pocket Powerbox Micro can work “out of the box” as a standalone device. Just plug the cables, and set up the “autodew” functionality, and every time you boot the device, it will retrieve your settings. So, If you don’t like to connect to a PC every time, you don’t have to. Simple as that!

Two-channel duty cycle PWM outputs

Two Pulse width modulation (PWM) outlets can power your “thirsty” Dew Heaters. No more moisture fuzzing your equipment and destroying your clear nights. These outlets can be remote-controlled from your laptop using the supplied software.

Auto Adjustment of PWM (Dew Outputs)

A controller can auto-adjust the heater power levels by consulting the environmental sensor Dew Point reading. Just click “Auto” and leave to Pocket Powerbox Micro to decide if it is time to turn on and precisely tune the level of your dew heaters.

More than 10A of total power

The controller has been designed to support up to 10 Amps of total current.

Led Indications for power and failure states

Led can blink patterns to warn you regarding important power issues (e.g. over or under voltage). Moreover, light can be turned off using the software. Our LED is very dim, but you can switch it off via the software if you don't like it.

Reverse Polarity Protection

Pocket Powerbox Micro has reverse voltage polarity protection. If you accidentally connect the main power supply in reverse polarity, it will save your night!

A hardware watchdog

A hardware watchdog resets the device if, for any reason, there is no response from the controller for two seconds. This a neat feature in the unlikely event of a controller freeze when you have a remote observatory and need to be sure everything works as expected.

Upgradable Firmware

The device is firmware upgradeable to support future features and bug fixes.

Supported By

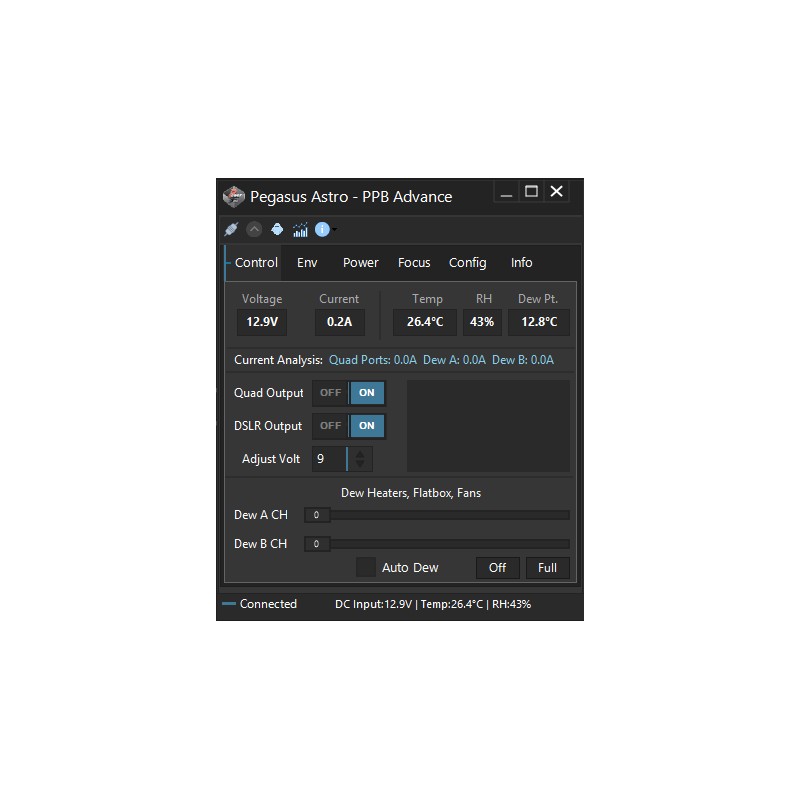

Pocket Powerbox Advance fully supports ASCOM6. In combination with our main program, which acts as a server, you can use our latest ASCOM 6.5 supplied drivers to:

  • Report environmental settings to supported software (e.g. Sequence Generator Pro / MaximDL )  (ASCOM ObservingConditions)
  • Switch ON / OFF 12V outputs, Adjustable Output, and Tune Dew Heaters. (ASCOM Switches)


Pocket powerbox fully supports INDI; bundle it with Stellarmate or any other device that can use INDILib.

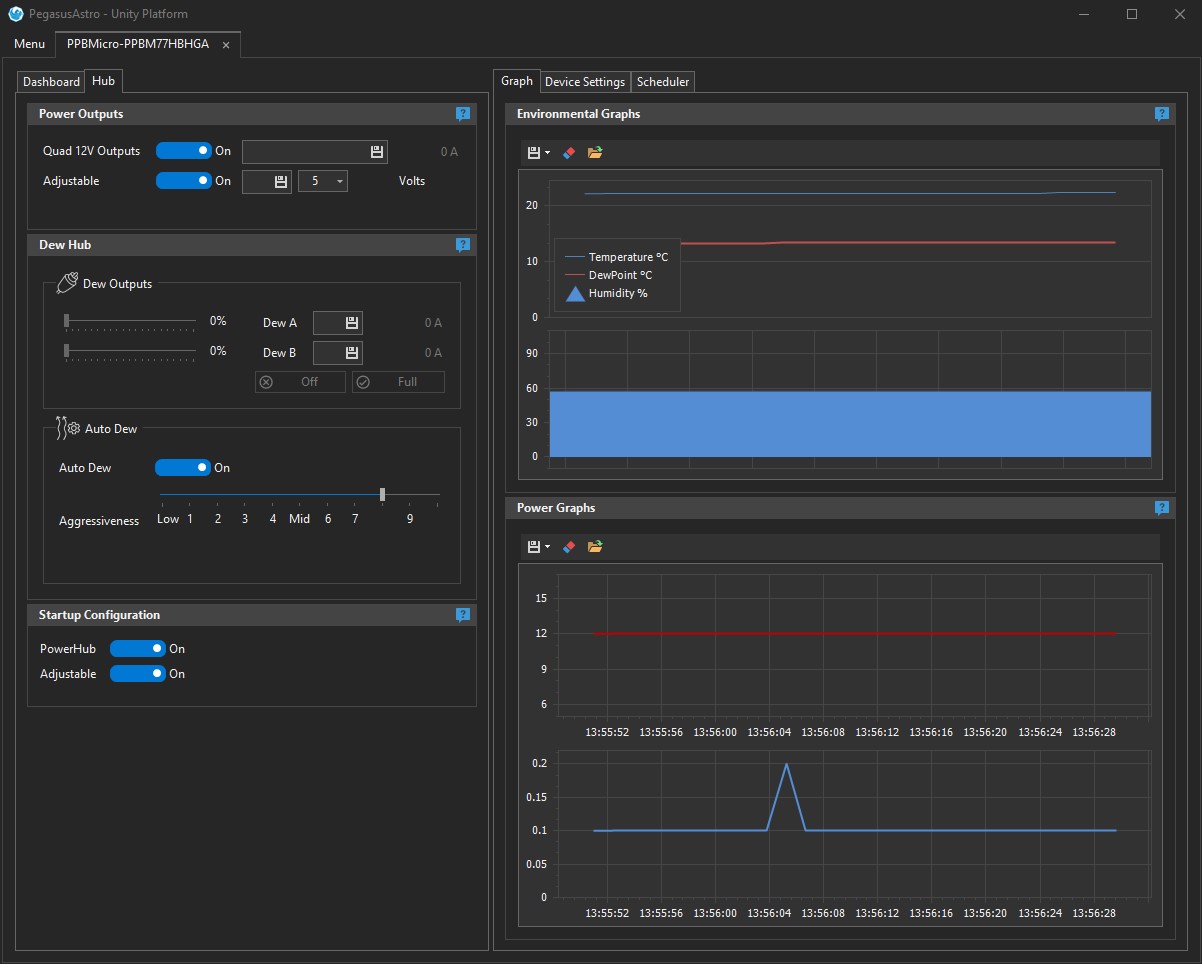

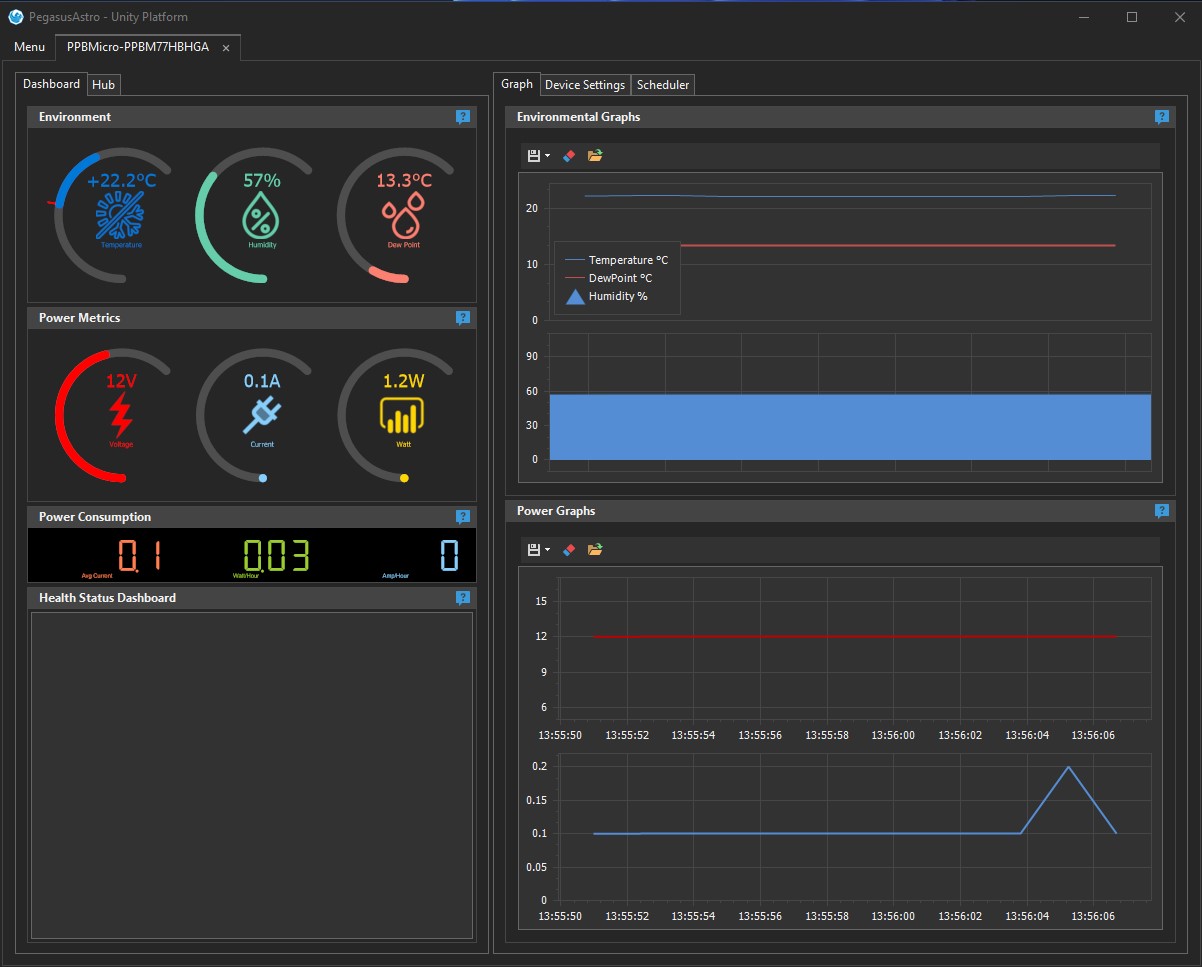

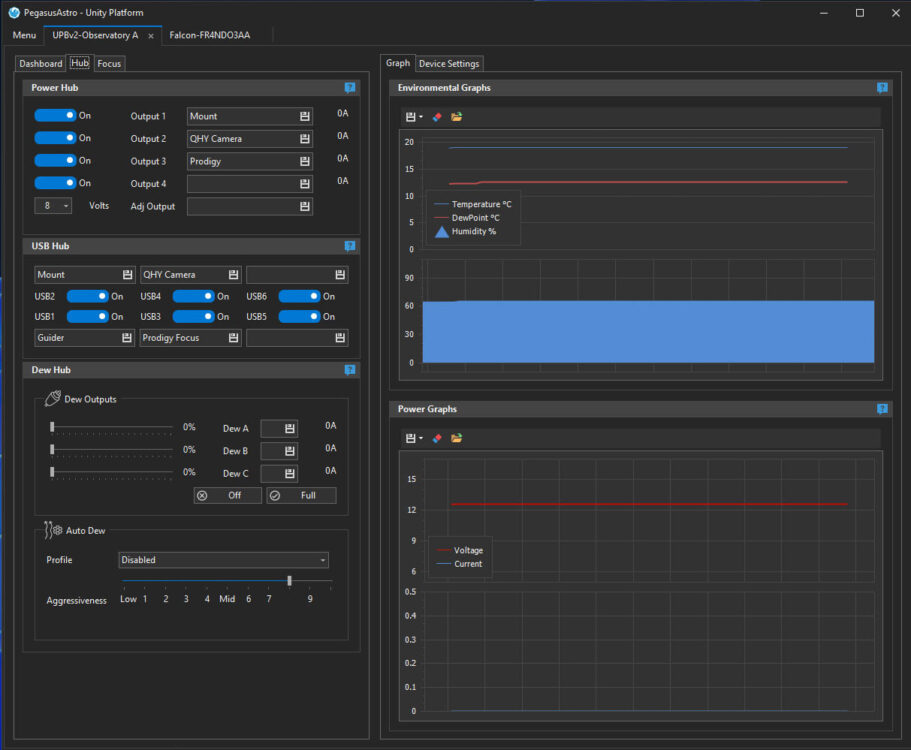

Unity Platform Support

Pegasus Astro Unity Platform is their new all-around application. We aim to provide a robust and modern application supporting current and future products under one roof.

A modern front end allows complete control of all Pegasus Astro devices.

Moreover, a REST JSON API helps developers from 3rd party software to interact with our products.

What's in the box

  • Pocket Powerbox Advance Controller

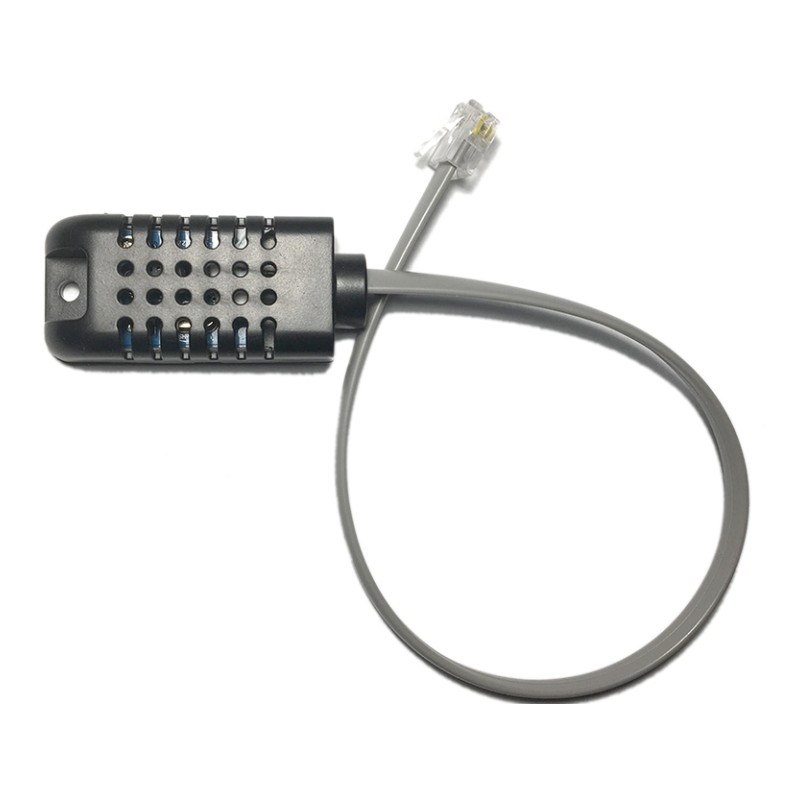

  • Temperature / Humidity Sensor

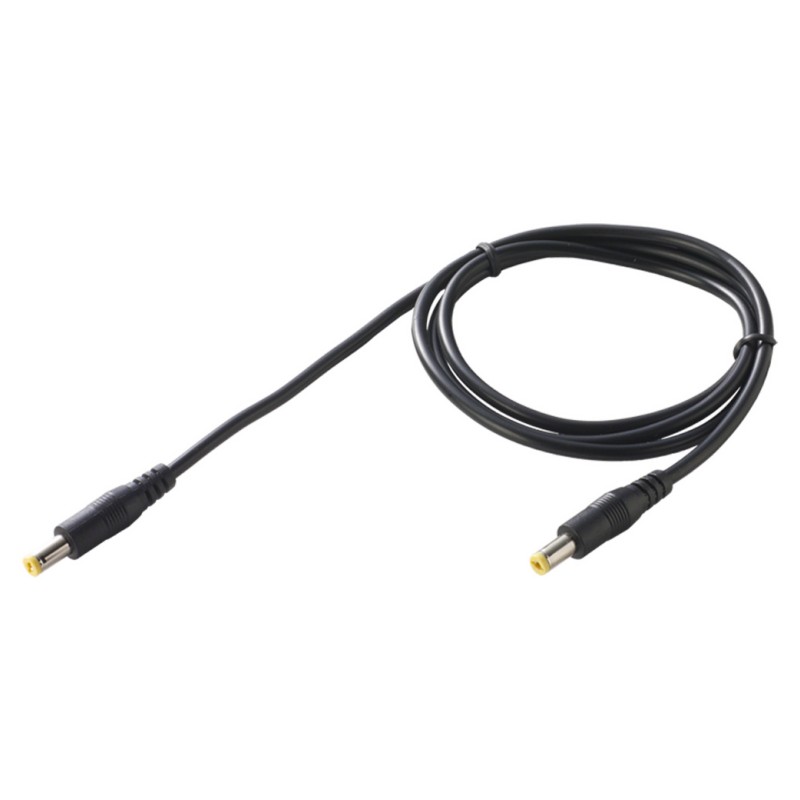

  • 4x 1m 2.1mm Male to 2.1mm Male Power Cables
  • 1.8m USB3 Cable
