Baader M48 Extension Tube – 7.5 mm

Baader M48 Extension Tube – 7.5 mm

Description

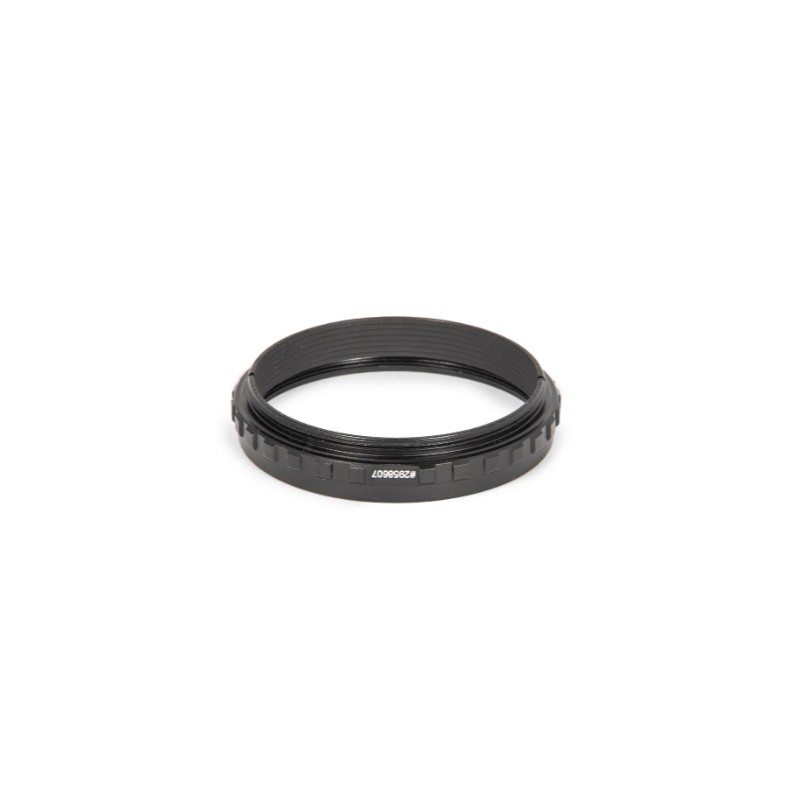

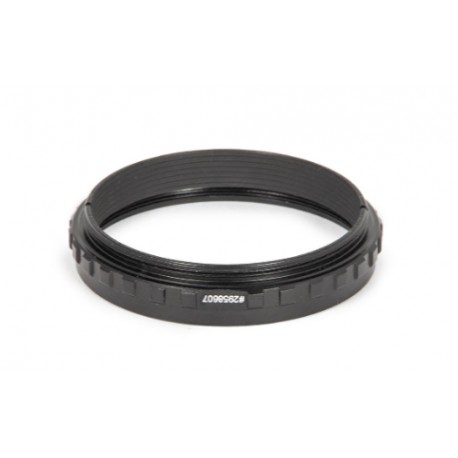

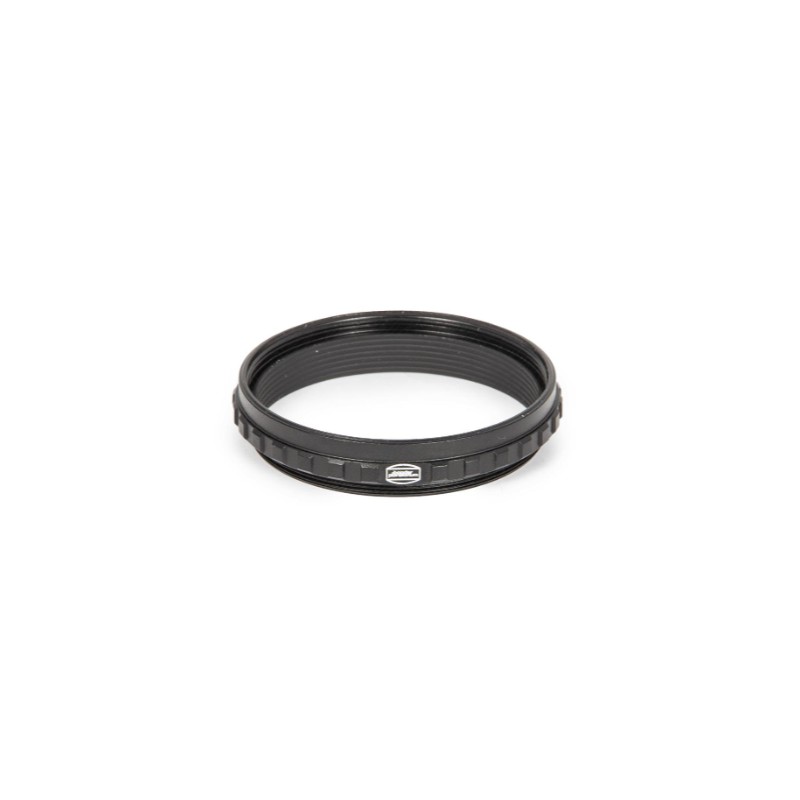

The Baader M48 Extension Tube – 7.5 mm is designed to adjust the working distance of cameras and accessories with an M48 thread. Made of high-quality aluminum, it provides robustness and precision. Its optical path length of 7.5 mm ensures optimal adaptation to modern setups.
The telescope side features an internal M48 thread (3.5 mm depth), while the eyepiece/camera side has an external M48 thread (3 mm depth).
This extension tube follows the new 3 mm threading standard, perfectly suited for modern cameras, and eliminates the limitations of the old 5 mm T-2 standard.

Technical Specifications

• Manufacturer: Baader Planetarium

• System: M48

• Optical length: 7.5 mm

• Material: High-quality aluminum

• Telescope side: M48 internal thread, 3.5 mm depth

• Eyepiece/camera side: M48 external thread, 3 mm depth

• Inner diameter: 45 mm

• Outer diameter: 53 mm

• Net weight: 0.01 kg

• Usage: adjusting the distances of M48-threaded accessories

• Compatible brand: Baader Planetarium

• Clamping system: none
