Description

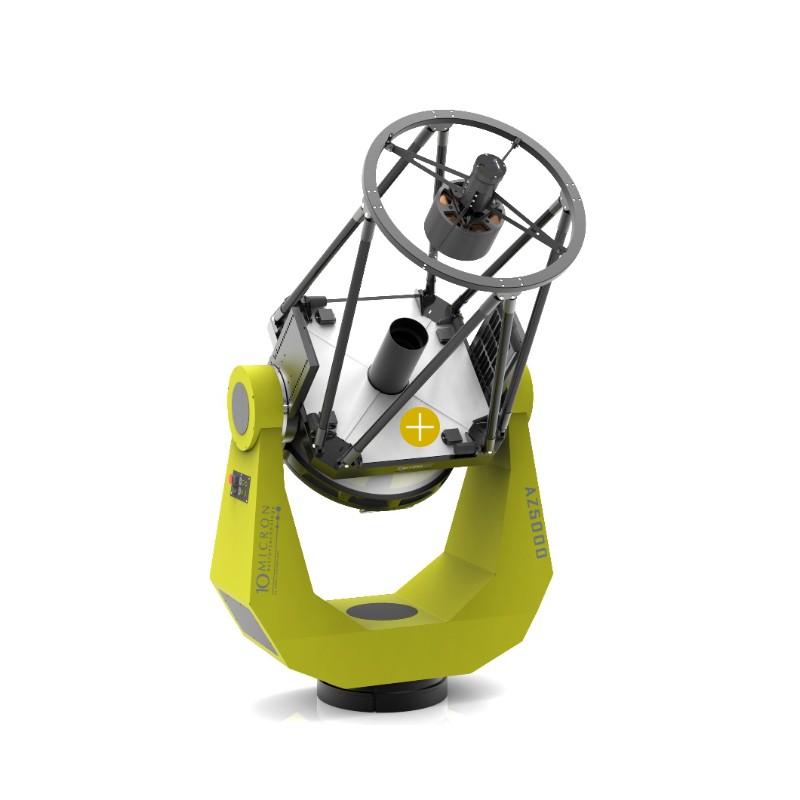

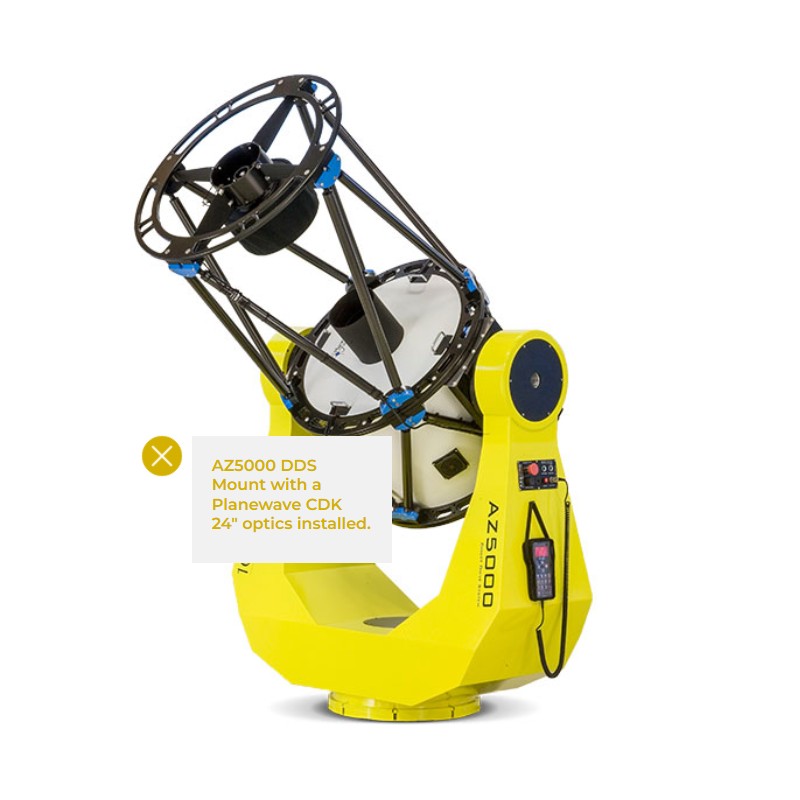

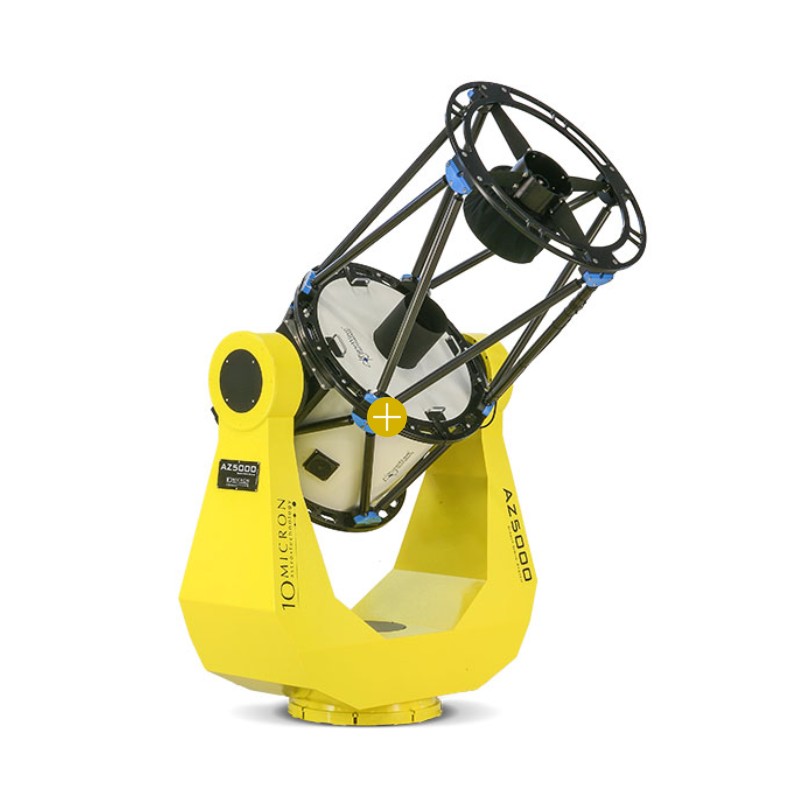

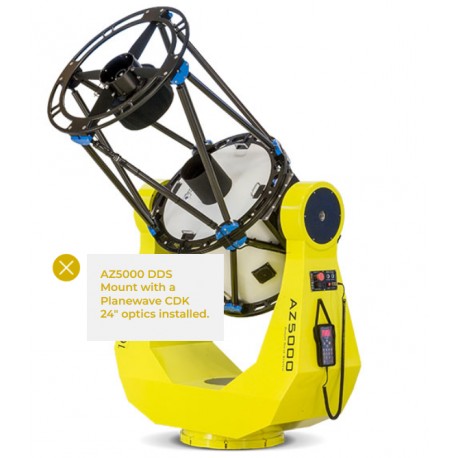

The 10Micron AZ 5000 DDS represents the most advanced generation of professional robotic mounts developed by 10Micron. Built upon decades of expertise in robotic telescope systems, this altazimuth fork mount features software-integrated derotator and focuser, and is engineered for the demanding needs of research institutions, satellite tracking operations, and scientific observatories.

Every element of the AZ DDS platform has been meticulously designed to meet the highest performance standards in mechanical, electrical, electronic, and software design. Its rigid structure, compact fork geometry, and integrated safety systems ensure superior performance with maximum reliability for both the instrument and the operator.

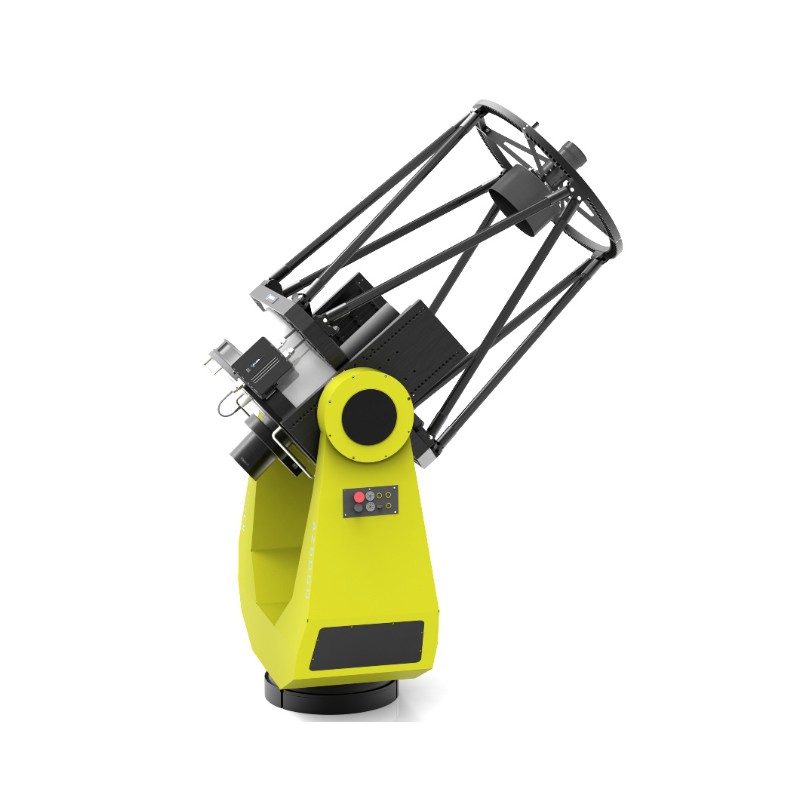

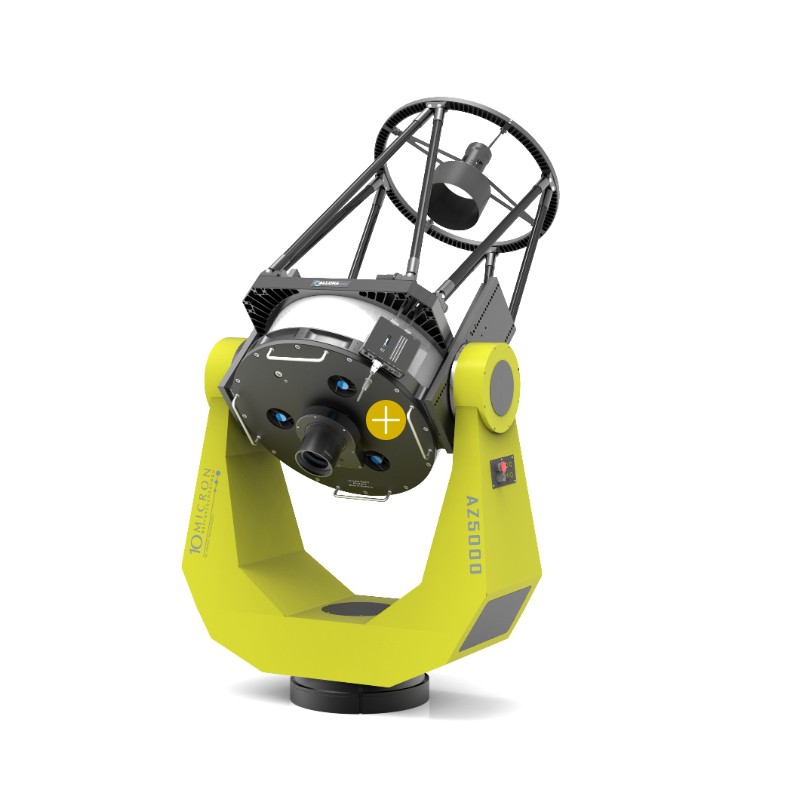

The AZ 5000 DDS is optimized for 24" to 26" optics, with a total payload capacity of up to 250 kg. It is delivered in standard configuration for Cassegrain focus telescopes and may be customized with dedicated flanges. A Nasmyth focus variant is also available as an option.

Complete telescope systems with matched optics are available on request. Custom configurations are supported.

Technical specifications:

• Mount type: Altazimuth fork with direct drive and on-axis Renishaw absolute encoders

• Mount weight: 300 kg

• Instrument capacity: up to 250 kg (supports up to 26" OTA)

• Bearings: Special high-quality large-diameter ball bearings

• Motors: Direct drive, professional-grade, backlash-free

• Encoders: Renishaw high-resolution absolute, industrial-grade

• Power supply: 48 V

• Power consumption: 15 A peak

• Goto speed: > 30°/s

• Pointing accuracy: < 5" RMS with internal 25-star model (up to 100 stars); external modeling supported

• Tracking accuracy: ~1" typical over 15 minutes

• Nasmyth ports: 100 mm hole diameter (motor side)

• Nasmyth load capacity: 30 kg

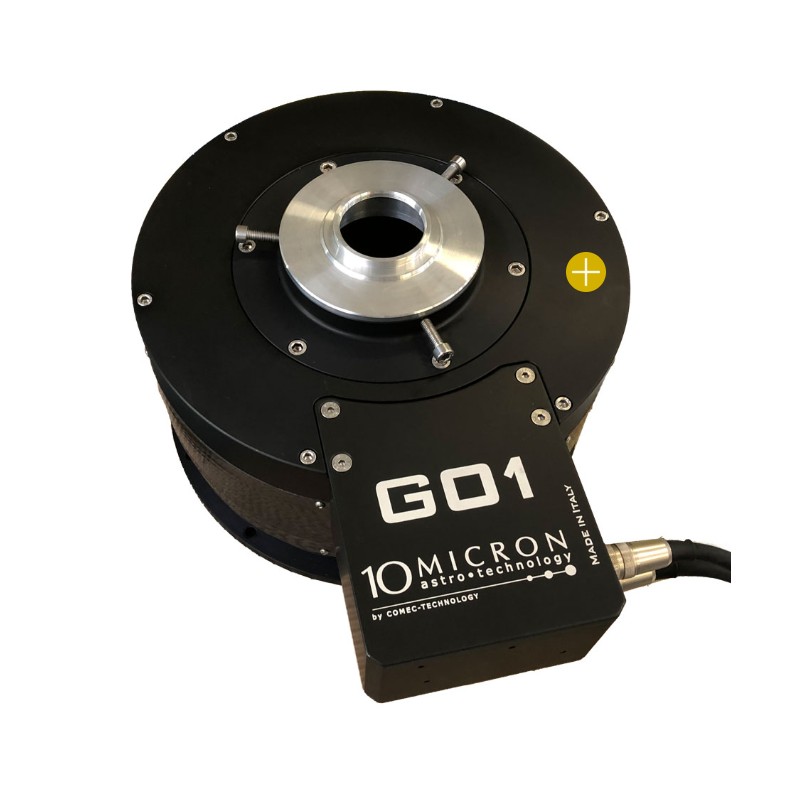

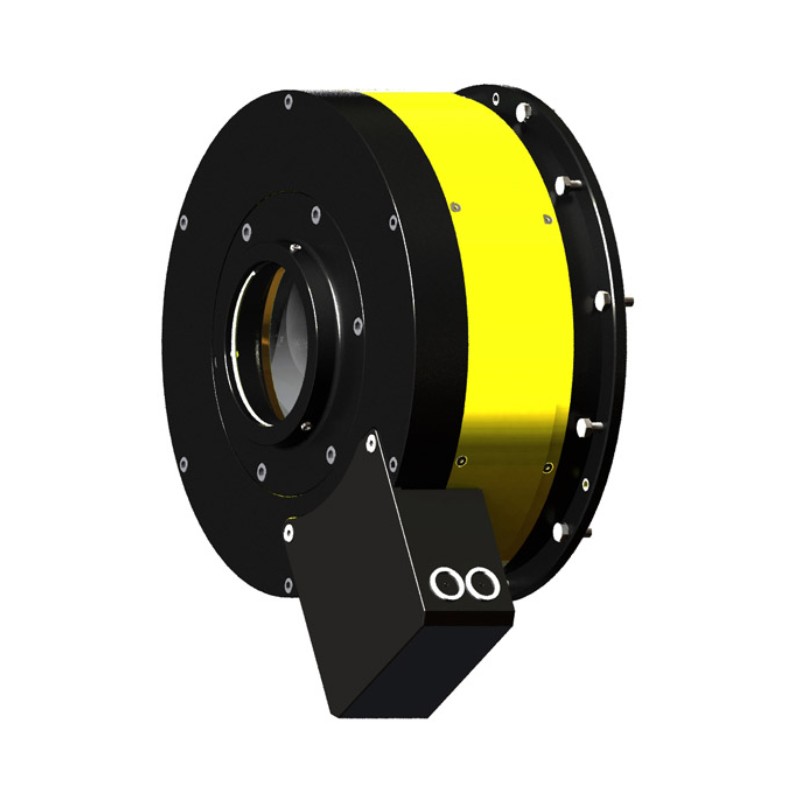

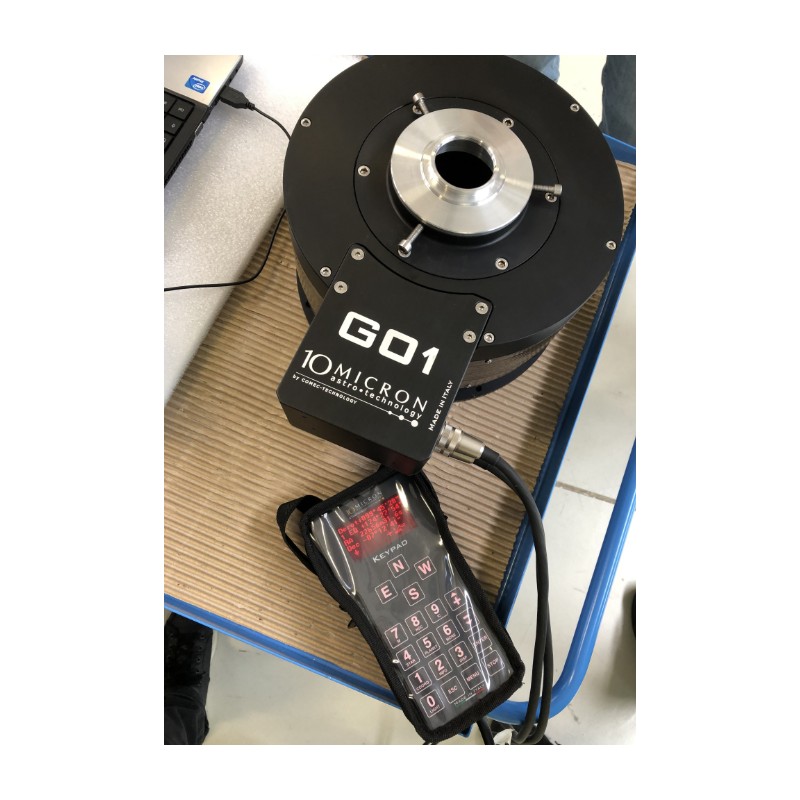

• Standard focuser/derotator: GO1 by 10Micron, integrated control, 25 kg payload, internal thermal probe

• Safety systems: Axis end-stops, anti-wrap logic, onboard and remote emergency stop with safety relay, audible warning system, unbalance/collision protection

• Brakes: Electromechanical altitude brake for unbalance safety

• Travel limits: AZ ± 600°, ALT ± 100°

• Dimensions (mount only with standard fork): 135 × 55 × 135 cm

• Communication ports: RS-232, GPS port, ST-4 autoguider port, Ethernet

• Internal database: Named stars (Bayer, Flamsteed, HD, HIP, SAO, PPM, ADS, GCVS), deep sky (M, NGC, IC, PGC, UGC to mag 16), Solar System (Sun, Moon, planets, asteroids, comets, artificial satellites), alt/az and equatorial coordinates, user objects, fast goto targets

• Integrated electronics features: User-defined park position, mount modeling (up to 100 stars), multiple model storage, configurable tracking rates, movement limits, assisted balance, atmospheric refraction compensation, leap second handling, direct dome control via RS-232

• Keypad control: Rugged metal housing, industrial backlit micro switches, dimmable heated graphic display (5 lines + status icons), full mount operation without PC

• PC control: Remote via RS-232 or Ethernet, firmware/orbit updates, virtual keypad interface, Mount Manager software, supports ASCOM driver and LX200 protocol

Additional information:

• Compact and ultra-rigid fork design to reduce vibration and increase stability

• Optimized for satellite and debris tracking

• Two-Line Elements (TLE) support available

• Special packaging required: ref. 1456501

• Only approved power supplies (from 10Micron’s price list) are permitted to maintain warranty

• Custom telescope configurations available upon request
