Vixen Porta II Altazimuth Mount with Tripod

Vixen Porta II Altazimuth Mount with Tripod

Description:

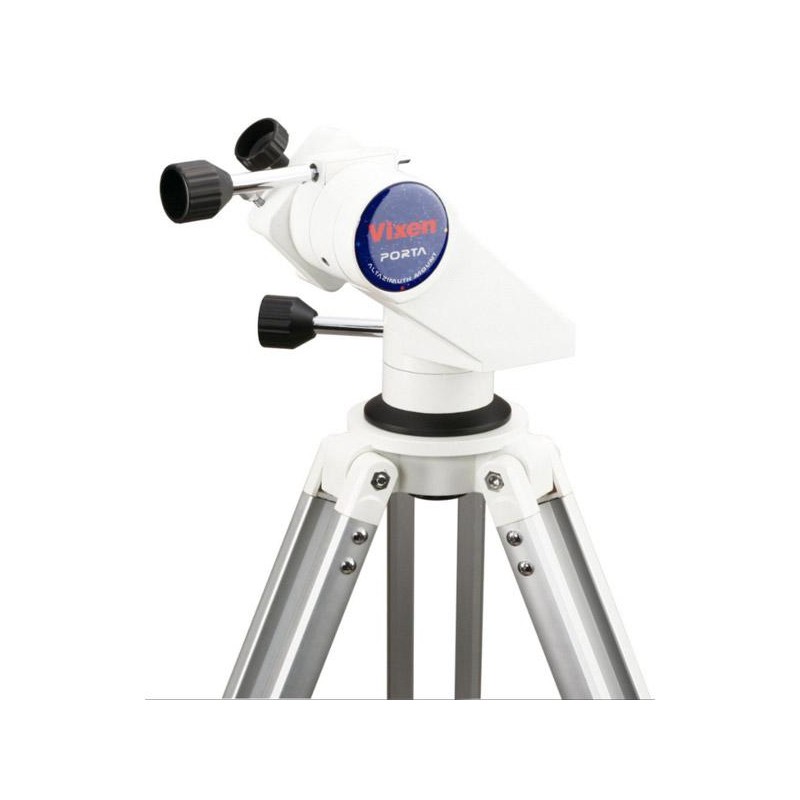

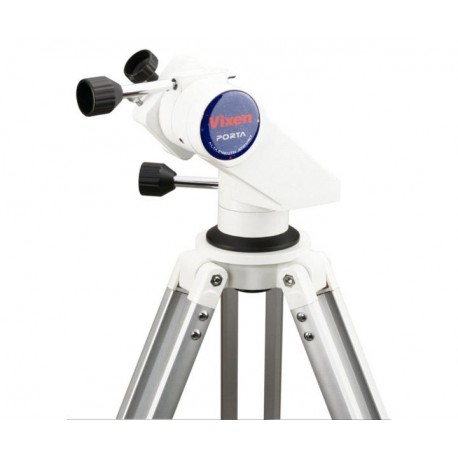

The Vixen Porta II is a lightweight altazimuth mount engineered for quick, intuitive use without locking knobs. Thanks to its internal friction clutch system, azimuth and altitude adjustments are smooth and precise, ideal for manual tracking of celestial objects.

Equipped with dual slow-motion control handles for 360° movement, it allows fine tuning in both axes. Its Vixen-standard 43 mm dovetail saddle ensures broad compatibility with a wide range of refractors and compact telescopes up to 155 mm in aperture.

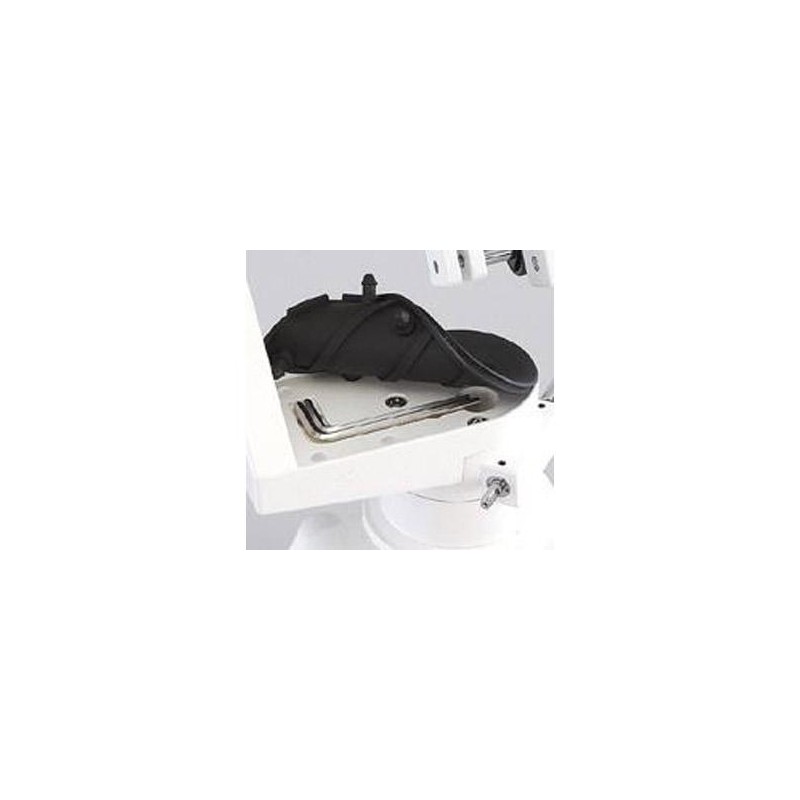

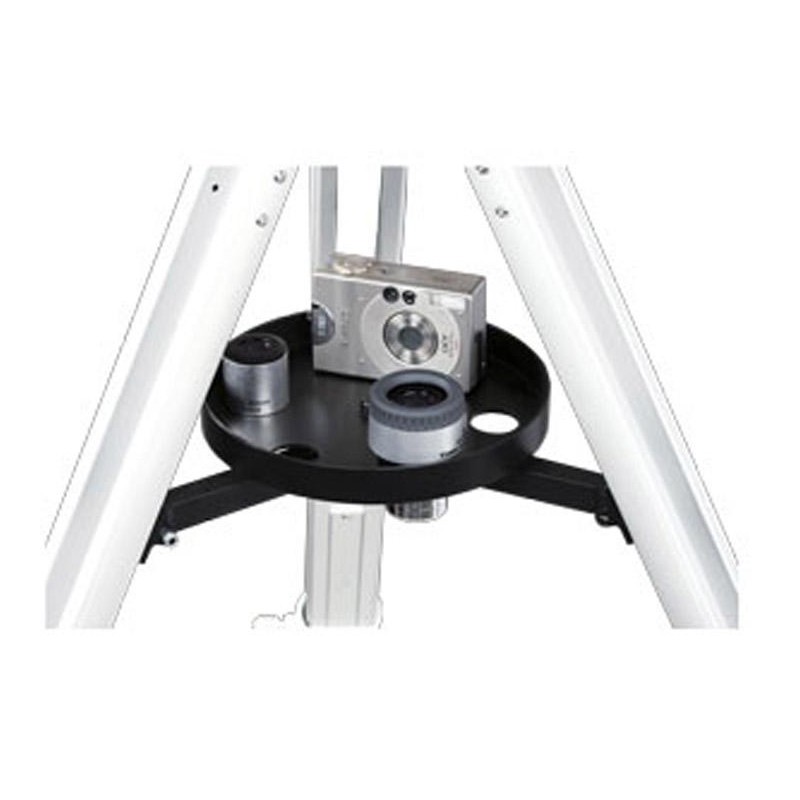

The included aluminum tripod ensures solid support and features a central tray to store eyepieces and accessories. A built-in tool, hidden under the rubber cap, lets users adjust axis tension as needed.

Easily detachable via a single M10 screw, the Porta II is a favorite among mobile astronomers who prioritize speed, portability, and reliability.

Technical specifications:

• Mount type: Altazimuth

• Pointing system: manual with friction clutch

• Fine adjustment: on both axes (azimuth and altitude)

• Clutch: internal friction, no lock needed

• Dovetail standard: Vixen 43 mm

• Handle angle adjustment: 45° increments

• Total weight (with tripod): 5.7 kg

• Supported optical diameter: up to 155 mm

• Tripod: aluminum with accessory tray

• Built-in adjustment tool

• Smooth worm gear motion

Additional information:

• Suitable for many small refractors

• Excellent for both terrestrial and astronomical quick setups

• Tool-free disassembly for easy transport

• Supplied with tripod, two handles, and accessory tray
