Baader M54a change ring with S54a

Baader M54a change ring with S54a

Description

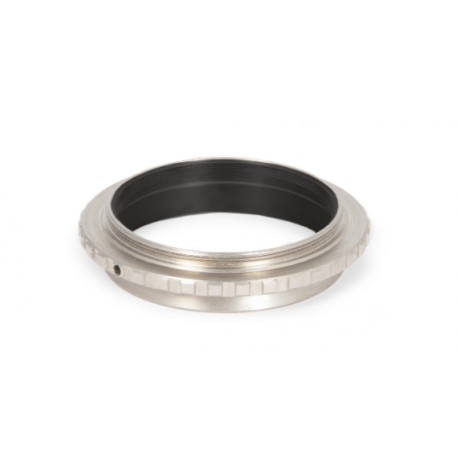

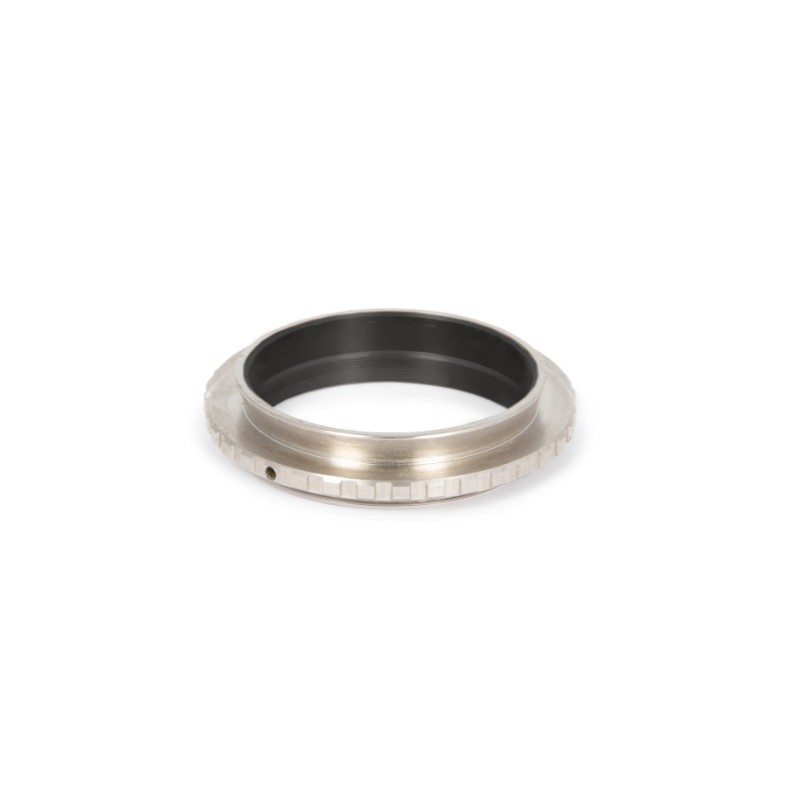

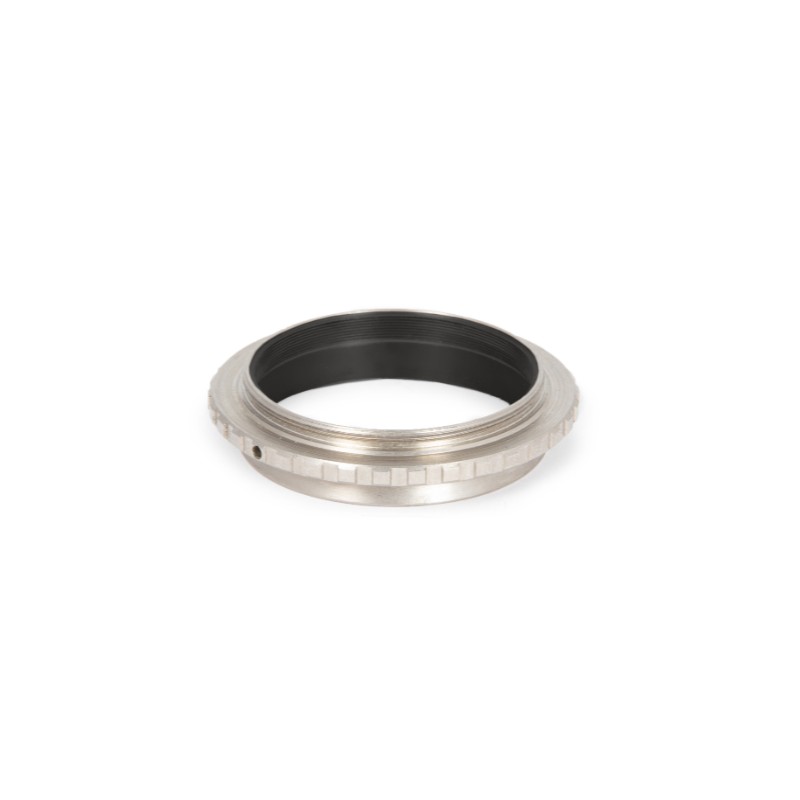

The Baader M54a change ring with S54a dovetail is a robust adapter ring for the M54 system. It features an external M54 x 0.75 thread on one side and a 50 mm dovetail on the other. With an optical length of only 4 mm, it integrates seamlessly into optical assemblies.

When combined with the M54i Heavy-Duty Quick Changer (#2958760), it creates a heavy-load quick change system, enabling fast, secure, and rotation-proof mounting of cameras, filter wheels, and accessories. This system provides high load capacity with repeatable precision and stability.

The M54a change ring is available individually or as part of the complete M54 Heavy-Duty Quick Change System (#2958766). Manufactured from premium-grade steel, it is a key component in Baader’s M54 adapter family, providing strength and reliability for advanced astrophotography setups.

Technical Specifications

• Manufacturer: Baader Planetarium

• Product SKU: 2958765

• EAN code: 4047825052308

• Adapter family: M54 system

• Type: same-thread adapter (change ring)

• Optical length: 4 mm

• Clear aperture: 50 mm

• Outer diameter: 65 mm

• External connection: M54 x 0.75 thread

• Interface: S54a dovetail

• Material: high-performance steel

• Net weight: 0.05 kg

• Compatibility: M54i Heavy-Duty Quick Changer, M54 system
