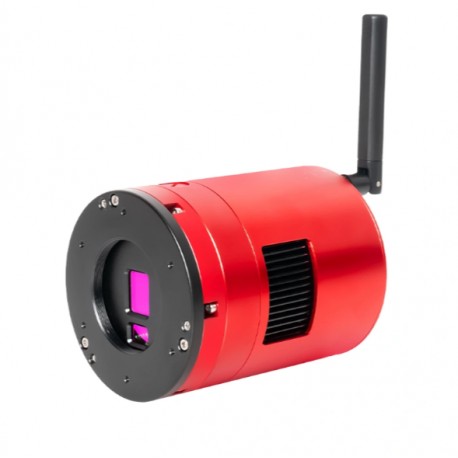

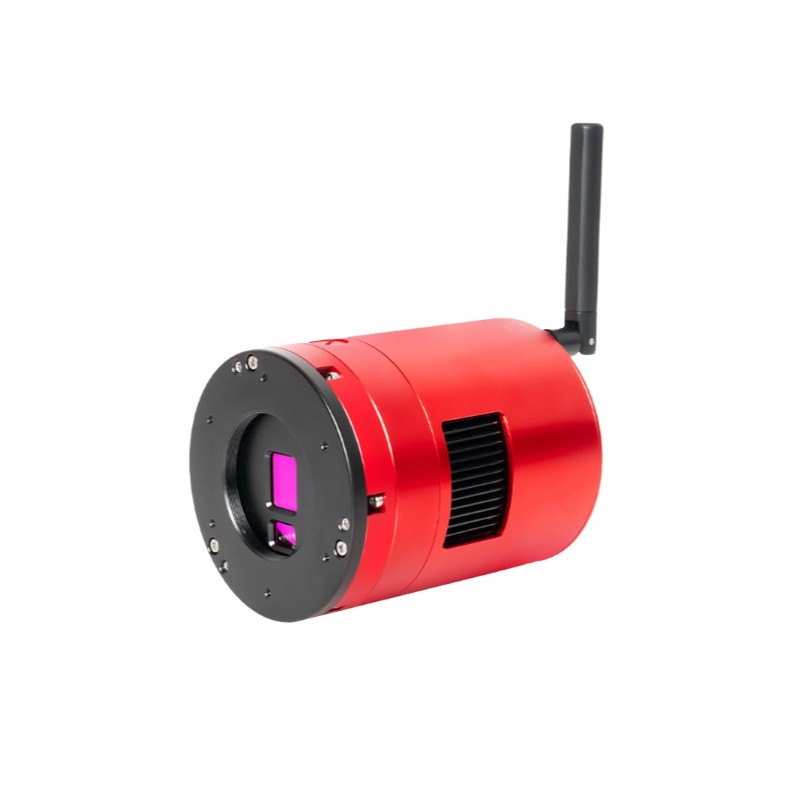

ASI585MC Air

ASI585MC Air

Description:
The ZWO ASI585MC Air is a powerful Wi-Fi enabled smart astrophotography camera that integrates a primary imaging sensor, guide sensor, and ASIAIR controller into a single compact unit. Its back-illuminated Sony STARVIS 2 sensor (IMX585) offers excellent sensitivity, 4K resolution, low read noise (0.7e), and a peak quantum efficiency of 91%.

The built-in dual-stage TEC cooling system can lower the sensor temperature by 30–35 °C below ambient, dramatically reducing dark current for long exposures. A magnetic levitation fan provides silent, stable thermal dissipation. The camera’s live stacking support, instant image adjustments, OTA updates, and direct sharing features make astrophotography both accessible and enjoyable.

Connectivity is seamless via 2.4G/5G Wi-Fi and Bluetooth, supported by an external antenna. The ASI585MC Air features 256GB onboard eMMC storage and supports up to 1TB external drives via USB 2.0. Multiple USB ports, DC outputs, and USB-C interface provide full control of focusers, filter wheels, mounts, and more.

The ASI585MC Air is compatible with ZWO's ASIAIR app, ASIStudio, and 3rd-party software through ASCOM Alpaca protocols, making it a fully autonomous solution for wireless imaging and guiding.

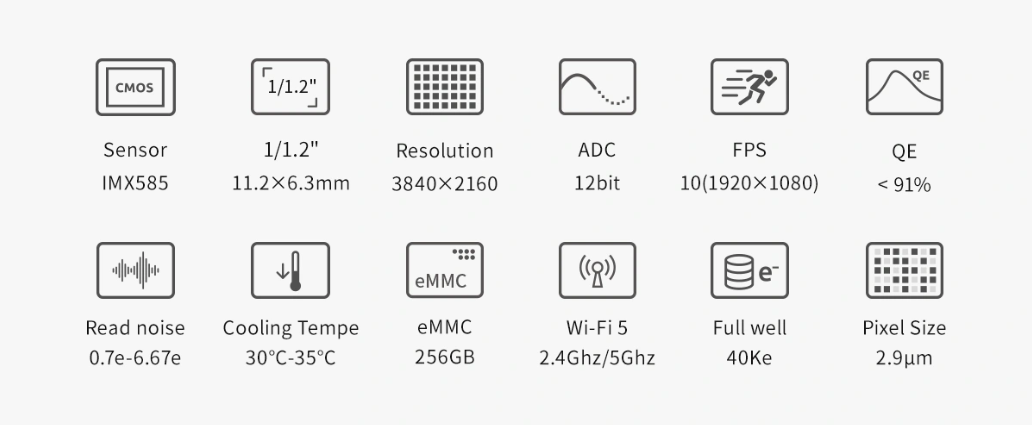

Technical specifications:

• Main sensor: Sony IMX585 STARVIS 2, color CMOS

• Sensor size: 1/1.2" (3840 x 2160 pixels)

• Pixel size: 2.9 µm

• Exposure range: 32 µs – 2000 s

• Dynamic range: up to 12-bit with HCG mode

• Read noise: down to 0.7 e

• Cooling: dual-stage TEC, 30–35 °C ΔT

• Fan: magnetic levitation silent fan

• Wi-Fi: 2.4G / 5G with external antenna

• Storage: 256GB onboard eMMC

• Ports: 4x USB 2.0, 1x USB-C, 2x DC 12V 10A

• Guiding: built-in guide sensor + ST4 port

• Filter compatibility: 1.25" thread (M28.5x0.6)

• Software: ASIAIR, ASIStudio, ASCOM/Alpaca, third-party support

• Image processing: live stacking, brightness/contrast edits, social sharing

Additional information:

• Full device control via phone or PC

• No amp glow at any gain or exposure length

• OTA firmware updates through the mobile app

• Designed for mobile, wireless imaging setups

• Integrated voice control

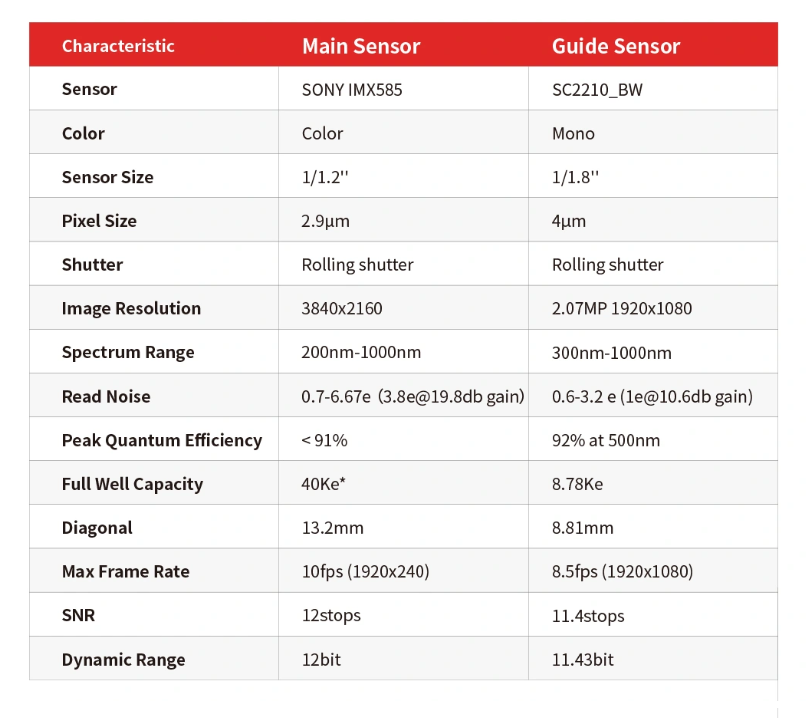

Main Sensor

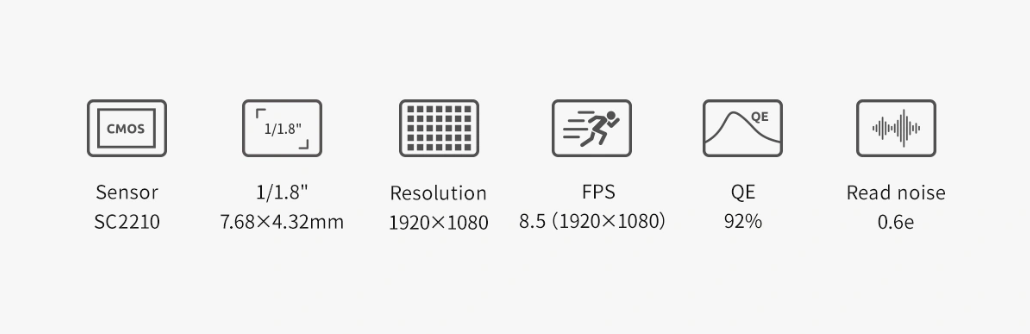

Guide Sensor

10 Unmissable Advantages

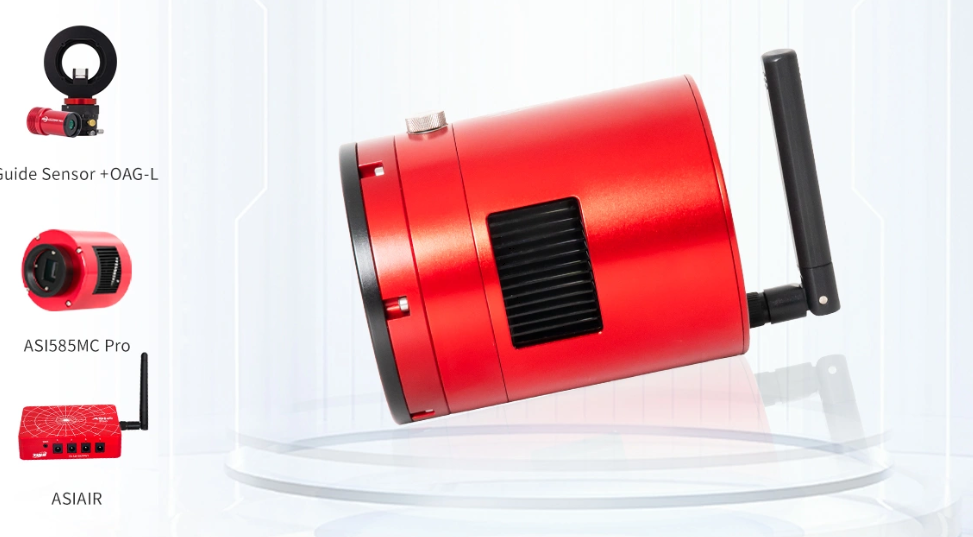

1.3 in 1 Camera: Imaging, Guiding, Control System
2.256G eMMC Storage
3.STARVIS 2 Technology
4.4K Resolution
5.Multiple Interface（Type-C x1 USB 2.0 x4 DC 12V 10A x2）
6.5G/2.4G Dual-band Wi-Fi / Bluetooth
7. Intelligent Live Stacking
8. High Signal-to-Noise Ratio, High Sensitivity
9. Voice Broadcast
10.Get Fully Control of Your Entire Rig at Your Fingertips

Start Your Astrophotography Journey with Great Convenience

Featuring ZWO’s self-developed “Dual Sensor + ASIAir” integration technology. Say goodbye to complex setups and enjoy a seamless, hassle-free astrophotography experience.

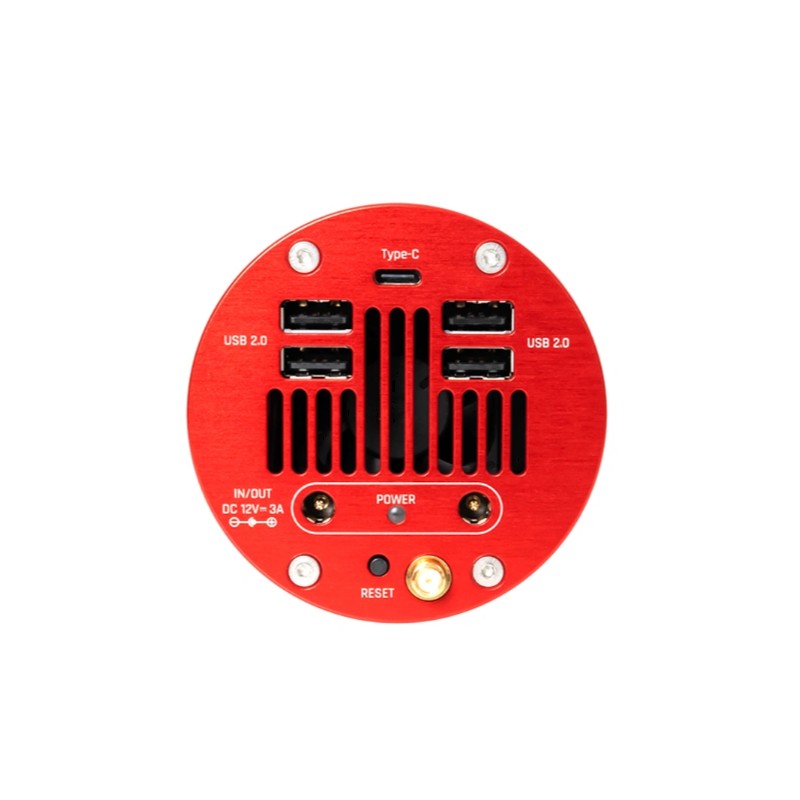

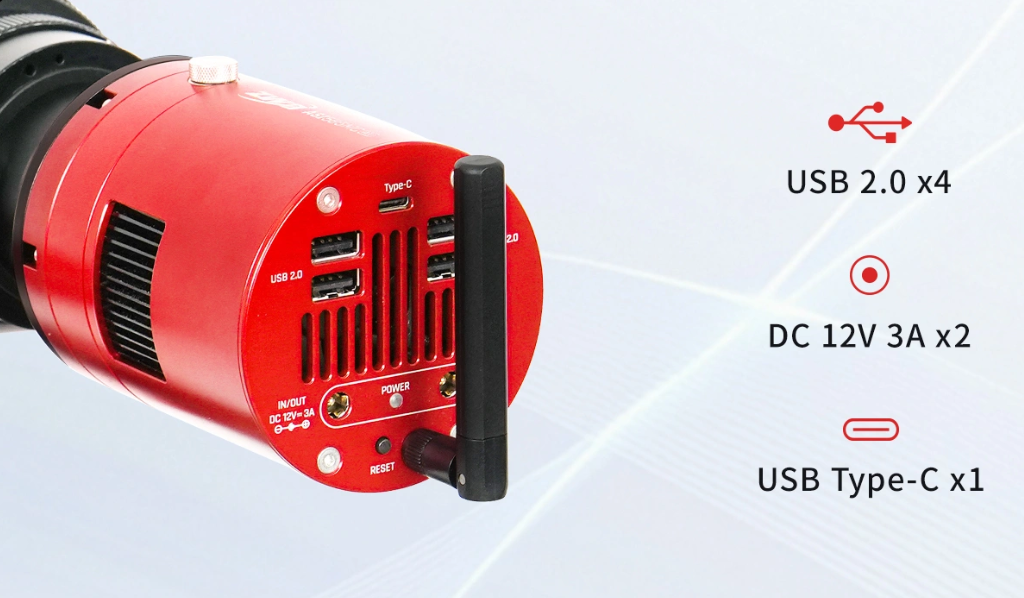

Effortlessly Connect Mutiple Devices

4x USB 2.0, 2x DC12V 10A, 1x USB Type-C
USB 2.0 ports for your focuser, filter wheel, and mount; DC 12V 10A input/output ports for reliable power; USB Type-C port for fast file transfers—you can focus on capturing stunning images without worrying about connectivity issues.

256G eMMC Storage： Ample Storage and Stability

With 256GB eMMC storage, the ASI585MC Air allows you to capture multiple targets with ease. Rigorously tested with over 300 benchmarks, it ensures system stability. Plus, the USB 2.0 ports support up to 1TB external storage, giving you plenty of room for all your astrophotography needs.

Starvis 2 4k Sensor

Image Sensor Technology Beyond the Human Eye’s Sensitivity
Equipped with the upgraded STARVIS 2 image sensor, supporting a higher dynamic range.
With this technology, the sensitivity and signal-to-noise ratio of the ASI585MC Air are greatly enhanced, delivering exceptional image quality.

No Amp Glow

The ASI585MC Air exhibits zero amp glow, which ensures extremely clean dark-field images. No matter how long the exposure and how the gain value, you can easily capture high-quality astrophotographs.

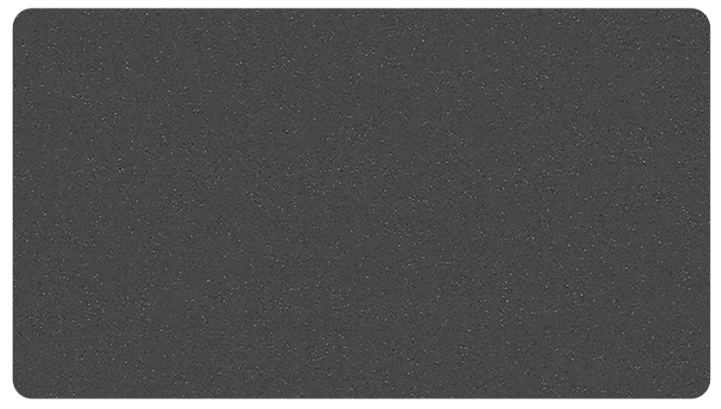

300s exposure image

Note: It is implemented directly at the hardware level, it does not require software control.

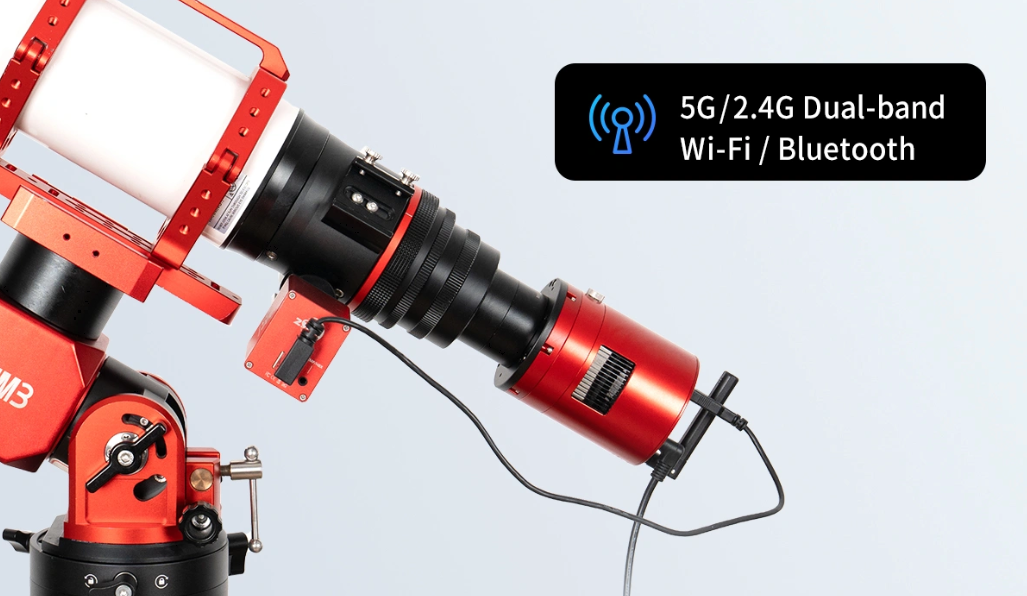

Dual-Band Wi-Fi for Stable Signal

Experience unparalleled connectivity with our enhanced external dual-band antenna, supporting both 2.4G and 5G frequencies and offering stable and smooth usage within 20 meters.

Cross-Platform Device Control
Except from ASIAIR App, ASI2600MC Air can also wirelessly connect to ZWO’s proprietary PC control software, ASIStudio, and also other 3rd-party PC software. 3rd-party software can be controlled through ASCOM extended protocol Alpaca (requires ASCOM Platform version V6.6 or higher).

(Note: 2.4G has a longer transmission distance but slightly slower speed compared to 5G. The 20-meter range is based on multiple tests of the 2.4G frequency in open areas.)

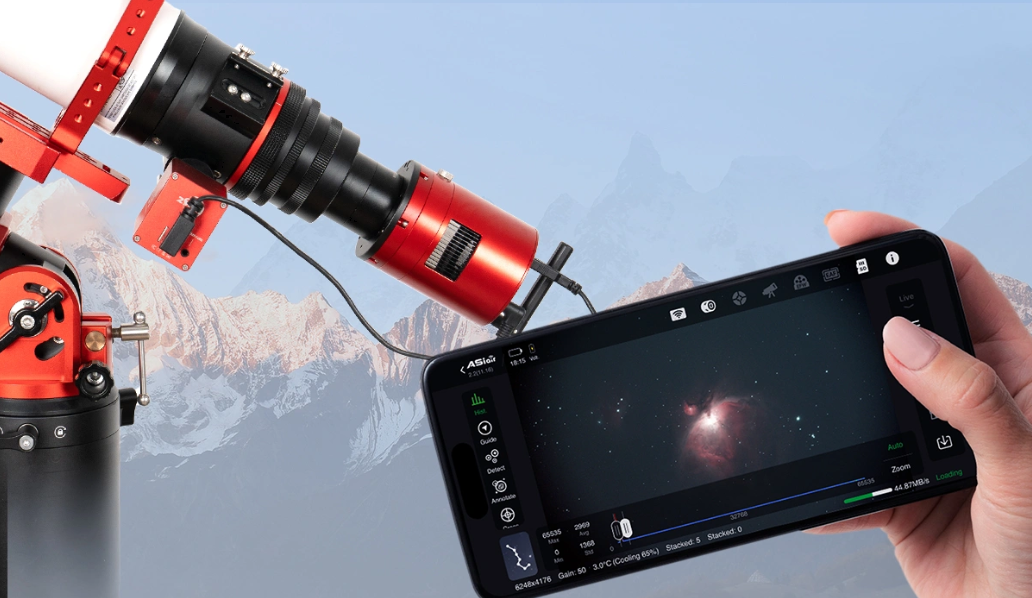

Get Fully Control of Your Entire Rig at Your Fingertips

The ASI585MC Air incorporates multiple ZWO patented technologies and allows you to shoot simply by connecting your phone. It supports App OTA updates, continuously improving the product features, making astrophotography easy and fun, while enriching the user experience.

Instant Post-Processing and Sharing

Live stack is supported during your imaging session. You may also make adjustments to brightness, contrast and others on the final image. Instantly share your masterpieces on social media platforms and astronomy communities, making your work stand out.

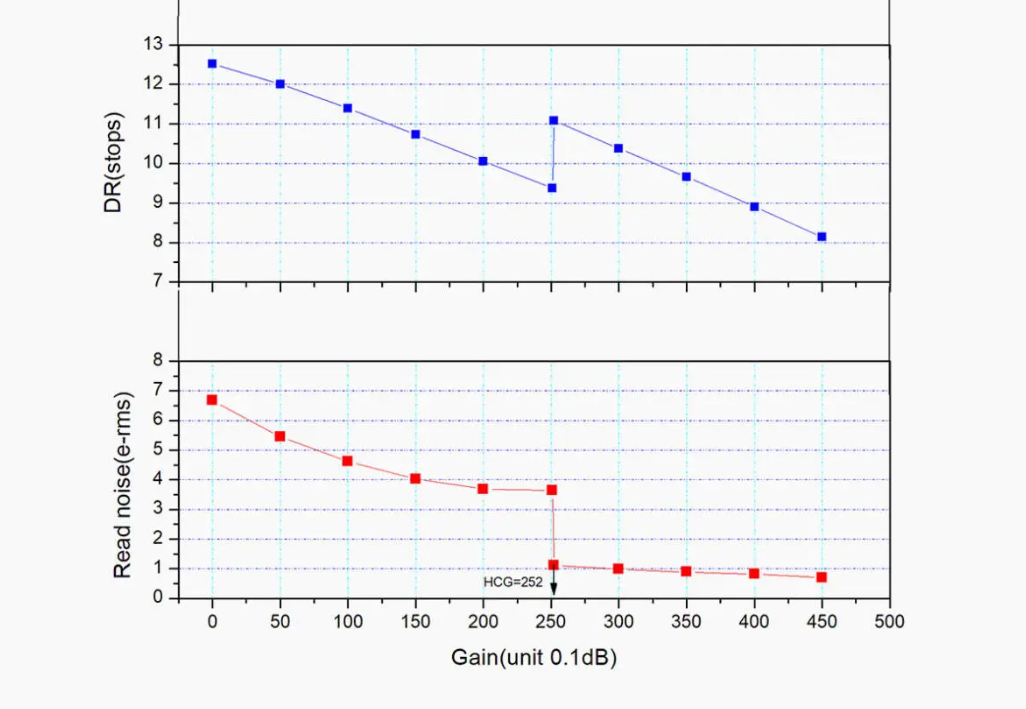

Low Read Noise, High Dynamic Range

The camera has a built-in HCG mode, which can effectively reduce readoutnoise at high gain and allow the camera to maintain the same high dynamicrange as it does at low gain. When the gain is 252, the HCG mode isautomatically turned on and the Dynamic range reaches a level close to 12bit.The readout noise is as low as 0.7e.

Quantum Efficiency

After “ZWO Laboratory” calculation, the peak quantum efficiency of ASI585MC Air is 91%

Data source: This data is from ZWO Laboratory. The actual quantum efficiency peak value is subject to real-world data.

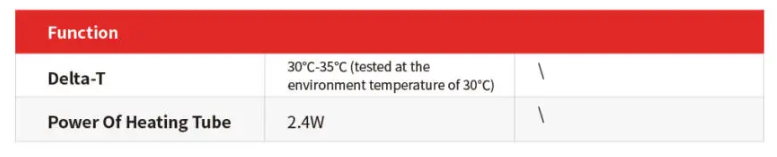

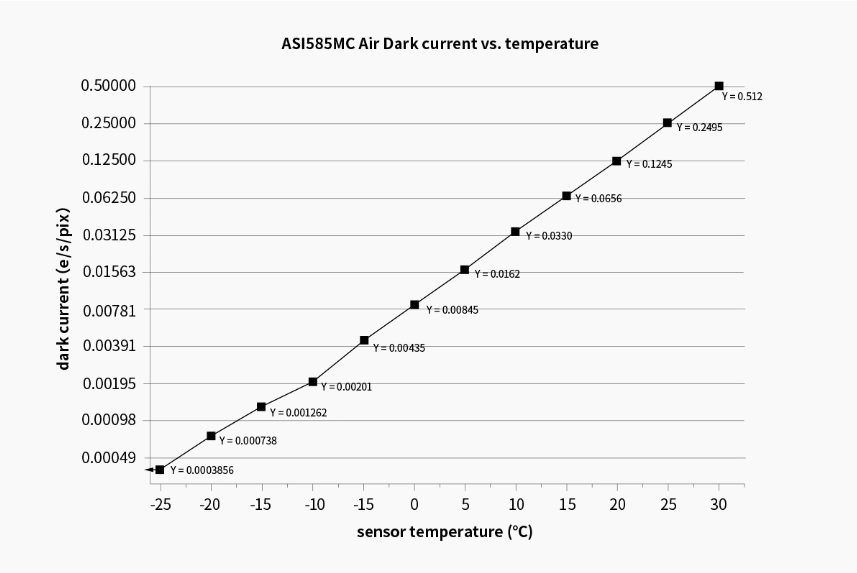

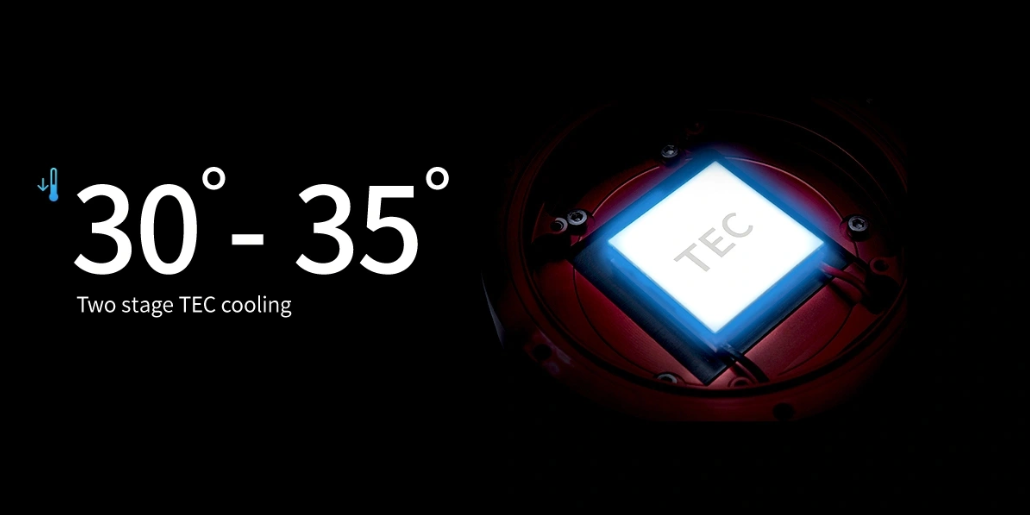

Cooling System

Thanks to the two-stage TEC cooling, ASI585MC Air can lower the CMOS sensor temperature to 30-35 degrees Celsius below ambient temperature, which can greatly reduce dark current generation and sensor noise even during extended exposure times.

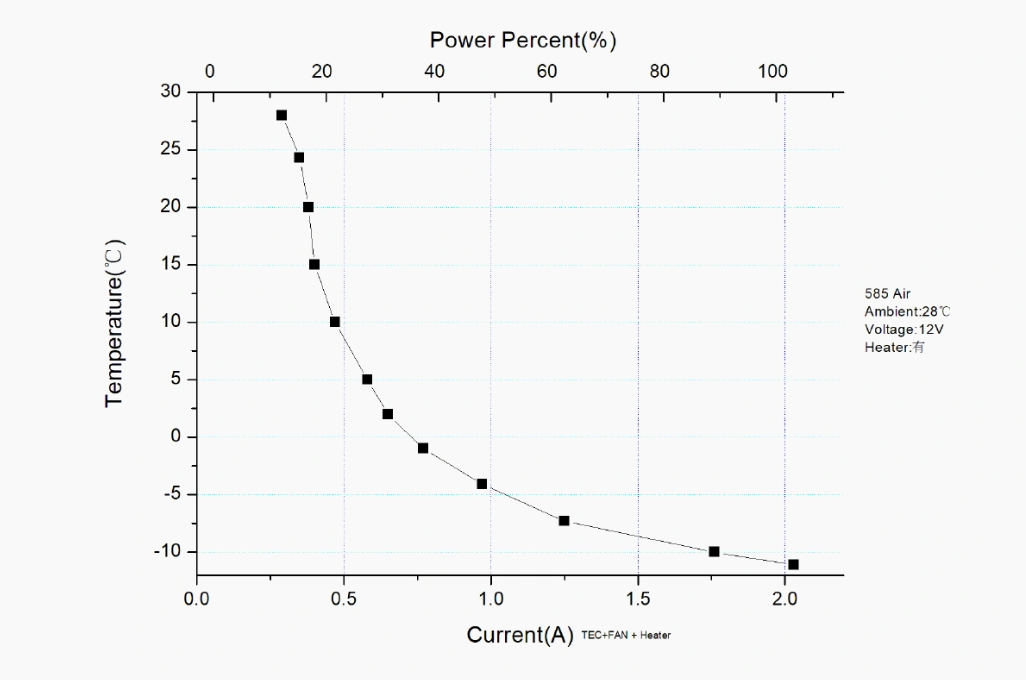

Power Consumption

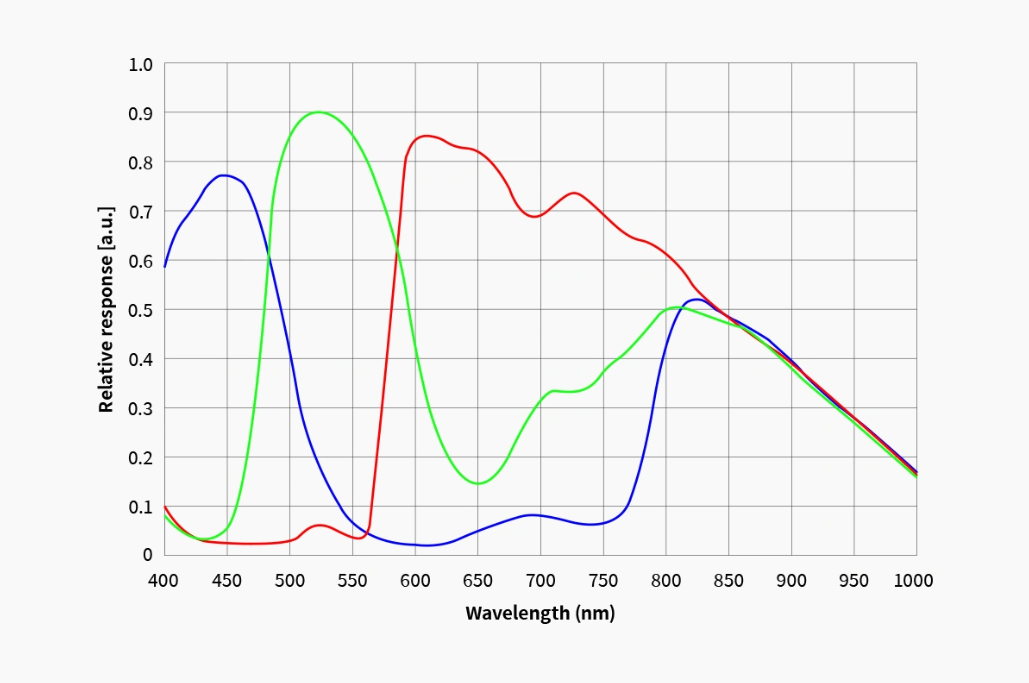

IR-Cut coating for OSC camera

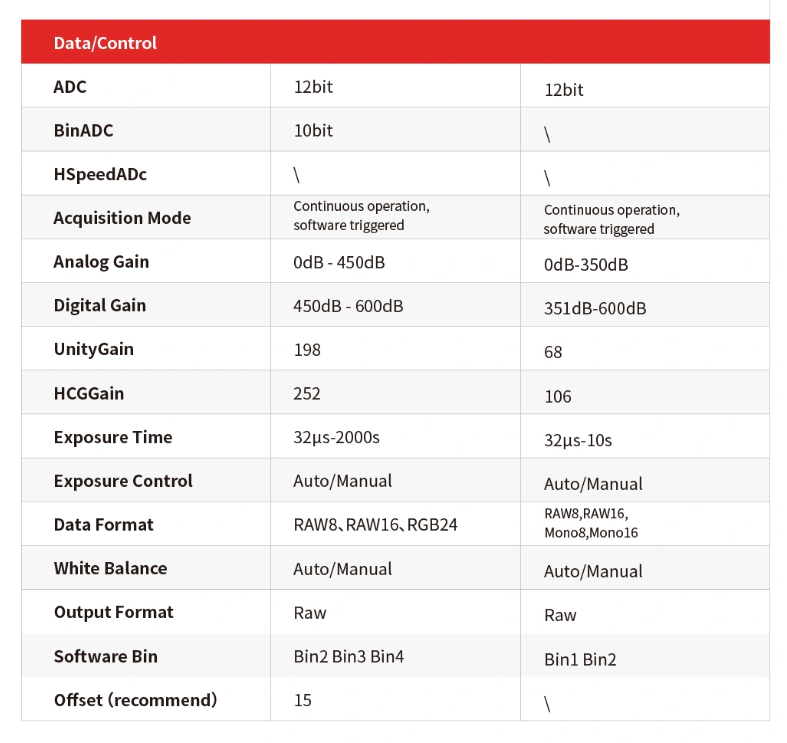

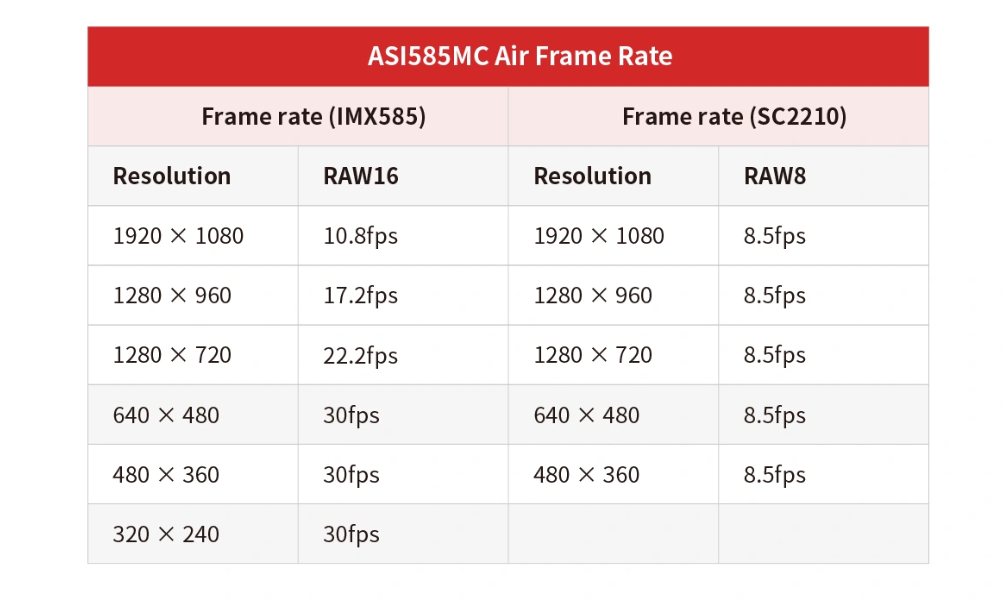

Frame RateCamera Specification

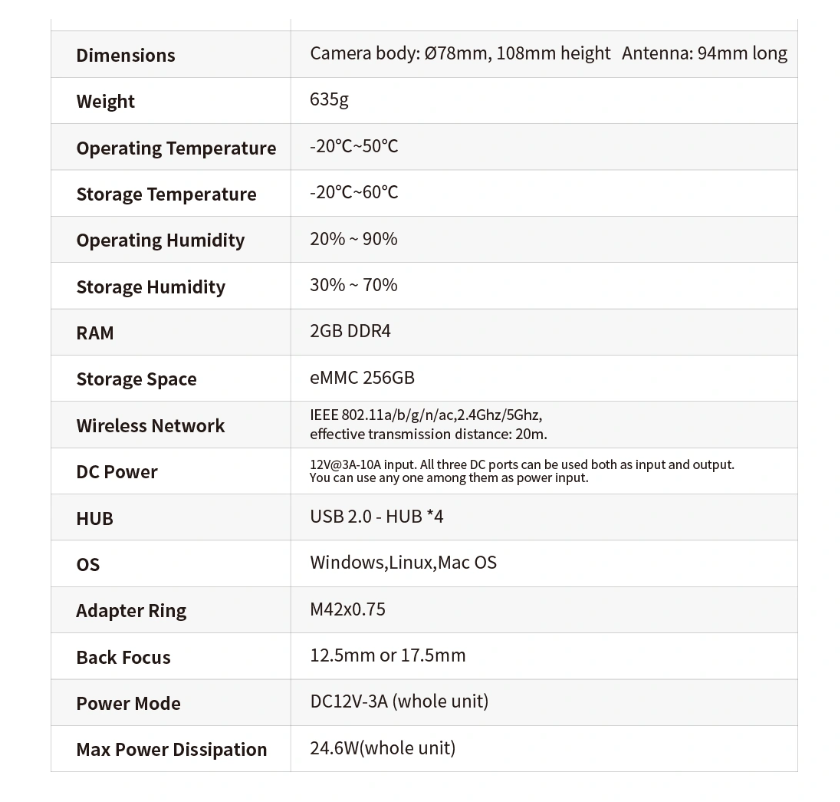

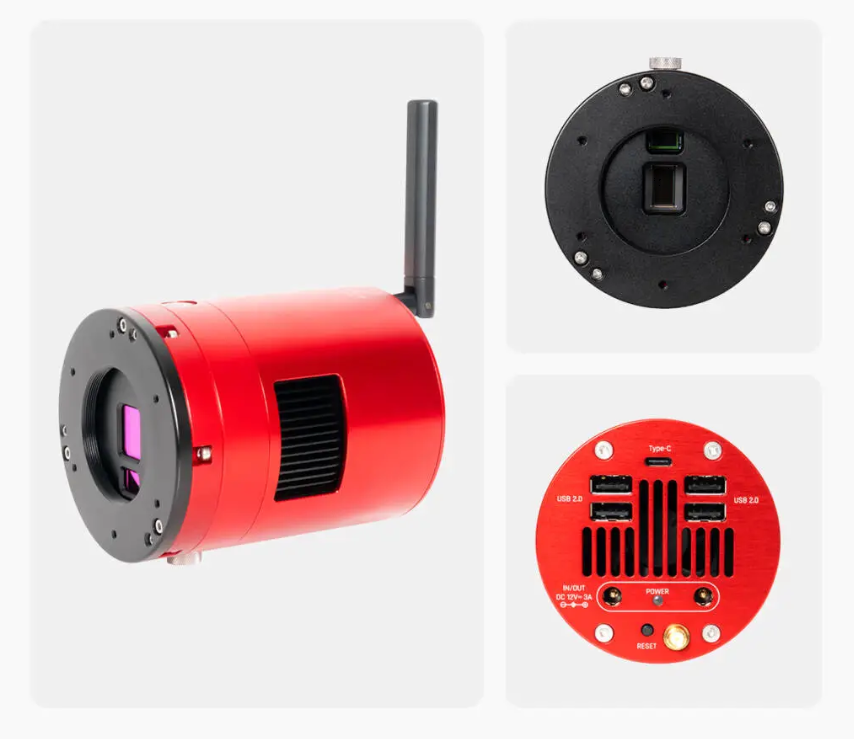

Camera Details

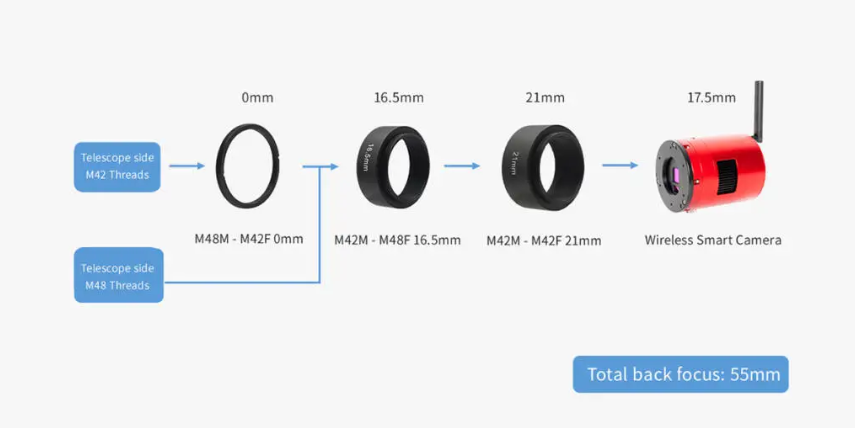

Connecting Diagram

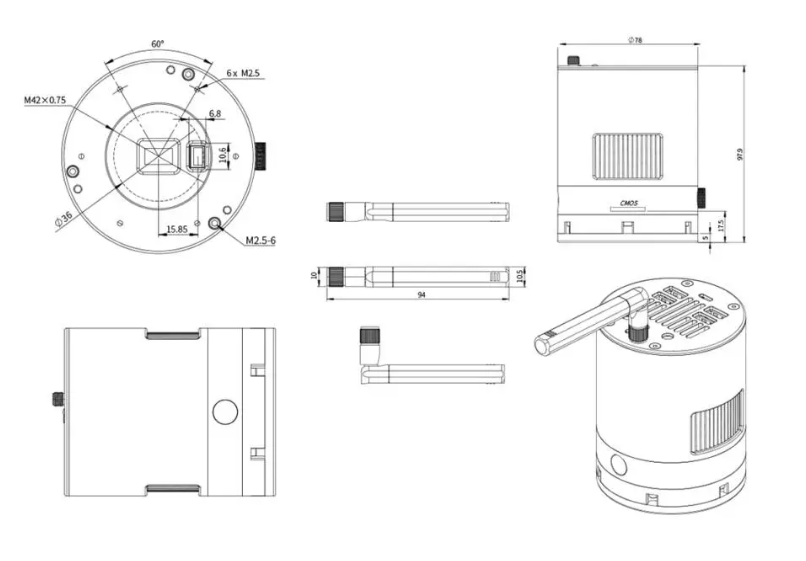

Mechanical Diagram

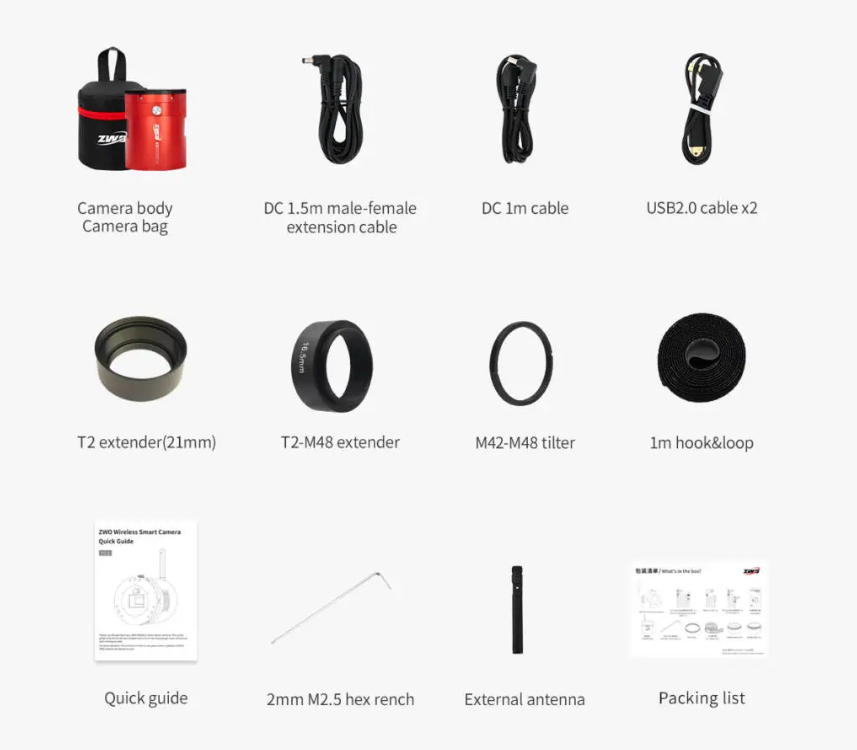

What’s in the box?
