Celestron 0.7x Focal Reducer for EdgeHD 1400

Celestron 0.7x Focal Reducer for EdgeHD 1400

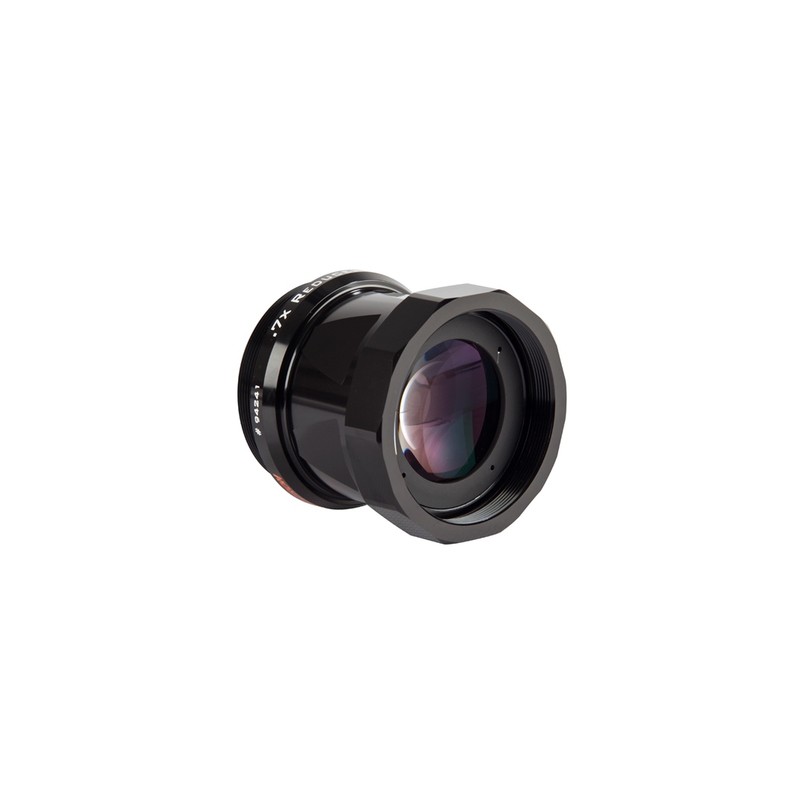

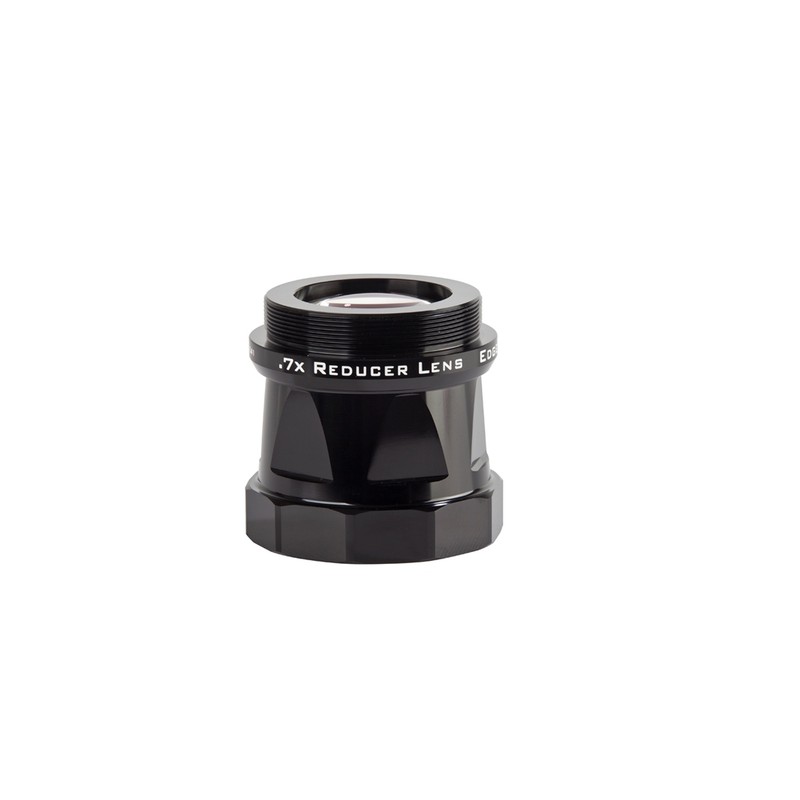

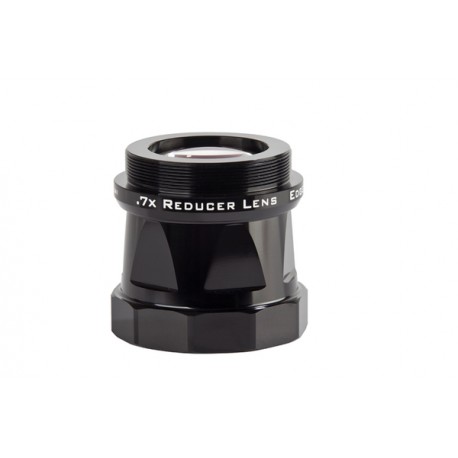

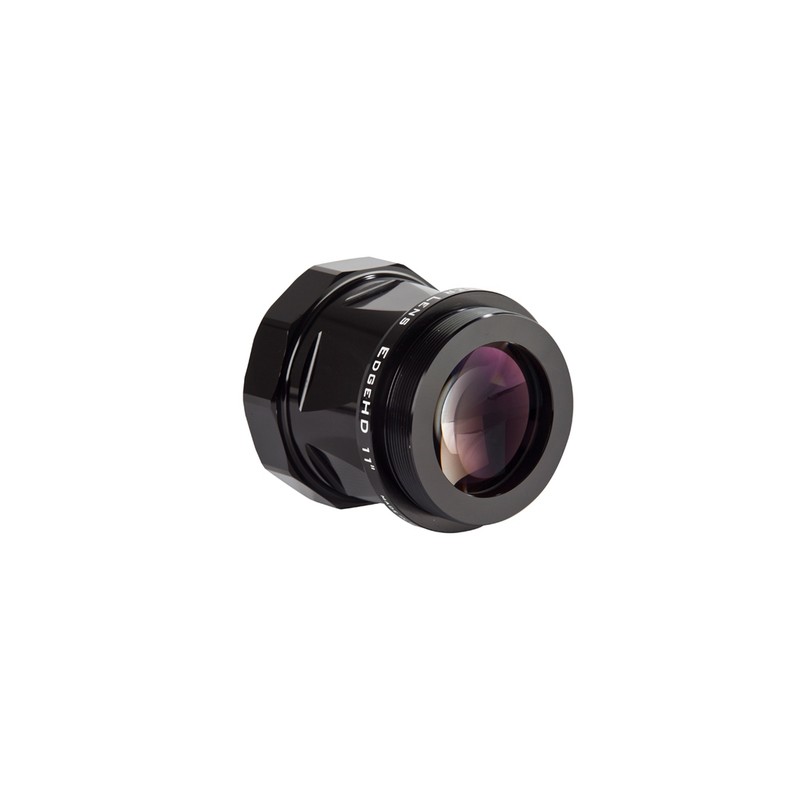

The Celestron 0.7x Focal Reducer for EdgeHD 1400 is designed to improve the performance of your EdgeHD 1400 telescope in astrophotography. By reducing the focal length by 0.7x, it allows for a 43% wider field of view and halves the exposure time, all while maintaining optimal image quality.

This reducer features a 5-element optical design, including lanthanum glass elements with low dispersion, to minimize chromatic aberrations and maximize contrast. Each air-glass surface is multi-coated for maximum light transmission, and lens edges are blackened to reduce internal reflections.

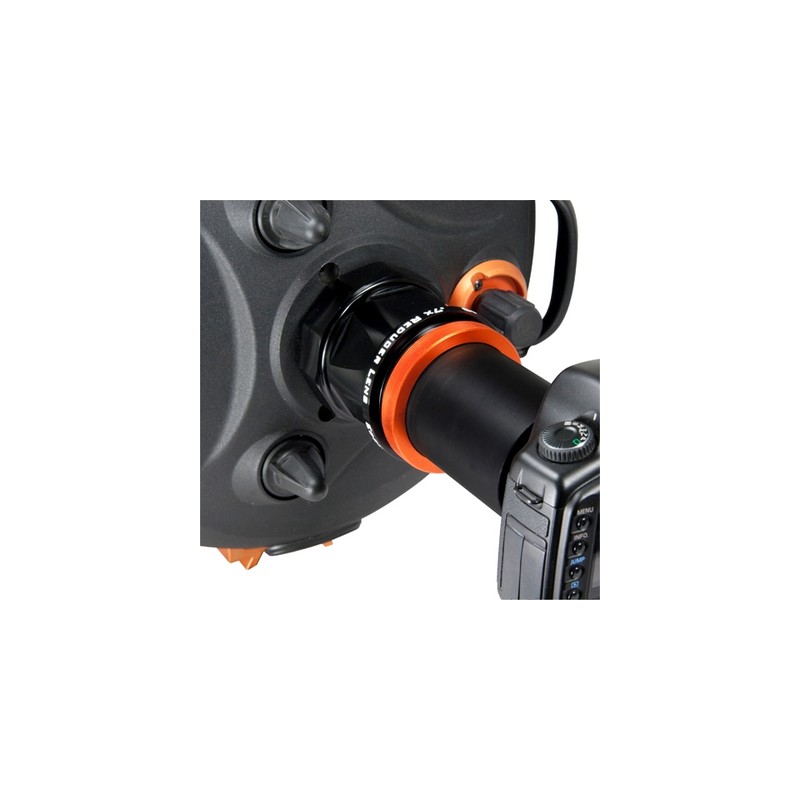

The CNC-machined aluminum housing ensures precise spacing and alignment of optical elements. The reducer threads directly onto the 3.25" rear cell of the EdgeHD 1400 optical tube, reducing mechanical vignetting and allowing the use of full-frame sensors and off-axis guiders.

Technical Specifications

• Optical Design: 5 elements

• Reduction Factor: 0.7x

• Resulting Focal Length: 2737 mm

• Optimal Backfocus: 146 mm

• Clear Aperture: 60 mm

• Optimized Image Circle: 42 mm

• Weight: 1.47 kg

• Optical Coatings: Fully multi-coated, blackened edges

• Compatibility: Celestron EdgeHD 1400 telescope

Advantages

• Halves exposure time

• 43% wider field of view

• Maintains EdgeHD flat-field performance

• Compatible with full-frame sensors

• Robust and precise mechanical construction

The Celestron 0.7x Focal Reducer for EdgeHD 1400 is the ideal accessory for astrophotographers looking to optimize their EdgeHD 1400 telescope. With its advanced optical design and compatibility with full-frame sensors, it delivers high-quality images with an expanded field of view. Its robust construction ensures reliable long-term use.
