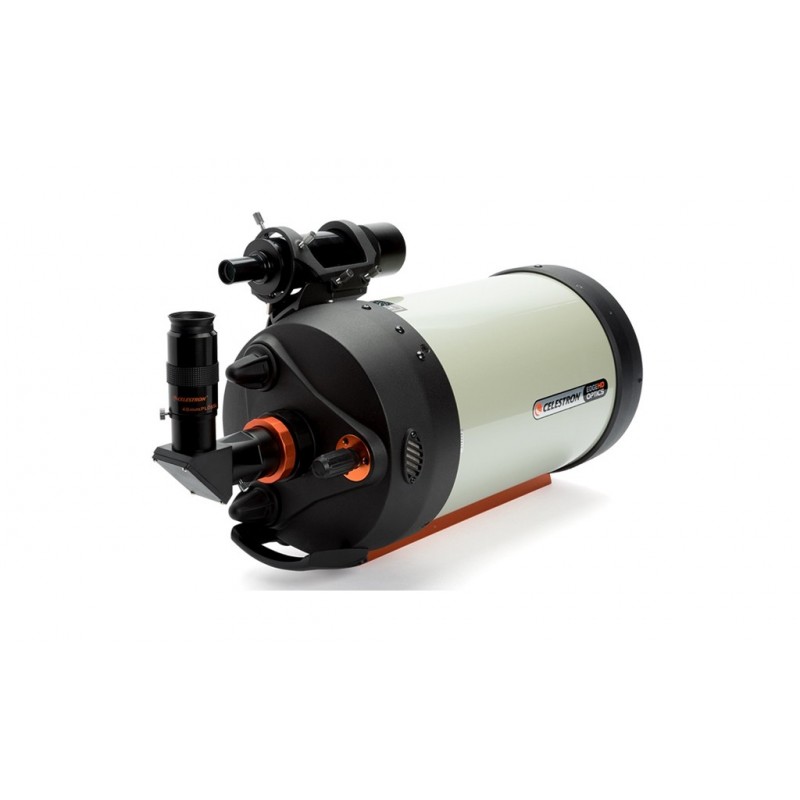

Celestron C8 EdgeHD 203/2032 OTA

Celestron C8 EdgeHD 203/2032 OTA

Description

The Celestron C8 EdgeHD is a 203 mm f/10 Schmidt-Cassegrain optical tube assembly (OTA) designed to deliver sharp, flat-field images across the entire field of view. Its EdgeHD optics eliminate coma and field curvature, making it ideal for use with wide-field and full-frame astrophotography cameras.

The optical tube features ventilation ports with micro-mesh filters to speed up thermal equilibration and reduce internal turbulence. Mirror locks stabilize the primary mirror during long exposures, minimizing image shift during astrophotography sessions.

The C8 EdgeHD can be used at its native focal ratio of f/10, reduced to f/7 with a dedicated reducer (optional), or converted to a fast f/2 configuration with the HyperStar system (optional), allowing ultra-wide-field imaging with short exposures.

Technical Specifications

• Optical Design: EdgeHD Aplanatic Schmidt-Cassegrain

• Aperture: 203 mm

• Focal Length: 2032 mm (f/10)

• Usable Focal Ratios: f/10 (native), f/7 (with reducer), f/2 (with HyperStar)

• Optical Coating: StarBright XLT

• Tube Length: 432 mm

• Tube Weight: 6.35 kg

• Dovetail Bar: Vixen-style

• Included Accessories:

  • 9x50 Finderscope

  • 40 mm Plössl eyepiece (1.25")

  • 90° Star diagonal (1.25")

Advantages

• Flat, coma-free images across the entire field

• Ideal for visual use and deep-sky imaging

• Fastar/HyperStar compatibility for ultra-fast f/2 imaging

• Lightweight and robust construction

• Includes key accessories for immediate use

The Celestron C8 EdgeHD is one of the most respected OTAs among amateur astronomers and astrophotographers. With its unique aplanatic EdgeHD optics, it delivers sharp, distortion-free images across the entire field of view. Whether used for planetary observation or deep-sky imaging, this 8-inch OTA excels in versatility and performance. Its HyperStar compatibility opens the door to ultra-fast f/2 imaging, ideal for capturing faint objects in minimal exposure time. Compact yet powerful, it's perfectly suited for both portable setups and permanent observatories.
