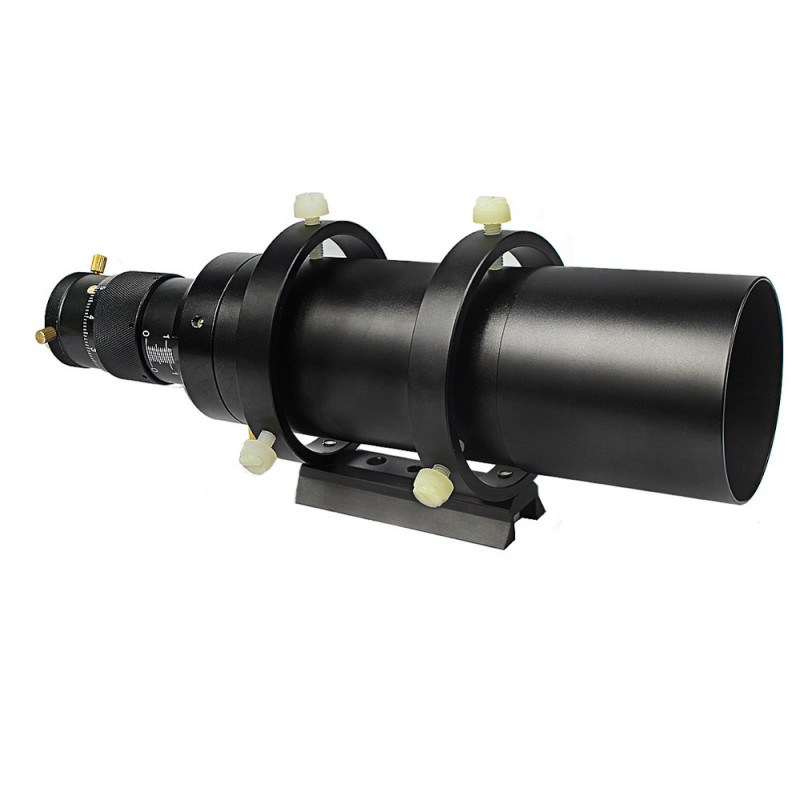

SVBony SV106 50 mm Guide Scope with Helical Focuser and Rings

SVBony SV106 50 mm Guide Scope with Helical Focuser and Rings

Description
The SVBony SV106 is a high-quality 50 mm guide scope engineered for precise autoguiding. It features a 190 mm focal length achromatic lens (f/3.8), housed in a CNC-machined aluminum sliding tube with a rotating helical focuser.
This focusing system allows fine and backlash-free adjustment, secured with a lock ring.
Two adjustable metal rings with six-point screws ensure alignment with the main scope.
The back end accepts all standard 1.25" autoguiding cameras (ZWO, QHY, SVBony, etc.) via a threaded connection (M28.5x0.6 mm).
Compact, durable, and transport-friendly, it is suitable for mobile and permanent observatories alike.

Technical Specifications

• Type: Achromatic guide scope

• Aperture: 50 mm

• Focal Length: 190 mm

• Focal Ratio: f/3.8

• Lens: multi-coated doublet

• Focusing: rotating helical focuser with locking ring

• Tube: sliding, black anodized aluminum

• Rear Port: 1.25" with M28.5x0.6 mm thread

• Tube Length: ~200 mm

• Mount: dual metal rings with 6-point adjustment

• Camera Compatibility: ZWO, QHY, SVBony (1.25")

• Weight: 395 g

• Use: autoguiding or optical finder

Additional Information

• Construction: CNC-machined, rigid anti-flex design

• Compatible Mounts: Sky-Watcher, Orion, iOptron

• Thread: suitable for custom accessories

• Eyepiece: not included – camera use only
