Celetron StarSense Autoguider

Celestron StarSense Autoguider

New product

Celetron StarSense Autoguider

More details

Subject to availability from the supplier. Please contact us for more information.

779.0 CHF tax incl.

More info

Celetron StarSense Autoguider

  • Automatic alignment: Aligns your telescope to the night sky in about three minutes with no user input, thanks to Celestron’s patented StarSense technology.
  • Precise GoTo: Boosts the pointing accuracy of your Celestron mount, placing celestial objects in the center of the field of view of high-powered eyepieces and small imaging sensors.
  • Autoguiding: Tracks celestial objects accurately for pinpointing stars in long exposure astroimages, eliminating the need for a separate auto-guiding camera, guide scope, and computer.
  • Assisted polar alignment: Walks you through an easy, automated process to dial in the best polar alignment.
  • High-quality 4-element optical design: Features a unique optical design by famed optical designer Mark Ackermann, with sharper optics than other mini-guide scopes.
  • Multiple ways to control: Works with your NexStar+ hand control or CPWI telescope control software via a wired PC connection or WiFi.

The Celestron StarSense Autoguider is an all-in-one solution that makes using your telescope easier and more rewarding than ever. This powerful, compact device connects to your Celestron mount to enhance its pointing accuracy and help you create sharp, long-exposure images with ease. Whether you’re an experienced astroimager or just starting in the hobby, adding this game-changing accessory will ensure you have more quality time under the stars.



Automatic Alignment: Be Ready to Observe in Minutes

StarSense Autoguider aligns your telescope to the night sky in about three minutes with the press of a button—no user input is needed. Celestron’s patented StarSense technology “sees” star patterns overhead and matches them to its internal database to automatically orient the telescope. This feature eliminates the hassle of manually aligning your telescope, so you can focus on what’s important—observing and imaging.

Precise GoTo: Supercharge Your Pointing Accuracy

Celestron’s computerized mounts are already hailed for their pointing accuracy, but your mount gets even better when you add the StarSense Autoguider. Instead of placing celestial objects within the telescope’s field of view, Precise GoTo places them in the center of the field—even if you’re using a high-powered eyepiece or today’s small imaging sensors.

Autoguiding: Create Your Celestial Masterpiece

Capturing images of astronomical objects is one of the most exciting things you can do with your telescope. But to capture stunning deep-sky astroimages, you need auto guiding—the power to make tiny adjustments to the mount’s tracking to keep your target locked in over long exposures. Previous auto-guiding setups were complex and expensive, usually involving a separate auto-guiding camera, a guide scope, and a computer. StarSense Autoguider replaces all that—so even beginners can dive head-first into the world of imaging. Your targets are crisp and detailed, while background stars look like sharp pinpoints, never oblong or streaky.



Assisted Polar Alignment: Dial in the Best Alignment Possible

Many users find that adding StarSense Autoguider to their setup improves accuracy so dramatically that they no longer need to polar align their German equatorial mounts for most casual observing and imaging.

But if you want to achieve the best accuracy possible, the auto guider dramatically simplifies the polar alignment process. Simply follow the on-screen instructions on the hand control or in the CPWI software, and you can complete a full polar alignment in less than five minutes.

High-quality 4-element Optical Design

The StarSense Autoguider features a high-quality 4-element optical design devised by the famed optical designer Mark Ackermann. Its unique design delivers sharper images than other mini-guide scopes. The optical tube is threaded to accept 2” astronomical filters. Add an IR-pass filter to align your mount in twilight or a neutral density filter for daytime focusing.

The device also includes an onboard computer and a highly sensitive Sony IMX290-DLL monochrome CMOS image sensor, all working together to provide exceptional guiding accuracy. You can view a live image from the camera via your PC if desired.



Advanced options

Advanced users will love fine-tuning their auto-guiding setup via CPWI’s advanced settings. You can enable dithering options to move the mount slightly between camera sub-exposures, which may help your image processing software perform at its best.

You can also guide on a comet via CPWI. Simply select the comet from the software’s regularly updated database of more than 100,000 celestial objects. Guiding directly on the comet will produce better results than guiding on nearby stars.

Best of all, you can unlock more exciting features like these throughout the lifetime of your StarSense Autoguider. Your purchase grants you access to all subsequent firmware updates. Celestron engineers are constantly adding new functionality to our products, and with a simple firmware update, you’ll always be able to enjoy the latest and greatest.



Works with your current setup

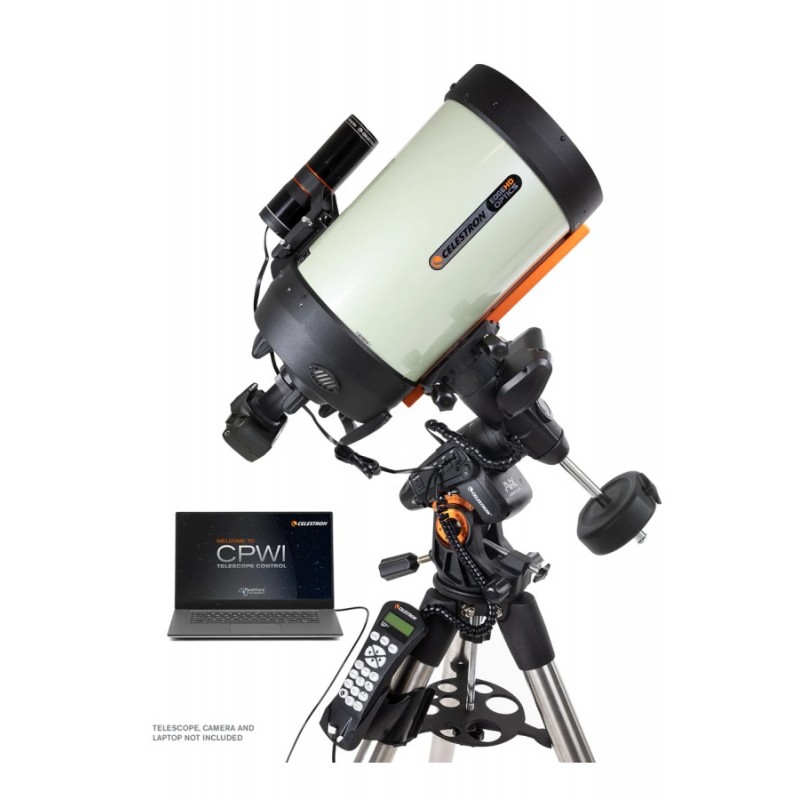

You choose how you want to control your StarSense Autoguider. It works with your NexStar+ hand control, and CPWI telescope control software via a wired PC connection or WiFi (with a WiFi-enabled mount or the SkyPortal WiFi Module accessory). The autoguider also works with the rest of your Celestron accessories for a seamless solution that fits in perfectly with your telescope setup.

StarSense Autoguider works with most current Celestron computerized mounts, both German equatorial and altazimuth. See the chart below for full compatibility details.

Diameter: 28mm

Focal length: 120mm

Number of pixels: 1936 x 1096 pixels (2.13 million)

Pixel size: 2.9 µm x 2.9 µm

Sensor: CMOS Sony IMX290 / IMX291 monochrome - 1/2.8"

F/D ratio: 4.3

Optical treatment: Multi-layer anti-reflective coating

Number of lenses4

RAM: 512 MB DDR3 Buffer

Optical tube side thread: M48 x 0.75 mm

Diagonal Sensor 6.5 mm

PRESENTATION STARSENSE AUOGUIDER
