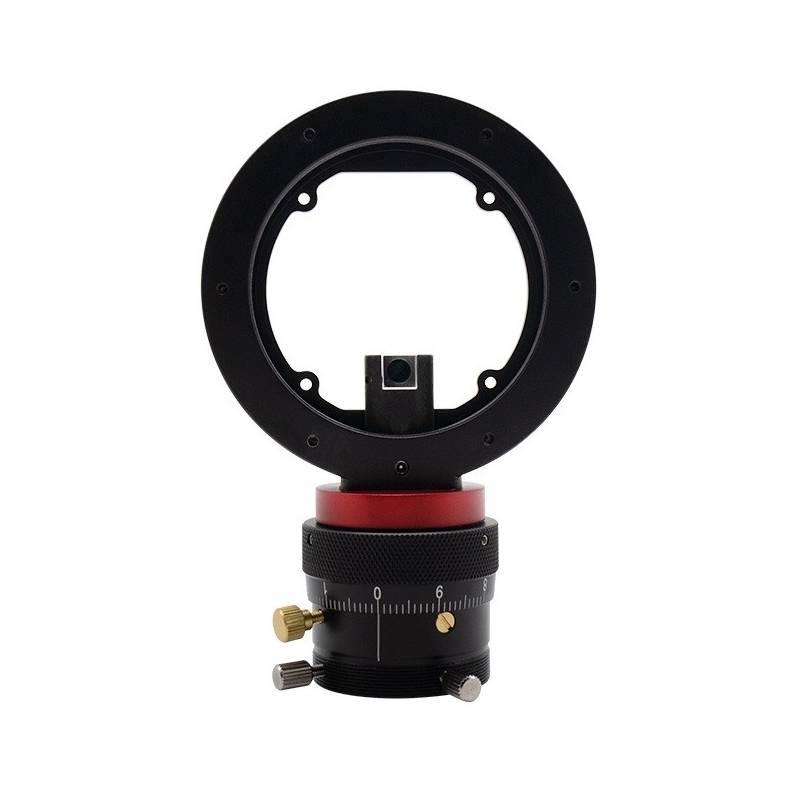

ZWO M68 Off-Axis Guider ZW-OAG-L with 12x12 mm Prism

ZWO M68 Off-Axis Guider ZW-OAG-L with 12x12 mm Prism

DESCRIPTION
The ZW-OAG-L is ZWO’s large-format off-axis guider, designed for precise guiding in long focal length imaging setups. Featuring a large 12x12 mm prism, it delivers a wide guiding field without the need for a guide scope. Its effective clear opening is 11.7 mm x 8.3 mm.

It connects to your telescope via M48x0.75 female thread and comes with a tilt plate. Total thickness is 17.5 mm, or 22.5 mm with the tilt plate installed. ZWO recommends pairing this guider with its EFW 2" or 7x36 mm electronic filter wheels and full-frame cameras such as the ASI6200 or ASI2400.

Compatible only with ASI Mini guide cameras (ASI174MM Mini, ASI290MM Mini, ASI120MM Mini), the guider ensures accurate star tracking without introducing vignetting. It is not advised for telescopes with clear apertures smaller than M48. TECHNICAL SHEET
• Type: Large-format off-axis guider
• Model: ZW-OAG-L
• Telescope connection: Female M48x0.75 thread
• Prism size: 12 mm x 12 mm
• Clear aperture: 11.7 mm x 8.3 mm
• Thickness without tilt: 17.5 mm
• Thickness with tilt: 22.5 mm
• Recommended use: with ZWO EFW 2" or 7x36 mm
• Main camera compatibility: Full-frame (ASI6200/2400), APS-C (ASI2600)
• Guide camera compatibility: ASI Mini only (ASI174MM Mini, ASI290MM Mini,
