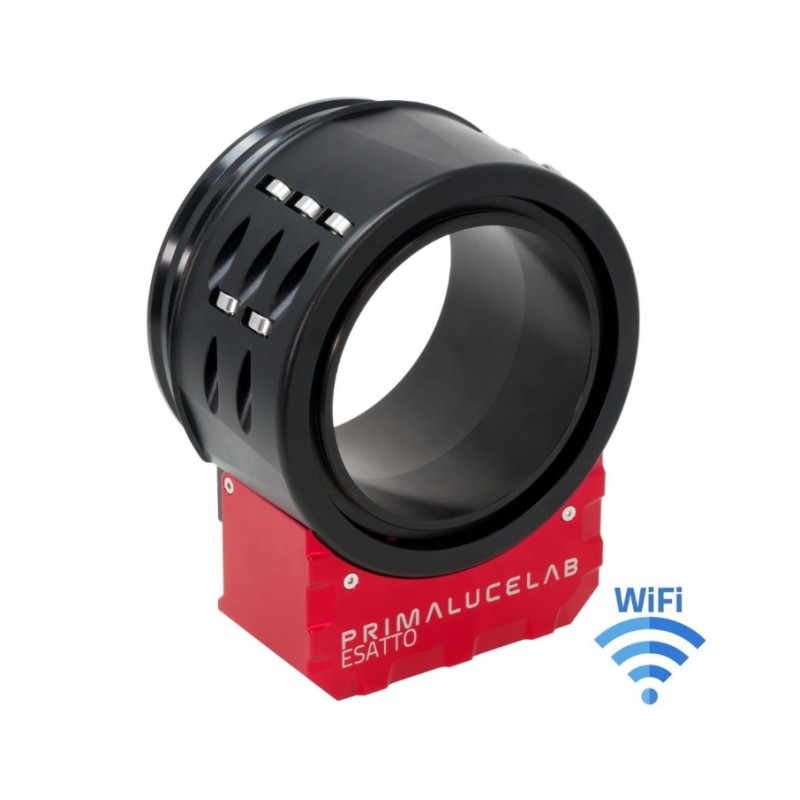

Focuseur robotique PrimaluceLab ESATTO 4" (PLLEST4) View larger

Focuseur robotique PrimaluceLab ESATTO 4" (PLLEST4)

ESATTO 4" robotic focuser

New product

Focuseur robotique PrimaluceLab ESATTO 4" (PLLEST4)

Various adapters and accessories are available to allow the assembly of this item on your instrument, see PDF attached to this page.
Please contact us to find out availability and prices.

More details

Subject to availability from the supplier. Please contact us for more information.

1'285.00 CHF tax incl.

More info

Focuseur robotique PrimaluceLab ESATTO 4" (PLLEST4)

ESATTO 4" is the larger robotic focuser in the ESATTO family and, thanks to the large 102.2mm free aperture and high 10kg payload capacity, it's perfect for large professional telescopes usually found in observatories or for astrographs offering a large corrected image circle that require the use of focusers with large free aperture, like the Takahashi FSQ-106.



ESATTO 4 robotic focuser

Dimensions comparison: ESATTO 2" (left), ESATTO 3" (center) ed ESATTO 4" (right).





ESATTO 4” robotic focuser - main features:

- Crayford style focuser with 40 ball bearings, specially designed for very high load capacity (up to 10 kgs) with no flexure
- Low profile design with only 65mm thickness (91mm with internal flange).
- 35mm focuser travel with an incredible resolution of 0.04 microns per step!
Remotely controlled from EAGLE or any Windows computer, it's also provided with ASCOM driver.
USB-C connector offering greater reliability and can be connected to any USB type port thanks to the included cable.
- It works also with PLAY astrophotography software, much more than a standalone program.
- Remote control with WiFi from any smartphone, tablet or computer and Virtual HandPad app also for visual use!
- ARCO port to easily connect the ARCO camera rotator and field de-rotator to the ESATTO without the need for additional USB or 12V power cables.
- Weight: 2050 gr.





PRIMALUCELAB





All-in-one design for the best performance also with professional telescopes

ESATTO 4" has all the most advanced technologies that allow you to get the best performance from your telescope: incredible resolution capacity of 0.04 microns per step, design with 40 bearings to offer exceptional precision and load capacity, reversible USB-C port for control from EAGLE or any external computer, ARCO port for use together with the optional robotic rotator, dimmable status LEDs that can also be turned off, WiFi connection with Virtual HandPad included for use even without a computer.





ESATTO 4 robotic focuser





The perfect focuser for Takahashi FSQ-106 astrograph

Thanks to special optics, Takahashi FSQ-106 is one of the best performing astrographs and it's used by the best astrophotographers in the world. The special internal corrector is so large that ir requires a very large focuser to use it. For this reason ESATTO 4" is the ideal focuser for the Takahashi FSQ-106 telescope thus allowing remote and high precision control even of very heavy cameras and accessories.





ESATTO 4 robotic focuser

ESATTO 4" installed on the Takahashi FSQ-106 (with the optional adapter) and with optional M92x1 adapter. The FSQ-106 telescope is shown with PLUS 125mm support rings.





Special adapter for Takahashi FSQ-106 and to connect Takahashi photographic adapters

In order to allow you to install ESATTO 4" in place of the original Takahashi focuser, we have designed a special adapter that makes ESATTO 4" have the same thickness of the original focuser. In addition, we have created an adapter to be screwed to the M110x1 thread of the ESATTO 4" draw tube to convert it into an M92x1 female thread which is the same as the one on the original Takahashi focuser. In this way you can remove the original focuser, install ESATTO 4" with the optional adapters and you will find focus point with the same photographic adapters you used before!





ESATTO 4 robotic focuser

ESATTO 4" installed on the Takahashi FSQ-106 (with the optional adapter) and with optional M92x1 adapter. The FSQ-106 telescope is shown with PLUS 125mm support rings.





ESATTO 4 robotic focuser

Dimensions of the ESATTO 4" robotic focuser.





Connect with a single cable to ARCO to remotely control also the camera rotator and field de-rotator

ESATTO includes a special port allowing ARCO, the camera rotator and field de-rotator, to be directly connected. With ARCO, you can remotely control the rotation angle of your camera in order to achieve perfect framing of the object you want to record. If you have an alt-az mount, you can use ARCO to de-rotate the field without the need of an equatorial wedge! ESATTO and ARCO are designed to work together - You will need only one short interconnect between the two!





ESATTO 4 robotic focuser
