ESATTO 2" LP low profile robotic focuser

ESATTO 2" LP low profile robotic focuser

Description :

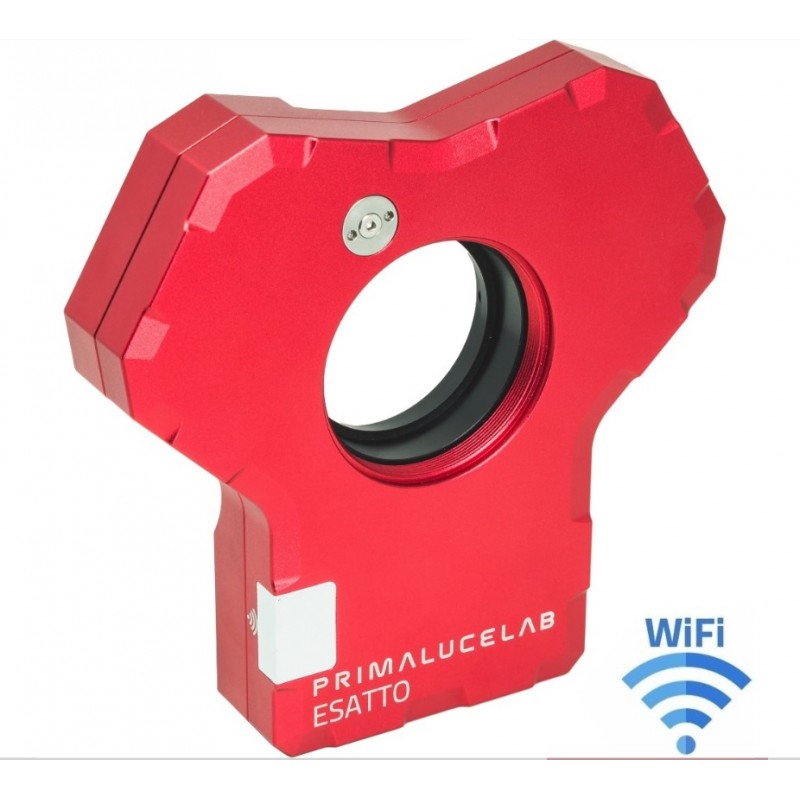

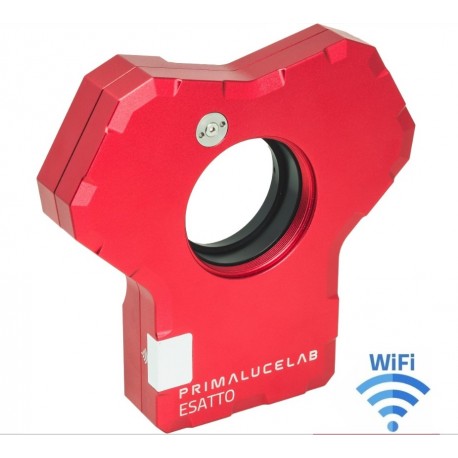

The ESATTO 2" LP robotic focuser is specially designed for telescopes with low backfocus, allowing easy installation on the Celestron EdgeHD 8" without interfering with primary mirror lock knobs or manual focus knob. Its slim 32 mm thickness and large 50.9 mm free aperture support up to 5 kg of imaging accessories.

It offers a 10 mm draw tube travel with an extremely fine 0.03 microns per step resolution, ensuring very precise focusing, essential for advanced astrophotography.

Equipped with a USB-C port for direct control from EAGLE or Windows computers, it also features an ARCO port compatible with ARCO rotator and field de-rotator, a temperature probe port, a 12V power port, and WiFi connectivity. This enables remote control via the Virtual HandPad app, ideal for night observing with adjustable status LEDs.

The focuser is compatible with PrimaLuceLab’s PLAY software, providing a unified platform for OTA/mount configuration, focus management, and camera rotation, simplifying astrophotography sessions.

Many optional adapters are available to ensure precise and rigid mounting compatibility with various telescope and camera brands.

Technical specifications :

• Diameter: 2" (50.9 mm)

• Thickness: 32 mm

• Draw tube travel: 10 mm

• Resolution: 0.03 microns per step

• Payload capacity: 5 kg

• Ports: USB-C, ARCO, temperature probe, 12V power

• Connectivity: WiFi

• Weight: 730 g

• Software compatibility: ASCOM, PLAY PrimaLuceLab

Additional information :

• Optional adapters for telescopes and cameras

• Control via EAGLE, Windows PC or smartphone/tablet

• Dimmable status LEDs

• Easy installation on Celestron EdgeHD 8"

• Precise, stable motorized focuser designed for demanding astrophotography
