ZWO 2" Filter Drawer II M42

ZWO TIROIR FILTRE II 2" FD-M42

New product

ZWO 2" Filter Drawer II M42

More details

Depending on availability from the supplier. Please contact us for more information

90.0 CHF tax incl.

More info

ZWO 2" Filter Drawer II M42

Product Description

New 2″ filter drawer featuring the anti-light-leaking design that can effectively solve the light leaking issue under long exposure.

M42

(M42)

M54

(M54)

Two sizes available: M42 and M54.



Double strong magnets adopted for stronger adsorption, easier installation and pulling out.

strong magnet

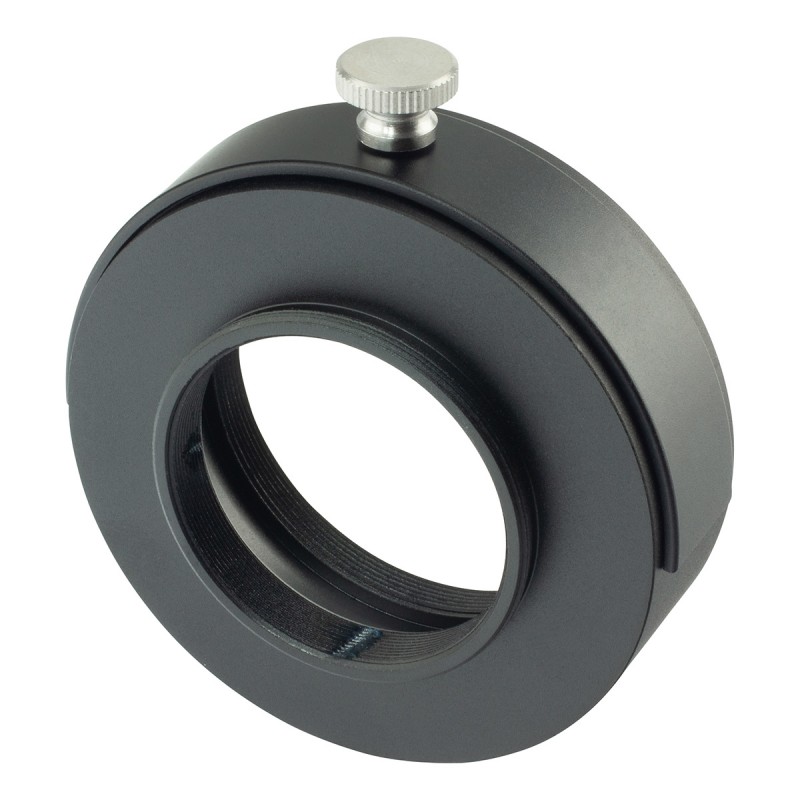

Lock screw on the side for you to adjust the tension of the holder to eliminate gap. Double insurance.

lock screw_M42

(M42)



lock screw_M54

(M54)

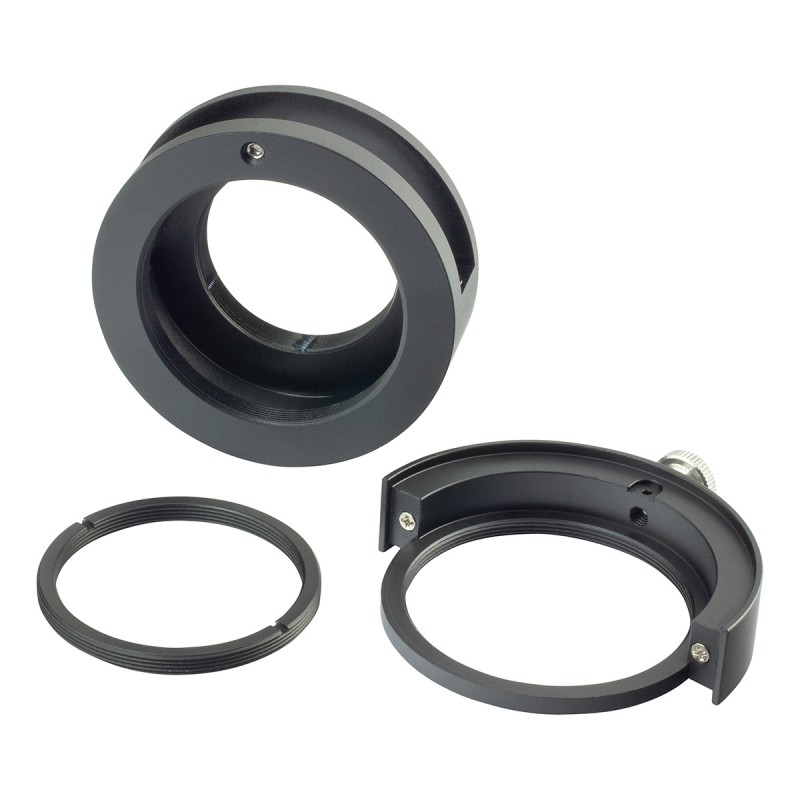

Additional adapters provided with the filter drawer for equipment connection.

The differences between the old and new filter drawer

comparsion

comparsion

What’s in the Box?

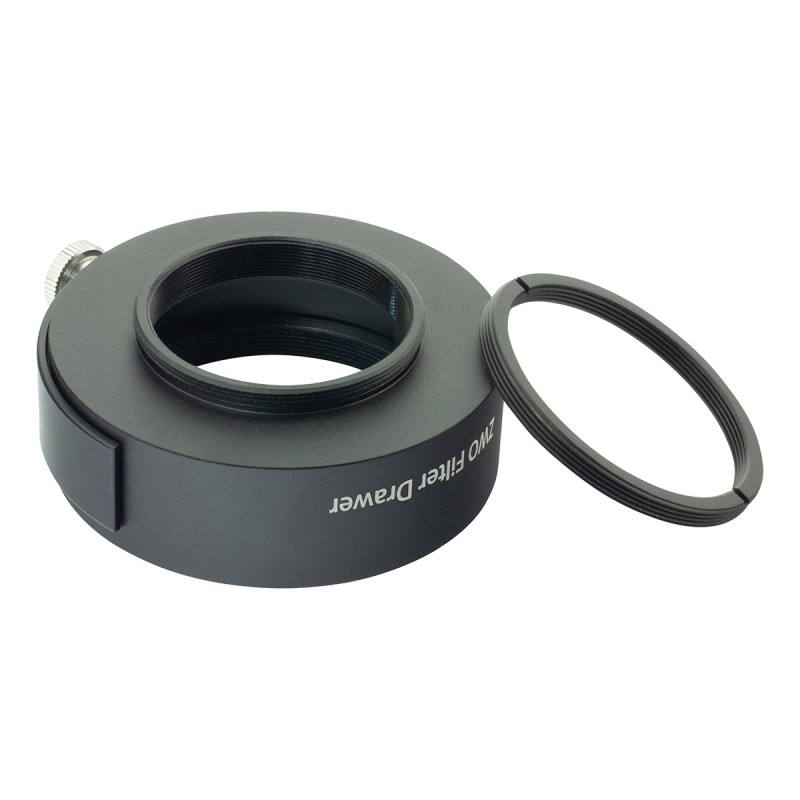

M42 filter drawer:M42 filter drawerFILTER  drawer *1M48-M42F adapter *1

Mechanical Diagram

M42 filter drawer:M42_diagram

M42_diagram

Diameter 70mm * Thickness 21mmM42 * 0.75 male(external) thread (camera side)M48 * 0.75 female(internal) thread (filter end)M48 * 0.75 female(internal) thread (telescope side)

Suitable for 2-inch astronomical filters。
