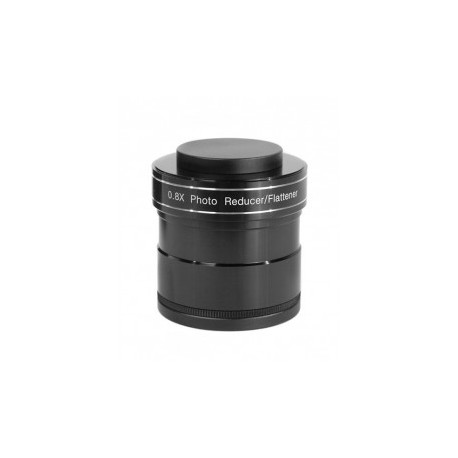

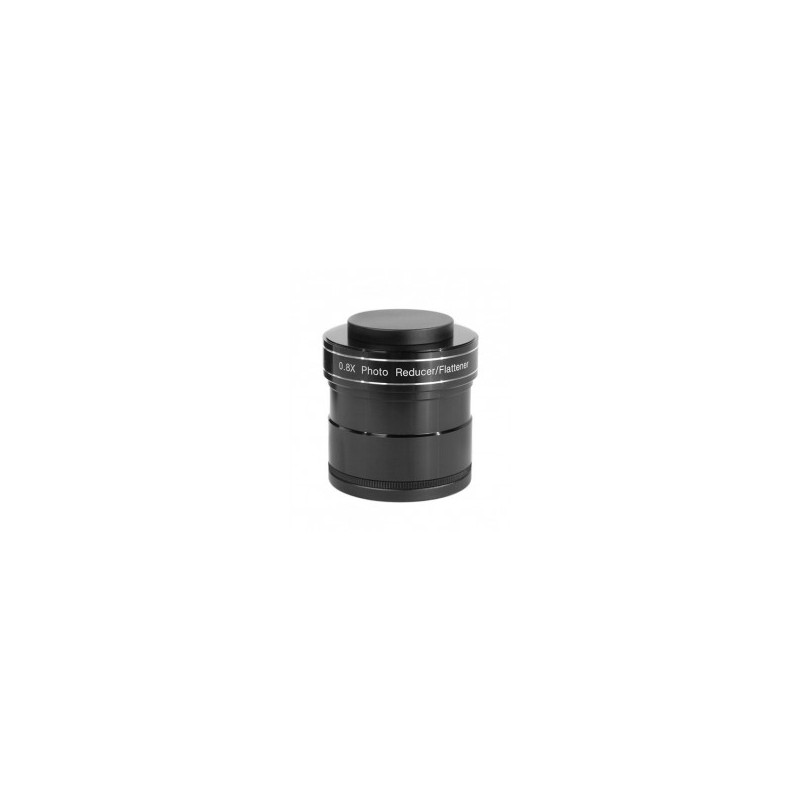

Tecnosky 0.8x Reducer/Flattener for APO 115

Tecnosky 0.8x Reducer/Flattener for APO 115

DESCRIPTION

The Tecnosky 0.8x reducer/flattener is a high-performance optical accessory designed for 115 mm triplet APO refractors. It uses a 3-element design to both shorten the focal length and flatten the field across a full frame sensor, enabling wide-field, flat-field astrophotography.

The reducer attaches directly to Tecnosky 3" focusers using the integrated M68x1 thread. On the camera side, it offers a standard M48x0.75 thread, making it compatible with most filter wheels and DSLR/Mirrorless adapters. The corrected and illuminated image circle reaches 42 mm, ideal for full frame imaging.

It has a total length of 80 mm and requires a standard 55 mm backfocus spacing from the rear thread to the camera sensor.

TECHNICAL SPECIFICATIONS

• Type: reducer / field flattener
• Focal reduction: 0.8x
• Optical design: 3 elements
• Telescope thread: M68 x 1 mm (for Tecnosky 3" focusers)
• Camera thread: M48 x 0.75 mm
• Corrected image circle: 42 mm
• Backfocus: 55 mm
• Total optical length: 80 mm
• Compatibility: Tecnosky 115 mm triplet APO refractor
• Included: 0.8x reducer/flattener + storage box


  A new 3-element field corrector / reducer for triple apo refractors.

Reducing the focal length by 0.8x, it opens the way to full-frame cameras!
It is screwed directly onto the Tecnosky 3" eyepieces with an M68x1mm thread.
On the imager side, it has an M48x0.75 mm thread
Illuminated and corrected field of 42 mm.
The length of the corrector is 80 mm, the correct distance of Backfocus is 55 mm

Technical details:

Connection to telescopes:

3 "with M68x1mm thread
Camera side connection: M48x0.75
Number of elements: 3
55mm backfocus
