DESCRIPTION

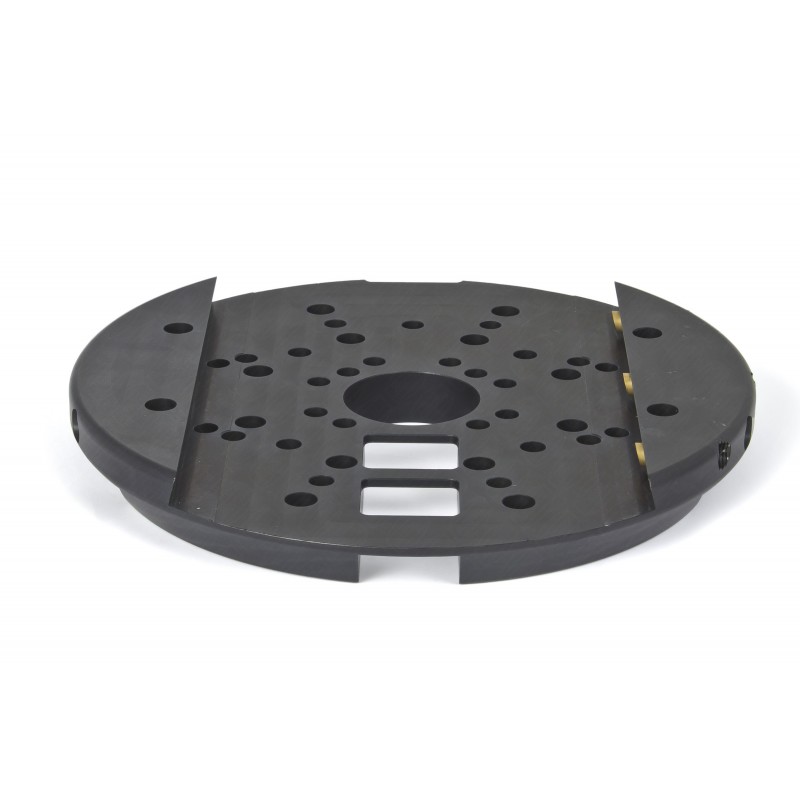

The Baader 8" Planewave clamp is designed to hold 8" (203 mm) dovetail rails such as the 10Micron/Baader rail (ref. 1454540) and is compatible with Planewave OTAs CDK 17, CDK 20, and CDK 24.
It can be mounted on mounts like the 10Micron GM 3000 or GM 4000. Both sides of the clamp are pre-drilled for the installation of Baader Sidewings (ref. 2451558), which in turn allow the mounting of balancing plates such as the 400 mm Baader Baseplate (ref. 1500340) or Baader Pan EQ clamps in 190 mm, 230 mm, or 370 mm.
Mounting screws are not included. Please specify your mount at the time of order so that the appropriate screw types can be identified.

TECHNICAL SPECIFICATIONS
Product SKU: 2451555
EAN Code: 4047825011800
Manufacturer: Baader Planetarium
Type: Clamp / Base
Clamping width: 8" (203 mm)
Compatible rails: Baader/Planewave 8" dovetail (ref. 1454540)
Compatible OTAs: Planewave CDK 17 / CDK 20 / CDK 24
Compatible mounts: e.g. 10Micron GM 3000, GM 4000
Side-drilled: Yes, for Baader Sidewings (ref. 2451558)
Net weight: 4.15 kg
