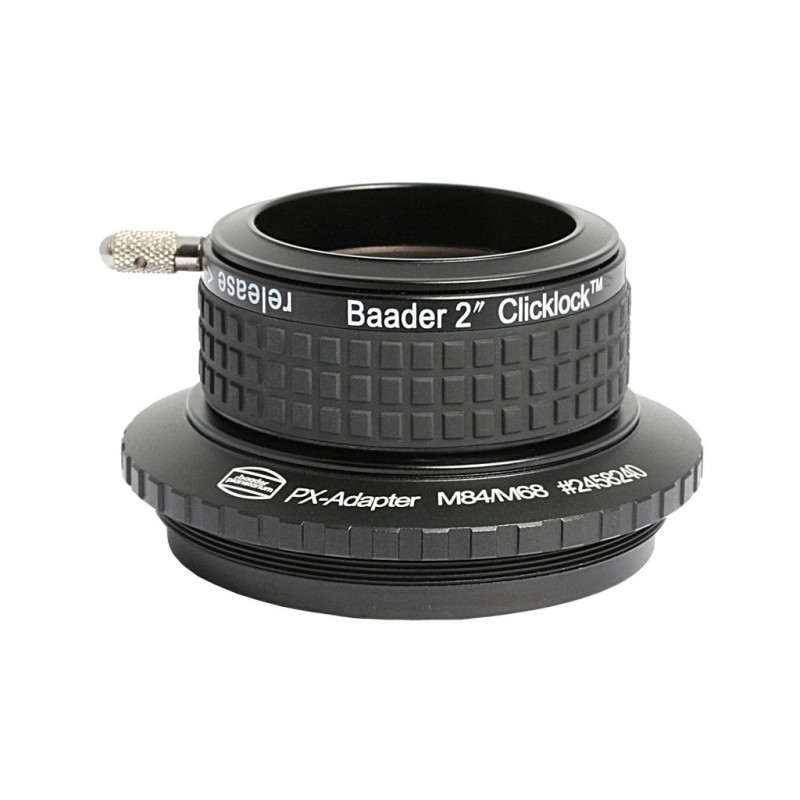

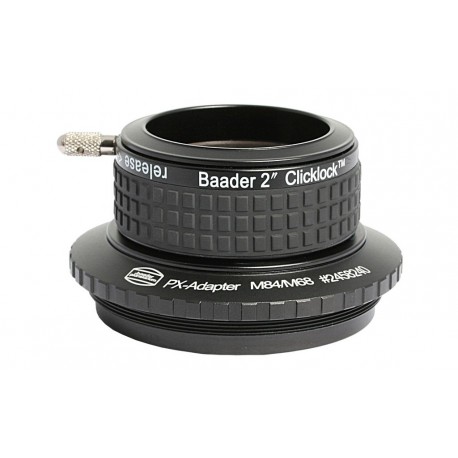

Baader ClickLock 2" to M84 Adapter for Pentax

Baader ClickLock 2" to M84 Adapter for Pentax

DESCRIPTION

This Baader 2" ClickLock adapter is designed to screw directly onto Pentax focusers with M84 x 1 threading. It enables fast and reliable clamping of all 2" accessories without the use of thumbscrews. A simple 20° turn of the knurled lever ensures secure and evenly distributed pressure via a thick bronze compression ring, avoiding scratches and slippage.

The integrated ratchet mechanism provides audible and tactile feedback to indicate locking position, even in total darkness. The locking lever can be adjusted for left- or right-handed use. Built with high precision and mechanical strength, this adapter guarantees long-lasting performance and solid support, even for heavy accessories.

TECHNICAL SPECIFICATIONS

• Telescope side thread: M84 x 1
• Inner diameter: 50.8 mm (2")
• Outer diameter: 94 mm
• Optical path length: 40 mm
• Locking system: ClickLock lever mechanism
• Compression ring: thick-walled bronze
• Weight: 0.25 kg
• Compatibility: Pentax M84 focusers
• Application: quick and secure clamping of 2" accessories
• Lever position adjustable (left/right handed)
• Manufacturer: Baader Planetarium
• Product code: 2956284
