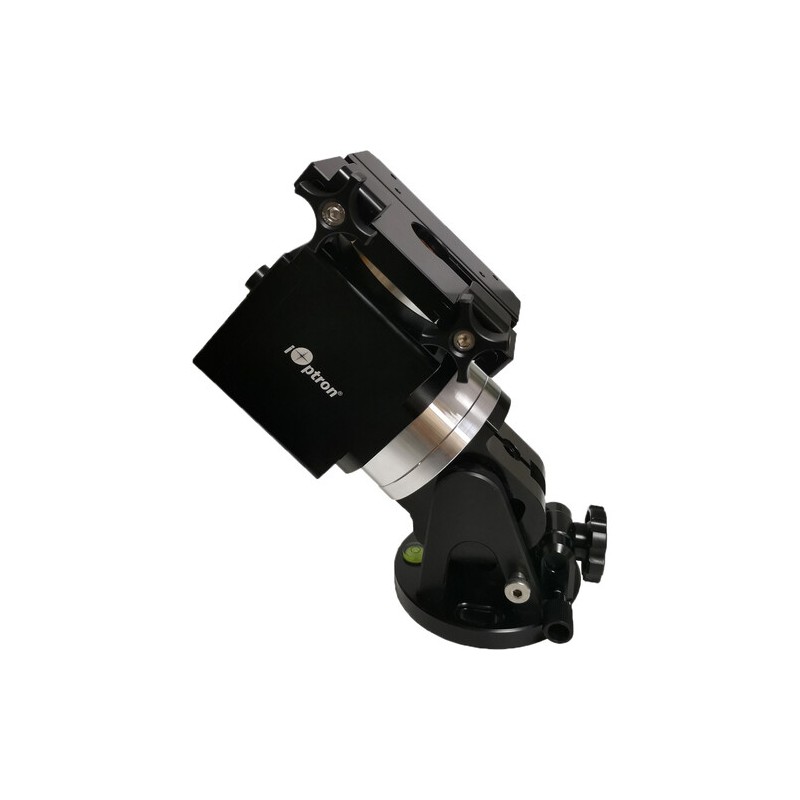

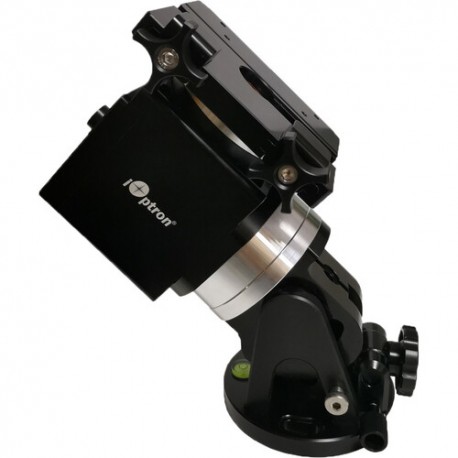

iOptron HAE43C GoTo Alt-Az/Equatorial Kit – Mount + Hand Controller

iOptron HAE43C GoTo Alt-Az/Equatorial Kit – Mount + Hand Controller

Description:
The iOptron HAE43C represents a new era of lightweight, high-capacity mounts for mobile astronomers. Featuring strain wave gear drives on both RA and DEC axes, it offers minimal backlash, high tracking precision, and superb portability.

Weighing just 5.7 kg with saddle included, it can carry up to 20 kg without counterweights (25 kg with an optional one), yielding an exceptional 3.51 load-to-weight ratio. Ideal for quick setup or field deployment.

Its CNC-machined all-metal body is anodized in black, combining strength and visual appeal. In case of power failure, an internal electronic friction brake engages immediately to prevent accidental motion.

The mount can be controlled via USB-C or Wi-Fi from a computer using ASCOM or INDI software. While it can operate without a hand controller, this kit includes the Go2Nova 8411 OLED handset for full standalone operation.

Technical specifications:

• Mount type: Alt-Az/Equatorial (dual mode)

• RA/DEC drive: Strain wave gear

• Reduction ratio: RA 640:1 / DEC 480:1

• Payload without CW: 20 kg

• Payload with CW: 25 kg (optional)

• Mount weight: 5.7 kg (with dovetail saddle)

• Load-to-weight ratio: 3.51

• Gear period: 270 seconds

• PE: < ±36 arcsec

• Drive motors: Stepper motors

• Brake: Electronic friction brake

• Structure: CNC aluminum

• Finish: Black anodized

• Control: USB-C / Wi-Fi / ASCOM / INDI

• Hand controller: Go2Nova 8411 OLED (included)

• Tracking: Automatic

• Max slew speed: 6°/sec

• Polar alignment: iPolar (optional)

• Autoguide port: ST-4 compatible

• Power: 12 V – 5 A (AC adapter included)

• Consumption: 0.7 A (tracking), 1.2 A (GoTo)

• Operating temp: -20 °C to +45 °C

• Dovetail saddle: Dual Vixen / Losmandy

• Tripod: Optional

• Counterweight shaft/weight: Optional (Ø20 mm shaft)

• Firmware upgrade: Supported

• Warranty: 2 years

Additional information:

• Delivered with aluminum transport case

• Fully compatible with ASCOM and INDI

• RA encoder version HAE43C EC available separately

• No counterweight needed in most configurations

• Go2Nova 8411 handset included in this kit
