Description:

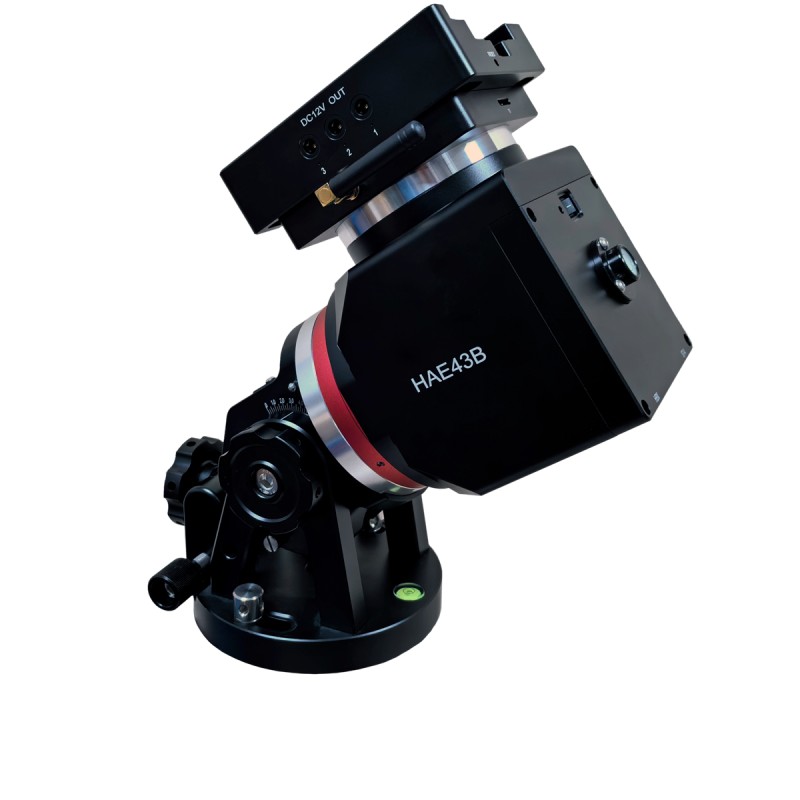

The iOptron HAE43B-EC mount merges high-end strain wave gear mechanics with a compact CNC-machined body. Weighing just 5.8 kg, it supports up to 20 kg of payload without counterweights or a shaft, making it ideal for mobile setups.

Equipped with a high-precision RA axis encoder and real-time PEC (RPEC), it provides outstanding tracking—enabling many users to image unguided. The built-in iMate computer includes a 64-bit ARM processor, Wi-Fi, KStars planetarium, Ekos control suite, and INDI drivers, offering broad compatibility with imaging equipment.

No hand controller is needed—accessories connect directly to the mount without cable drag. Compatible with Windows (ASCOM/Commander), macOS/Linux (INDI), or mobile apps. The Go2Nova 8411 and iPolar electronic polar scope are available as options.

Technical specifications:

• Mount type: Dual AZ/EQ operation

• Payload capacity: 20 kg (44 lbs)

• Mount head weight: 5.8 kg (12.8 lbs with saddle)

• Drive: Strain wave gears on both RA and DEC

• RA axis high-precision encoder with RPEC

• Friction brake on RA and DEC for safe stop during power loss

• Gear period: 270 seconds

• Built-in iMate computer (ARM 64-bit, 32GB eMMC)

• Software: KStars, Ekos, INDI

• MicroSD support: Up to 64GB

• Ports: USB, Wi-Fi, ST-4 autoguiding

• Dual saddle: Vixen and Losmandy-D styles

• Anodized black CNC-machined body

• Operating temperature: -20 to +40 °C

• Includes aluminum transport case

• Warranty: 2 years

Additional information:

• Optional Go2Nova 8411 handset

• Optional iPolar electronic polar scope

• Supports most brands of cameras, focusers, and filter wheels

• Fully computer controllable via USB-C or Wi-Fi

• Automatically resumes GoTo or tracking after power loss

• Polar alignment via optional iPolar or handset Polar Align method
