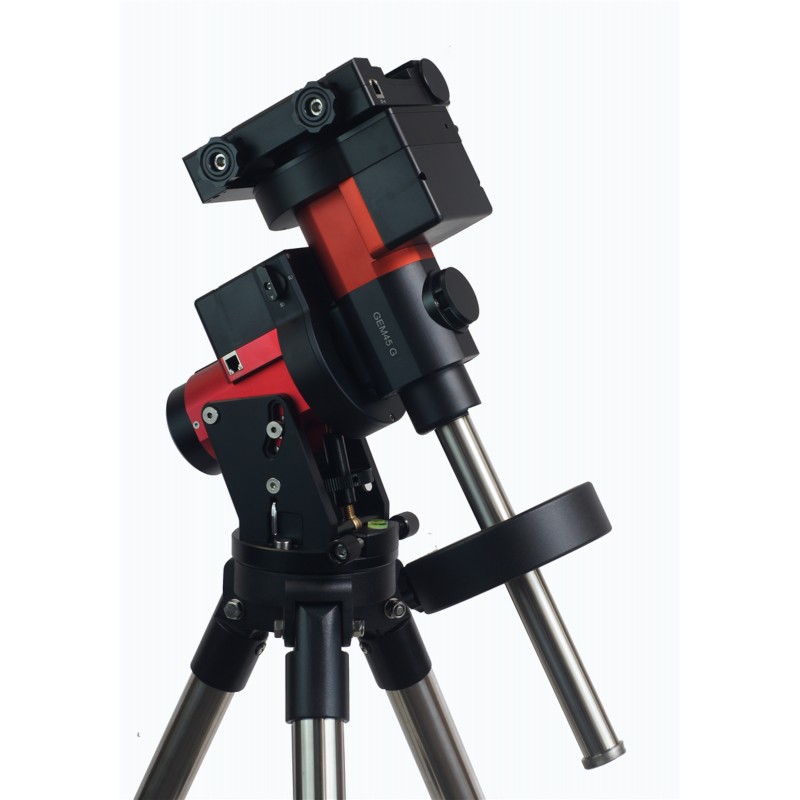

GEM45 w/ Tripod, Hard Case & iGuider

GEM45 w/ Tripod, Hard Case & iGuider

DESCRIPTION
The GEM45 is a modern German equatorial mount by iOptron, offering advanced functionality in a compact, CNC-machined body. It weighs only 17.5 lbs (7.9 kg) yet handles up to 45 lbs (20 kg) of payload, thanks to its efficient design.
This version features an integrated iGuider autoguiding system: a 30 mm f/4 guide scope and 1/3" imaging sensor embedded in the dual saddle, with 3.75 µm pixels. Together with iPolar, USB hub, and ST-4 port, guiding setup is simple and tidy.
The mount provides < ±7.5" periodic error, PPEC, and precise GoTo with Go2Nova (212,000+ objects). It includes GPS, USB, and optional Wi-Fi via iStarFi.
The new LiteRoc 1.75" tripod ensures solid footing. Comes with a hard carry case, counterweight, controller, and all necessary cables and power supply.

TECHNICAL SPECIFICATIONS

• Type: German equatorial mount

• Max payload: 45 lbs (20 kg, excluding counterweights)

• Mount weight: 17.5 lbs (7.9 kg)

• Material: all metal, CNC machined

• Finish: red/black anodized

• Latitude range: 14°–68°

• Azimuth range: ±6°

• PE: < ±7.5 arcsec, PPEC

• Motors: stepper, 1.8°/128x micro-step, 0.08 arcsec resolution

• Transmission: synchronous belt

• Max slew speed: 4.5°/sec

• Controller: Go2Nova, 8-line LCD

• Object database: 212,000+

• Power: 12V DC / 5A (AC adapter included)

• Power usage: 0.6A (tracking), 0.9A (GoTo)

• Polar scope: iPolar electronic

• Guiding: built-in iGuider (30 mm f/4, 1/3" sensor), ST-4 port

• Saddle: 6" dual Losmandy/Vixen

• GPS: integrated (32-channel)

• USB communication port

• Wi-Fi: optional (via iStarFi)

• Tripod: LiteRoc 1.75", stainless steel (~8 kg)

• Counterweight: 11 lbs (5 kg), Ø28 mm shaft

• Hard case: included for mount head

• Temperature range: -10°C to +40°C

• Warranty: 2 years
