Baader 20 kg Stainless Steel Counterweight for GM 3000

Baader 20 kg Stainless Steel Counterweight for GM 3000

Description

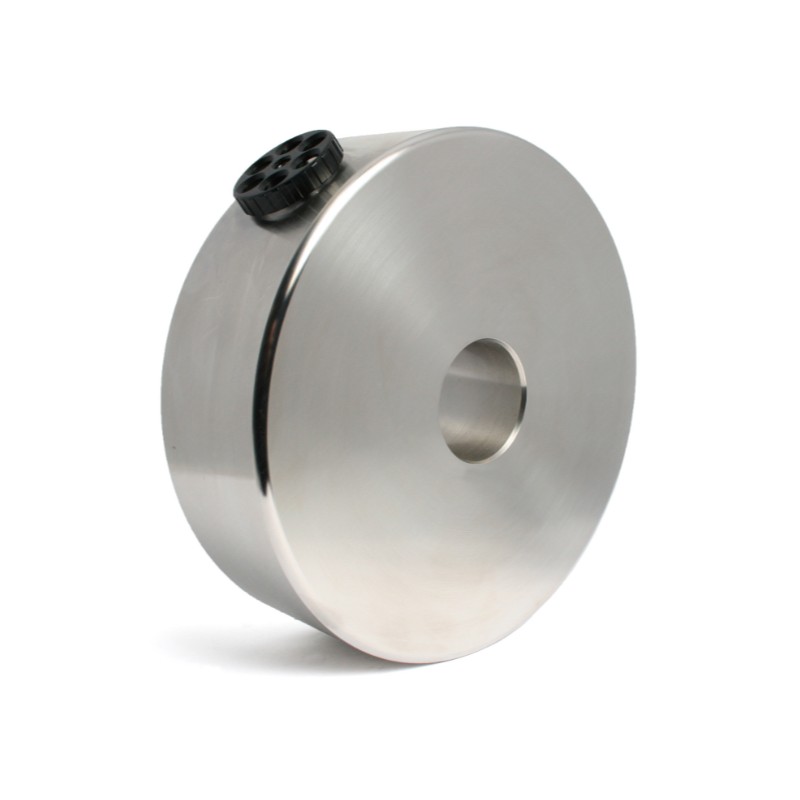

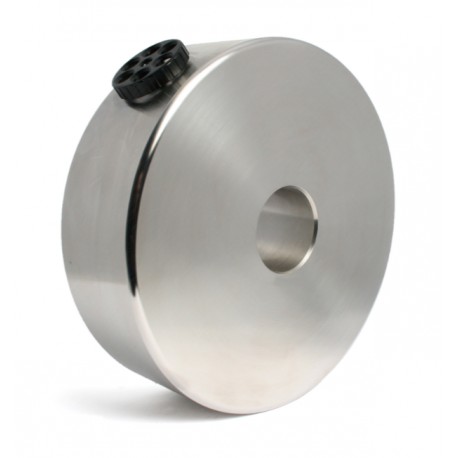

This 20 kg counterweight is precision-machined from V2A stainless steel and designed for 10Micron GM3000 mounts with a 60 mm diameter shaft. It is engineered to ensure perfect balance of large instrument payloads.

It features a knurled twist-grip screw for quick manual adjustment and a final locking screw using an M10 Allen key for secure attachment during extended observing or imaging sessions.

Custom bore holes are available upon request to accommodate other shaft diameters. Please add the item “Additional Price for custom bore holes” to your cart and specify your required diameter when ordering.

Important: this counterweight is available only under specific conditions. Please contact us directly for availability and additional information.

Technical specifications

• Unit weight: 20 kg

• Material: V2A stainless steel

• Dimensions: Ø 225 mm x 70 mm

• Compatibility: 10Micron GM3000 (60 mm shaft)

• Clamping system: twist-grip with final M10 hex lock

• Custom bore hole available upon request

• Manufacturer: Baader Planetarium

• Item number: #1452082

• Net weight: 21.00 kg
