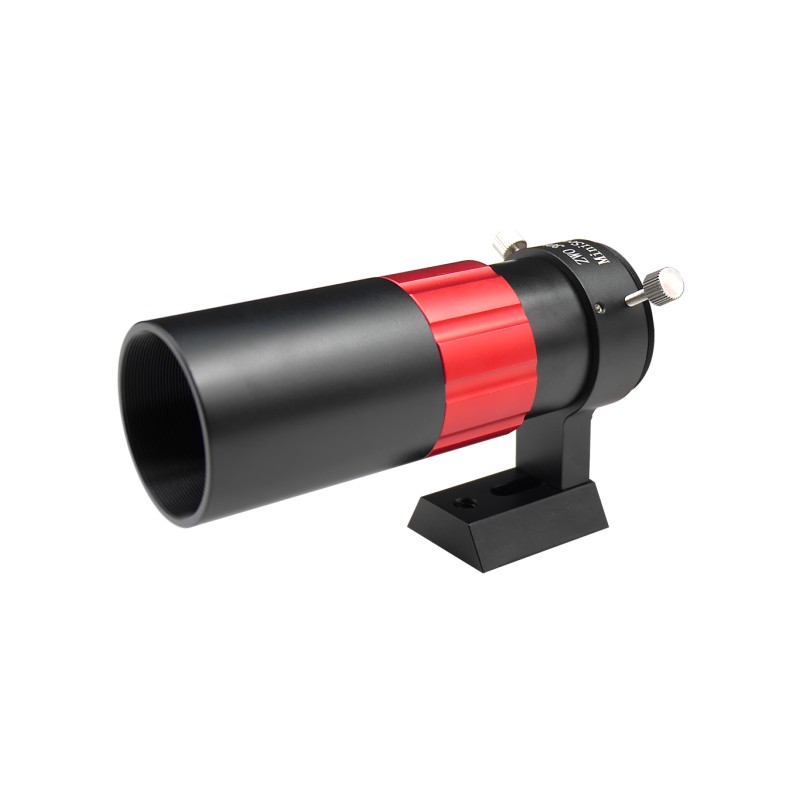

ZWO Mini Guide Scope Home

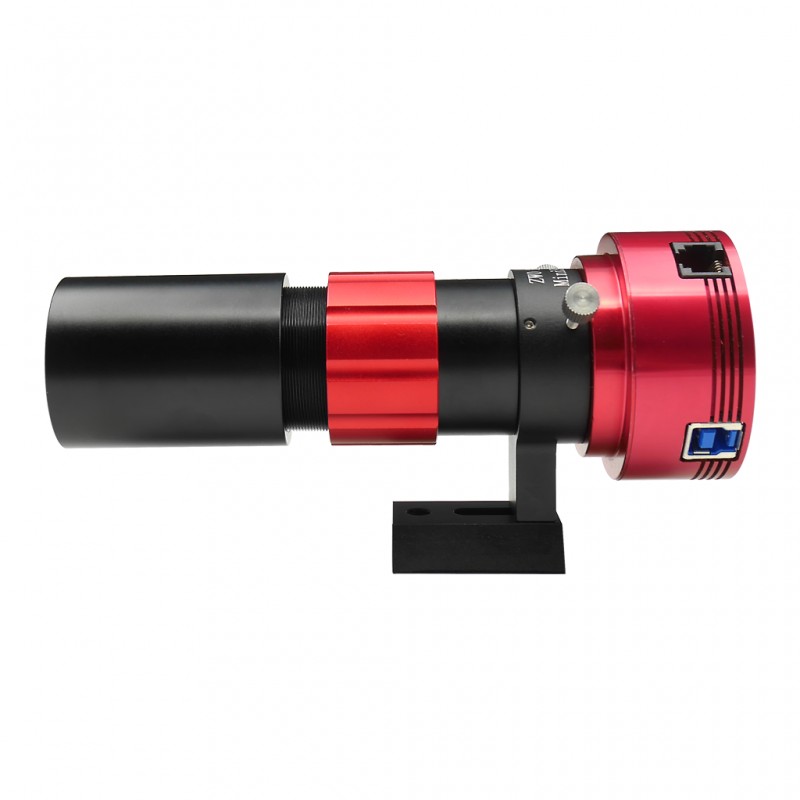

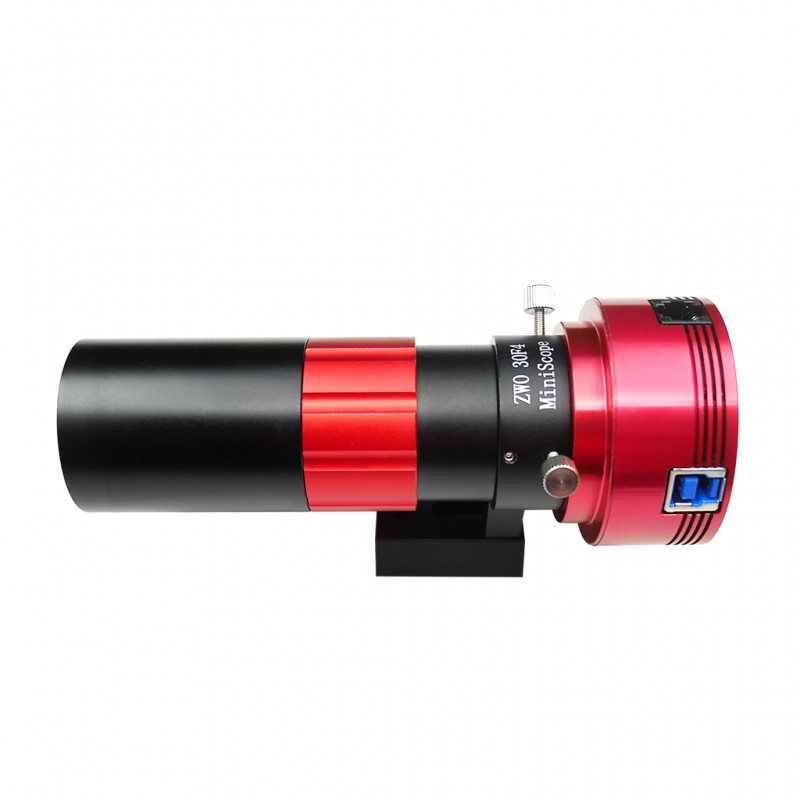

Once attached to your ASI astro-imaging camera and a computerized mount controller, you will be able to guide your telescope to a desired area of the sky and lock it onto a specific star to hold your images stable.

Doublet

The optical lens is made of two simple lenses paired together to bring your images to focus and reduce chromatic aberrations.

Dimensions

The aperture of this mini-guide scope is only 30 mm (1.18-inches), the focal length is 120 mm, making this a fast focal ratio of f/4. The tube can travel 20 mm, and the back focus is also adjustable from 0 to 20 mm. The overall tube length is 122.5 mm, with the final 3.5 mm being the length from where the camera connection threads begin. The inside diameter of the tube is 30.5 mm. The outside diameter is 44 mm. Your camera connection will be M42*0.75.

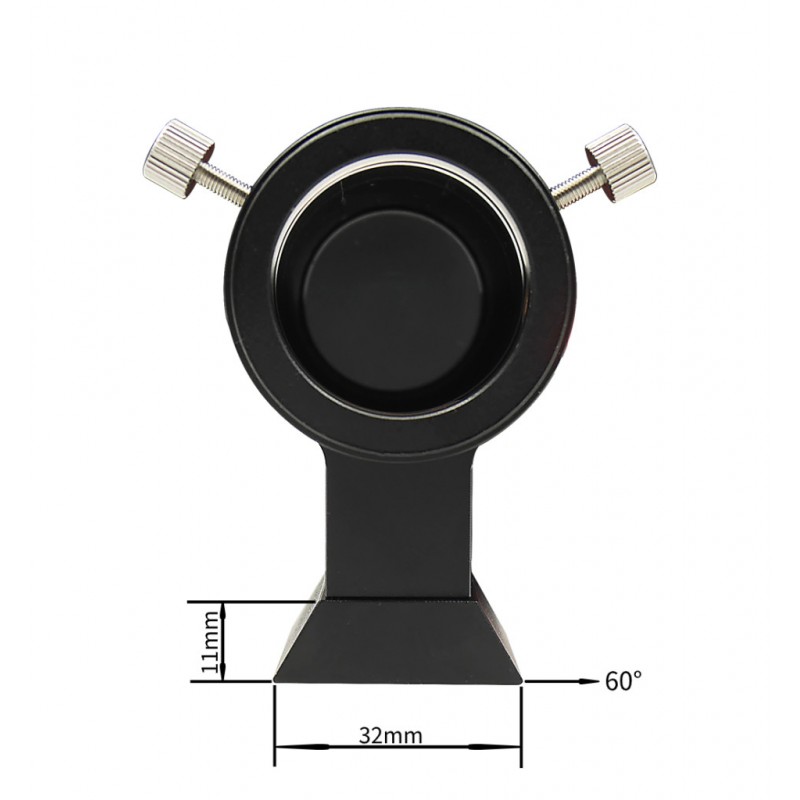

Total weight including the guider ring and dovetail: 250 g (0.55 pounds).
