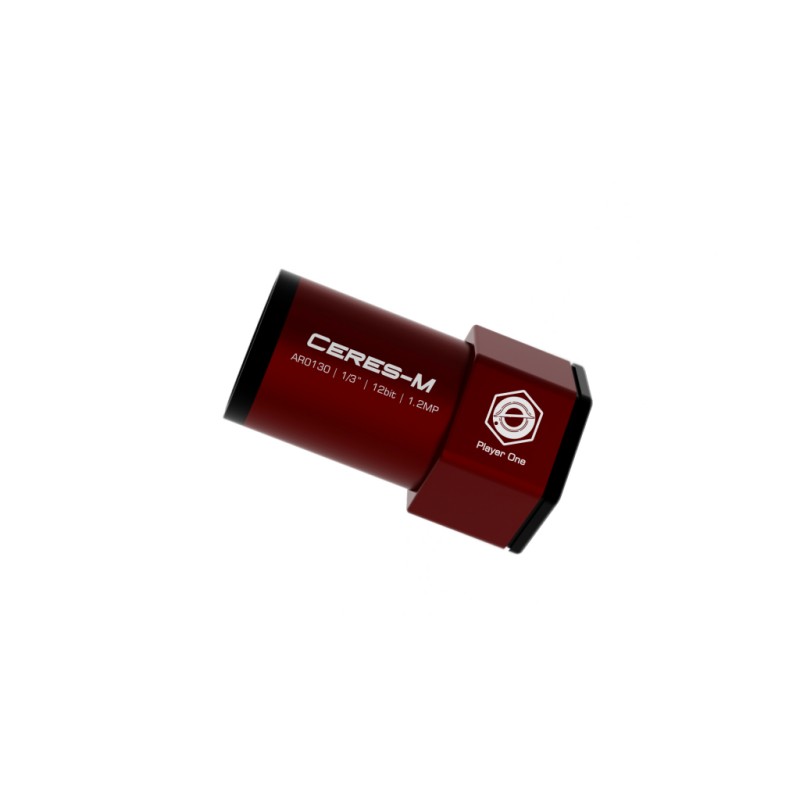

PLAYER ONE CERES-M USB3.0 MONO CAMERA (AR0130) View larger

PLAYER ONE CERES-M USB3.0 MONO CAMERA (AR0130)

Player One Caméra CERES-M

New product

PLAYER ONE CERES-M USB3.0 MONO CAMERA (AR0130)

More details

2 Items

Available.

169.63 CHF tax incl.

More info

PLAYER ONE CERES-M USB3.0 MONO CAMERA (AR0130)

Product description

Player One Astronomy guiding camera series, AKA Dwarf Planet Series, is design for guiding and imaging. This series including 3 sub-series, Ceres, Sedna and Xena.

Product Description

Ceres M is a guiding camera developed by Player One Astronomy, which adopts the Aptina AR0130 1/3” format sensor. The 3.75um pixel size accommodates a well depth of 18ke with a total of 1.2MP (the resolution is 1280*960)and the diagonal is 6mm.

Highlights

Dwarf planet series integrated USB3.0 data port(500Mb/s), which can provide over 10 times speed than USB2.0 device(60Mb/s). Whatever you wants to do guiding or imaging, this camera series can handle it very well.

Dwarf planet camera diameter is 1.25″, it can slide in 1.25″ holder of guiding scope, makes the whole setup shorter.

With a 5-100MM CS lens attached on the camera, it also can be used as a guider or finder.

Features:

The naming of Player One guiding cameras is interesting. Guiding camera is smaller than planetary camera, that’s why we choose dwarf planets to name it.

The size of each dwarf planet to a certain extent represents the size of camera sensors. We will name Ceres with a 1/3″ sensor camera, and for Xena, we will name it with a 1/1.2 inch sensor camera. All names will be engraved on the housing of the cameras.

Cutting-edge Design

The guiding cameras developed by Player One Astronomy uses technological regular hexagon to construct the main body line.

DPS technology

The guiding cameras from Player One Astronomy have DPS (Dead Pixel Suppression) technology. The DPS is anaylse many dark frames to find out thoes fixed abnormal pixel and record the map in camera memory. In imaging, each exposure frames, thoes position of dead pixels will be given a median value according to the active pixels around that abnormal pixel.


Overvoltage and overcurrent protection mechanism

Player One cameras produced by the number one player ensures the safety of your camera and other equipment through overvoltage and overcurrent protection mechanisms.

Data Port

When the camera is connected to the USB3.0 interface and full-resolution preview is used, it can reach 65 FPS in RAW8 mode (10bit ADC). When recording images, since the actual writing speed will be affected by the writing speed of the hard disk itself, when the hard disk writing speed is slow, the recording may not reach the theoretical speed. It is recommended that you use a high-quality solid state drive to record data to give full play to the performance of the camera.

Use the ST4 guide cable to connect the camera and the AUTO GUIDE port of the equatorial mount to do guiding.

Performance

Readout Noise

Regarding readout noise, we solemnly promise that all values are obtained from actual tests. And for users, you could use Sharpcap 4 for testing. SC4 has a function called Sensor Analysis.

After many rigorous readout noise tests, the Ceres-M camera can reach a low readout noise of 3.6e at a gain of 200.

If you are interested in readout noise testing, you may try it yourself, which is very simple.

Product details

Sensor

Aptina AR0130 CMOS (Mono)

Diagonal

6mm

Total Pixels

1.2 Mega Pixels

Max Resolution

1284×964

Pixel Size

3.75μm

Chip Size

4.8×3.6mm

Frame Rate

65FPS(10bit)

Shutter

Rolling shutter

Exposure Range

32μs-2000s

Readout Noise

7.3e – 3.6e

QE Peak

≈80%

Full Well

18k e

ADC

12 bit

Data Port

USB3.0/USB2.0

Adapter

1.25″ / M28.5X0.6

Back Focal Length

7.5mm

Protective Window

AR coating

Diameter

40mm

Weight

65g

Resolution and FPS

Under USB3.0 mode
Resolution 10bit ADC
1280×960 65 FPS
