ASI183 MC Pro (color)
New product
Cooled 20 MP color camera with Sony IMX183 sensor, 2.4 µm pixels, USB 3.0, 256 MB buffer—ideal for deep sky, planets, and lunar imaging.
0 Item Items
Available in stock from the supplier. Please contact us for more information.
Warning: Last items in stock!
Availability date:
DESCRIPTION

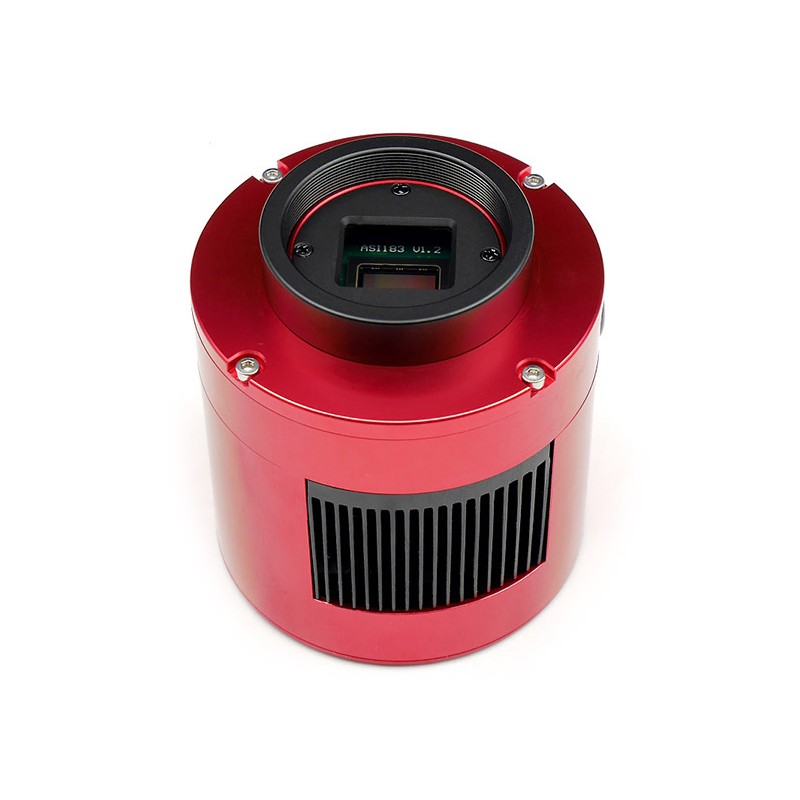

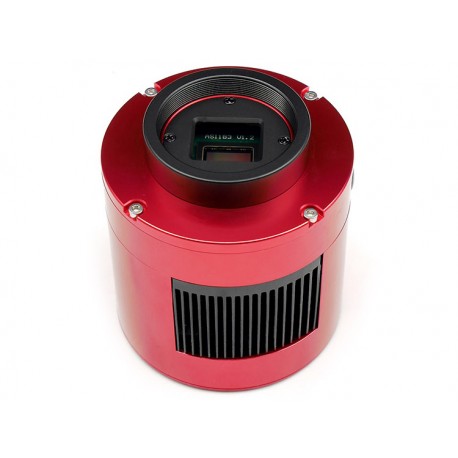

The ZWO ASI183MC Pro is a cooled color camera for high-end astrophotography. It features the 1″ Sony IMX183CQJ-J sensor, delivering 20.18 MP (5496 × 3672) with 2.4 µm pixels, offering exceptional resolution and detail-rich captures.
Dual-stage TEC cooling lowers the sensor by 40–45 °C below ambient, significantly reducing thermal noise for extended exposures. With a low 1.6 e⁻ read noise (at high gain), a 12-bit ADC with 15,000 e⁻ full well, and up to 84 % peak quantum efficiency, it excels in sensitivity, including in near-infrared.
The ASI183MC Pro handles exposures from 32 µs to 2000 s and captures up to 19 fps at full resolution. A 256 MB DDR3 buffer ensures stable USB data transfer and minimizes amp glow. The camera features USB 3.0, integrated USB 2.0 hub, ST‑4 guiding port, and M42/T2/2″ threads for easy integration.
TECHNICAL SPECIFICATIONS
Sensor: Sony IMX183CQJ-J BSI CMOS color
Format: 1″ (13.2 × 8.8 mm), 20.18 MP (5496 × 3672)
Pixel size: 2.4 µm
ADC: 12-bit
Full well: 15,000 e⁻
Read noise: ~1.6 e⁻ (high gain)
Peak QE: 84%
Cooling: Dual-stage TEC (‑40 °C to ‑45 °C)
Buffer: 256 MB DDR3
Exposure range: 32 µs to 2000 s
Frame rate: 19 fps full frame
Interface: USB 3.0 + USB 2.0 hub
Guiding port: ST‑4
Thread: M42 × 0.75, with 1.25″ / 2″ adapters
Dimensions: Ø 78 mm
Weight: 410 g
Cooling power: 12 V DC, 3 A
Included accessories
USB 3.0 cable + 2 USB 2.0 cables
1.25″ & 2″ adapters (T2/M42)
Dew cap
Backfocus spacer kit
Quick start guide
