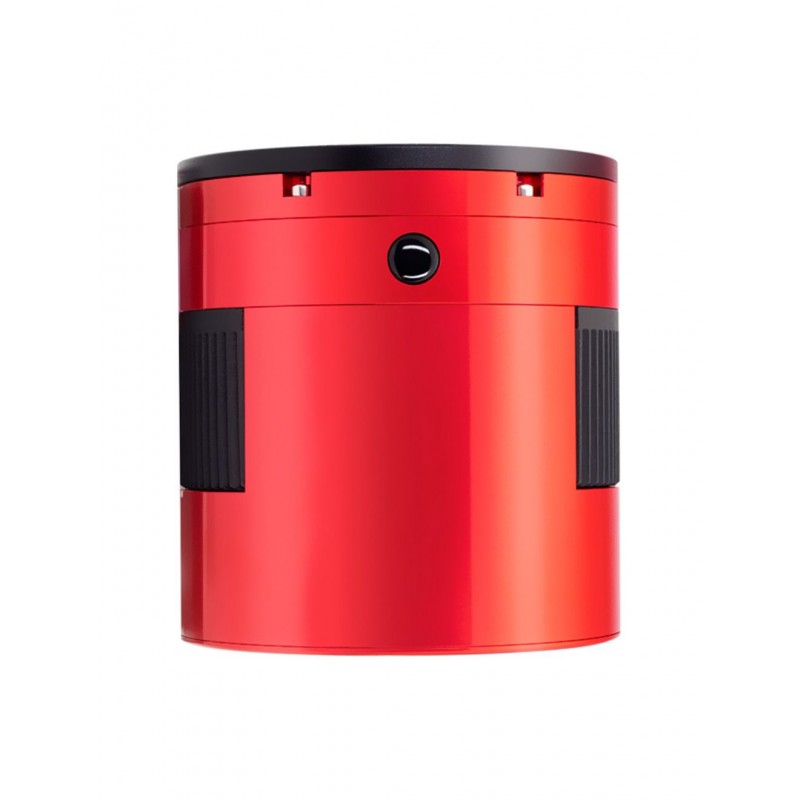

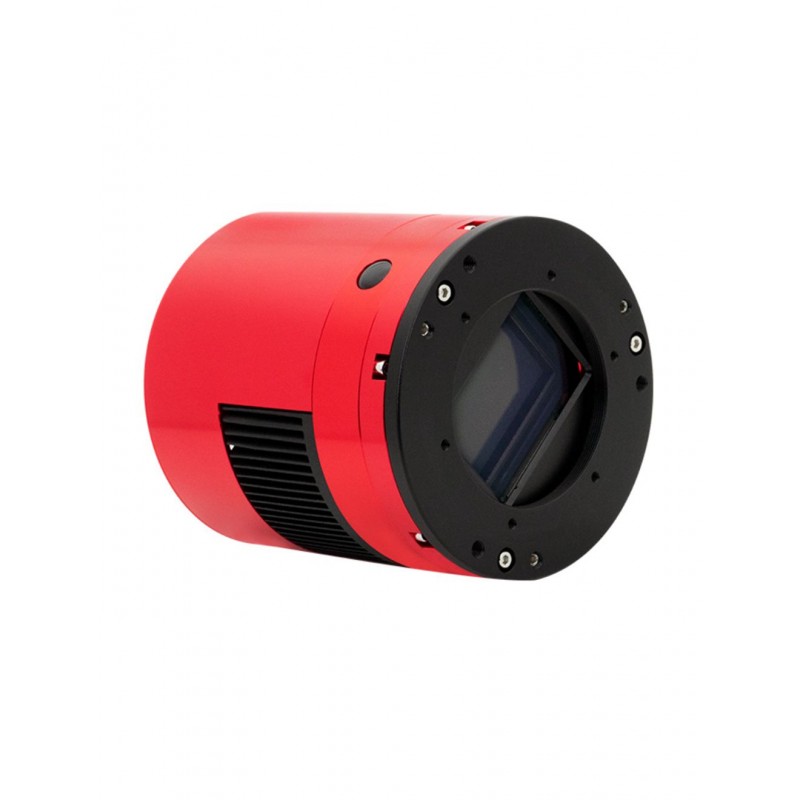

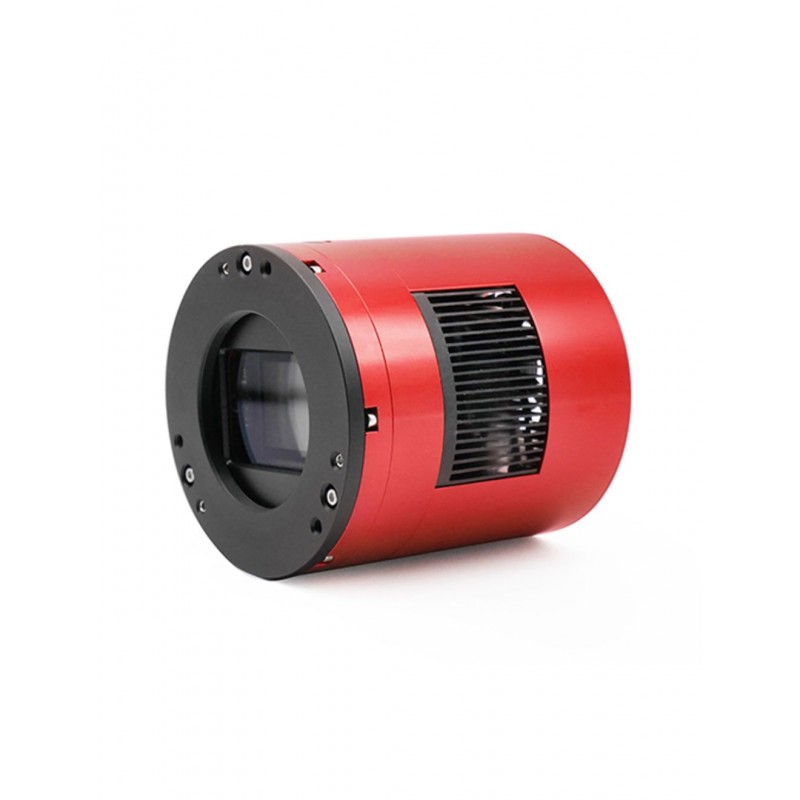

ASI6200MM Pro (mono)

ASI6200MM Pro (mono)

New product

ASI6200MM Pro (mono)

More details

This product is no longer available in our store. Please contact us for more information.

3'990.0 CHF tax incl.

More info

  • ADAPTABLE CAMERA BODY

    Like most ZWO cooled cameras, the 6200 Pro body has an extremely short back focus of 17.5 mm. This makes it very easy to adapt to almost any telescope system. Especially telescopes or reducers where back focus is very scarce.

    ZWO ASI Short Back Focus

    Light-Sensitive, Backlit IMX455 Sensor

    The back-illuminated CMOS image sensor from Sony provides sensitivity and noise reduction essentially unmatched in most cameras of the same class. These are two of the key factors when looking to enhance your image quality. Native to CMOS sensors, the IMX455 also functions with extremely low power consumption while maintaining high-speed operations.

    Camera Performance and Cooling

    The ZWO ASI6200 has a dynamic range of up to 14 stops and quantum efficiency of 80%. Under this operation, a two-stage TEC cooling system is used to lower the CMOS sensor temperature to 35 degrees below ambient temperatures, greatly reducing dark current generation and sensor noise even during long exposures. Dark current suppression technology is also integrated into this camera for further reduced noise.

    At a cooling temperature of zero degrees Celsius, the dark current noise is only 0/004e/s/pix, meaning a 300s exposure will only cause 1.2e of dark current noise!

  • specifications

    ADC 16 bit
    Back Focus 17.5 mm
    Camera Connection Female M54x.75
    Color or Mono Monochrome
    Cooled Cooled
    Delta T 35C
    Dynamic Range 13.9 Stops
    Free Shipping Yes
    Full Rez Frame Rate 9fps
    Full Well 51ke
    Mega Pixels 61.2 mp
    Peak QE 91%
    Pixel Array 9576 x 6388
    Pixel Size 3.76 microns
    Read Noise 3.5e
    Sensor Diagonal 43.2 mm
    Sensor Type CMOS
    Sensor Sony IMX455
    Weight 1.4 lbs
  • included items

    ZWO Camera Bag

    Camera Bag

    ZWO ASI Camera Body

    ASI Camera Body

    ZWO 2 m USB3.0 Cable

    2 m USB3.0 Cable

    ZWO ASI Quick Guide

    ASI Quick Guide

    ZWO Male M54 to Female M48 21mm Adapter

    M54 to M48 21 mm Adapter

    ZWO M48 16.5 mm Spacer

    M48 16.5 mm Spacer

    ZWO 1.25-Inch Nose Piece

    2 " Cover

    ZWO Hex Wrenchr

    Hex Wrench

    ZWO AM42-M48 0mm Adapter

    M42-M48 0mm Adapter

    ZWO 0.5m USB 2.0 Cable

    0.5m USB 2.0
