BAADER 2" NOSEPIECE TO S52 MECHANICAL INTERFACE WITH M48 THREAD

BAADER 2" NOSEPIECE TO S52 MECHANICAL INTERFACE WITH M48 THREAD

DESCRIPTION

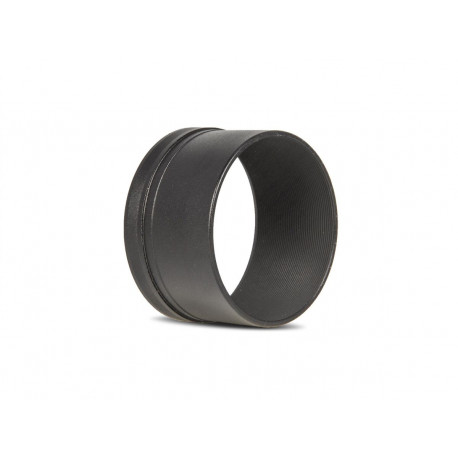

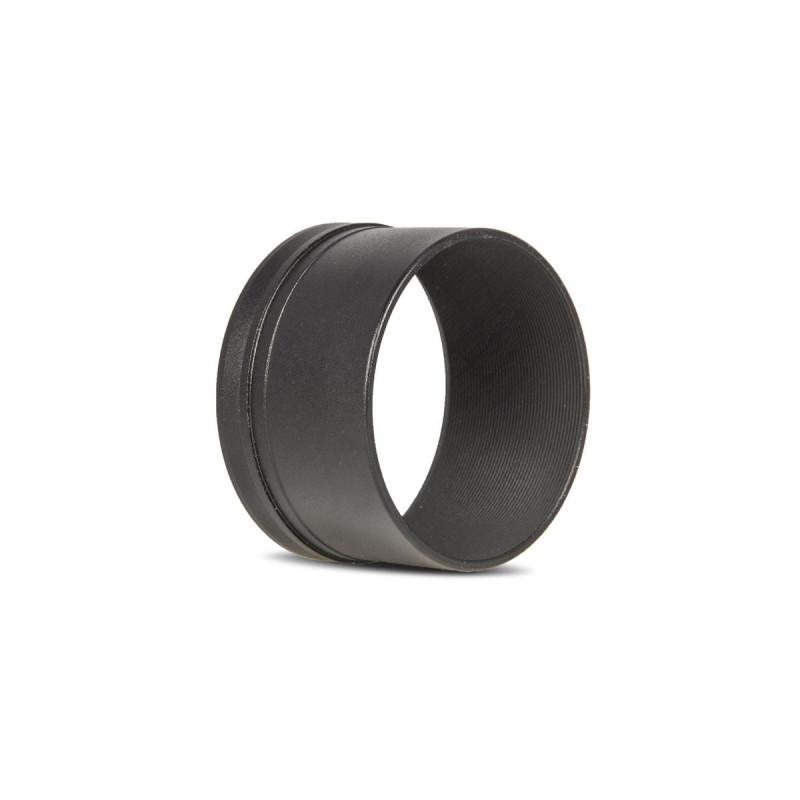

The Baader 2" to S52 adapter connects accessories using the S52 mechanical interface (52 mm dovetail section) to any telescope accepting a 2" barrel.
The 2" barrel includes an internal M48 x 0.75 thread for inserting 2" filters. This part is commonly used to extend a 2"/S52 ClickLock clamp or attach a T-ring with S52 base, such as Sony or E-Nex models.
The adapter features a safety groove for secure mounting in the focuser. With zero optical path added (0 mm), it's perfect for optical assemblies requiring exact backfocus spacing.

TECHNICAL SPECIFICATIONS
Product SKU: 2958551
EAN Code: 4047825036421
Manufacturer: Baader Planetarium
Telescope-side connection: 2" barrel with internal M48 thread
Accessory-side connection: Mechanical S52 dovetail interface
Adapter type: Straight connector
Optical path length: 0 mm
Outer diameter: 50.8 mm
Net weight: 0.02 kg
Features: Safety groove, anodized aluminum
Compatibility: S52 T-rings, 2"/S52 ClickLock, S52 extensions, M48 filters
