Reducing piece S52 / M48 View larger

BAADER S52A TO M48I REDUCING ADAPTER RING

Bague de conversion S52 / M48

New product

BAADER S52A TO M48I REDUCING ADAPTER RING

Turns a mechanical S52 dovetail into an internal M48 thread. Ideal for filters and M48-based accessories.

More details

1 Item

Available.

29.00 CHF tax incl.

More info

BAADER S52A TO M48I REDUCING ADAPTER RING

DESCRIPTION

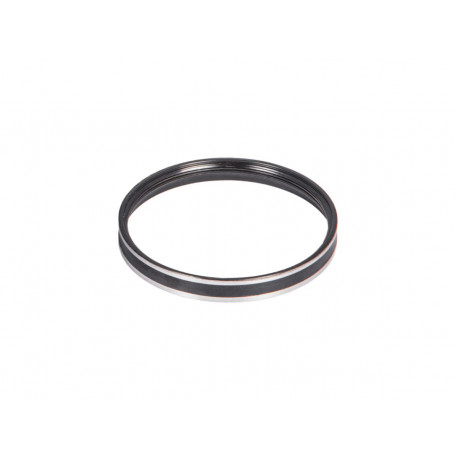

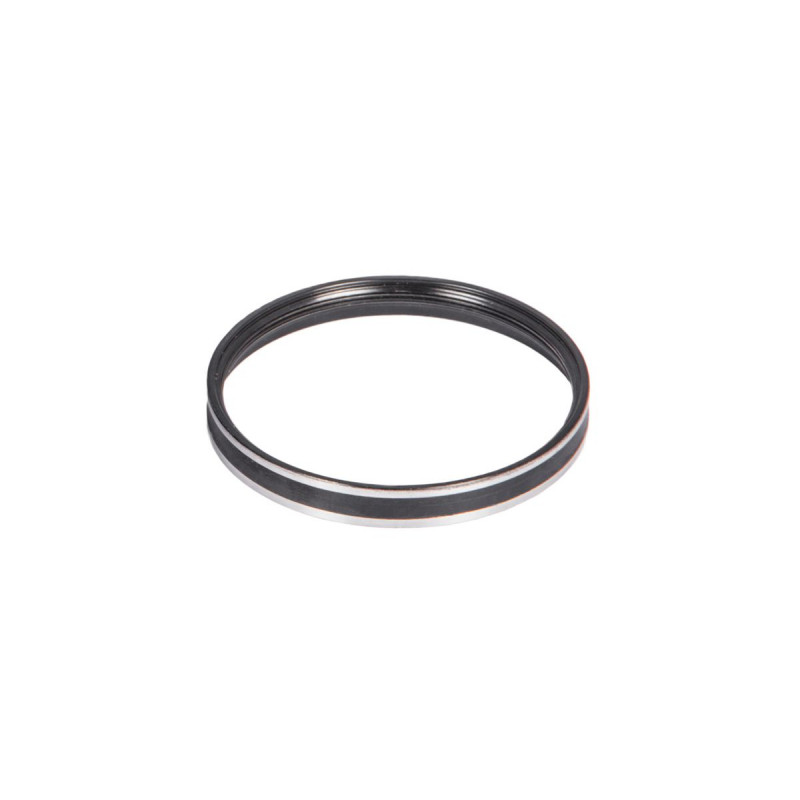

The Baader S52a to M48i adapter converts an S52 mechanical interface (52 mm dovetail) into a female M48 x 0.75 mm thread, compatible with 2" filters and optical accessories.
It is included with Baader's Sony E/Nex T-ring (#2408317) and Canon DSLR Protective T-ring (#2958550).
When paired with the M48/T-2 reducer ring (#2958553), it can also be used to adapt to the T-2 system. Its optical path length is zero, enabling tight mechanical integration without affecting backfocus.

TECHNICAL SPECIFICATIONS
Product SKU: 2958552
EAN Code: 4047825036438
Manufacturer: Baader Planetarium
Accessory-side connection: S52 mechanical dovetail
Lens-side connection: Internal M48 x 0.75 mm thread
Adapter type: Reducing ring
Clear aperture: 48 mm
Outer diameter: 52 mm
Optical path length: 0 mm
Net weight: 0.01 kg
Compatibility: S52 T-rings, 2" filters, M48 extensions, M48/T-2 adapter
