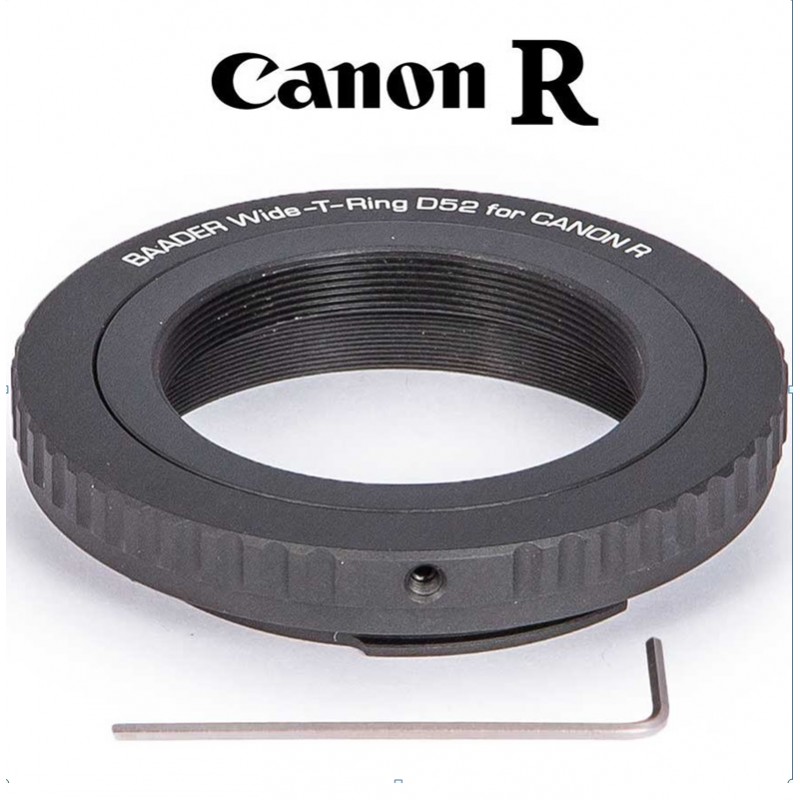

Wide-T-Ring Canon-R with D52 to T-2i

Wide-T-Ring Canon-R with D52 to T-2i

DESCRIPTION
The Baader Wide-T-Ring for Canon R offers a robust and versatile interface for attaching Canon EOS R cameras to Astro T-2 or S52 systems. Thanks to its larger clear aperture, it ensures significantly improved sensor illumination, particularly for full-frame cameras.

It features a standard T-2 thread (M42 x 0.75) and an integrated S52 dovetail. This enables modular expansion: convert to M48 via the S52/M48 adapter (#2958552), or to M68 using the S52/M68 adapter (#2458252), or attach directly to the UFC system with the optional UFC S52 adapter (#2459119).

This adapter is ideal for wide-field imaging setups, where optimal light transmission and mechanical precision are essential.

TECHNICAL SPECIFICATIONS
• SKU: 2408336
• Manufacturer: Baader Planetarium
• Camera mount: Canon EOS R bayonet
• Telescope side connection: S52 with included T-2i adapter
• Internal threads: M42 x 0.75 (T-2) / S52
• Clear aperture: 41 mm (T-2) / 48.3 mm (S52)
• Outer diameter: 66.5 mm
• Optical length: 8.3 mm
• Weight: 0.05 kg
• Compatible with: M48, M68, UFC via optional adapters
• Function: Wide-diameter astrophotography adapter
