Stabilized Power-Supply for GM 2000 and GM 3000

Alimentation stabilisée 10Micron

New product

Stabilized Power-Supply for GM 2000 and GM 3000

More details

2 Items

Available.

215.00 CHF tax incl.

More info

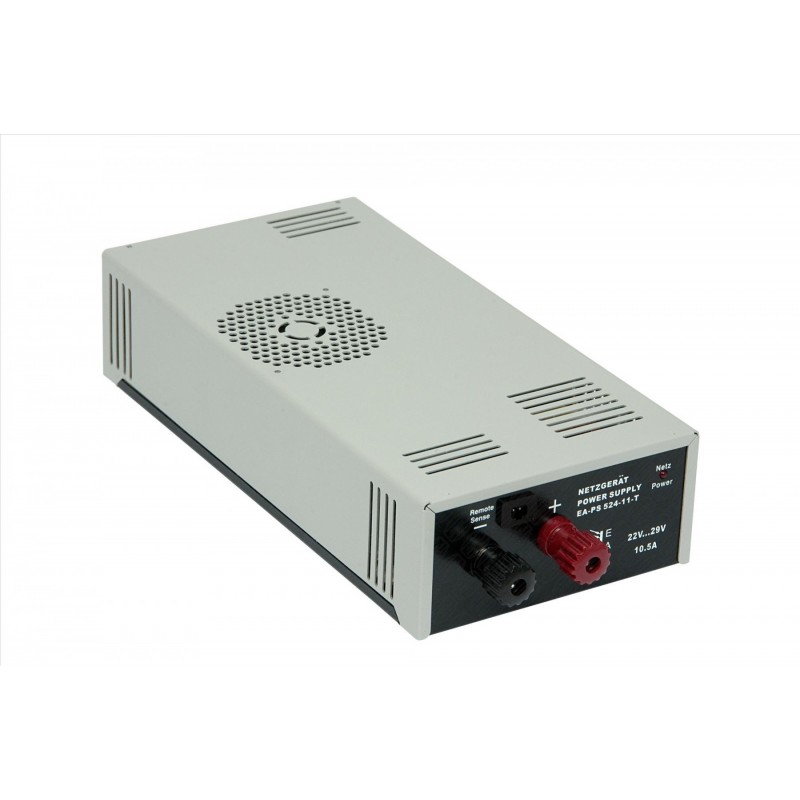

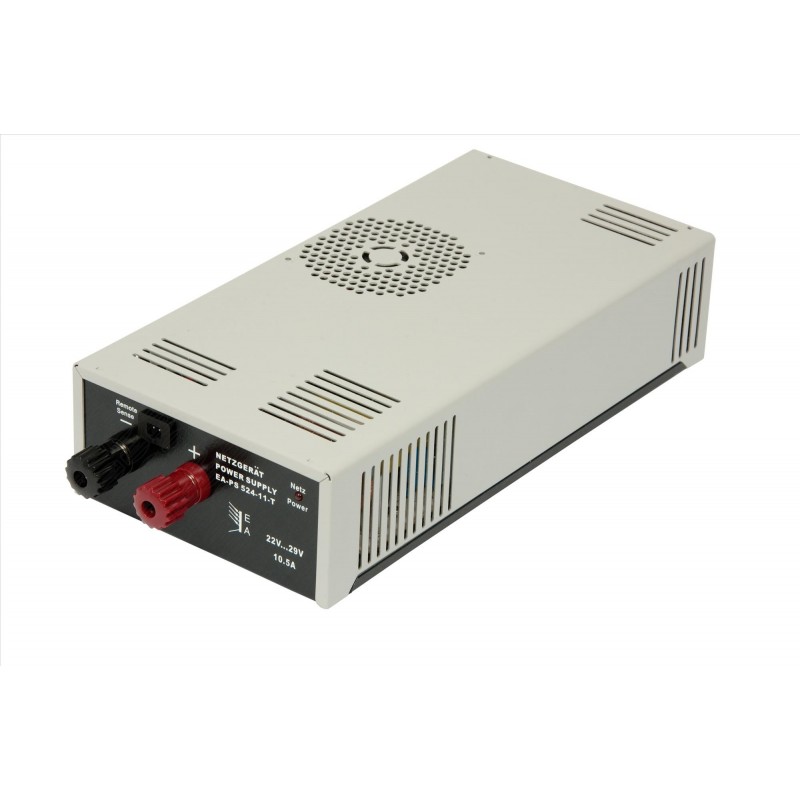

Stabilized Power-Supply for GM 2000 and GM 3000

  • Input voltage 220/230 volts, output voltage 27 volts / 10.5 A factory setting
  • Why 27V? The control box of 10 Micron mounts can work with 24V up to a maximum of 32V. Since 24V power supplies can occasionally drop below 24V at high loads and low temperatures - which can lead to the failure of the control computer - the power supplies for GM 2000 HPS, GM 3000 HPS and GM 4000 HPS are therefore preset to 27V. This value has proven itself over the years.
  • Output via 4mm banana sockets, fitting for the 10 Micron power cables that come with the mount
  • Short circuit protection

  • MANUFACTURER Baader Planetarium
    SKU (#) 1452070
    EAN CODE 4047825016669
    NET WEIGHT (KG) 1.65
    TYPE Charger
    ADAPTABLE TO GM 2000, GM 3000
    POWER INPUT (V) 220 / 230V
    POWER OUTPUT (V) 27V Factory setting (adjustable from 22 - 29V)
    POWER OUTPUT (A) 10,5 A
    POWER OUTPUT (W) 300 W
    PORT A 4mm Banana sockets
