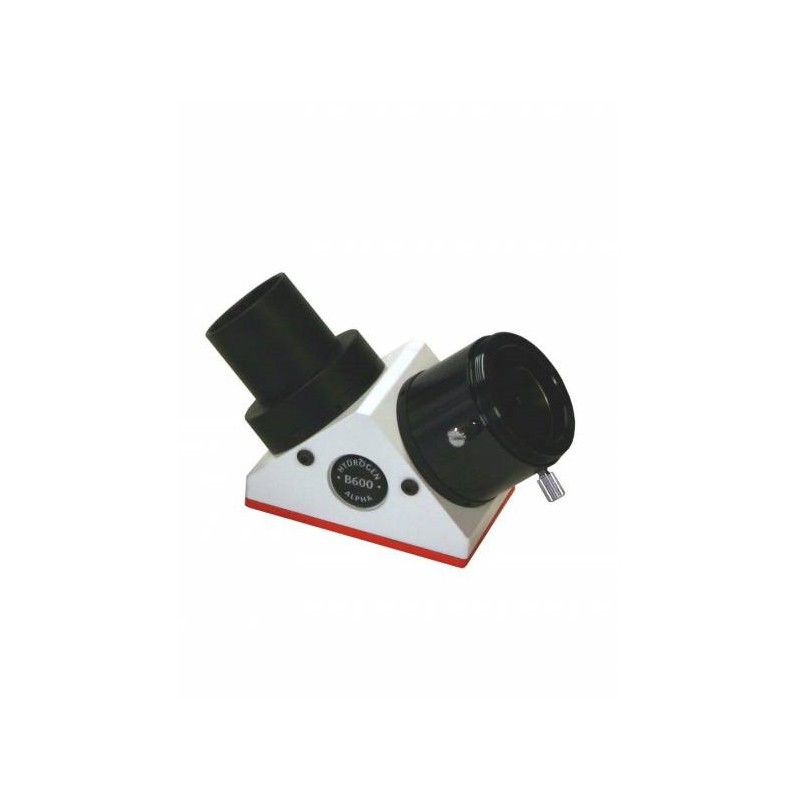

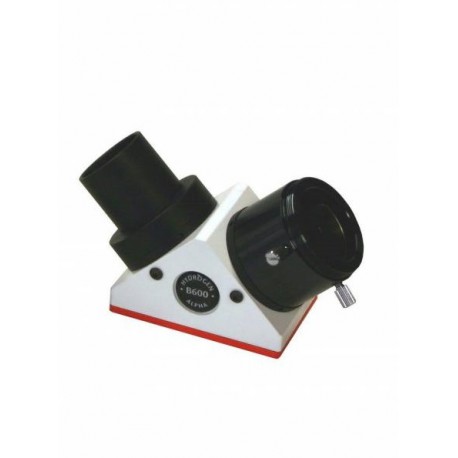

Filtre bloquant Lunt BF600 1.25"dans renvoi coudé View larger

LUNT B600d1 BlockingFilter in star-diagonal 1.25"

Filtre bloquant Lunt 1.25

New product

LUNT B600d1 BlockingFilter in star-diagonal 1.25"

More details

Article not in stock. Contact us in advance for the order (

702.00 CHF tax incl.

More info

LUNT B600d1 BlockingFilter in star-diagonal 1.25"

Blocking-filter in 90° star diagonal, for telescopes up to 540mm focal length, and with 1.25" focuser. Can only be used together with a LUNT H-alpha filter, or with a LUNT H-alpha telescope!

Lunt Solar Systems offers blocking-filters in different sizes, and alternatively in 90° star-diagonal housings or straight extension tubes. You can choose what blocking-filter you will use at your LUNT H-alpha Etalon system.

The B600d1 is installed in a 90° star-diagonal housing, for 1.25" focuser on the telescope side, and with T2 thread and 1.25" eyepiece connection on the eyepiece side. The B600d1 can be used at LUNT H-alpha systems, if the used telescope has a 1.25" focuser and up to 540mm focal length.

The blocking-filter can not be used without additional H-alpha filter system from Lunt Solar Systems! Blocking-filters are absolutely required for the safety and performance of H-alpha telescopes for solar observing. Lunt Solar Systems blocking-filters contain a unique filter system. We can only warranty safety or performance, if blocking-filter is paired with a H-alpha filter or H-alpha telescope of Lunt Solar Systems.


  • Blocking-filter only usable at additional H-alpha filter system
  • Filter diameter: 6mm
  • Usable at telescopes up to 540mm focal
  • 90° star-diagonal housing
  • 1.25" slide tube for 1.25" focuser
  • Connection for 1.25" eyepieces
  • T2 thread for camera connection


  • Blocking-filter B600d1 in 90° star-diagonal for 1.25" focuser
