EXPLORE SCIENTIFIC ED APO 127mm f/7,5 FCD-100 Alu HEX

Apochromats are the ultimate choice in small to medium sized telescopes: the combination of compactness, transportability, very high image contrast and sharpness together with the possibility to make excellent astrophotos cannot be bested. The advances in glass manufacturing during the last few years have made true apochromats available to more astronomy enthusiasts than ever before. The new Explore Scientific FCD-100 Carbon Hex represents another major improvement in this field - the overall correction (color and spherical) is setting new standards in this price class. The optical design shows a polystrehl value of 0,97, indicating a level of correction that is absolutely top of the line.
This excellent apochromat is a very versatile telescope: the fast f-ratio makes short exposure times possible. The high contrast and sharpness of the image provide breathtaking views of large objects like the North america nebula or the Andromeda galaxy as well as tack sharp planetary images. The telescope is lightweight and compact - the dew shield slides down the tube and the carbon fiber construction saves weight in comparison to a standard metal tube. Revolutionary glass and precision manufacturing created a telescope that offers observing joy on the highest level. This does not only qualify this telescope as the ideal travel scope, it is also the perfect choice for fast observations and for astrophotography. The excellent 2,5" focuser with 10:1 reduction is perfect for this - the large inner diameter of 65mm prevents vignetting by the focuser when the telescope is used for astrophotography with large sensors.

SPECIFICATIONS

• Aperture: 127mm
• Focal Length: 952mm
• Focal ratio: f/7,5
• Design: Apochromat with three lenses, two air spaces and FCD-100 glass

Specifications

• Weigth: 7,7kg
• Backfocus: 150mm above 2" adaptor

SCOPE OF DELIVERY

• Optics with dovetail plate and Handle
• Dust caps for front-lens and focuser
• Universal finder slot

Technical Data

FIELD OF APPLICATION
Field of application	Deep Sky Observation Lunar observation Lunar photography Planetary observation Planetary photography Deep Sky Photography
FOCUS GROUP
Focus Group	Advanced Amateurs Specialists and Research Visual enthusiasts
PRODUCT FAMILY
Product Family	Refractor telescope
OPTICAL SPECIFICATIONS
Optical design	Apochomatic Refractor
Magnification from	25
Maximum recommended magnification	260
ED glass	✓
Objective diameter	127 mm
Focal length	952 mm
Aperture ratio	7
Angular resolution	1.08 arc seconds
Type of coating	Enhanced Multilayer Desposition (EMD)
Mount Type	Optics without Mount
GENERAL TECHNICAL DATA
Material OTA	Aluminium

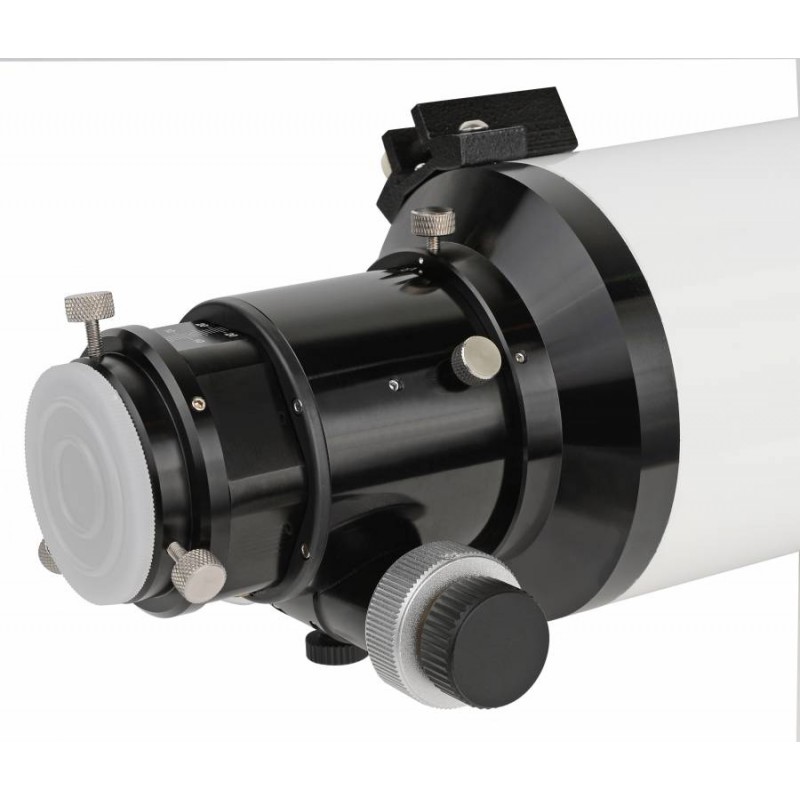

Focusing system	2.5" Hexafoc DeLuxe with 10:1
DIMENSIONS & WEIGHTS
Net weight OTA (incl. accessories)	7.7 kg
Total length	80 cm
Total width	18 cm
Total height	18 cm
