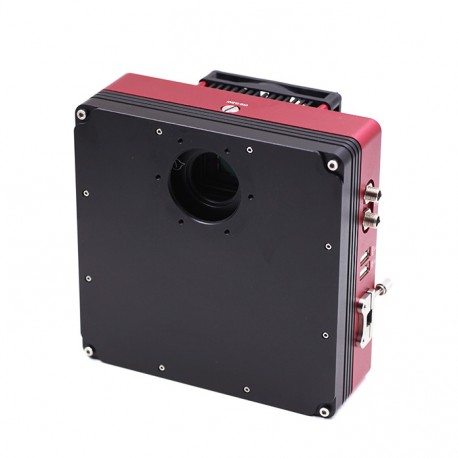

8.6mega pixels 4/3 inch astronomy CCD camera

QHY90A/IC90A uses the popular 4/3inch CCD sensor KAF8300.This camera has built-in 7 position colorwheel for 36mm unmoutned filters and a butterfly uniform illumination mechanical shutter.

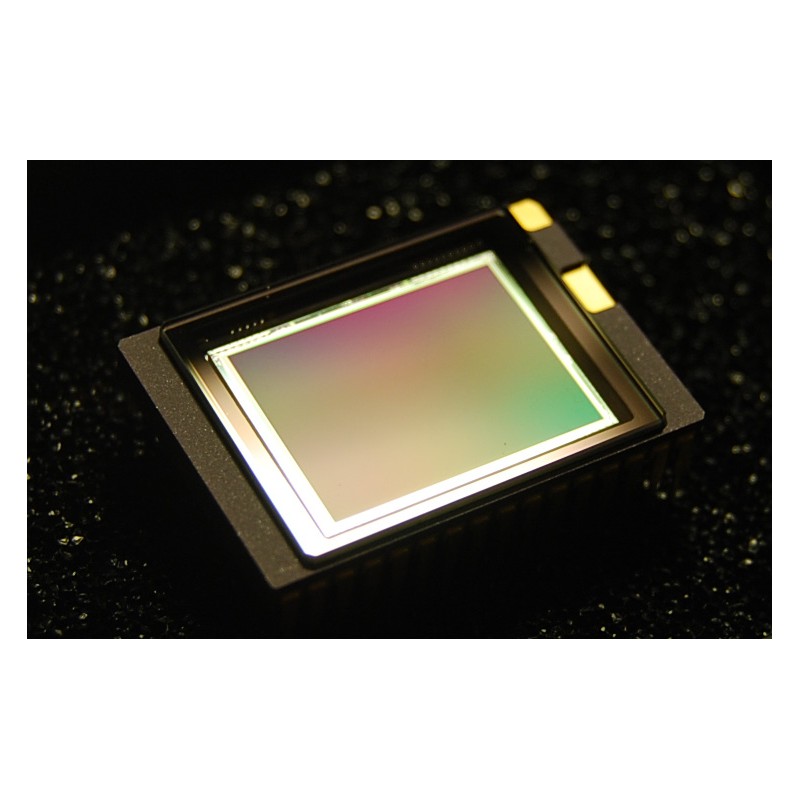

KAF8300 - popular sensor
KAF8300 8.3mega pixel 4/3inch mono sensor is used in many astronomy camera models.
"A" Series Camera - Fully Integrated
Both QHY90A and IC90A belong to QHYCCD new "A" series camera family. "A" stands for "ALL-IN-ONE". It includes a built-in motor driven filter wheel and it natively supports the QHYOAG. The OAG can be installed on the camera solidly with six screws at minimum back focus, precious for some optical systems.

The filter wheel in QHY90A/IC90A is 7 positions for unmounted 36mm filters. The camera compatible with the small size QHYOAG.

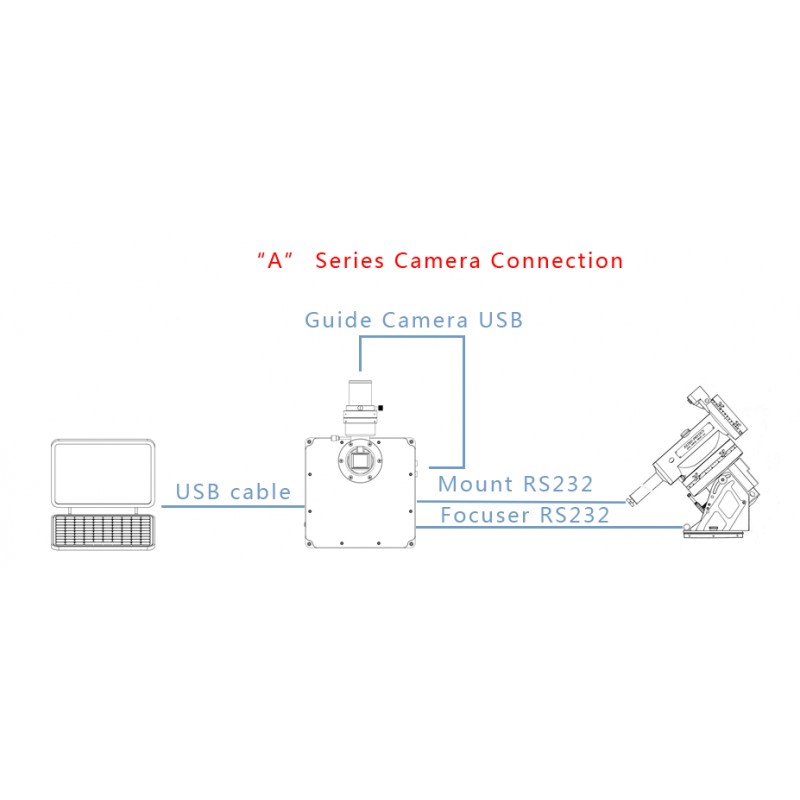

Besides the filter wheel and OAG, "A" series camera has more to offer. An internal USBHUB(2.0) provides two USB host port and a USB to dual RS232 coverter. Guiding camera, mount and electric focuser can be connected directly to this camera instead of the computer to reduce cable clutter and chance of signal loss due to the long cables. Only one USB cable to rule them all.

Butterfly Shutter - unlimited life and uniform illumenation
This camera uses a mechanical shutter looks like butterfly shape. This shutter is driven by motor directly and it is only one piece with no friction to others. The working life is almost unlimited. This shutter has two side to cover the light. One is left to open the shutter. and another is enter to close the shutter. It has a uniform illumentaion feature.

Single 12V power socket
This camera uses the single 12V to power. The power socket has the thread, it can  connect with the DC plugs with thread lock to get solid connection. There is another socket which is connected with the input in parallel. It can supply the 12V to other device nearby.
CCD Sensor
KAF8300 Mono, Standard Grade
Effective Pixels
3358(H)*2536(V) 8.6mega pixels
Pixel Size
5.4um*5.4um
Effective Area
17.96mm(H)*13.52mm(V), Typical 4/3inch
Readout Type
Full Frame CCD, Progressive Scan
FullWell
>25.5ke
Anti-Blooming gate
Yes, 100X
ADC
16bit
Readout Noise
Typical 9 e-
Binning
1x1,2x2,4x4
Exposure Time
1ms-10000sec
TEC
2 stage
Cooling
Typical -45 below Ambient
Shutter
Butterfly Mechanical Shutter with Uniform illumination
Moisture Control
Air Connector for removable silicon gel tube
Heat board for optic window of airproof CCD chamber
Built-in Filter Wheel
7 position, for 36mm unmounted filters
OAG interface
six M3 scew holes for QHYOAG
Telescope Interface
M54/0.75 inner screw
Power consumption
0% cooling 8W     50% cooling 16.5W    100% cooling 27W
Weight
1550g



QHY90A Electric Interface
USB Slave Port x1    USB host port x2    RS232 lemo 3pin port x2   2.1mm 12V DC port x2

IC90A Electric Interafce and CPU subsystem
USB Slave Port x1  USB host port x2  RS232 lemo 3pin port x2  2.1mm 12V DC port x2
mini HDMI port x1   SD card slot x1  WIFI x1   RJ45 100M ethernet x1
CPU processor
ARM processor . TBD
