QHY11 Camera Mono

Please note that this product desciption was translated by a computer. For more information please contact our english speaking customer service.

The camera ALccd-QHY 11 meets the highest requirements!

It impresses with its large and proven full format sensor Kodak KAI-1100 2, with a diagonal of 42 millimeters . This large sensor sits in an extremely compact housing . The weight is only 600 grams and is suitable even for smaller eyepieces.

Some feature of the camera:

  • High sensitivity
  • Low noise
  • Low dark current
  • Fast data transmission
  • Very large chip area
  • Compact and lightweight housing
  • Powerful software

Especially the fast SDRAM , the very light housing and the ASCOM support are special features of this camera.

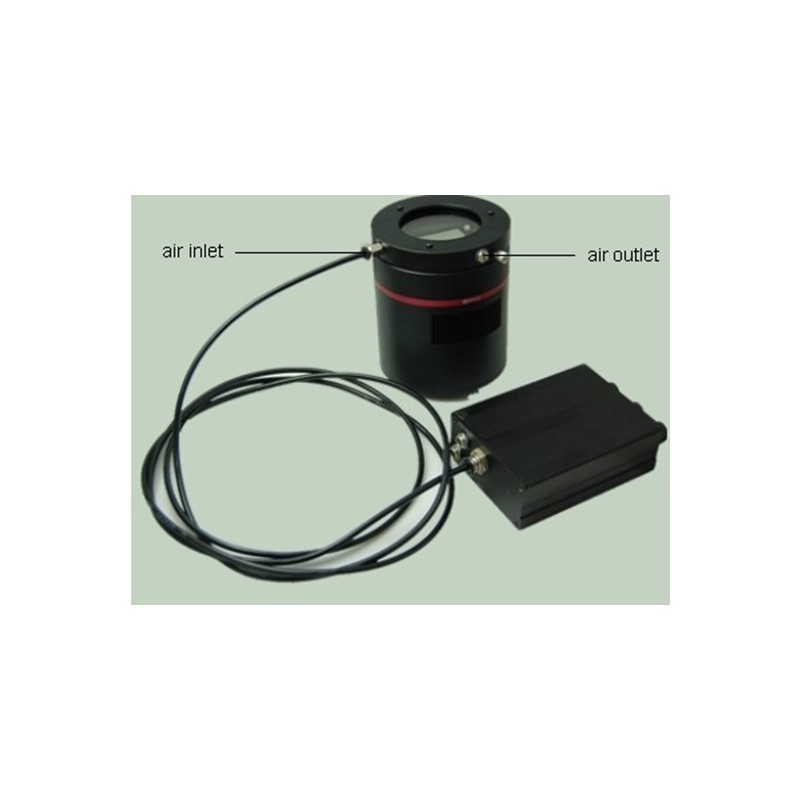

The ALccd-QHY 11 can lower the temperature of the sensor to minus 40 degrees ambient temperature: separate sensor chamber, cold finger, large heat dissipating fins and large special fan . The temperature control takes place via the included DC201 control box and via the control software of the camera.



Sensor type CCD-chip (Kodak KAI 11002)
Megapixel 11
Active cooling yes
Colour camera no
Microlenses yes
Pixel size 9
Resolution Photograph (Pixel) 4008 x 2672

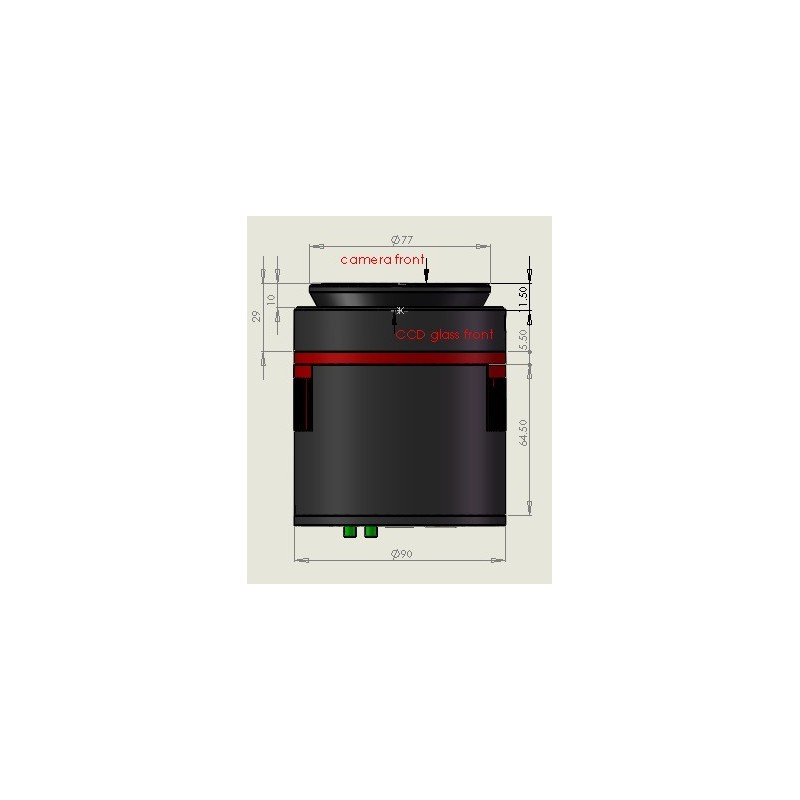

Flange focal distance (mm) 13,5
Size of chip (mm) 37,25 x 25,70
Chip - Diagonal (mm) 45,2
Bit depth (Bit) 16
Max. cooling difference below room temperature 40
Max. exposure time (min) 160
Min. exposure time 0,1
Antiblooming yes
Binning 2x2, 4x4
Full Well Capacity 55.000
Reading noise 12
Connection (to the telescope) M54
Interfaces USB 2.0
Quantal efficiency 46% @500nm, 30% @656nm


Filter wheel no


Diameter (mm) 105
Height (mm) 80
Weight (g) 600
Series Cooled CCD Mono

Area of application

AllSky, Meteore no
Autoguider no
Moon & Planets yes
Nebulae & galaxies yes
