CCD ASI 1600 MM-PRO
Notice：Cooled cameras need a 12v power adapter, If you don’t have one, please click this link to buy a 12V power adapter. There are 4 different standard for different contury, please choose it carefully.
0 Item Items
According to availability at the supplier. Please contact us for more information
Warning: Last items in stock!

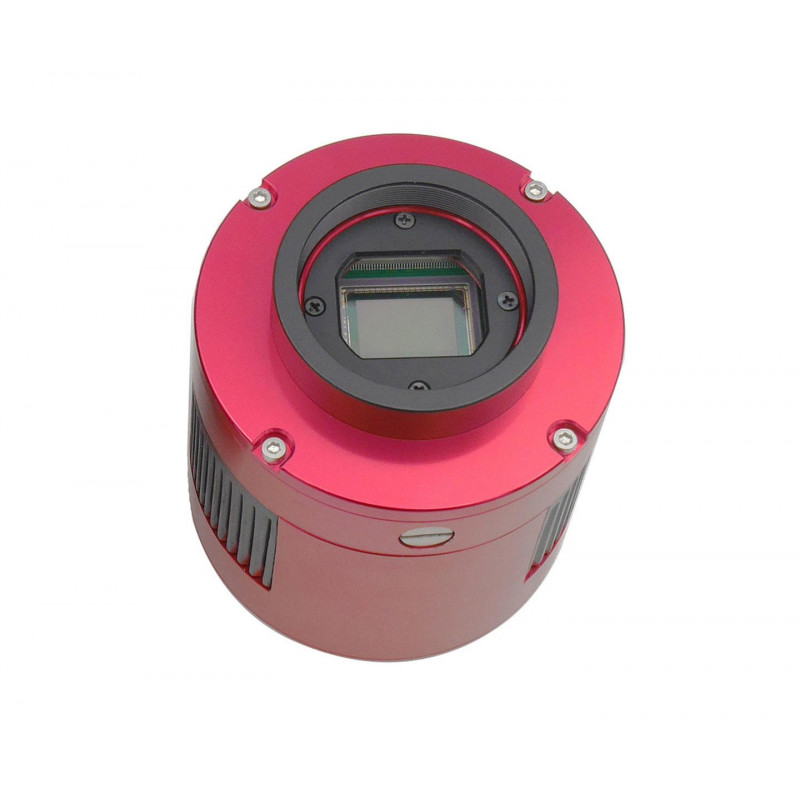

The ZWO ASI1600MM Pro is a Micro Four Thirds camera packed with features that help you produce world-class astrophotography images.
ASI1600 IMAGE QUALITY
The ZWO ASI1600 has a built-in 12-bit ADC but can provide over 12 stops of dynamic range! Which means it can capture a wider tonal range a KAF-8300 sensor. The Camera inherently has a much lower read noise, at a 0 gain setting and will further decrease the higher the gain.
It also includes an upgraded PCB board with 256MB DDR3 memory buffer. Slow data transmission can cause amp-glow around your image, so the DDR memory buffer takes care of that for you.
MOST ADAPTABLE CAMERA BODY
Most ZWO cooled cameras have a short back focus, making them very adaptable to almost any telescope system. The ZWO ASI 1600 has a back focus of 6.5 mm! Check the ZWO Pro Back Focus Chart for the best configurations.
TWO-STAGE COOLING SYSTEM
The ZWO ASI1600 is capable of pushing at a maximum of 40 to 45 degrees below the ambient temperature. The camera itself operates optimally within the temperature range of minus 5 degrees Celsius to minus 45 degrees Celsius and is best stored within the temperature range of minus 20 degrees Celsius to minus 60 degrees Celsius.
This powerful cooling system complements the naturally low read noise of the camera to further refine the quality of images produced- aiding ZWO to continue to provide CCD quality at CMOS prices. And that's just one example of how each individual part of this top-notch astronomy camera comes together to produce a genuinely exemplary whole!
7 POSITION FILTER WHEEL
The ZWO EFW7 can hold up to seven 1.25-inch mounted or 36 mm unmounted filters. The 36 mm filters are held in place with included set screws and washers.
The EFW7 body is CNC machined from aircraft-grade aluminum and is black anodized. It is sturdy and reliable, yet weighs just 14 ounces and is 20 mm thick! Inside, an NPM stepper motor is used to rotate the carousel in any direction. The EFW7 is powered via USB and includes a cable that can be plugged into the USB 2.0 hub of ZWO cooled cameras.

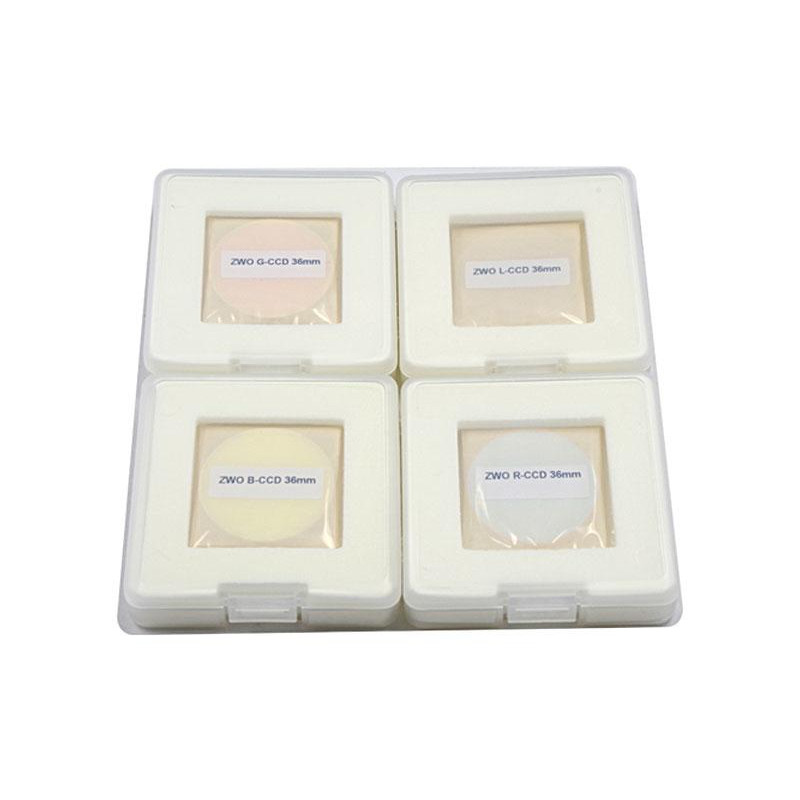

COMPLETE FILTER SET
Switch between each filter to gather colorful variations of light resulting in different vivid images! Every ZWO 1600 Kit comes with a set of LRB filters and a complete set of 7-nanometer narrowband filters (Ha, Sii and Oiii). Finely polished down to an optical accuracy of one-fourth wave, the filters provide zero apparent optical distortion from the filters.
Manufacturer Product Number: 1600MMP-K3
|Back Focus||6.5 mm|
|Camera Connection||M42 x 0.75 mm|
|Color or Mono||Monochrome|
|Full Rez Frame Rate||23fps|
|Max Frame Rate||192.4fps|
|Mega Pixels||16.4 mp|
|Pixel Array||4656 x 3520|
|Pixel Size||3.8 microns|
|Sensor Diagonal||22.2 mm|
|Warranty||2 Year Warranty|
