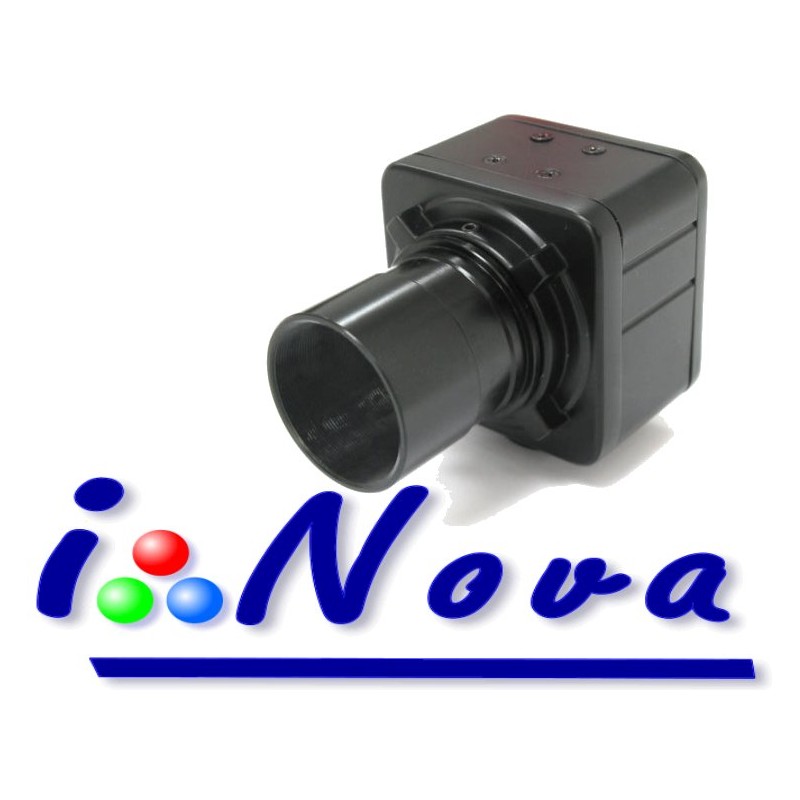

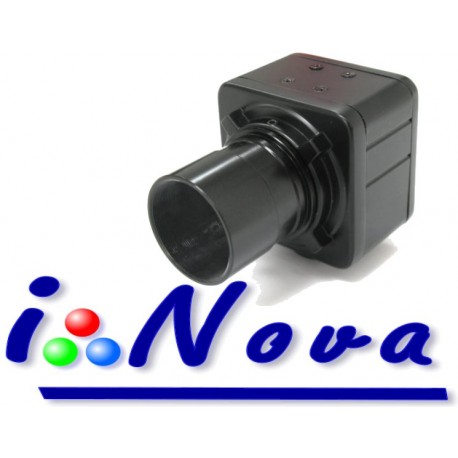

Caméra i-Nova PLB-Mx Mono View larger

i-Nova Camera PLB-Mx Mono (end of series, no return possible)

Camera Inova PLB-Mx

New product

i-Nova Camera PLB-Mx Mono

(end of series, no return possible)

More details

This product is no longer in stock

190.0 CHF tax incl.

More info

i-Nova Camera PLB-Mx Mono

The series cameras PLxCam designed specifically for astrophotography. They are particularly sensitive to light and were equipped with electronics and software that are optimized for applications in astronomy back.

  • For the cameras of the series its own software has been developed that makes full use of its potential and is intuitive to use: PLxCapture
  • The integrated circuit with specific IC (FPGA) significantly reduces the noise.
  • There are three speeds for reading the chip: High speed for planetary, sun, moon and Photography; half speed to the readout noise to reduce; 1/4 speed for DeepSky recordings and improved visual mode with minimal readout noise.
  • During long-term exposure, the non-essential elements of the electronics are set to the power saving mode, which reduces the heating of these components and hence the thermal noise.
  • The cameras are equipped with an interface that allows communication with an optional GPS module or a regulated cooling system.
  • It is possible to connect multiple cameras to a PC and to control each camera on an instance of PLxCapture software or an autoguiding software.
  • The PLxCapture software works in client-server mode. Several configurations are possible: PLxCapture in server mode and the sequencer module in client mode; multiple cameras on multiple PCs, can be controlled by a third party (for example, via an Internet browser).
  • The SDK (Software Development Kit) is available on request from the manufacturer for programming (Microsoft C # or C + +) available.

The PLxCam series offers a variety of camera s for various applications and budgets.



Type of camera Astro CCD camera
Sensor type CCD-chip (Sony ICX445ALA)
Megapixel 1,2
Pixel size 3,75
Colour camera no
Image format BMP, AVI, RAW, FITS, SER
Resolution Photograph (Pixel) 1280x960
Microlenses no
Bit depth (Bit) 12
Min. exposure time 1/1000
Max. exposure time (min) infinity
Active cooling no
Interfaces USB 2.0
Autoguider yes
Supported operating systems Windows XP and higher
Connection (to the telescope) 1,25"
Filter thread yes
Images per second 23


Filter wheel no


Length (mm) 50
Width (mm) 50
Height (mm) 40
Weight (g) 170
Series PLx
Colour black

Area of application

Autoguider yes
Moon & Planets yes
Nebulae & galaxies no
