Caméra QHY 185 usb3 couleur View larger

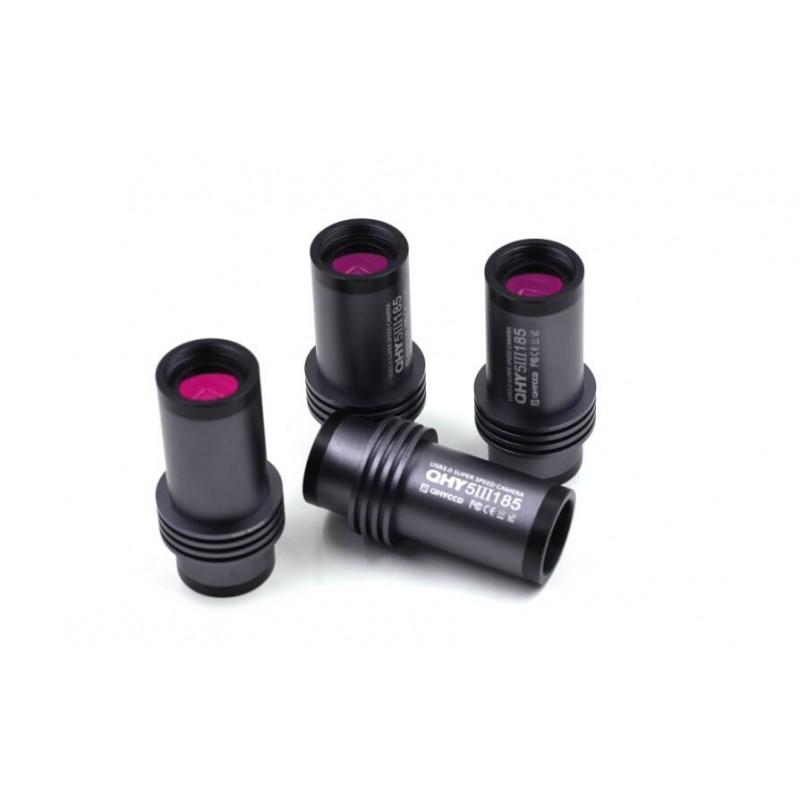

QHY III 185c - USB3.0 CMOS Color Camera

QHY 185 usb3 color

New product

QHY III 185c - USB3.0 CMOS Color Camera

More details

Article not in stock. Contact us in advance for the order (

614.0 CHF tax incl.

More info

QHY III 185c - USB3.0 CMOS Color Camera

The ALccd-QHY 5III 185 color is an ultra fast full HD color camera with 1.920x1.080pix resolution. It is universally applicable and an excellent camera for the sun, moon, planets and meteor photography, but also a low-noise and highly sensitive camera for deep sky photography.

With a standard C-mount lens 50mm f/1.4, you can reach stars of 8th to 9th magnitude live in a video stream at 50 frames per second (about 20 ms exposure time). This offers a new dimension in high-sensitivity HD video photography!

Sensor and shutter

In the ALccd-QHY 5III 185, the built sensor works in "rolling shutter" mode. The STARVIS back-illuminated sensor technology allows the highest sensitivity and quantum efficiency in the visible and infrared range of light. If you are looking for a very sensitive sensor for low-light applications (2000 mV or more at 1 micron^2 when a 706 cd / m2 light source F5.6 in 1 s exposure), then you are absolutely aright with this model.

The housing

The housing shape is designed so that the camera, like the proven ALccd-QHY 5-II models, fits into standard 1.25" focusers or adapters. The fins provide for a fast and selective dissipation of the heat which is produced during the exposure.

The back focus is minimal, so that the camera can also be used in most off-axis guiders for auto guiding. The Lemo connector on RJ12 is robust and compatible to most mount controllers on the market.

System requirements

The camera has an advanced electronics that makes a PC with USB 2.0 support necessary. The maximum performance can be reached only with a powerful USB 3.0 computer.

The operating software is Windows 7, 8 and 10 compatible and supported by 32- and 64-bit.


Type: Sony IMX185 Exmor CMOS color chip
Active pixels: 1920 * 1080 (2 megapixels)
Pixel size: 3.75 microns x 3.75 microns (square pixels)
Chip size: 7.2 mm x 4.1 mm
Quantum efficiency: unknown
Fullwell: unknown
Die: With microlenses
Readout type: Progressive scan
Shutter type: Rolling
Binning: 1x1 and 2x2
Data depth integration: 10 bit / 12 bit
Data depth output: 8 bit / 12 bit
Interface: USB 3.0 (backwards compatible with USB 2.0)
Exposure times: 9 microseconds - 1200 s
Anti-amp control: yes
Cooling: No cooling
Powered: Via USB cable
Autoguider port: Integrated (LEMO to RJ-12)
Telescope connection: 31.7mm (1 1/4 ") male terminal
Distance leading edge to the sensor: 11 mm
Optical window: With UV and IR blocking from 680nm
Dimensions (DxH): 31.7x42x65 mm
Weight: 85 g
