Adaptateur photo court Schmidt-Cassegrain vers T2 View larger

Schmidt-Cassegrain camera adapter to M48

Adaptateur photo

New product

Schmidt-Cassegrain camera adapter to M48

More details

This product is no longer in stock

45.0 CHF tax incl.

More info

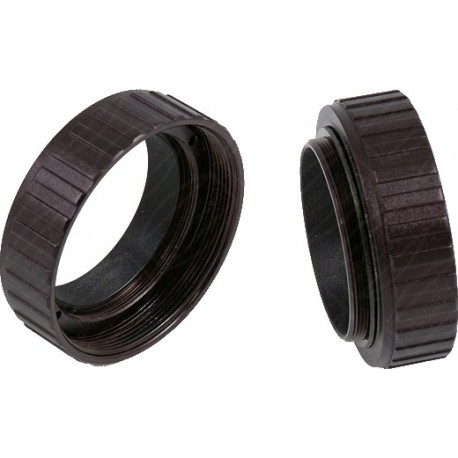

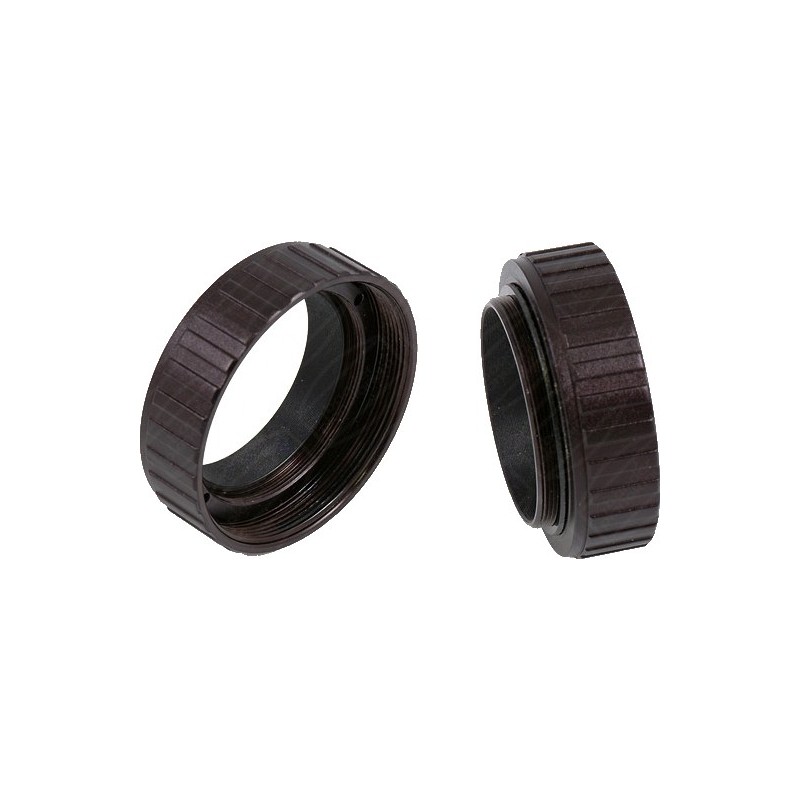

Schmidt-Cassegrain camera adapter to M48

This ring is screwed on one side directly on the rear thread of your telescope kind Schmidt Cassegrain and offers a standard M48 threaded output to fit your photographic accessories. This ring of large aperture is useful for photographic solutions in 2 "with cameras or camera with a large sensor (> = APS-C).

It avoids vignetting induced T2 standard and is standard with all the rings and filters with thread M48 (2 filters and accessories "50.80mm).

List of compatible instruments (not exhaustive)

  • Celestron Schmidt Cassegrain
  • Meade Schmidt Cassegrain
  • Intes Maksutov Cassegrain

Threads / technical information:

  • Female: like TBS 2 "x24 UNC for Schmidt-Cassegrain telescope
  • Male: M48-type filter 2 "/ M48x0,75mm
  • Circulation: 10mm

The very small length of this ring makes it particularly interesting for astronomers wishing to "stack" of accessories before their camera at home (filter wheel, proofreaders, adapter rings, etc ...)

The M48 thread has a diameter of 48mm thread, standard in astronomy for accessories 2 "filter type and screw-adapters. This thread is also present on the bushings of the return-bent ocular and 2" (50.80mm)

This accessory is of good quality, fully machined aluminum, glossy finish, and anodized black to avoid maximum internal parasitic reflections.
